VLOXO CS4001 Electric Scissors Replacement Blade Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective use of your VLOXO CS4001 electric scissors replacement blades. Please read these instructions carefully before installation and operation to ensure optimal performance and longevity of the blades.

2. Product Overview

The VLOXO CS4001 replacement blade set includes two distinct types of blades: the "O" blade for soft materials and the "D" blade for thick materials. These blades are crafted from durable tungsten steel, designed for sharpness and high-temperature resistance, ensuring efficient cutting performance.

Image: VLOXO CS4001 Replacement Blades. This image shows the two replacement blades alongside an electric scissor unit, highlighting their design and purpose.

Image: VLOXO CS4001 Replacement Blade Set. This image displays the two replacement blades with text indicating their features: Fast Cutting, Tungsten Steel, Sharp Edge, Durable.

3. Compatibility

These replacement blades are specifically designed for use with VLOXO CS4001 Cordless Electric Scissors. Ensure your electric scissors model is CS4001 to guarantee proper fit and function.

Image: VLOXO CS4001 Electric Scissors Compatibility. This image shows the replacement blades compatible with various colored VLOXO electric scissors, illustrating the universal fit for the CS4001 model.

4. Blade Types and Cutting Thickness

The VLOXO CS4001 replacement blade set includes two distinct blade types, each optimized for different materials and thicknesses:

• "O" Blade: Designed for cutting soft materials such as paper and fabric.
• "D" Blade: Designed for cutting thick materials including cardboard, carpet, leather, plastic packaging, and even thin sheet metals and foils.

Refer to the table below for specific cutting thickness guidelines:

Image: VLOXO CS4001 'O' and 'D' Blades. This image visually distinguishes between the narrow 'D' blade for thick materials and the wide 'O' blade for soft materials, showing examples of each.

Image: VLOXO CS4001 'D' Type Blade. A close-up view of the 'D' type blade, designed for cutting thicker materials.

Image: VLOXO CS4001 'O' Type Blade. A close-up view of the 'O' type blade, suitable for softer materials.

5. Blade Installation and Usage

5.1. Blade Replacement Procedure

Follow these steps to safely replace the blades on your VLOXO CS4001 electric scissors:

1. Press the blade button: Locate and press the blade release button on your electric scissors.
2. Pull out the old blade: Carefully pull out the worn or blunt blade along its slot.
3. Insert the new blade: Align the new replacement blade with the card slot and gently push it in until it clicks securely into place.

Important Tips:

• Always wear safety gloves when replacing blades to prevent injury.
• The safety lock of the electric scissors may be unavailable during blade replacement. Do not remove the blade protective cover when replacing the blade.

Image: Blade Replacement Steps. A visual guide demonstrating the three steps for replacing the blade on the VLOXO electric scissors.

5.2. General Usage

Once the correct blade is installed, ensure the material to be cut is within the specified thickness limits for the chosen blade type. Operate the electric scissors according to the main device's instruction manual. The combination of the two blade types allows for efficient cutting across a wide range of materials.

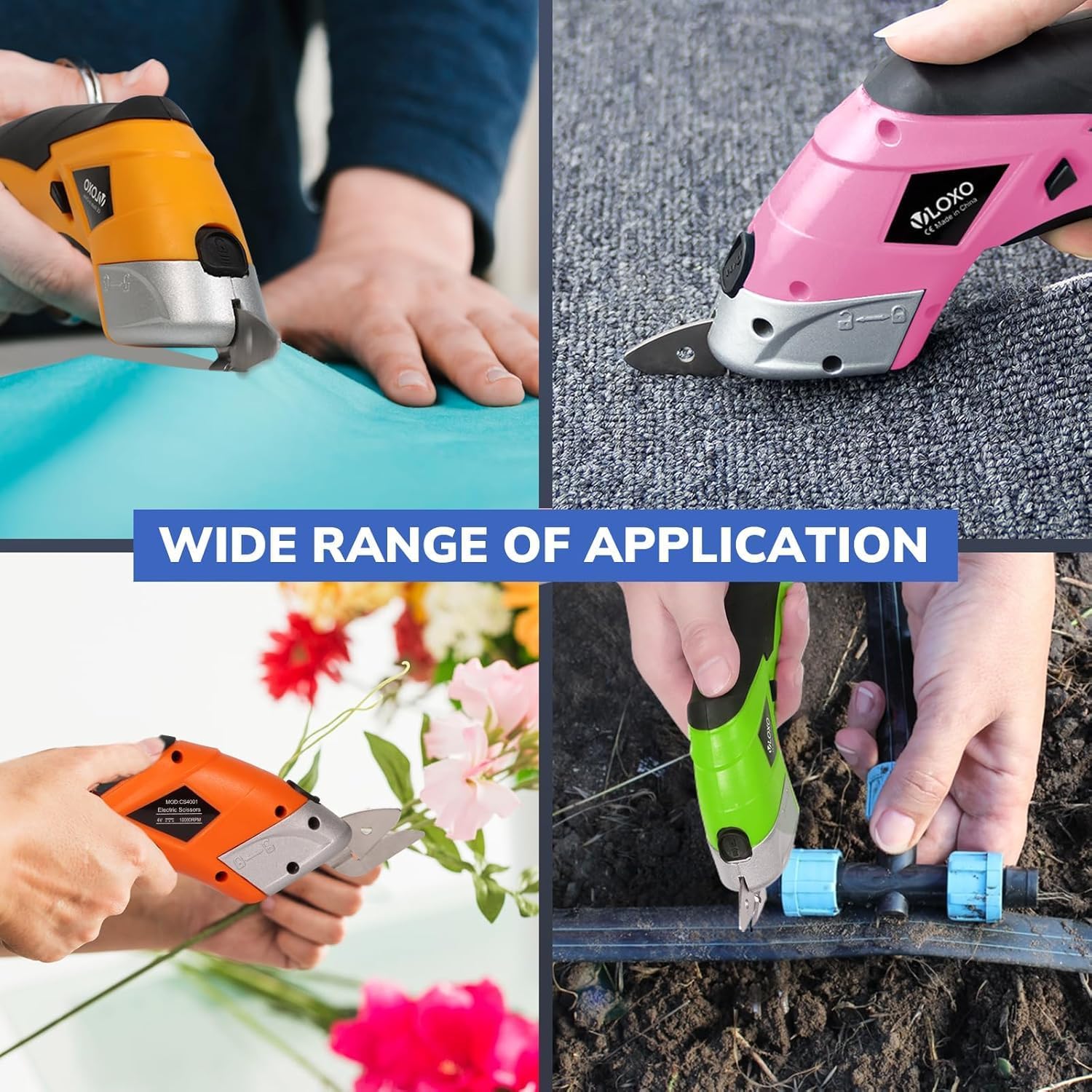

Image: Wide Range of Cutting Applications. This image shows the electric scissors being used for various tasks, including cutting fabric, flowers, and garden hoses, demonstrating its versatility.

Image: Crafting with VLOXO CS4001 Blades. A person is shown using the electric scissors to wrap a gift, illustrating its use in crafting activities.

6. Maintenance

6.1. Cleaning

After each use, ensure the blades are clean of any material residue. Use a dry cloth to wipe down the blades. For stubborn residue, a slightly damp cloth can be used, followed by immediate drying to prevent rust.

6.2. Storage

Store the replacement blades in a dry, safe place, away from children and pets. Keeping them in their original packaging or a dedicated tool case can help protect their sharpness and prevent accidental injury.

Image: Blade Storage. The image shows a replacement blade stored neatly within a carrying case, emphasizing easy and safe storage.

7. Specifications

8. Troubleshooting

8.1. Blades Not Cutting Effectively

• Check Blade Type: Ensure you are using the correct blade ("O" or "D") for the material and its thickness. Refer to Section 4.
• Blade Sharpness: If blades are dull, replace them with new VLOXO CS4001 replacement blades.
• Proper Installation: Verify that the blade is correctly seated and locked into the electric scissors. Refer to Section 5.1.

8.2. Difficulty Replacing Blades

• Ensure the blade release button is fully pressed.
• Do not force the blade. If it does not slide in or out smoothly, re-check alignment with the slot.

9. Video Demonstrations

Watch these videos for visual guidance on using and maintaining your VLOXO CS4001 electric scissors and replacement blades.

10. Warranty and Support

VLOXO is committed to providing quality products. If you encounter any issues or have questions regarding your replacement blades, please contact VLOXO customer support. We aim to provide solutions within 24 hours.

For specific warranty information, please refer to the documentation included with your VLOXO CS4001 electric scissors or visit the official VLOXO website.

Contact Information:

• Manufacturer: VLOXO
• Online Support: Refer to the VLOXO brand store on Amazon or the official VLOXO website for contact details.
