1. Introduction

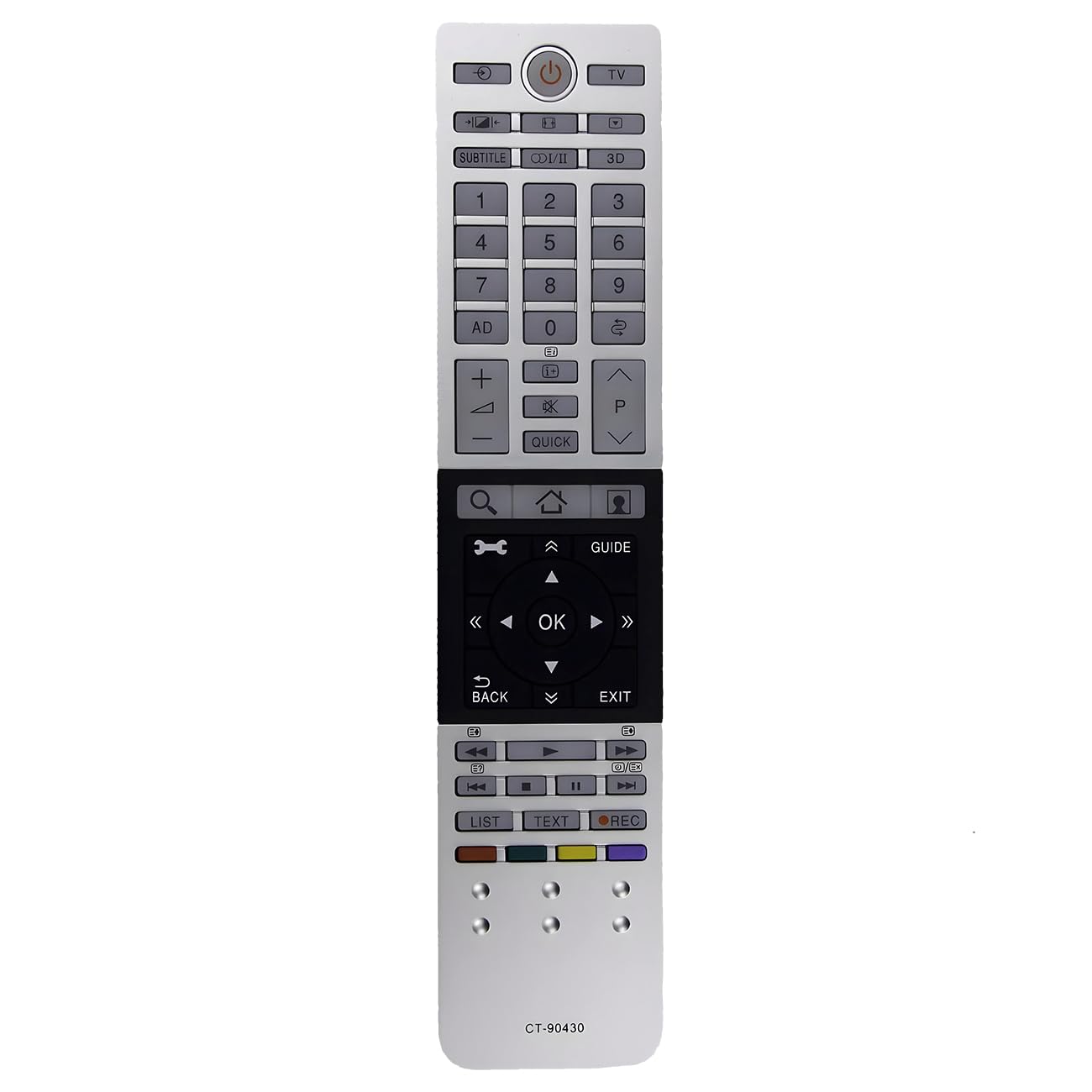

This manual provides instructions for the Effireli CT-90430 Replacement Remote Control. This remote is designed to function as a direct replacement for various Toshiba Smart TV models without requiring any programming or setup. Simply insert batteries and begin operation.
2. Setup
2.1 Battery Installation
To begin using your remote control, you must first install two AAA batteries (not included).
- Locate the battery compartment on the back of the remote control.
- Press down on the latch and slide the battery cover off.
- Insert two new AAA batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
- Slide the battery cover back into place until it clicks securely.
Note: This remote control requires no programming. Once batteries are installed, it is ready for use with compatible Toshiba Smart TV models.
3. Operating Instructions
The Effireli CT-90430 remote control operates using infrared technology. Ensure a clear line of sight between the remote control and your television's infrared receiver for optimal performance.
3.1 Basic Functions
- Power Button: Turns the television on or off.
- Number Buttons (0-9): Selects channels directly.
- Channel Up/Down: Navigates through channels sequentially.
- Volume Up/Down: Adjusts the sound level.
- Mute Button: Silences or restores the television's audio.
- Menu Button: Accesses the television's main menu.
- Navigation Buttons (Up, Down, Left, Right, OK): Used to navigate menus and confirm selections.
- Back/Exit Button: Returns to the previous screen or exits a menu.
- Source/Input Button: Changes the input source (e.g., HDMI 1, AV).
Refer to your Toshiba Smart TV's original user manual for specific functions of advanced buttons, if applicable.
4. Maintenance
4.1 Battery Replacement
Replace batteries when the remote control's response becomes sluggish or stops working. Always replace both batteries at the same time with new AAA batteries. Do not mix old and new batteries, or different types of batteries.
4.2 Cleaning
To clean the remote control, gently wipe it with a soft, dry cloth. For stubborn dirt, slightly dampen the cloth with water. Do not use harsh chemicals, abrasive cleaners, or immerse the remote in water.
4.3 Storage
If the remote control will not be used for an extended period, remove the batteries to prevent leakage and potential damage to the device.
5. Troubleshooting
- Remote control not responding:
- Ensure batteries are correctly installed with the correct polarity.
- Replace old batteries with new ones.
- Check for any obstructions between the remote control and the TV's infrared sensor.
- Ensure you are within the effective range and pointing the remote directly at the TV.
- Some buttons not working:
- Verify that the remote control is compatible with your specific Toshiba TV model. Refer to the 'Compatible Models' list in the specifications section.
- Clean the remote control, especially around the buttons, to remove any debris that might be causing sticking.
If issues persist after following these steps, please refer to the Warranty and Support section for further assistance.
6. Specifications
- Brand: Effireli
- Model Number: YK-CT-90430
- Special Feature: No Programming Required
- Max Number of Supported Devices: 1
- Compatible Devices: Television
- Connectivity Technology: Infrared
- Power Source: 2 x AAA Batteries (not included)
6.1 Compatible Models
This remote control is compatible with the following Toshiba Smart TV models:
50L2333DG, 50L7363DG, 40L7355DB, L7300A, 40L6353D, 32L6353DG, 32L6363DG, 40L7335D, 50L4333DG, 32L4353D, 32L6353DG, 32L6353RK, 39L4353, 39L4353RB, 39L4300U, 40L5335DG, 40L7335DG, 47L7453R, 50L4353RK, 50L7335DG, 50L7363DG, 50L4300U, 50L7300U, 58L7350U, 58L7363RB, 58L7365DG, 58L7300U, 58L9300VM, 65L7350U, 65L7300U, 65L9363DG, 50L7333DF, 40L6363DG, 50L4363DG, L4333, 39L4333DG, 32L4333DG, 40M6363D, 58l7363D, 40L3775D
Note: If your TV model number is not listed or your original remote appears different, please contact the manufacturer for compatibility confirmation.
7. Warranty and Support
7.1 Warranty Information
This product is covered by a 12-month warranty from the date of purchase, covering manufacturing defects. Additionally, a 30-day money-back guarantee is offered. Returns and exchanges are accepted within the warranty period for eligible issues.
7.2 Customer Support
For technical assistance, warranty claims, or compatibility inquiries, please contact Effireli customer support through the retailer's platform or the contact information provided with your purchase. When contacting support, please have your product model number (YK-CT-90430) and purchase details ready.
