Wanneton M9-1 Rechargeable Wireless Walkie Talkies User Manual

1. Introduction

This manual provides detailed instructions for the proper use and maintenance of your Wanneton M9-1 Rechargeable Wireless Walkie Talkies. Please read this manual thoroughly before operating the device to ensure optimal performance and safety.

What's in the Box

• 1X Walkie Talkie
• 1X Battery
• 1X Belt Clip
• 1X Charging Head (Power Adapter)
• 1X Charging Cable (USB Type-C)
• 1X Instruction Manual

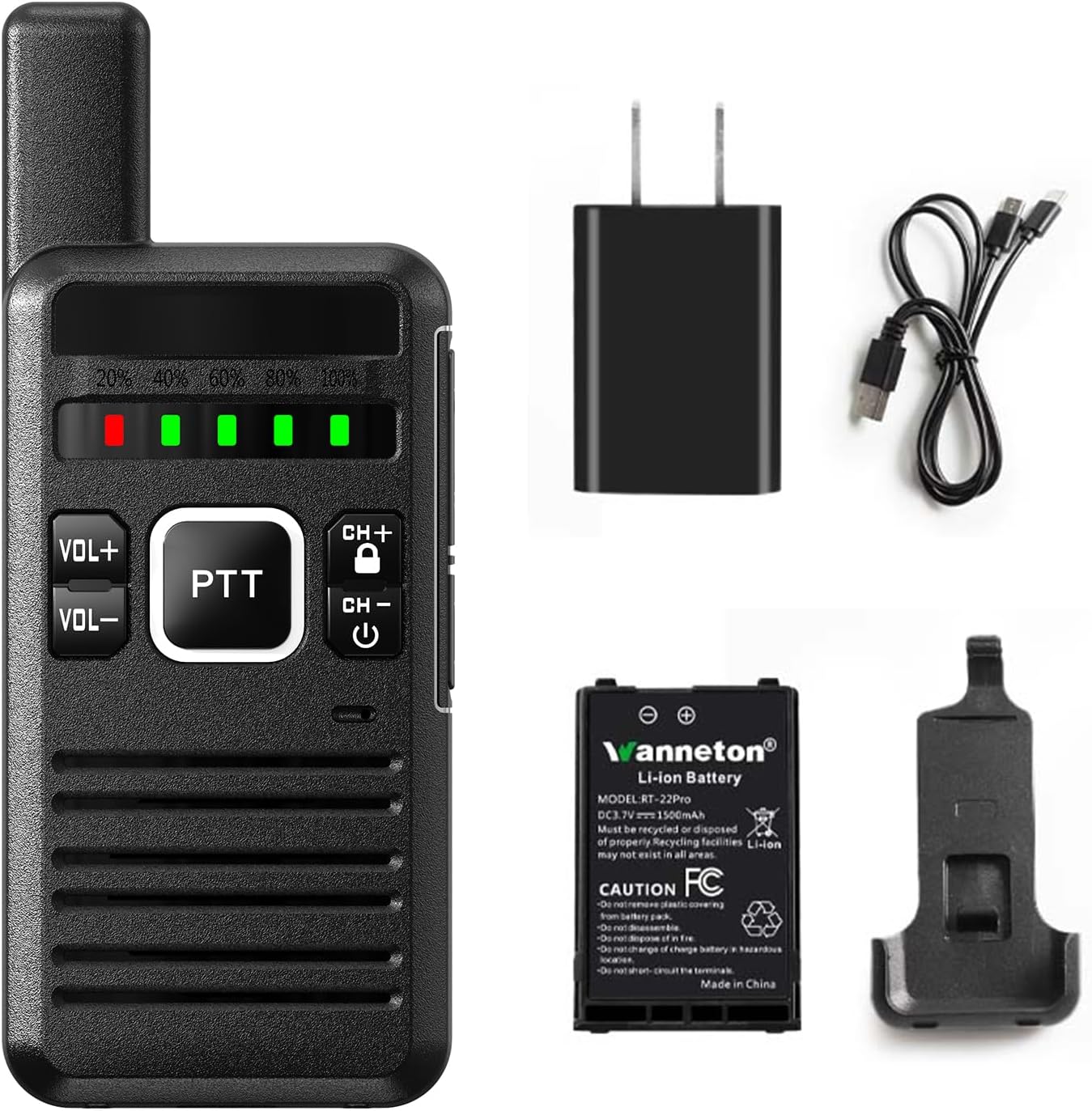

Figure 1: Package Contents of the Wanneton M9-1 Walkie Talkie.

2. Product Overview

Familiarize yourself with the components and controls of your Wanneton M9-1 walkie talkie.

Figure 2: Labeled Diagram of the Wanneton M9-1 Walkie Talkie.

Key Components:

• Antenna: For signal transmission and reception.
• Power/Volume Switch: Rotates to turn the device on/off and adjust volume.
• Battery Bar Display: Indicates current battery level.
• Headphone Jack: For connecting external audio accessories.
• Channel+/Channel Lock Button: Used to change channels and lock/unlock controls.
• USB Type-C Charging Socket: For charging the device.
• MIC: Microphone for voice input.
• Speaker: For audio output.
• PTT (Push-to-Talk) Button: Press and hold to transmit, release to receive.
• Volume +/- Keys: Adjusts the speaker volume.

3. Setup

3.1 Battery Installation

1. Ensure the walkie talkie is powered off.
2. Locate the battery compartment on the back of the device.
3. Insert the provided Lithium-Ion battery, ensuring the contacts align correctly.
4. Close the battery compartment cover securely.

3.2 Charging the Battery

The walkie talkie uses a rechargeable 1500mAh Li-ion battery. Charge the device before first use and whenever the battery indicator shows low power.

1. Connect the USB Type-C charging cable to the charging socket on the side of the walkie talkie.
2. Connect the other end of the USB cable to the charging head (power adapter) and plug it into a standard wall outlet, or connect it to a computer or power bank.
3. The battery indicator lights will show charging status. A full charge is indicated when all lights are green.
4. Disconnect the charger once charging is complete.

Figure 3: Charging the Wanneton M9-1 Walkie Talkie.

3.3 Attaching the Belt Clip

The innovative clip design allows for easy attachment and detachment without tools.

1. Align the belt clip with the designated slots on the back of the walkie talkie.
2. Slide the clip until it securely locks into place.
3. To remove, press the release tab (if present) and slide the clip off.

Figure 4: Attaching the Belt Clip for Hands-free Use.

4. Operating Instructions

4.1 Power On/Off and Volume Adjustment

1. To power on, rotate the Power/Volume switch clockwise until you hear a click and the device powers on.
2. To power off, rotate the Power/Volume switch counter-clockwise until you hear a click and the device powers off.
3. Adjust the volume by rotating the Power/Volume switch further clockwise (increase) or counter-clockwise (decrease). Alternatively, use the dedicated VOL+ and VOL- buttons.

Figure 5: Clear Sound Quality and Volume Control.

4.2 Transmitting and Receiving (PTT)

1. To transmit, press and hold the PTT (Push-to-Talk) button. Speak clearly into the microphone.
2. Release the PTT button to stop transmitting and return to receive mode.

4.3 Channel Selection

Use the CH+ and CH- buttons to cycle through the available channels. Ensure all parties are on the same channel for communication.

4.4 VOX Function (Hands-Free Operation)

The VOX (Voice Operated Exchange) function allows you to transmit without pressing the PTT button. When VOX is enabled, the radio will automatically transmit when it detects your voice.

• Access the device menu to enable or disable VOX.
• Adjust VOX sensitivity levels as needed to prevent accidental transmissions or missed voice activation.

4.5 Scrambling Function

The scrambling function encrypts your voice transmission to enhance privacy. Only other radios with the scrambling function enabled and set to the same code can understand your communication.

• Enable or disable scrambling through the device menu.

4.6 Scanning Function

The scanning function allows the radio to automatically scan through channels to detect active transmissions.

• Activate scanning via the device menu. The radio will stop on an active channel and resume scanning after a short period of inactivity.

4.7 Wireless Frequency Copy

This feature allows you to easily clone frequencies from other walkie talkie brands without needing to know the exact frequency, ensuring compatibility.

Figure 6: Wireless Frequency Copy in Action.

4.8 Other Functions

The M9-1 walkie talkie includes additional features accessible through the device menu:

• Privacy Codes: Utilize 260 privacy codes to minimize interference from other users.
• Decoding Function: For receiving scrambled transmissions.
• Low Battery Reminder: Alerts you when the battery is low.
• Power-Saving Mode: Extends battery life during periods of inactivity.
• Wide/Narrowband: Adjusts channel bandwidth for specific communication needs.

Figure 7: Overview of Wanneton M9-1 Features.

5. Maintenance

5.1 Cleaning

• Wipe the device with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Ensure the charging port is free of dust and debris.

5.2 Battery Care

• Avoid fully discharging the battery frequently.
• Store the device and battery in a cool, dry place when not in use for extended periods.
• Do not expose the battery to extreme temperatures.

6. Troubleshooting

7. Specifications

8. Warranty and Support

8.1 Warranty Information

Please note that the product specifications indicate 'NO' for warranty. For specific details regarding any implied warranties or consumer rights, please refer to your point of purchase or local consumer protection laws.

8.2 Customer Support

Wanneton provides lifetime after-sales service for the quality of their walkie talkies. If you have any questions, concerns, or require assistance with your M9-1 device, please contact our dedicated customer support team. Refer to the contact information provided with your purchase or visit the official Wanneton website for support options.
