AIYAPLAY Electric UTV Buggy for Kids (Model 370-348V90BN) Instruction Manual

1. Introduction

Thank you for choosing the AIYAPLAY Electric UTV Buggy. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new electric ride-on toy. Please read it thoroughly before use and retain it for future reference.

This product is designed for children aged 3-5 years and requires adult supervision during assembly and operation.

2. Safety Information

WARNING: To prevent the risk of serious injury, please observe the following safety guidelines:

• Always use under direct adult supervision.
• This vehicle is intended for use by one child at a time.
• The maximum recommended load capacity is 25 kg.
• Ensure the child wears appropriate safety gear, such as a helmet, when operating the vehicle.
• Do not operate the vehicle on public roads, near motor vehicles, on steep inclines, near swimming pools, or other bodies of water.
• Operate only on flat, dry surfaces. Avoid sand, loose dirt, or gravel.
• Keep hands, hair, and clothing away from moving parts.
• Regularly inspect the vehicle for damage, loose parts, or worn components before each use.
• Charging should only be performed by an adult.

Image: A child operating the AIYAPLAY Electric UTV Buggy with an adult walking nearby, emphasizing the need for supervision.

3. Product Overview

The AIYAPLAY Electric UTV Buggy is designed to provide an engaging and safe driving experience for young children. Key features include:

• Dual 12V Motors: Provides robust power for up to 50 minutes of continuous play.
• Smooth Ride: Equipped with four wheels and effective spring suspension for comfortable driving on various surfaces.
• Adjustable Speeds: Three adjustable speeds, reaching up to 6 km/h, controllable by the child or via a 2.4Ghz remote control for adult supervision.
• Interactive Features: Integrated music, horn, and working lights enhance the driving experience.

Image: Front view of the AIYAPLAY Electric UTV Buggy, illustrating its key specifications: dual motors, suitable for ages 3-5, single rider, and 25 kg weight capacity.

4. Setup and Assembly

Assembly of the AIYAPLAY Electric UTV Buggy is required and should be performed by an adult. Please ensure all parts are present before beginning.

4.1. What's in the Box

Image: A cardboard shipping box indicating "1x PACKAGE", representing the product's packaging.

Upon opening the package, verify that you have received the following components:

• Main vehicle body
• 4 Wheels
• Steering wheel
• Remote control (2.4Ghz)
• Headlights (if not pre-installed)
• Charger
• Assembly hardware (screws, washers, etc.)
• Instruction manual (this document)

4.2. Assembly Steps (General)

While specific steps may vary, general assembly involves:

1. Attach the wheels to the axles, securing them with the provided hardware.
2. Install the steering wheel, ensuring it clicks into place or is securely fastened.
3. Connect the battery terminals. Ensure the battery is fully charged before first use (refer to Charging section).
4. Install any additional components like headlights or mirrors as per the detailed diagrams in the physical manual.
5. Perform a final check to ensure all connections are secure and all parts are correctly installed.

5. Operating Instructions

5.1. First Use and Charging

Before the first use, fully charge the 12V 4.5Ah battery for 8-12 hours. Do not overcharge. The charging port is typically located on the dashboard or under the seat. Only use the charger provided with the vehicle.

5.2. Starting the Vehicle

• Turn the power switch (usually a button or key switch) to the "ON" position.
• The vehicle may emit a startup sound and lights may illuminate.

5.3. Driving the Vehicle (Child Operation)

• The child can control the vehicle using the steering wheel and foot pedal.
• Press the foot pedal to accelerate. Release to brake.
• Use the gear shift (if present) to select forward or reverse.
• Speed can be adjusted via a switch on the dashboard (low, medium, high settings). The maximum speed is 6 km/h.

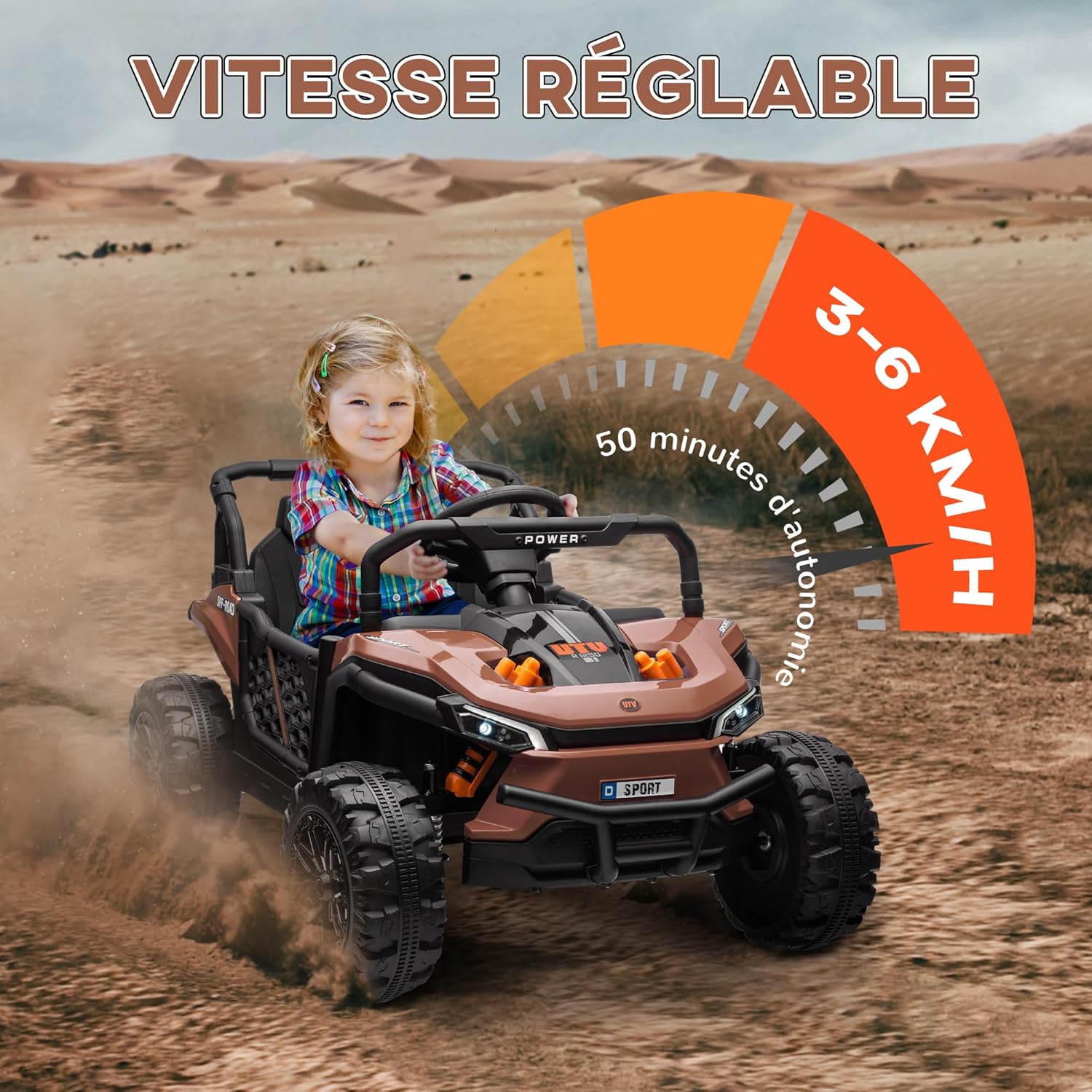

Image: A child driving the AIYAPLAY Electric UTV Buggy, with an overlay indicating adjustable speeds from 3-6 km/h and approximately 50 minutes of battery autonomy.

5.4. Using the Remote Control (Adult Supervision)

The 2.4Ghz remote control allows an adult to safely guide the vehicle. The remote control has a range of approximately 15 meters.

• Pairing: Follow the instructions in your physical manual to pair the remote control with the vehicle.
• Controls: Use the joystick or directional buttons to steer the vehicle (forward, backward, left, right).
• Speed Selection: The remote control may also have buttons to adjust the speed settings (low, medium, high).
• Emergency Stop: Most remote controls include an emergency stop button to immediately halt the vehicle.

Image: Hands holding the white 2.4Ghz remote control, with the AIYAPLAY Electric UTV Buggy and a child in the background, illustrating the remote's function and approximate 15m range.

5.5. Interactive Features

• Music: Press the music button on the dashboard or steering wheel to play pre-installed tunes.
• Horn: Press the horn button for a realistic sound effect.
• Lights: The headlights and taillights (if applicable) will illuminate when the vehicle is powered on.

Image: Close-up of the steering wheel, highlighting the horn and music buttons for interactive play.

6. Maintenance

6.1. Battery Care

• Always recharge the battery after each use, even if only for a short period.
• If the vehicle is not used for an extended period, charge the battery at least once a month to prolong its lifespan.
• Do not store the battery in extreme temperatures.
• Replace the battery when it no longer holds a charge effectively.

6.2. Cleaning

• Wipe the vehicle with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Avoid spraying water directly onto electrical components.

6.3. General Inspection

• Periodically check all screws, nuts, and bolts to ensure they are tight.
• Inspect the wheels and tires for wear or damage.
• Ensure all electrical connections are secure and free from corrosion.

7. Troubleshooting

8. Specifications

Image: Dimensional diagram of the AIYAPLAY Electric UTV Buggy, indicating its length (103cm), width (69cm), and height (59cm).

9. Warranty and Support

For warranty information, please refer to the terms and conditions provided by your retailer at the time of purchase. AIYAPLAY does not provide direct warranty details in this manual.

Regarding spare parts, information on availability is currently not provided by the manufacturer. For any issues or support inquiries, please contact the seller (Aosom FR) or the AIYAPLAY customer service channel through which you purchased the product.
