Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your SANGMUCEN Queen Metal Bed Frame, Model HBF031B01. Please read these instructions carefully before beginning assembly to ensure proper setup and safe use of your new bed frame. Keep this manual for future reference.
Safety Information
- This bed frame supports a maximum weight of 800 lbs. Do not exceed this weight limit to ensure safe operation and prevent damage to the frame.
- Ensure all bolts and screws are securely tightened before use and periodically check them for tightness.
- Keep small parts away from children during assembly.
- Assemble the bed frame on a soft, clean surface to prevent scratches.
- Do not use power tools for assembly as this may overtighten or damage components.
Package Contents
Before assembly, verify that all parts listed below are present. Each part is labeled with a serial number for easy identification.
- Headboard components
- Footboard components
- Side rails
- Metal slats
- Support legs (9 total)
- Assembly hardware (bolts, washers, nuts, Allen wrench)
- Foam padding for noise reduction
- Plastic protective pads for legs
- Non-slip mattress grippers
- Installation Manual
Assembly Instructions
Assembly is designed to be straightforward and typically takes less than 60 minutes. Follow the numbered steps in the included installation manual. Ensure all parts are correctly oriented before tightening any fasteners.
Figure 1: Bed Frame Dimensions. This diagram illustrates the overall dimensions of the Queen size bed frame, including height, width, and length, along with the under-bed clearance.
- Unpack and Identify Parts: Lay out all components on a clean, soft surface. Match each part to the corresponding label in the installation manual.
- Assemble Headboard and Footboard: Attach the headboard and footboard panels to their respective frames using the provided hardware. Do not fully tighten bolts until the entire frame is assembled.
- Connect Side Rails: Attach the side rails to the assembled headboard and footboard. Ensure the connections are secure.
- Install Center Support Beam and Legs: Place the center support beam and attach the 9 support legs. These legs are crucial for the 800 lbs weight capacity.
- Attach Metal Slats: Secure the metal slats to the side rails. Ensure the foam padding is correctly placed on the middle beam to prevent noise.
- Install Non-Slip Mattress Grippers: Attach the non-slip mattress grippers to the designated areas on the frame to prevent mattress movement.
- Final Tightening: Once all components are in place, systematically tighten all bolts and screws. Do not overtighten.
- Attach Protective Pads: Place the plastic protective pads on the bottom of each leg to prevent floor scratching.

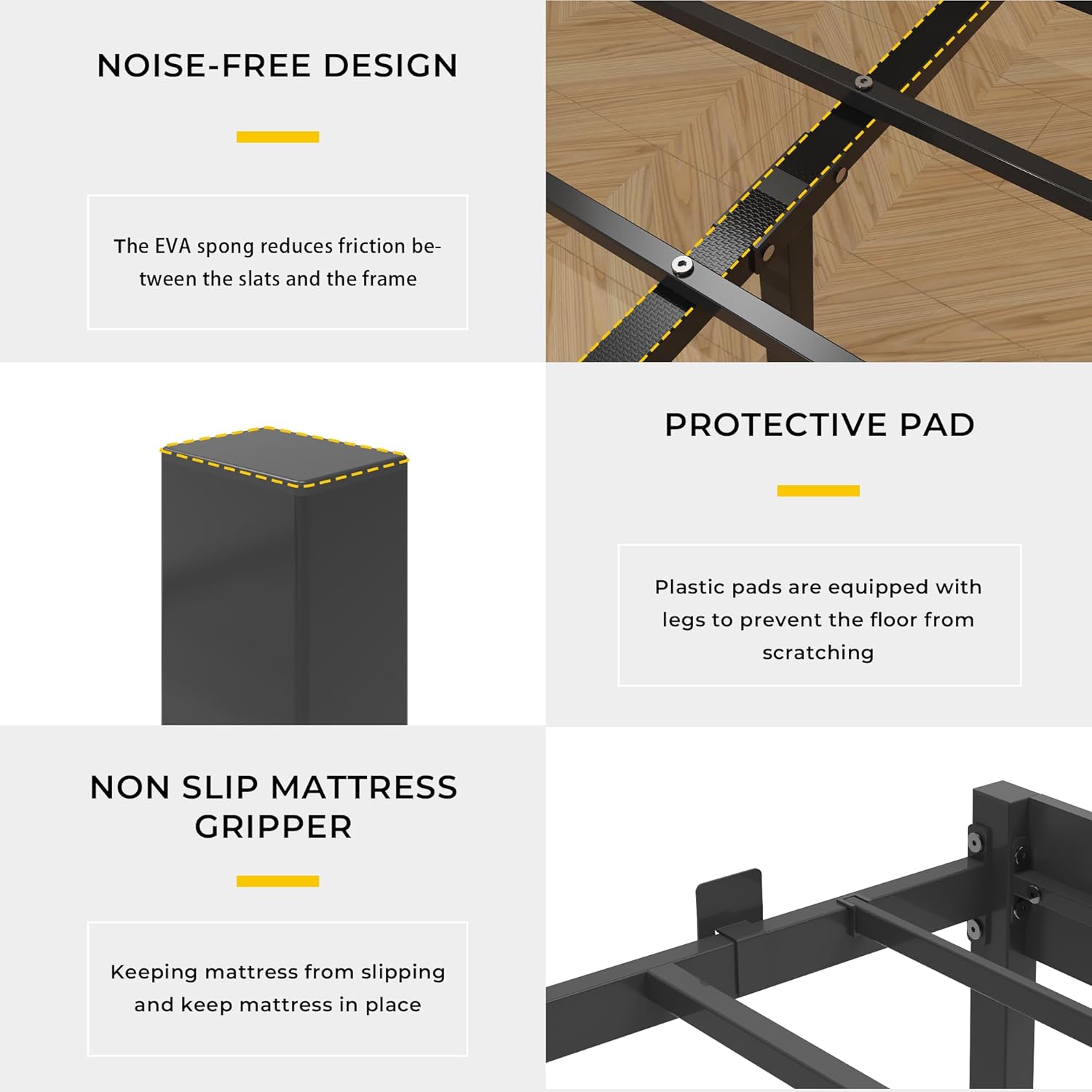

Figure 2: Key Features. This image highlights the noise-free design with EVA foam, protective pads for floor protection, and the non-slip mattress gripper.
Operating Instructions
The SANGMUCEN Queen Metal Bed Frame is designed for optimal comfort and stability. Follow these guidelines for proper use:
- Mattress Compatibility: This bed frame does not require a box spring. It is designed to support a Queen size mattress directly.
- Recommended Mattress Height: For best fit and aesthetic, a mattress height between 8 inches and 12 inches is recommended.
- Under-Bed Storage: The frame provides 12.2 inches of clearance underneath, offering ample space for storage bins and other items.
- Weight Capacity: The bed frame is engineered to support up to 800 lbs. Distribute weight evenly across the frame.

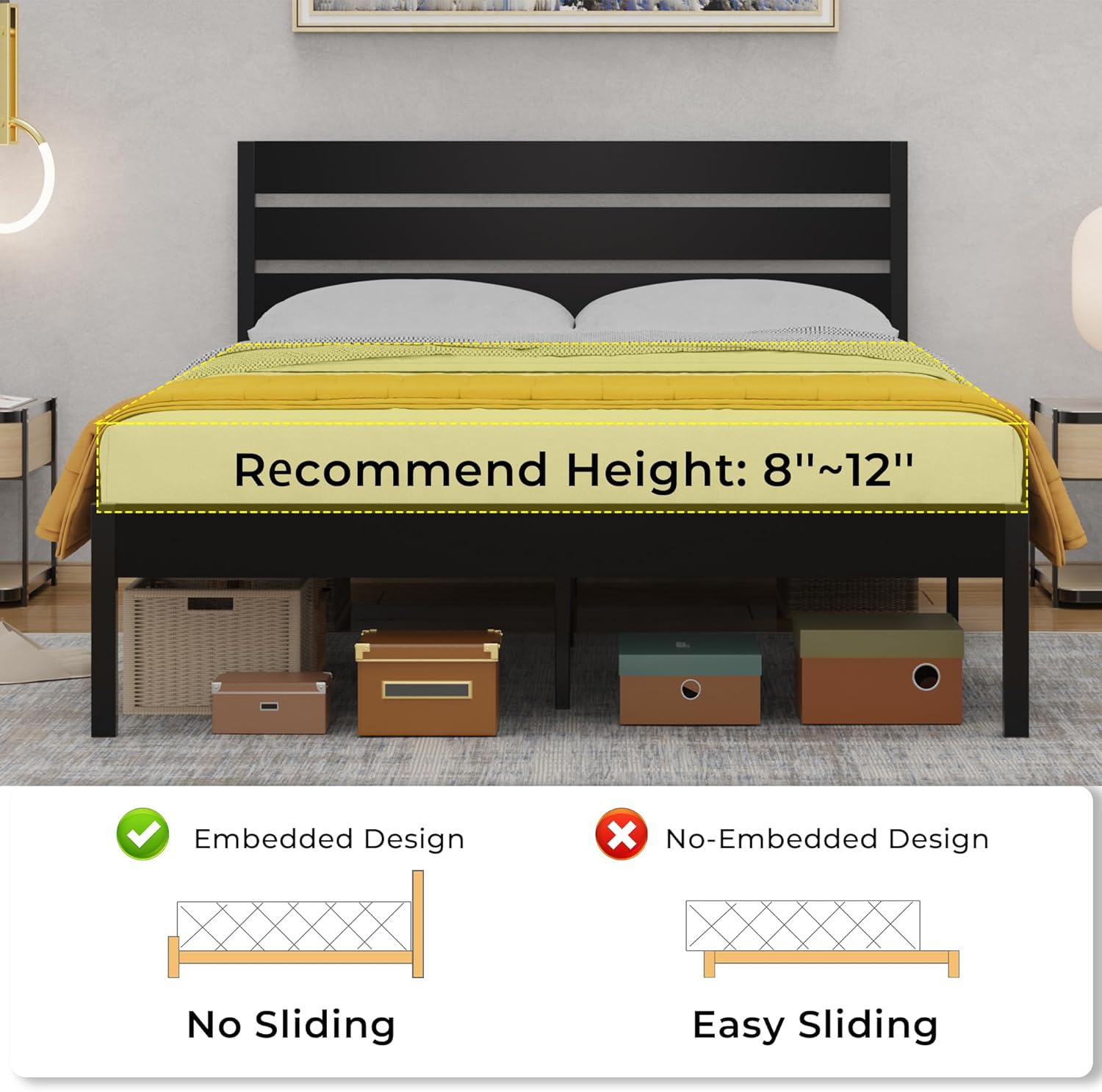

Figure 3: Mattress Recommendation. This image illustrates the recommended mattress height and the embedded design that prevents mattress sliding.
Figure 4: Under-Bed Storage. This image demonstrates the generous 12.2 inches of clearance available for under-bed storage.
Maintenance
Regular maintenance helps prolong the life and performance of your bed frame.
- Cleaning: Wipe the metal and headboard surfaces with a soft, damp cloth. Avoid using abrasive cleaners or harsh chemicals, as these can damage the finish.
- Fastener Check: Periodically (e.g., every 3-6 months) inspect all bolts and screws to ensure they remain tight. Re-tighten if necessary to maintain stability and prevent noise.
- Protective Pads: Ensure the plastic protective pads on the legs are intact to prevent floor damage. Replace if worn.
Troubleshooting
If you encounter any issues with your bed frame, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Squeaking or Noise | Loose bolts or friction between metal components. | Ensure all bolts are securely tightened. Verify that the foam padding on the middle beam is correctly positioned to reduce metal-on-metal friction. |
| Instability or Wobbling | Loose connections or uneven leg placement. | Check and tighten all assembly bolts. Ensure all 9 support legs are firmly on the floor and evenly supporting the frame. |
| Mattress Sliding | Non-slip grippers not installed or improperly positioned. | Confirm that the non-slip mattress grippers are correctly installed on the bed frame. |
Specifications
| Feature | Detail |
|---|---|
| Brand | SANGMUCEN |
| Model Number | HBF031B01 |
| Size | Queen |
| Color | Black |
| Material | Metal, Wood (for headboard/footboard panels) |
| Product Dimensions (L x W x H) | 210 x 154 x 100 cm (approximately 82.7 x 60.6 x 39.4 inches) |
| Item Weight | 23.6 kg (approximately 52 lbs) |
| Weight Capacity | 800 lbs |
| Under-Bed Clearance | 12.2 inches |
| Special Features | No Box Spring Needed, Space Saving, Squeak Resistant (with foam padding) |
| Included Components | Headboard, Installation Manual, Slats |
Warranty and Support
SANGMUCEN is committed to providing high-quality products and excellent customer service. If you encounter any problems with your bed frame, please do not hesitate to contact us. We aim to resolve any issues within 24 hours.
For support, please refer to the contact information provided in your purchase documentation or visit the official SANGMUCEN store page on Amazon.
Note: Please retain your proof of purchase for warranty claims.
