1. Introduction
Thank you for choosing the HyperGear Power Bank Pro+ 20,000mAh. This portable power bank is designed to provide reliable and fast charging for your mobile devices, tablets, and even USB-C laptops. With its high capacity and advanced charging technologies, it ensures your devices stay powered on the go. Please read this manual thoroughly before using the product to ensure proper operation and safety.
2. Safety Information
- Do not expose the power bank to extreme temperatures (hot or cold), direct sunlight, or high humidity.
- Do not disassemble, modify, or attempt to repair the device. This will void the warranty and may cause damage or injury.
- Keep the power bank away from water and other liquids.
- Avoid dropping or subjecting the power bank to strong impacts.
- Use only certified charging cables and adapters.
- Keep out of reach of children.
- Dispose of the power bank responsibly according to local regulations.
3. Package Contents
- HyperGear Power Bank Pro+ 20,000mAh
- USB-C to USB-C Charging Cable (may vary by package)
- User Manual
4. Product Overview
The HyperGear Power Bank Pro+ features multiple ports and an LED display for convenient charging and monitoring.

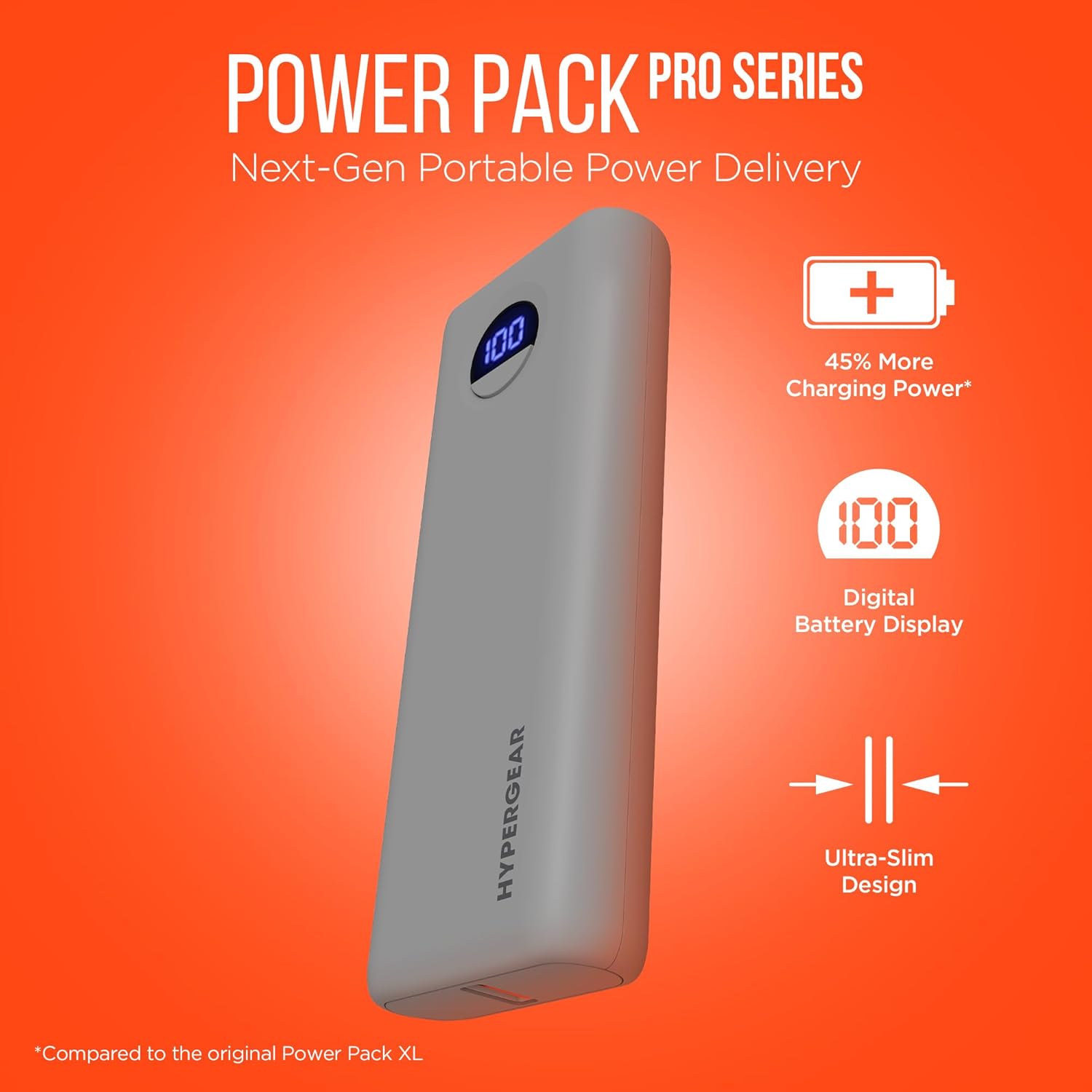

Image: HyperGear Power Bank Pro+ 20,000mAh with LED display showing 100% charge. This image highlights the sleek design and the digital battery indicator.
Port and Indicator Descriptions:
- USB-C Port (Input/Output): Supports 35W Power Delivery (PD) for fast charging compatible devices and recharging the power bank itself.
- USB-A Port (Output): Supports 18W Adaptive Fast Charge for quick charging of various devices.
- LED Digital Display: Shows the remaining battery percentage of the power bank.
- Power Button: Press once to check battery level; press and hold to activate/deactivate (if applicable).
5. Setup
Initial Charging of the Power Bank:
- Connect the provided USB-C cable to the USB-C port on the power bank.
- Connect the other end of the USB-C cable to a compatible USB-C wall adapter (not included) with a minimum output of 35W for optimal charging speed.
- The LED digital display will show the charging progress. Allow the power bank to fully charge to 100% before first use.
Image: HyperGear Power Bank Pro+ connected to a wall adapter for recharging, while simultaneously charging a smartphone. This demonstrates the pass-through charging capability.
6. Operating Instructions
Charging Your Devices:
- Connect your device's charging cable to either the USB-C or USB-A output port on the power bank.
- Connect the other end of the cable to your device.
- The power bank will automatically begin charging your device. The LED display will show the power bank's remaining battery level.
- To charge two devices simultaneously, connect one to the USB-C port and another to the USB-A port.
Image: HyperGear Power Bank Pro+ connected via a USB-C cable to an iPhone, illustrating fast charging for smartphones.
Image: HyperGear Power Bank Pro+ connected via a USB-C cable to a tablet, demonstrating fast charging for tablets.
Image: HyperGear Power Bank Pro+ connected via a USB-C cable to a MacBook Air, showing its capability for full-speed laptop charging.
Recharging the Power Bank:
To recharge the power bank, follow the steps outlined in the "Initial Charging of the Power Bank" section (Section 5). The USB-C port functions as both an input and output.
Pass-Through Charging:
The HyperGear Power Bank Pro+ supports pass-through charging, allowing you to recharge the power bank while it simultaneously charges your devices. Simply connect the power bank to a wall adapter and then connect your devices to the power bank's output ports.

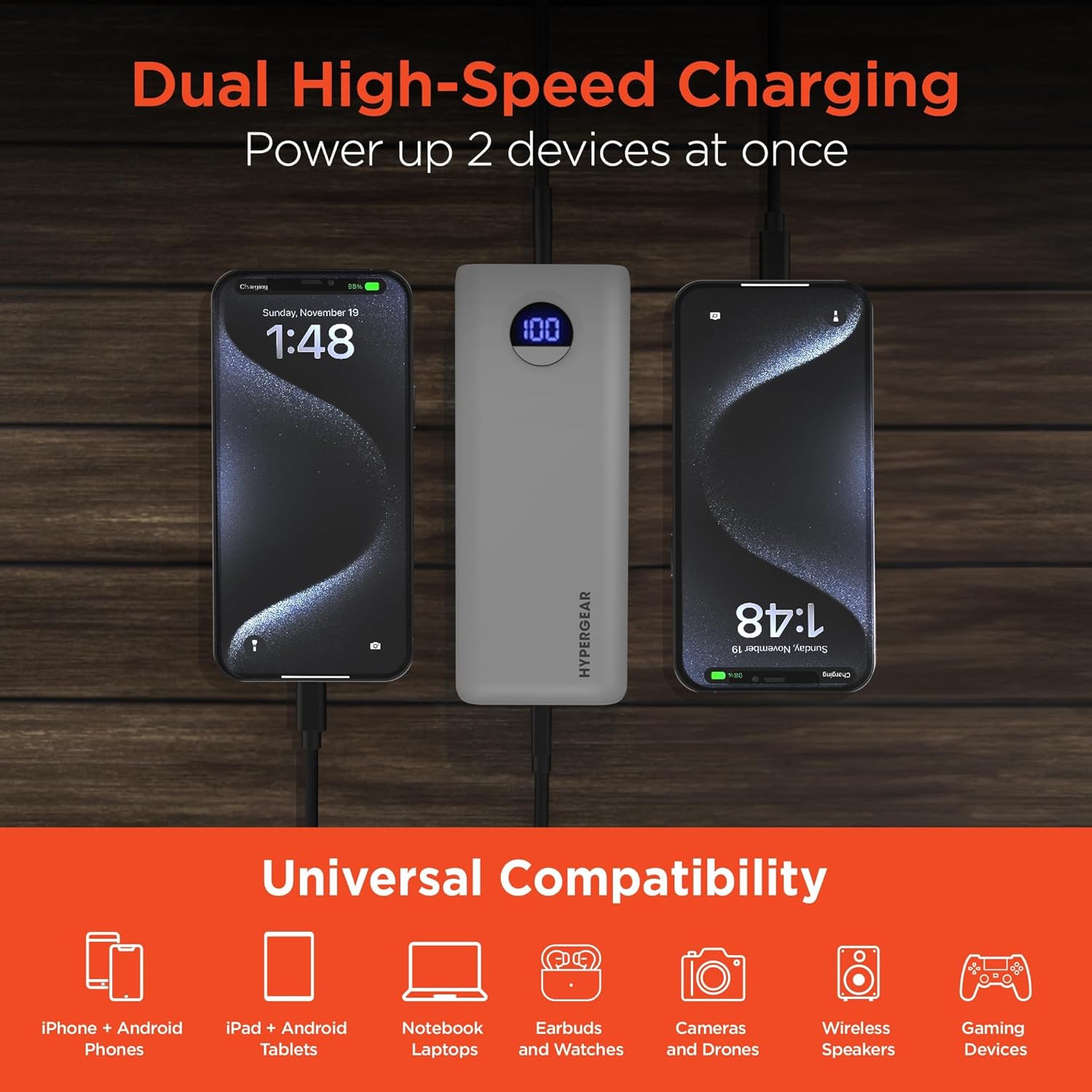

Image: HyperGear Power Bank Pro+ simultaneously charging two smartphones, with icons indicating universal compatibility for various devices.
7. Maintenance
- Cleaning: Use a soft, dry cloth to clean the surface of the power bank. Do not use harsh chemicals or abrasive materials.
- Storage: Store the power bank in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, it is recommended to charge the power bank to about 50-75% every 3-6 months to maintain battery health.
- Battery Health: Avoid fully discharging the power bank regularly, as this can reduce its overall lifespan.
8. Troubleshooting
Power Bank Not Charging:
- Ensure the charging cable is securely connected to both the power bank and the wall adapter.
- Verify that the wall adapter is functioning correctly and plugged into a live power outlet.
- Try using a different USB-C cable and/or wall adapter.
Device Not Charging from Power Bank:
- Check if the power bank has sufficient charge (refer to the LED display).
- Ensure the charging cable is securely connected to both the power bank and your device.
- Try using a different charging cable.
- Confirm your device is compatible with the power bank's output ports.
Slow Charging:
- Ensure you are using a fast-charging compatible cable and your device supports fast charging.
- The charging speed can be affected if multiple devices are charging simultaneously.
- Check your device's charging input requirements.
9. Specifications
| Model Number | 15843 |
| Battery Capacity | 20,000 mAh |
| USB-C Output/Input | 35W Power Delivery (PD) with PPS |
| USB-A Output | 18W Adaptive Fast Charge |
| Dimensions | 2.97 x 6 x 1.03 inches |
| Item Weight | 12.6 ounces |
| Special Features | Digital Battery Level Display, Dual Device Charging, Pass-Through Charging, Airline/TSA Compliant |
10. Warranty Information
HyperGear products are designed and manufactured to the highest quality standards. For detailed warranty information, including coverage period and terms, please refer to the official HyperGear website or the warranty card included with your purchase. Keep your proof of purchase for warranty claims.
11. Support
If you encounter any issues or have questions regarding your HyperGear Power Bank Pro+, please visit the official HyperGear support website for FAQs, troubleshooting guides, and contact information. You can typically find support resources at www.hypergear.com/support (example link, please verify actual URL).
