RoyalCraft Beige Fluted 3 Drawer Dresser Instruction Manual

Product Overview

The RoyalCraft Beige Fluted 3 Drawer Dresser is a versatile storage solution designed for various spaces including bedrooms, living rooms, and entryways. It features a timeless minimalist design with a sleek vertical stripe exterior and durable construction.

Key features include:

• Enhanced safety and stability with anti-tipping straps and a reinforced bottom plate.
• Easy-to-maintain materials, including P2 certified medium density fiberboard and an ASTM finish.
• Ample storage capacity with three deep drawers and a spacious top surface.

Setup and Assembly

This dresser requires assembly. Please follow the instructions carefully to ensure proper construction and stability. An assembly guide is included with your product.

1. Unpacking and Part Identification

Carefully unpack all components and verify against the included parts list. Ensure all hardware and panels are present before beginning assembly.

2. Product Dimensions

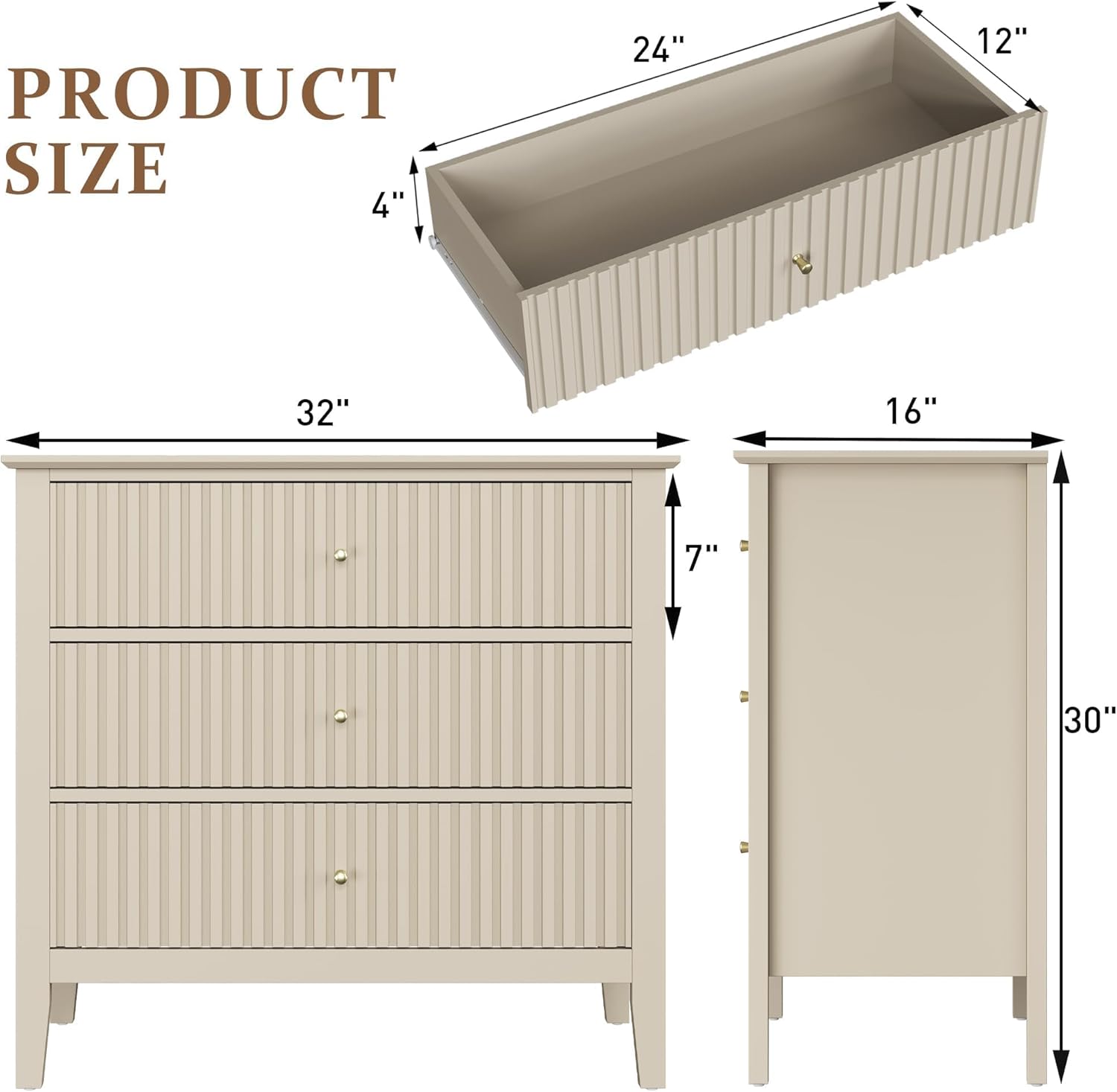

Image: Diagram showing the dimensions of the RoyalCraft 3-drawer dresser: 16 inches deep, 32 inches wide, and 30 inches high. A single drawer is shown with dimensions of 24 inches wide, 12 inches deep, and 4 inches high.

3. Material Composition

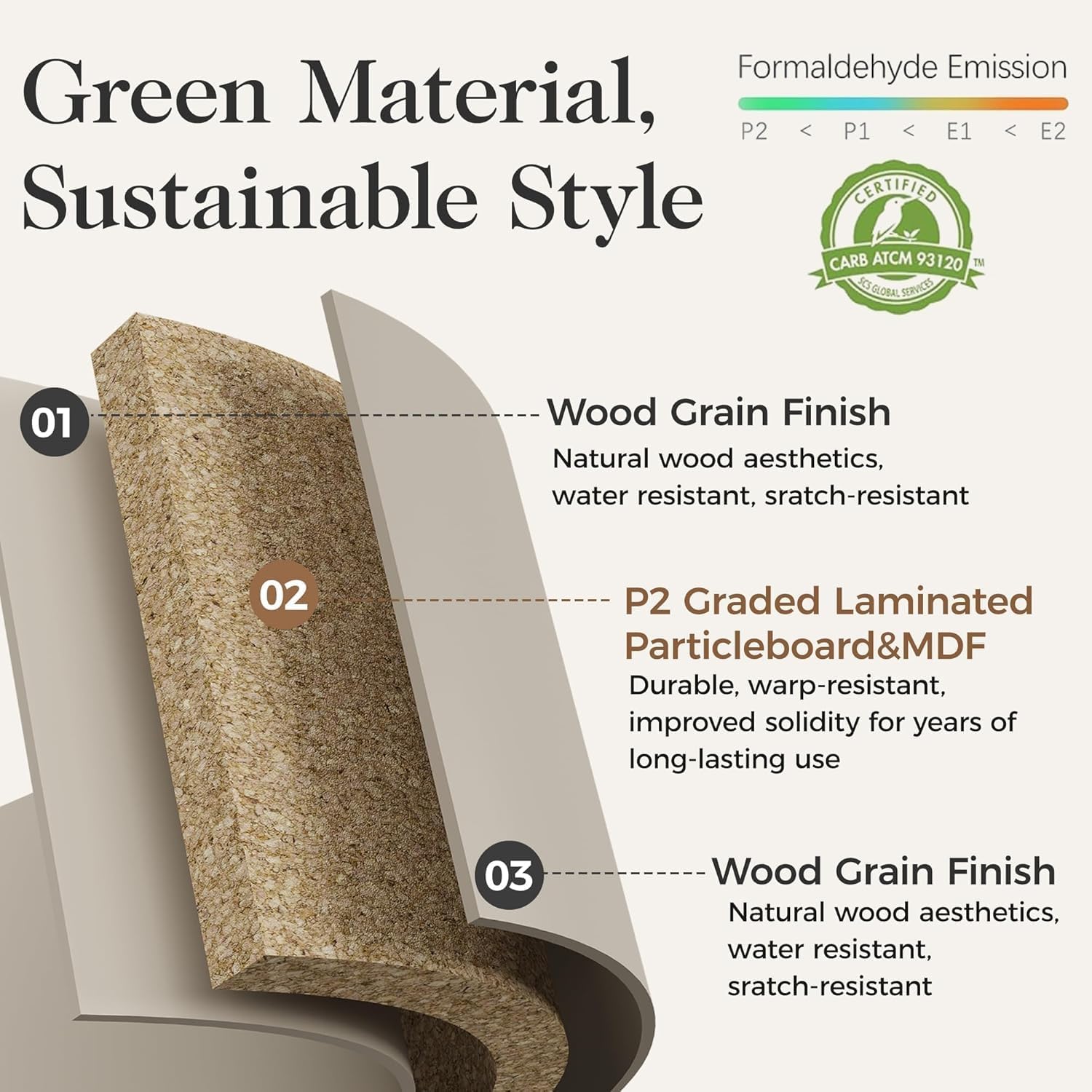

Image: Cross-section diagram illustrating the material layers of the dresser. It shows a wood grain finish on the exterior, P2 graded laminated particleboard & MDF as the core, and another wood grain finish on the interior, highlighting durability and water resistance.

4. Installing Drawer Sliding Rails

Proper installation of the drawer sliding rails is crucial for smooth operation. Refer to the detailed diagram below for correct alignment and attachment.

Image: Two diagrams demonstrating how to install drawer sliding rails. The top image shows the rail attached to the side panel of the dresser, and the bottom image shows the rail attached to the side of the drawer itself.

5. Enhanced Safety and Stability

To prevent accidental tipping, it is essential to install the anti-tipping device and back clips provided. This significantly enhances the dresser's stability and safety, especially in households with children or pets.

Image: Illustration showing the installation of the anti-tipping device, which secures the dresser to the wall, and a reinforced back clip for added structural integrity.

Assembly Video Guides

The following videos demonstrate the assembly process for similar RoyalCraft 3-drawer dressers. While the color may vary, the assembly steps are generally the same.

Operating Instructions

The RoyalCraft 3 Drawer Dresser is designed for ease of use and efficient storage. Each drawer is equipped with ball-bearing slides for smooth operation.

1. Drawer Usage

Gently pull the metal handles to open the drawers. Push firmly to close. Avoid forcing drawers if they encounter resistance. Ensure items are placed evenly to prevent imbalance.

Image: The RoyalCraft 3-drawer dresser with all three drawers partially open, revealing ample storage space for various items. The image emphasizes the spaciousness of each drawer.

2. Storage Capacity

Each deep drawer (11.3 inches) provides substantial storage. The spacious desktop can accommodate lamps, decorative items, or other essentials.

Image: A RoyalCraft 3-drawer dresser with various items like books, headphones, plants, towels, and clothes indicated as storable within its drawers. The top surface holds a lamp and decorative items.

3. Weight Capacity

The dresser is designed to support a maximum recommended load of 150 pounds on its top surface. Distribute weight evenly across the surface and within drawers.

Image: A visual breakdown of features contributing to the dresser's safety and weight capacity, including safe waterproof paint, a reinforced drawer base, and an elevated ventilation design.

Care and Maintenance

To ensure the longevity and appearance of your RoyalCraft dresser, follow these simple care guidelines:

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, which can damage the finish.
• Spills: Promptly wipe up any spills to prevent staining or moisture damage. The dresser features safe waterproof paint for added protection.
• Sunlight: Avoid prolonged exposure to direct sunlight to prevent fading or discoloration of the finish.
• Heat: Do not place hot items directly on the surface. Use coasters or protective pads.
• Inspection: Periodically check all screws and fasteners to ensure they are tight. Retighten if necessary.

Image: A comparison highlighting the superior wood grain finish of the RoyalCraft dresser, which is water-resistant and scratch-resistant, versus a dull melamine finish that lacks durability and is prone to damage.

Image: Close-up of the dresser's metal handle and a label indicating "Low Odor Safety Paint," emphasizing the product's quality and user-friendly materials.

Troubleshooting

If you encounter any issues with your RoyalCraft dresser, please refer to the following common solutions:

• Drawers not sliding smoothly:
  1. Check that the drawer sliding rails are correctly installed and aligned. Refer to the "Installing Drawer Sliding Rails" section.
  2. Ensure no objects are obstructing the drawer's path or the rails.
  3. Verify that all screws securing the rails are tightened.
• Dresser feels unstable:
  1. Confirm that all assembly screws are securely tightened.
  2. Ensure the anti-tipping device is properly installed and anchored to a wall stud.
  3. Place the dresser on a flat, level surface.
• Minor cosmetic damage (scratches/dents):

  For minor imperfections, touch-up paint matching the dresser's finish may be used. Consult with customer service for recommendations.

If the issue persists, please contact RoyalCraft customer service for further assistance.

Product Specifications

Warranty Information

RoyalCraft products are designed for quality and durability. This product is covered by a 30-day easy return policy. For specific warranty details or to inquire about extended protection plans, please contact RoyalCraft customer service.

Protection plans are available for purchase separately:

• 2-Year Protection Plan
• 3-Year Protection Plan
• Complete Protect (monthly billing)

Customer Support

For any questions, concerns, or assistance with your RoyalCraft Beige Fluted 3 Drawer Dresser, please do not hesitate to contact our dedicated customer service team. We are committed to ensuring your satisfaction.

Contact information can typically be found on the RoyalCraft store page on Amazon or within your product packaging.
