1. Introduction
This manual provides essential information for the safe and efficient use of your GT-Lite 3000 Lumen LED Garage Light (Model AM-G3K-3P). Please read these instructions carefully before installation and operation, and retain them for future reference.
The GT-Lite LED Garage Light is designed to provide bright, adjustable illumination for various indoor spaces such as garages, workshops, basements, and utility rooms. It features three adjustable LED panels and a standard E26 base for easy installation.
2. Safety Instructions
To ensure safe operation, always follow these precautions:
- Disconnect Power: Always turn off the power at the circuit breaker or fuse box before installing, removing, or performing any maintenance on the light fixture.
- Indoor Use Only: This product is designed for indoor use in dry locations. Do not expose to water or moisture.
- Proper Socket: Ensure the light is screwed into a standard E26 medium base socket.
- Avoid Direct Eye Exposure: Do not stare directly into the LED light source when it is illuminated, as this may cause eye strain or damage.
- Heat Dissipation: The light generates heat during operation. Ensure adequate ventilation around the fixture. Do not touch the panels when the light is functioning.
- Non-Dimmable: This LED light is non-dimmable. Do not use with dimmer switches, as this may damage the product.
- Qualified Personnel: If you are unsure about any part of the installation process, consult a qualified electrician.
3. Package Contents
The package contains the following item:
- 1 x GT-Lite 3000 Lumen LED Garage Light (Model AM-G3K-3P)
Figure 1: GT-Lite 3000 Lumen LED Garage Light as packaged.
4. Setup and Installation
Installation of the GT-Lite LED Garage Light is straightforward. Follow these steps:
- Ensure Power is Off: Before beginning, turn off the power to the light fixture at the circuit breaker or fuse box.
- Unpack the Light: Carefully remove the LED garage light from its packaging.
- Screw into Socket: Screw the E26 base of the LED light into a standard E26 medium base light socket. Turn clockwise until snug. Do not overtighten.
- Adjust Panels: Once securely installed, you can adjust the three LED panels. Each panel pivots 90 degrees up and down and rotates 180 degrees horizontally, allowing you to direct the light as needed.
- Restore Power: Turn the power back on at the circuit breaker or fuse box.
Figure 2: Components and adjustable features of the GT-Lite LED Garage Light.
Figure 3: Panel adjustment range from 0 to 90 degrees.
5. Operating Instructions
The GT-Lite LED Garage Light operates like a standard light bulb once installed:
- Turning On/Off: Use the existing wall switch connected to the light socket to turn the light on or off.
- Adjusting Illumination: The three LED panels can be manually adjusted to direct light to specific areas. Gently pivot each panel to achieve the desired lighting angle.
- Optimal Lighting: For broad coverage, spread the panels outwards. For more focused illumination, angle them towards a specific workspace.
Figure 4: Example of the GT-Lite LED Garage Light providing illumination in a garage setting.
6. Maintenance
The GT-Lite LED Garage Light is designed for minimal maintenance:
- Cleaning: Ensure the power is off and the light is cool before cleaning. Wipe the panels and base with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
- No User-Serviceable Parts: The LED components are integrated and not user-replaceable. Do not attempt to disassemble the light.
- Lifespan: With an estimated lifespan of over 30,000 hours, regular bulb replacement is not required.

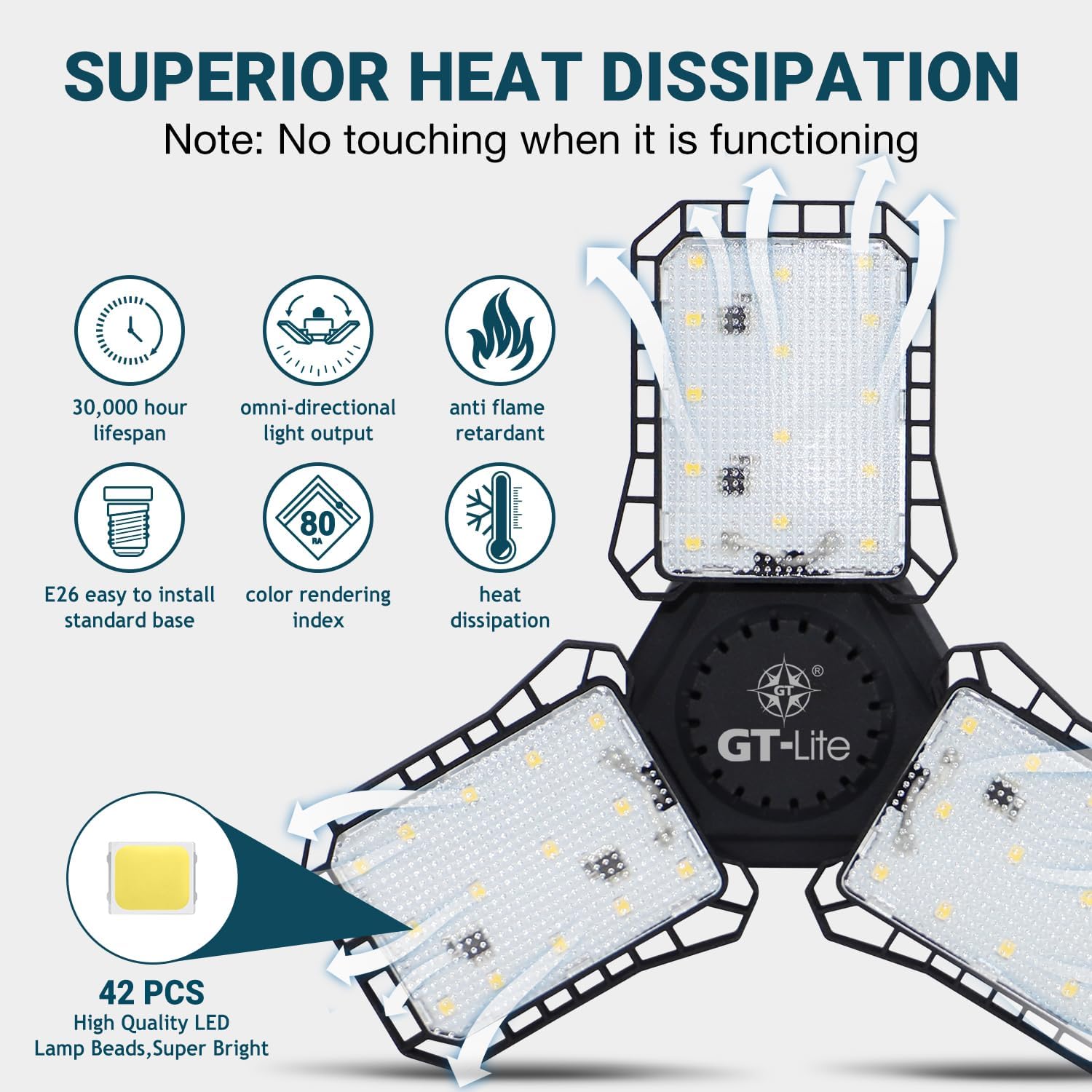

Figure 5: Illustration of the heat dissipation design and LED components.
7. Troubleshooting
If you encounter issues with your GT-Lite LED Garage Light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. |
|
|
| Light flickers. |
|
|
| Light output seems low. |
|
|
8. Specifications
| Brand | GT-Lite |
| Model Number | AM-G3K-3P |
| Light Type | LED |
| Luminous Flux | 3000 Lumens |
| Wattage | 30 Watts |
| Color Temperature | 5000K Daylight |
| Base Type | E26 Medium Base |
| Lifespan | 30,000 Hours (approx. 27.4 years based on 3 hrs/day) |
| Dimmable | No (Non-Dimmable) |
| Indoor/Outdoor Usage | Indoor |
| Item Weight | 4.8 ounces |
| Package Dimensions | 5 x 4.3 x 4 inches |
| Special Features | Adjustable Panels, Lightweight, Glare-free, Flicker-free |
9. Warranty Information
Specific warranty details for the GT-Lite 3000 Lumen LED Garage Light are typically provided at the point of purchase or on the manufacturer's official website. Please refer to your purchase documentation or contact the retailer/manufacturer directly for information regarding warranty coverage and terms.
10. Customer Support
For technical assistance, product inquiries, or support, please contact the retailer where you purchased the GT-Lite 3000 Lumen LED Garage Light. You may also visit the official GT-Lite brand store on Amazon for additional resources and contact information:
