Aheaplus YHCC-10A
Aheaplus 8FT Closet Organizer System (Model YHCC-10A)
Instruction Manual
1. Introduction
This manual provides comprehensive instructions for the assembly, operation, and maintenance of your Aheaplus 8FT Closet Organizer System, Model YHCC-10A. This system is designed to enhance your closet space with its versatile storage solutions, including hanging rods, adjustable shelves, and wooden drawers. Please read this manual thoroughly before beginning assembly or use to ensure proper installation and safe operation.

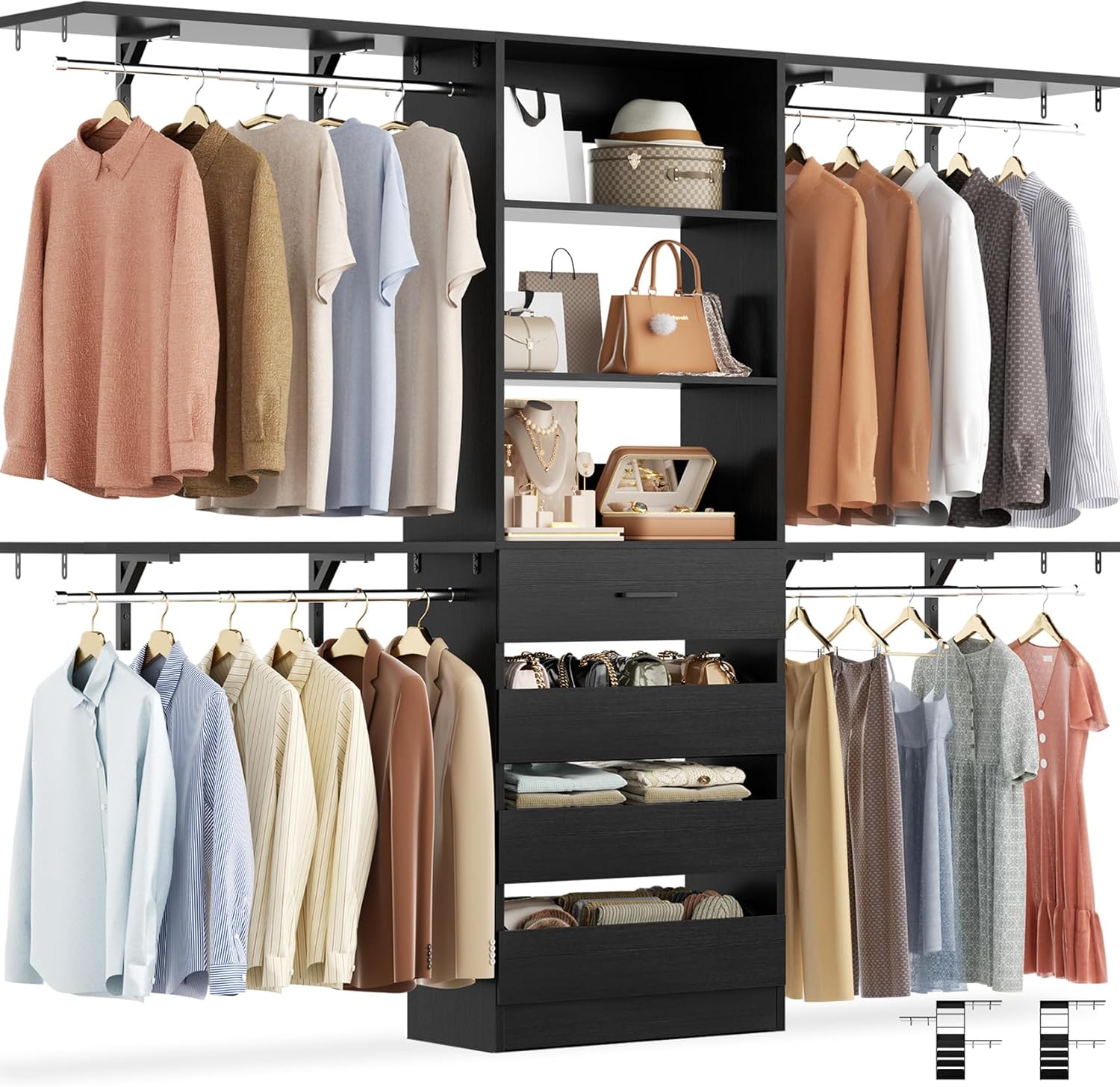

Figure 1: Fully assembled Aheaplus 8FT Closet Organizer System.
2. Safety Information
Please observe the following safety precautions during assembly and use:
- Adult Assembly Required: Assembly should be performed by at least two adults.
- Secure Mounting: Always secure the closet system to a wall stud using the provided anti-tip hardware to prevent tipping. Failure to do so can result in serious injury.
- Weight Capacity: Do not exceed the maximum weight capacity of 1000 lbs for the entire system. Distribute weight evenly across shelves and hanging rods.
- Tool Safety: Use appropriate tools as instructed. Wear safety glasses during drilling or cutting operations.
- Children and Pets: Keep children and pets away from the assembly area. Small parts can be a choking hazard.
- Level Surface: Assemble the unit on a flat, level surface to ensure stability.
Figure 2: Example of anti-tip kit installation for safety.
3. Package Contents
Verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact customer support.
- Central Tower Unit with 4 Wooden Drawers
- Adjustable Shelving Boards for Tower
- 4 Expandable Hanging Rods
- Side Shelving Units (quantity may vary based on configuration)
- Mounting Hardware (screws, anchors, brackets)
- Anti-tip Kit
- Assembly Instructions
4. Setup and Assembly
Assembly is required for this product. Follow the detailed instructions provided in the included assembly guide. The following points highlight key aspects of the setup process:
4.1. Planning Your Layout
The Aheaplus Closet Organizer System offers multiple installation configurations to fit spaces from 4 to 9 feet wide. Consider your closet dimensions and storage needs before starting assembly. The shelving tower boards can be installed on one side or trimmed for smaller closets.
Figure 3: Multiple installation configurations for 4-9 ft. wide spaces.
4.2. Assembling the Central Tower
Begin by assembling the central tower unit, which includes the four wooden drawers. The design accommodates baseboards, allowing the unit to sit flush against the wall.
4.3. Installing Shelves and Hanging Rods
The system features adjustable height shelves within the tower and four expandable hanging rods. The hanging rods can expand from 26 inches to 47 inches, providing flexibility for various clothing lengths. Ensure all brackets are securely fastened to the wall studs for maximum stability.
Figure 4: Key features including expandable rods, adjustable shelves, and wooden drawers.
4.4. Wall Mounting
It is crucial to mount the entire system to the wall using the provided hardware. Locate wall studs for secure attachment. This step is essential for the stability and safety of the closet organizer, especially when fully loaded.
5. Operating Your Closet System
Once assembled, your Aheaplus Closet Organizer System is ready for use. Utilize the various components to organize your wardrobe efficiently:
- Hanging Rods: Use the four expandable rods for hanging shirts, dresses, pants, and other garments. Adjust the rod length as needed.
- Wooden Drawers: The four wooden drawers provide enclosed storage for folded clothing, accessories, or personal items.
- Adjustable Shelves: The shelves within the tower unit can be adjusted to different heights to accommodate various items such as bags, shoes, or folded sweaters.
- Weight Distribution: Always distribute weight evenly across all shelves and hanging rods to maintain stability and prevent strain on the structure.
Figure 5: Example of the closet system in use, demonstrating storage capacity.
6. Maintenance and Care
To ensure the longevity and appearance of your Aheaplus Closet Organizer System, follow these maintenance guidelines:
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, which can damage the painted finish.
- Spills: Immediately wipe up any spills to prevent staining or damage to the wood material. The surface is designed to be waterproof.
- Hardware Check: Periodically check all screws and fasteners to ensure they remain tight. Retighten as necessary.
- Weight Limits: Adhere to the recommended weight limits for shelves and rods to prevent structural damage.
Figure 6: Illustration of the waterproof surface feature.
7. Troubleshooting
If you encounter any issues with your closet system, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit feels unstable or wobbly. | Not properly secured to the wall; loose fasteners; uneven floor. | Ensure the anti-tip kit is correctly installed into a wall stud. Tighten all assembly fasteners. Place shims under the unit if the floor is uneven. |
| Drawers do not close flush or are difficult to open/close. | Drawer slides misaligned; incorrect assembly of drawer box. | Review the assembly instructions for the drawers and slides. Ensure slides are installed level and correctly. Check that the drawer box is assembled squarely. |
| Hanging rods sag or bend. | Exceeded weight capacity; improper installation. | Reduce the amount of clothing on the rod. Ensure rod supports are securely fastened to the wall and the rod is properly seated in its holders. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Aheaplus |
| Model Number | YHCC-10A |
| Color | Black |
| Material | Wood |
| Finish Type | Painted |
| Mounting Type | Wall Mount |
| Unit Count | 1.0 Count |
| Weight Capacity | Up to 1000 lbs (evenly distributed) |
| Hanging Rod Expansion | 26 inches to 47 inches |
| Assembly | Assembly Required |
Figure 7: Product dimensions and weight capacity details.
9. Warranty and Support
For warranty information or customer support, please refer to the documentation included with your purchase or contact Aheaplus directly through their official website or customer service channels. Please have your model number (YHCC-10A) and purchase details ready when contacting support.
