Condere ZD-001 3-Tier Electric Food Steamer Instruction Manual

1. Introduction

Thank you for choosing the Condere ZD-001 3-Tier Electric Food Steamer. This appliance is designed to provide a healthy and efficient way to cook a variety of foods, preserving nutrients and flavors. Please read this instruction manual thoroughly before first use to ensure safe and optimal operation.

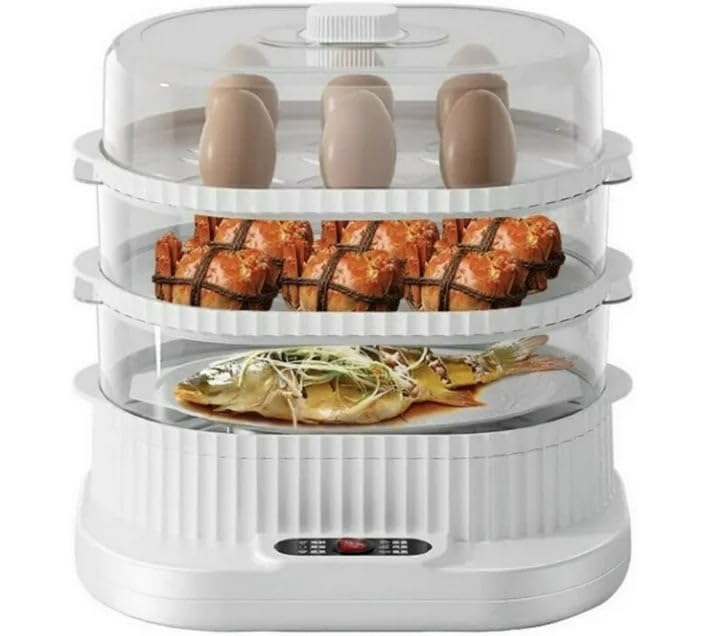

Image 1.1: The Condere ZD-001 3-Tier Electric Food Steamer, fully assembled with its base, three steaming baskets, and lid.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury.

• Read all instructions before using the steamer.
• Do not immerse the power cord, plug, or base unit in water or other liquids.
• Close supervision is necessary when the appliance is used by or near children.
• Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach the plug to the appliance first, then plug the cord into the wall outlet. To disconnect, turn any control to 'off', then remove the plug from the wall outlet.
• Do not use the appliance for other than intended use.
• The steamer is equipped with dry burn-off protection for enhanced safety. If the water reservoir runs dry, the unit will automatically shut off.

Image 2.1: Packaging detail showing the 'Dry burn-off protection is safer' feature of the steamer.

3. Product Components

Familiarize yourself with the parts of your Condere ZD-001 Electric Food Steamer:

• Base Unit: Contains the heating element, water reservoir, and control panel.
• Water Reservoir: Located within the base unit, for holding water to generate steam.
• Steaming Baskets (3): Stackable tiers for holding food. BPA-free material.
• Lid: Transparent lid to cover the top steaming basket.
• Juice Accumulating Plate: Sits above the water reservoir to collect food juices and prevent dripping into the water.
• Egg Holders: Integrated into the steaming baskets for convenient egg steaming.
• Control Panel: Includes a 0-60 minute timer and power indicator.

Image 3.1: The Condere ZD-001 steamer disassembled, showing the base, three steaming baskets, and lid.

4. Setup

Before first use, wash all removable parts (steaming baskets, lid, juice plate) in warm, soapy water, then rinse and dry thoroughly. Wipe the base unit with a damp cloth.

1. Place the base unit on a stable, flat, heat-resistant surface.
2. Fill the water reservoir with clean water up to the maximum fill line. Water inlets on both sides of the base make topping up easy. Do not overfill.
3. Place the juice accumulating plate onto the base unit, ensuring it sits correctly over the heating element.
4. Stack the desired number of steaming baskets onto the juice plate. You can use one, two, or all three baskets depending on your cooking needs.
5. Place the lid securely on top of the uppermost steaming basket.

5. Operating Instructions

The Condere ZD-001 steamer is designed for healthy and fast cooking, producing steam in approximately 15 seconds.

1. Prepare Food: Place your food items (vegetables, meat, fish, rice, eggs) into the steaming baskets. Ensure food is cut into appropriate sizes for even cooking. Do not overload the baskets.
2. Assemble Steamer: Follow the setup instructions in Section 4 to assemble the steamer with the prepared food.
3. Plug In: Plug the power cord into a suitable electrical outlet.
4. Set Timer: Turn the timer dial to your desired cooking time (0-60 minutes). The power indicator light will illuminate, and steaming will begin.
5. Monitor Water Level: The waterline indicator on the base allows you to monitor the water level. If more water is needed during cooking, carefully add water through the side inlets.
6. Cooking Complete: Once the timer reaches zero, the steamer will automatically turn off. Carefully remove the lid, being mindful of hot steam. Use oven mitts to remove the steaming baskets.
7. Serve: Transfer the steamed food to a serving dish.

Tips for Steaming:

• Place foods that require longer cooking times in the lower baskets.
• Ensure there is enough space between food items for steam to circulate effectively.
• For rice, use a heat-proof bowl placed in one of the steaming baskets. Add water to the rice according to package instructions.
• The built-in egg holders are ideal for steaming eggs to your preferred doneness.

6. Cleaning and Maintenance

Regular cleaning ensures the longevity and hygienic operation of your steamer.

1. Unplug and Cool: Always unplug the steamer from the power outlet and allow it to cool completely before cleaning.
2. Disassemble: Remove the lid, steaming baskets, and juice accumulating plate.
3. Wash Removable Parts: The steaming baskets, lid, and juice accumulating plate are dishwasher-safe for easy and convenient cleaning. Alternatively, wash them in warm, soapy water, then rinse and dry thoroughly.
4. Clean Base Unit: Wipe the exterior of the base unit with a damp cloth. Do not immerse the base unit in water or any other liquid.
5. Descaling: Over time, mineral deposits may build up in the water reservoir. To descale, fill the reservoir with a mixture of equal parts water and white vinegar. Run the steamer for 20-30 minutes, then unplug and let it cool. Empty the reservoir and rinse thoroughly with clean water. Repeat if necessary.
6. Storage: Ensure all parts are completely dry before reassembling and storing the steamer in a cool, dry place.

7. Troubleshooting

If you encounter issues with your steamer, refer to the following common problems and solutions:

• Steamer does not turn on:
  • Ensure the power cord is securely plugged into a working outlet.
  • Check that the timer dial is set to a cooking duration and not 'off'.
  • Verify there is sufficient water in the reservoir. The dry burn-off protection may have activated if the reservoir was empty.
• Insufficient steam production:
  • Check the water level in the reservoir and refill if necessary.
  • Ensure the lid is properly seated on the top basket to prevent steam from escaping.
  • Descale the heating element if mineral buildup is present (refer to Section 6).
• Food not cooking evenly or taking too long:
  • Ensure food items are cut into similar sizes.
  • Do not overcrowd the steaming baskets; allow space for steam circulation.
  • Place denser or larger items in the lower baskets, closer to the steam source.
  • Check that the water reservoir has enough water for the entire cooking duration.

8. Specifications

9. Warranty and Support

Specific warranty information for the Condere ZD-001 Electric Food Steamer is not provided in the product details. For warranty claims or technical support, please contact your retailer or the manufacturer directly. Keep your proof of purchase for any warranty-related inquiries.
