1. Introduction
This manual provides essential information for the safe and efficient operation of your ZLPOWER 6000W 24V Pure Sine Wave Inverter Charger. This device is designed to convert 24V DC battery power into stable 120V/240V AC split-phase pure sine wave output, suitable for a wide range of applications including home, RV, boat, and off-grid systems. It features a robust 90A battery charger, a 30A transfer switch, and an intuitive LCD display for real-time monitoring.
Please read this manual thoroughly before installation and use to ensure proper functionality and to prevent damage to the unit or connected equipment.
Figure 1: Wide Range of Applications for the ZLPOWER Inverter
2. Important Safety Instructions
Failure to follow these safety instructions may result in electric shock, fire, serious injury, or death. Keep this manual in a safe place for future reference.
- Qualified Personnel: Installation and maintenance should only be performed by qualified personnel.
- Electrical Shock Hazard: The inverter generates high voltage. Do not open the casing. There are no user-serviceable parts inside.
- Battery Safety: Work with batteries can be hazardous. Wear eye protection and protective clothing. Ensure proper ventilation. Do not smoke or allow sparks or flames near batteries.
- Ventilation: Ensure adequate ventilation around the inverter to prevent overheating. Do not block ventilation openings.
- Environment: Install the inverter in a dry, cool, and dust-free environment. Avoid direct sunlight and moisture.
- Grounding: The inverter must be properly grounded.
- Overload Protection: Do not exceed the inverter's rated output power. Overloading can cause damage and fire.
- Emergency Disconnect: Know how to quickly disconnect power in an emergency.
3. Package Contents
Verify that all items are present in your package. If any items are missing or damaged, please contact your supplier.
- ZLPOWER 6000W 24V Pure Sine Wave Inverter Charger
- Remote Control Panel
- Battery Cables (Red and Black)
- User Manual
- Mounting Hardware (screws, etc.)
Figure 2: Product Details and Included Accessories
4. Product Features
The ZLPOWER 6000W 24V Inverter Charger is equipped with advanced features for reliable power conversion and battery management:
- High Power Output: Provides 6000W continuous pure sine wave output with an 18000W surge capability for 20 seconds, suitable for demanding loads.
- Split-Phase Output: Delivers 120V/240V AC split-phase output, accommodating various household and RV appliances.
- Efficient Operation: Achieves up to 97% efficiency in line mode and 88% in battery mode, optimizing energy usage.
- Integrated Battery Charger: Features a 90A battery charger with 5-step progressive charging, ensuring optimal battery health.
- Automatic Transfer Switch: Includes a 30A transfer switch for seamless transition between AC input (utility/generator) and battery power.
- LCD Display: A clear LCD provides real-time data on voltage, load, power, and battery status.
- Adjustable Settings: User-adjustable charging current (0-100%), AC/battery priority selector, and 50Hz/60Hz frequency switching.
- Automatic Generator Start (AGS): Supports automatic generator start functionality for enhanced power reliability.
- Battery Compatibility: Compatible with 7 battery types, including LiFePO4, lead-acid, gel, and car batteries. Can start up and provide continuous power even with depleted batteries.
- Comprehensive Protection: Built-in safeguards against overload, over-temperature, overcharge, and low battery conditions. Adjusts output voltage to maintain stability under varying loads.
- Remote Control: Includes a remote control function for convenient operation.

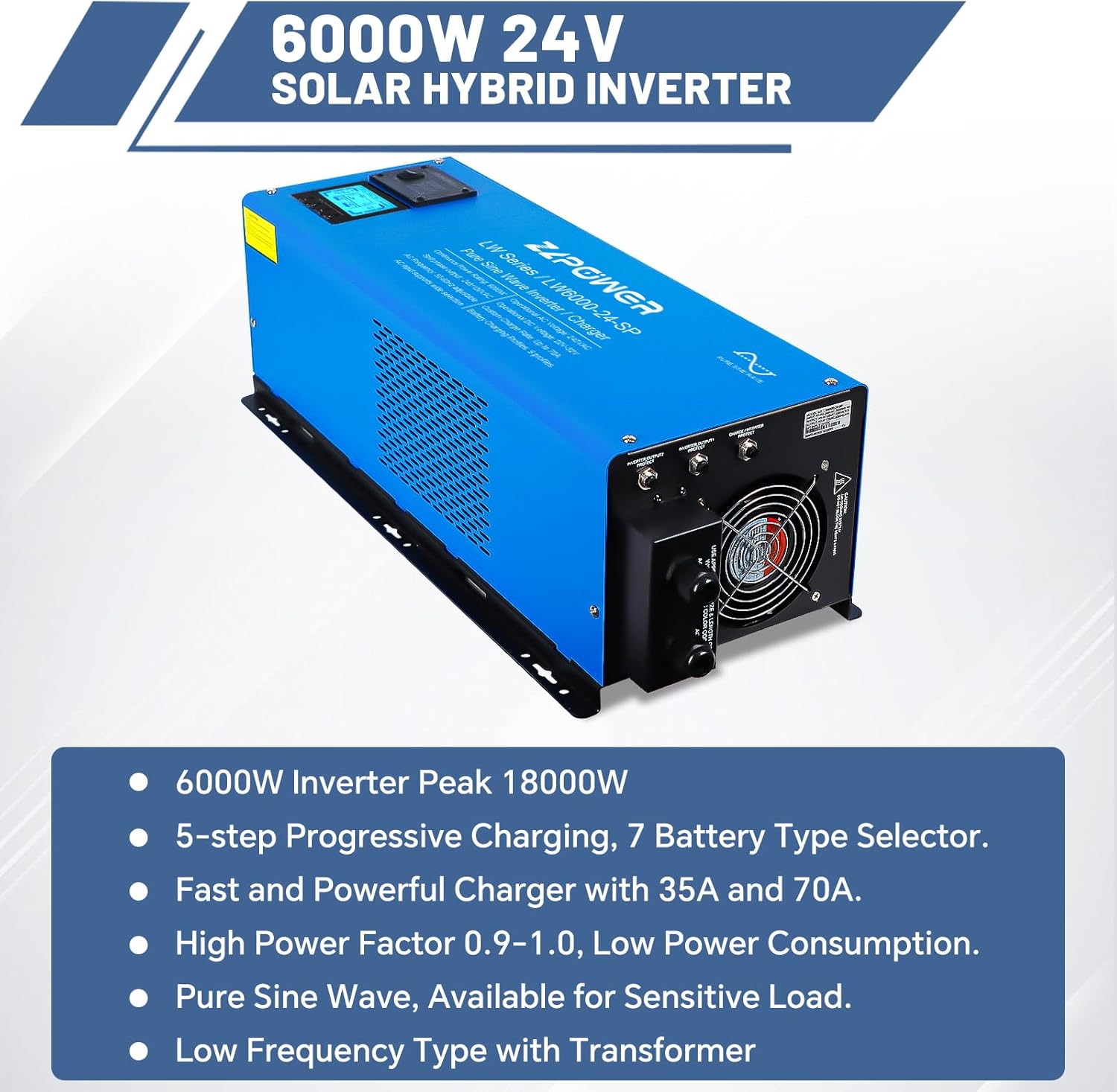

Figure 3: Key Features of the ZLPOWER Inverter
5. Setup and Installation
5.1. Site Selection
- Choose a dry, cool, and well-ventilated location.
- Avoid direct sunlight, heat sources, and moisture.
- Ensure sufficient clearance around the inverter for airflow.
- Mount the inverter securely on a stable surface.
5.2. Battery Connection
Connect the battery bank to the inverter's DC input terminals. Ensure correct polarity (positive to positive, negative to negative). Use appropriate gauge cables for your battery bank and inverter model.
Figure 4: Compatible Battery Types
5.3. AC Input Connection (Utility/Generator)
Connect your AC input source (utility grid or generator) to the inverter's AC input terminals. This input is used for battery charging and bypass operation.
5.4. AC Output Connection (Loads)
Connect your home appliances or loads to the inverter's AC output terminals. The inverter provides 120V/240V split-phase output.
Video 1: Demonstrates connecting the AC output wires to the inverter's terminal block. This shows how to connect home appliances or loads to the inverter.
5.5. Remote Control Connection
Connect the remote control panel to the designated port on the inverter for convenient monitoring and control.
Figure 5: Typical Application Diagram for the ZLPOWER Hybrid Inverter
6. Operating Instructions
6.1. Powering On/Off
- To power on, ensure all connections are secure, then switch the inverter's power button to the 'ON' position.
- To power off, disconnect all loads, then switch the inverter's power button to the 'OFF' position.
6.2. LCD Display Overview
The LCD display provides real-time operational status and data. Use the 'FUNCTION', 'SELECT', 'CONFIRM', and 'SILENT' buttons to navigate and adjust settings.
Figure 6: LCD Screen Display in Operation
6.3. Adjusting Settings
- Charging Current: Adjust the battery charging current from 0-100% via the menu.
- AC/Battery Priority: Select whether the inverter prioritizes AC input (utility/generator) or battery power for supplying loads.
- Frequency: Switch between 50Hz and 60Hz output frequency as required by your loads.
- Battery Type: Select the appropriate battery type from the 7 available options to optimize charging.
Video 2: Demonstrates the inverter powering a fan and a refrigerator, showcasing its powerful capacity and stability for both inductive and conductive loads. The video also shows the LCD display updating in real-time.
7. Maintenance
Regular maintenance ensures the longevity and optimal performance of your ZLPOWER inverter.
- Cleaning: Keep the inverter clean and free of dust. Use a dry cloth to wipe the exterior. Do not use liquid cleaners.
- Ventilation: Periodically check that the ventilation openings are clear and not obstructed. Ensure cooling fans are operating correctly.
- Connections: Regularly inspect all electrical connections (DC input, AC input, AC output) for tightness and corrosion. Tighten any loose connections.
- Battery Health: Monitor your battery bank's health according to the battery manufacturer's recommendations. Ensure proper charging settings are selected on the inverter.
8. Troubleshooting
This section provides solutions to common issues you might encounter. For problems not listed here, please contact technical support.
| Problem | Possible Cause | Solution |
|---|---|---|
| No power output | Inverter is off; Low battery voltage; Loose connections; Overload. | Turn on inverter; Charge batteries; Check and tighten all connections; Reduce load. |
| Overload alarm | Connected load exceeds inverter's capacity. | Reduce the total load connected to the inverter. Disconnect high-power appliances. |
| Over-temperature alarm | Insufficient ventilation; High ambient temperature; Blocked cooling fan. | Ensure proper ventilation; Move inverter to a cooler location; Clean cooling fan and vents. |
| Low battery alarm | Battery voltage is below the low voltage disconnect threshold. | Charge the batteries. Check battery connections and health. |
| Inverter not charging batteries | AC input not connected; Charger setting incorrect; Faulty battery. | Verify AC input connection; Check charger settings on LCD; Test battery health. |
9. Specifications
Technical specifications for the ZLPOWER 6000W 24V Pure Sine Wave Inverter Charger:
| Feature | Detail |
|---|---|
| Model Name | LW-6000W 24V |
| Wattage (Continuous) | 6000 watts |
| Peak Wattage | 18000 watts (for 20 seconds) |
| DC Input Voltage | 24V |
| AC Output Voltage | 120V/240V (Split Phase) |
| Output Waveform | Pure Sine Wave |
| Line Mode Efficiency | Up to 97% |
| Battery Mode Efficiency | Up to 88% |
| Battery Charger Current | 90A (Adjustable 0-100%) |
| Transfer Switch Current | 30A |
| Frequency | 50Hz/60Hz (Switchable) |
| Product Dimensions | 25.6 x 7.48 x 8.7 inches |
| Item Weight | 82.7 pounds |
| Manufacturer | ZLPOWER |
| Recommended Uses | Boat, Home, Office, Truck, Vehicle |
| Power Source | Battery Powered |
10. Warranty and Support
ZLPOWER is committed to providing high-quality products and customer satisfaction.
- Warranty: This product comes with a 24-month warranty from the date of purchase.
- Technical Support: Enjoy lifetime technical support for your ZLPOWER inverter.
- Assistance: For free user support, machine installation guidance, usage guidance, or any quality-related issues, please contact ZLPOWER customer service. We are available to assist you promptly.
