1. Introduction
This manual provides essential instructions for the assembly, operation, and maintenance of your Qaba 12V Kids ATV 4-Wheeler Quad. Please read this manual thoroughly before initial use to ensure safe and proper operation. Keep this manual for future reference.

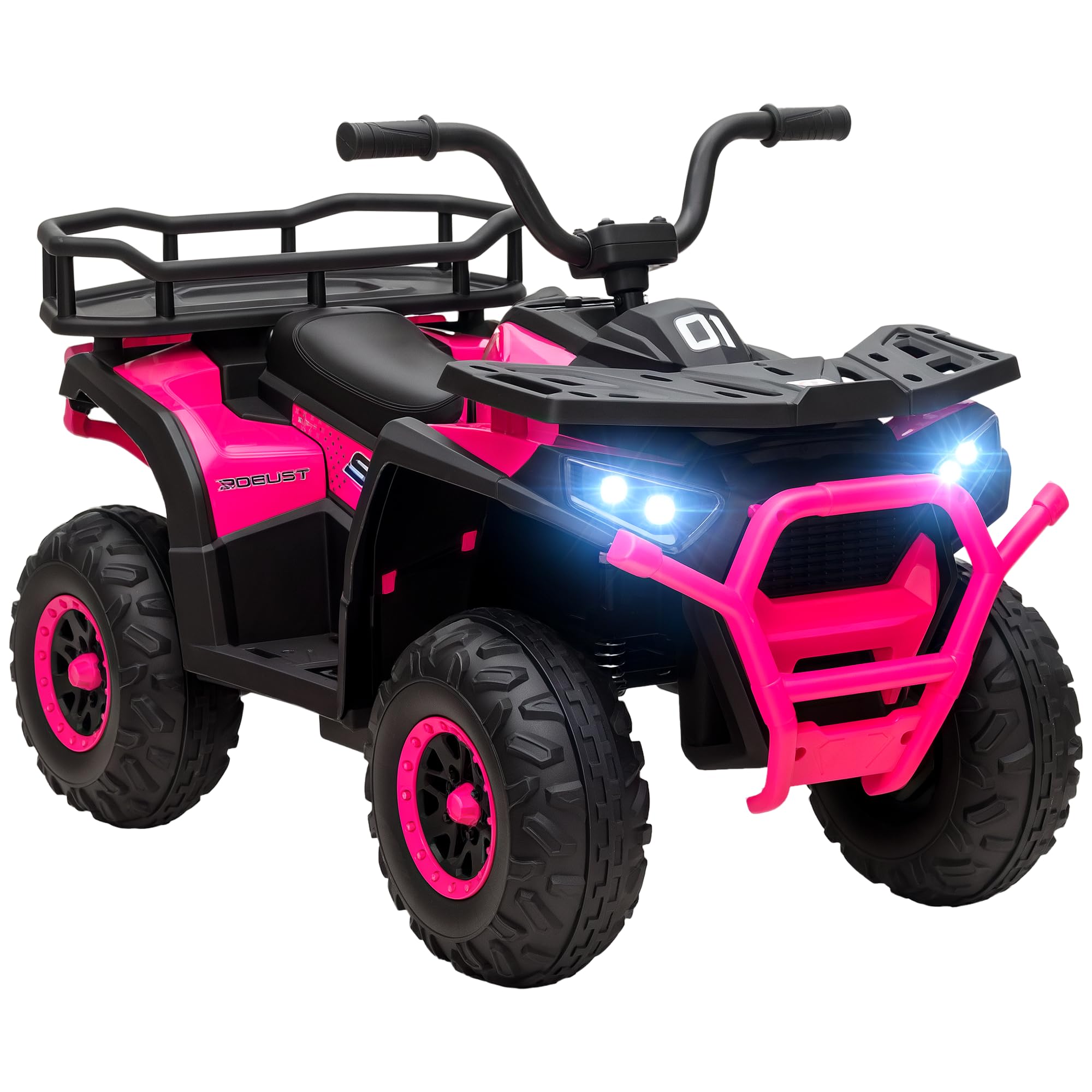

Image 1.1: The Qaba 12V Kids ATV in use, demonstrating its design and size.
2. Safety Information
WARNING: Failure to follow these safety instructions may result in serious injury or death.
- Adult Supervision Required: This product must only be used under direct adult supervision.
- Age and Weight Limits: Suitable for children aged 3 years and up. Maximum weight capacity is 66 lbs (30 kg). Do not exceed this limit.
- Protective Gear: Always ensure the child wears a helmet and appropriate safety gear (e.g., knee pads, elbow pads) when operating the ATV.
- Operating Environment: Use on flat, dry surfaces such as grass, cement, asphalt, or brick roads. Avoid slopes, uneven terrain, sand, loose dirt, or wet conditions. Do not operate near streets, swimming pools, or other hazardous areas.
- Charging Safety: Only use the provided charger. Do not overcharge the battery. Keep the charger and battery away from water and extreme temperatures.
- Foot Placement: Ensure the child's feet remain on the footrests during operation. Refer to Image 2.1 for proper foot placement.
- One Rider Only: This ATV is designed for a single rider.
Image 2.1: Detail of the front footrest area, highlighting the importance of proper foot placement.
3. Package Contents
Before assembly, verify that all components are present and undamaged. If any parts are missing or damaged, contact customer support.
- Qaba 12V Kids ATV Main Body
- 4 Suspension Wheels
- Storage Basket
- LED Lights (pre-installed)
- Music and USB System (pre-installed)
- Treaded Tires (pre-installed on wheels)
- 12V Rechargeable Battery (included)
- Battery Charger
- Assembly Hardware
- Instruction Manual
4. Setup and Assembly
Assembly is required. Follow the steps below carefully. It is recommended to have two adults for assembly.
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface.
- Attach Wheels: Securely attach the four wheels to the ATV chassis. Ensure all fasteners are tightened.
- Install Handlebars: Mount the handlebars to the steering column.
- Connect Battery: Connect the battery terminals according to the instructions provided with the battery. Ensure connections are secure.
- Install Seat: Place the seat onto the ATV body and secure it.
- Attach Storage Basket: Mount the storage basket to the rear of the ATV.
- Initial Charge: Before first use, fully charge the battery for the recommended duration (see Section 5).
Image 4.1: Various views of the fully assembled ATV.
5. Charging the Battery
The ATV is powered by a 12V rechargeable battery. Proper charging ensures optimal performance and battery life.
- First Use: Charge the battery for 8-12 hours before the first use. Do not charge for more than 18 hours.
- Regular Charging: After each use, or when the power indicator shows low battery, charge the battery for 8-12 hours.
- Charging Procedure:
- Locate the charging port on the ATV.
- Plug the charger into a standard wall outlet.
- Connect the charger plug to the ATV's charging port.
- The charging indicator on the charger will show the charging status.
- Disconnect the charger once charging is complete.
- Battery Life: A fully charged battery provides approximately 30-60 minutes of continuous play, depending on terrain and usage.
6. Operating Instructions
Familiarize yourself with the controls before allowing a child to operate the ATV.
6.1. Controls Overview
Image 6.1: The ATV's control panel, detailing power, speed, direction, and multimedia functions.
- Power Button: Press to turn the ATV on or off.
- Foot Pedal Accelerator: Press the foot pedal to move forward. Release to brake. The ATV can reach speeds of 1.9-3.7 mph (3-6 km/h).
- Forward/Reverse Switch: Select 'Forward' for forward motion or 'Reverse' for backward motion.
- High/Low Speed Buttons: Adjust the speed setting. Start with 'Low Speed' for beginners.
- LED Lights: The ATV features functional LED headlights.
- Music and USB Port: The integrated multimedia unit allows for playing pre-loaded music or connecting a USB device for custom audio.
Image 6.2: Child operating the ATV using the foot pedal accelerator.
6.2. Special Features
- Suspension Wheels: Equipped with four spring suspension wheels for a smoother ride on various terrains.
Image 6.3: Detail of the suspension system for enhanced ride comfort.
- Storage Basket: A rear storage basket is included for carrying small items like toys or snacks.
Image 6.4: The functional storage basket on the rear of the ATV.
7. Maintenance
Regular maintenance ensures the longevity and safe operation of your ATV.
- Cleaning: Wipe the ATV with a soft, damp cloth. Do not use abrasive cleaners or solvents. Avoid spraying water directly onto electrical components.
- Battery Care: Store the battery in a cool, dry place. If the ATV will not be used for an extended period, charge the battery once a month to maintain its health.
- Tire Inspection: Regularly check the tires for wear and tear.
- Fasteners: Periodically check all screws and bolts to ensure they are tight.
- Storage: Store the ATV indoors in a dry area when not in use. Protect it from direct sunlight and moisture.
8. Troubleshooting
If you encounter issues, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| ATV does not move | Battery is low or not connected; Power switch is off; Forward/Reverse switch is in neutral; Loose wire connection. | Charge the battery; Turn on the power switch; Select 'Forward' or 'Reverse'; Check and secure all wire connections. |
| Short play time | Battery not fully charged; Old battery; Overloaded ATV; Frequent stops and starts. | Ensure battery is fully charged (8-12 hours); Replace old battery if necessary; Do not exceed weight capacity; Encourage continuous riding. |
| ATV moves slowly | Low battery; Operating on rough terrain; Overloaded. | Charge the battery; Use on flat, smooth surfaces; Do not exceed weight capacity. |
| Charger gets warm | Normal operation. | This is normal. If it becomes excessively hot or emits smoke, discontinue use immediately and contact support. |
If the problem persists after attempting these solutions, please contact customer support.
9. Specifications
- Model Number: 370-377V80PK
- Product Dimensions (L x W x H): 34.65 x 19.69 x 22.64 inches (88 x 50 x 57.5 cm)
- Item Weight: 26 pounds (11.8 kg)
- Maximum Weight Capacity: 66 lbs (30 kg)
- Recommended Age: 3 years and up
- Battery: 1 x 12V (included)
- Speed: 1.9-3.7 mph (3-6 km/h)
- Manufacturer: Aosom LLC
Image 9.1: Dimensional overview of the ATV.
10. Warranty and Support
For warranty information, replacement parts, or technical support, please contact the manufacturer or retailer where the product was purchased.
- Manufacturer: Aosom LLC
- Brand: Qaba
- Refer to your purchase documentation for specific contact details and warranty terms.
