COREBOX 6A 12V Automatic Smart Battery Charger & Maintainer User Manual

1. Product Overview

The COREBOX 6A 12V Automatic Smart Battery Charger and Maintainer is an all-in-one solution designed for optimal battery care. It functions as a charger, maintainer, trickle charger, and desulfator, ensuring your battery remains in peak condition, especially during periods of inactivity or extreme weather.

This intelligent charger features a 7-stage charging process and advanced pulse repair technology to restore lost battery performance and extend battery life. It is suitable for charging and repairing all 12V lead-acid batteries, including AGM, GEL, SLA, and Flooded types, commonly found in cars, trucks, SUVs, motorcycles, lawnmowers, and marine vehicles.

2. Safety Instructions

Your COREBOX battery charger is equipped with multiple safety features to ensure secure operation. Always adhere to the following guidelines:

Fire Protection: Built with fireproof materials to minimize fire hazards.
Short Circuit Protection: Automatically prevents damage from short circuits.
Overcurrent Protection: Safeguards against excessive current flow.
Overload Protection: Protects the charger and battery from overload conditions.
Anti-Reverse Connection Protection: Prevents damage from incorrect polarity connections.
Overheat Protection: Integrated cooling system and temperature sensors prevent overheating.
Power-off Protection: Automatically shuts down when charging is complete or in case of power anomalies.
Overvoltage Protection: Protects against excessive voltage.

NOTE: This device cannot repair a totally dead battery.

3. Setup and Connection

Ensure the charger is unplugged from the power outlet before making any connections to the battery.
Connect the red (+) clamp to the positive terminal of the battery.
Connect the black (-) clamp to the negative terminal of the battery.
Once the clamps are securely connected to the battery terminals, plug the charger into a standard 120V AC power outlet.
The charger's display will illuminate, indicating the battery status and charging process.

COREBOX Battery Charger connected to a car battery, showing multiple protection icons on its display.

Image: The COREBOX charger connected to a car battery, illustrating its various protection features on the display.

4. Operating Instructions

The COREBOX charger features an intelligent MCU controller that monitors the entire charging process, optimizing battery power and extending battery life. It automatically detects the battery type and environmental conditions to apply the most suitable charging mode.

Mode Selection

Press the 'MODE' button to cycle through different charging modes:

Car/Truck Mode: For standard car and truck batteries.
AGM/GEL Mode: Specifically for AGM and GEL batteries.
Motorcycle Mode: For motorcycle batteries, often used for maintenance.
Repair Mode: Activates the pulse repair function for sulfated or stratified batteries.

Intelligent Detection & Temperature Compensation

The charger automatically adapts to the temperature of different seasons, providing temperature compensation in hot or cold climates. This ensures efficient and safe charging regardless of ambient conditions.

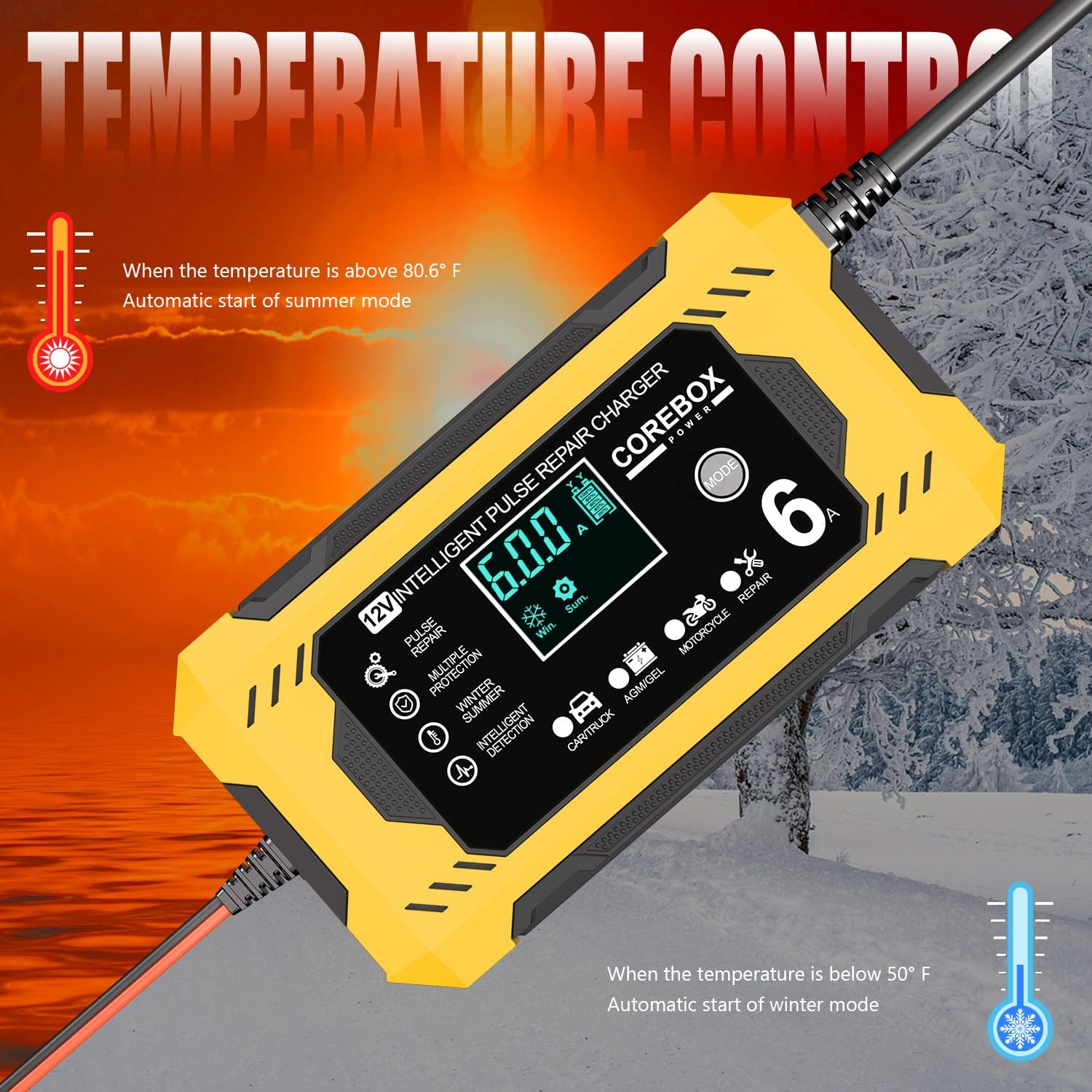

COREBOX Battery Charger displaying temperature control features, showing automatic switching between winter and summer modes based on ambient temperature.

Image: The COREBOX charger's display indicating automatic temperature compensation for winter and summer conditions.

Display Content

The LCD screen provides real-time information:

Summer Mode / Winter Mode: Indicated by snowflake or sun icons.
Charging Current: Displays the current amperage.
Repair Mode: Indicated when pulse repair is active.
Fully Charged: Automatic shutdown occurs within 2 hours upon full charge.
Error Alarm: Icon blinks if connected improperly or other errors occur.
Normal Charging: Indicates active charging.

Diagram showing various display icons and their meanings on the COREBOX battery charger, including summer/winter modes, charging current, repair mode, and error indicators.

Image: Visual guide to the COREBOX charger's screen display content and indicators.

5. Maintenance and Pulse Repair

The COREBOX charger incorporates a high-efficiency pulse repair function. This technology automatically detects battery sulfation and acid stratification, working to restore lost battery performance. It can help repair old or idle batteries, contributing to stronger engine starts and extended battery life.

For batteries that are not charging effectively, try activating the "Repair" mode. This mode uses slow pulse repair technology to recondition the battery. Remember, this function is for repair and maintenance, not for reviving completely dead batteries.

COREBOX Battery Charger connected to a car battery in maintenance mode, showing different battery types like AGM, GEL, EFB, and Wet.

Image: The COREBOX charger in maintenance mode, suitable for various lead-acid battery types.

6. Product Specifications

Feature	Specification
Brand	COREBOX
Model Number	6A-Y
Input Voltage	12 Volts
Current Rating	6 Amps
Product Dimensions	8.4"D x 2.6"W x 4.3"H (7.87 x 3.94 x 5.91 inches)
Item Weight	15.8 ounces
Date First Available	November 22, 2024

Technical diagram of the COREBOX battery charger showing its dimensions in millimeters and inches, along with various views of the device.

Image: Detailed product specifications and dimensions diagram.

7. Warranty and Support

The COREBOX Battery Charger comes with a 2-year warranty service. If you encounter any problems during use, please contact our customer support team for assistance. We are committed to providing timely solutions and ensuring your satisfaction.
