Portronics Vlogmate 3 Dual Wireless Microphone User Manual

1. Introduction

The Portronics Vlogmate 3 is a dual wireless microphone system designed for content creators and professionals. It features Environmental Noise Cancellation (ENC), a 30-meter reception range, and broad compatibility with both iOS and Android devices. This system ensures clear audio capture for various applications, including interviews, live shows, and vlogs. The package includes two microphones, a universal receiver, and a charging case for convenience and portability.

2. What's in the Box

• 2 x Wireless Microphones (Transmitters)
• 1 x Wireless Type-C Receiver
• 1 x Type-C to 8 Pin Connector (for iOS devices)
• 1 x Charging Cable
• 1 x Charging Case
• 1 x Documentation (User Manual)

3. Product Features

• ENC Noise Cancellation: Activate with a single button press to minimize background noise, ideal for clear audio in various environments.
• 30M Long Reception Range: Provides flexibility and mobility for recording audio at a distance.
• Digital Battery Display: Monitor the battery life of the charging case to ensure continuous operation.
• Universal Compatibility: Works seamlessly with both iOS (via 8-pin connector) and Android (via Type-C receiver) devices.
• High-Quality Dual Microphones: Two circular microphones deliver clear, professional-grade sound.
• Versatile Wearing Options: Features a detachable magnetic design and clip-on functionality for flexible positioning.
• Convenient Charging Case: Stores and charges both microphones, extending usage time and providing protection.

Image: Overview of the Portronics Vlogmate 3 Dual Wireless Microphone system components.

Image: Illustration of the Environmental Noise Cancellation (ENC) feature, showing a reduction of -15dB in background noise.

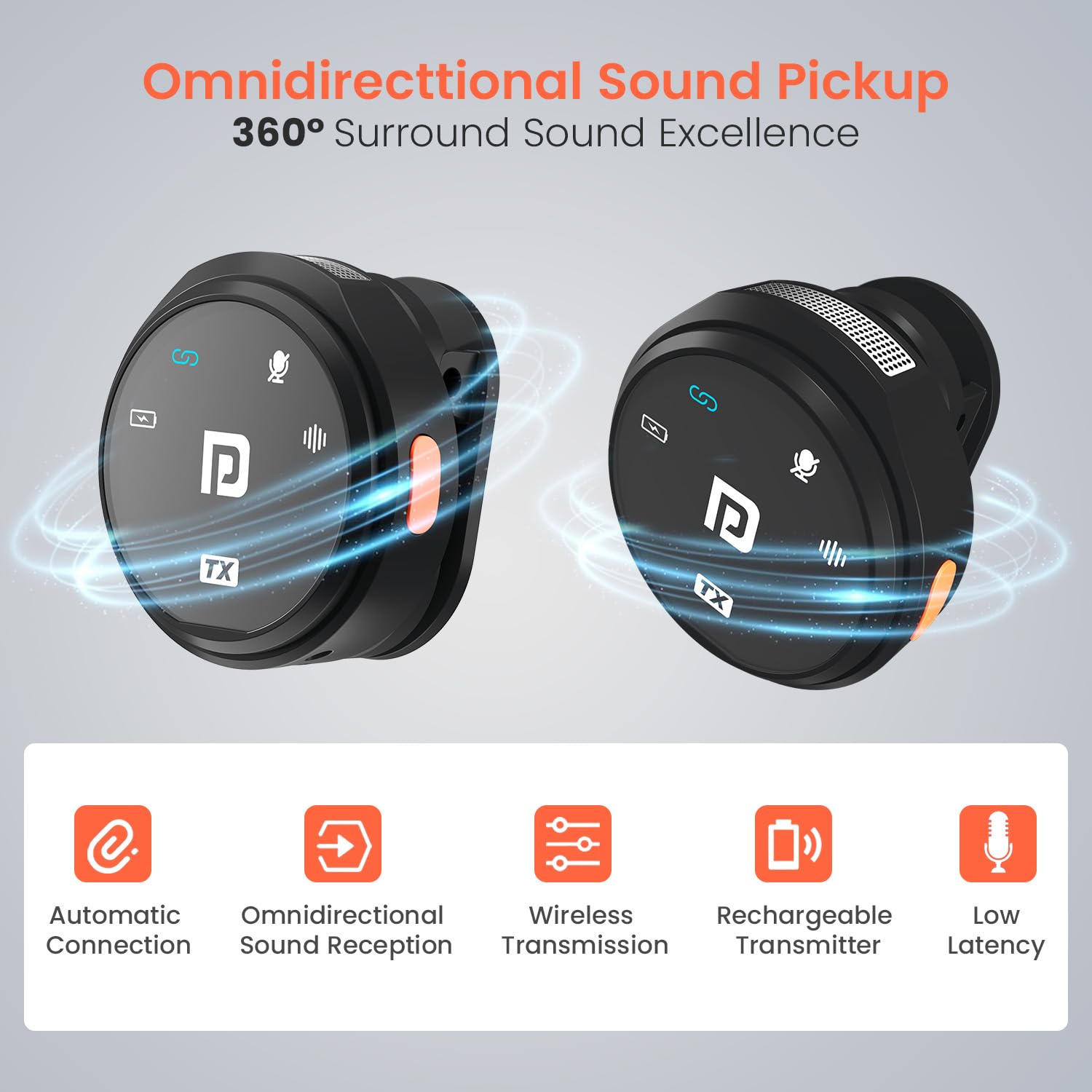

Image: Depiction of the omnidirectional sound pickup capability of the microphones, highlighting 360-degree sound excellence.

Image: Demonstrates the two ways to wear the microphone: clip-on and magnetic attachment for personalized use.

Image: The charging case, illustrating its capacity to charge two microphones multiple times for up to 40 hours of total battery life.

Image: Visual representation of the 30-meter stable wireless transmission range, showing effective audio capture at a distance.

4. Setup Guide

4.1 Charging the Devices

1. Place the microphones into the charging case.
2. Connect the charging case to a power source using the provided charging cable. The digital display on the case will show the battery level.
3. Ensure both microphones and the charging case are fully charged before first use.

4.2 Connecting the Receiver

1. For Android Devices (Type-C): Plug the Wireless Type-C Receiver directly into your smartphone or tablet's Type-C port.
2. For iOS Devices (8-Pin): Attach the Type-C to 8 Pin Connector to the Wireless Type-C Receiver, then plug the combined unit into your iPhone or iPad's 8-pin port.
3. The receiver's indicator light will flash, indicating it is searching for microphones.

4.3 Pairing Microphones

1. Take the microphones out of the charging case. They will automatically power on and attempt to pair with the receiver.
2. Once successfully paired, the indicator light on the receiver and microphones will turn solid, indicating a stable connection.

5. Operating Instructions

5.1 Wearing the Microphone

• Clip-on: Use the integrated clip to attach the microphone to your collar, lapel, or clothing.
• Magnetic: Utilize the detachable magnetic design to secure the microphone to any suitable magnetic surface or clothing.

5.2 Activating Noise Cancellation

• Locate the dedicated noise cancellation button on the microphone.
• Press the button once to activate the Environmental Noise Cancellation (ENC) feature. The indicator light may change to confirm activation.
• Press the button again to deactivate ENC.

5.3 Recording Audio

1. Ensure the microphones are paired with the receiver.
2. Open your preferred audio or video recording application on your smartphone or tablet.
3. Start recording. The audio will be captured through the Vlogmate 3 microphones.

6. Maintenance

6.1 Cleaning

• Wipe the microphones and receiver with a soft, dry cloth.
• Do not use harsh chemicals or abrasive cleaners.

6.2 Storage

• Always store the microphones in the provided charging case when not in use. This protects them and keeps them charged.
• Keep the device in a cool, dry place, away from direct sunlight and extreme temperatures.

7. Troubleshooting

• No Sound/Poor Audio Quality:
  • Ensure the receiver is fully inserted into your device's port.
  • Check if the microphones are powered on and successfully paired (solid indicator light).
  • Verify that the recording application on your device is set to use the external microphone.
  • If noise cancellation seems ineffective, ensure it is activated correctly. In some environments, extreme background noise may still be present.
  • Ensure you are within the 30-meter reception range. Obstacles can reduce this range.
• Microphones Not Charging:
  • Ensure the microphones are correctly seated in the charging case.
  • Check if the charging cable is securely connected to the case and a power source.
  • Verify that the charging case itself has sufficient battery or is connected to power.
  • If the battery display shows an unusual maximum charge (e.g., stuck at 94%), try fully discharging and recharging the case. If the issue persists, contact support.
• Connection Issues:
  • Restart both the microphones (by placing them back in the case and taking them out) and the receiver (by unplugging and replugging).
  • Ensure no other wireless devices are causing interference nearby.

8. Specifications

9. Warranty Information

The Portronics Vlogmate 3 Dual Wireless Microphone comes with a 1-Year Limited Warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.

Please retain your purchase receipt as proof of purchase for warranty claims.

10. Support

For technical assistance, warranty claims, or any other inquiries regarding your Portronics Vlogmate 3, please contact our customer support team:

• Email: help@portronics.com
• Phone: +91 9555-245-245
• Manufacturer Address: Portronics Digital Pvt ltd, First Floor Property No D 8 Upper Basement Sector 8 Noida Uttar Pradesh 201301
