Introduction
This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your ABCCANOPY 3 Tiers Market Umbrella. Please read this manual thoroughly before use to ensure proper function and longevity of your product.
Safety Information
- Ensure the umbrella base is stable and adequately weighted before opening the umbrella. The umbrella base is not included and must be purchased separately.
- Do not use the umbrella in strong winds or severe weather conditions. Close and secure the umbrella to prevent damage or injury.
- Keep children and pets away from the umbrella during opening and closing operations.
- Avoid placing the umbrella near open flames or heat sources.
- Regularly inspect all components for wear and tear. Replace damaged parts immediately.
Package Contents
Verify that all components are present before beginning assembly:
- Umbrella Canopy with 3 Tiers and Integrated LED Lights
- Umbrella Pole (Upper and Lower sections)
- Crank Handle Mechanism
- Solar Panel (integrated at the top of the canopy)
- Ni-MH Rechargeable Battery (pre-installed for solar lights)
Note: Umbrella base is sold separately.
Setup
Assembly Instructions
- Connect the Pole Sections: Carefully insert the upper pole section into the lower pole section. Ensure the spring button on the upper pole clicks securely into the corresponding hole on the lower pole.
- Insert into Base: Place the assembled umbrella pole into a suitable umbrella base (not included). Ensure the base is stable and heavy enough to support the umbrella. The pole diameter is 1.5 inches.
- Secure the Umbrella: Tighten any securing knobs or screws on your umbrella base to firmly hold the umbrella pole in place.
Assembly Video Guide
For a visual guide on assembly and operation, please refer to the official product video below:
Video 1: ABCCANOPY 9/10/11FT Solar 3 Tiers Patio Umbrella Assembly and Features. This video demonstrates the easy assembly process, crank operation, tilt function, and LED light activation.
Operating Instructions
Opening and Closing the Umbrella
- To Open: Turn the crank handle clockwise until the umbrella canopy is fully extended and taut.
- To Close: Turn the crank handle counter-clockwise until the umbrella canopy is fully retracted. Secure the canopy with any attached ties if available.

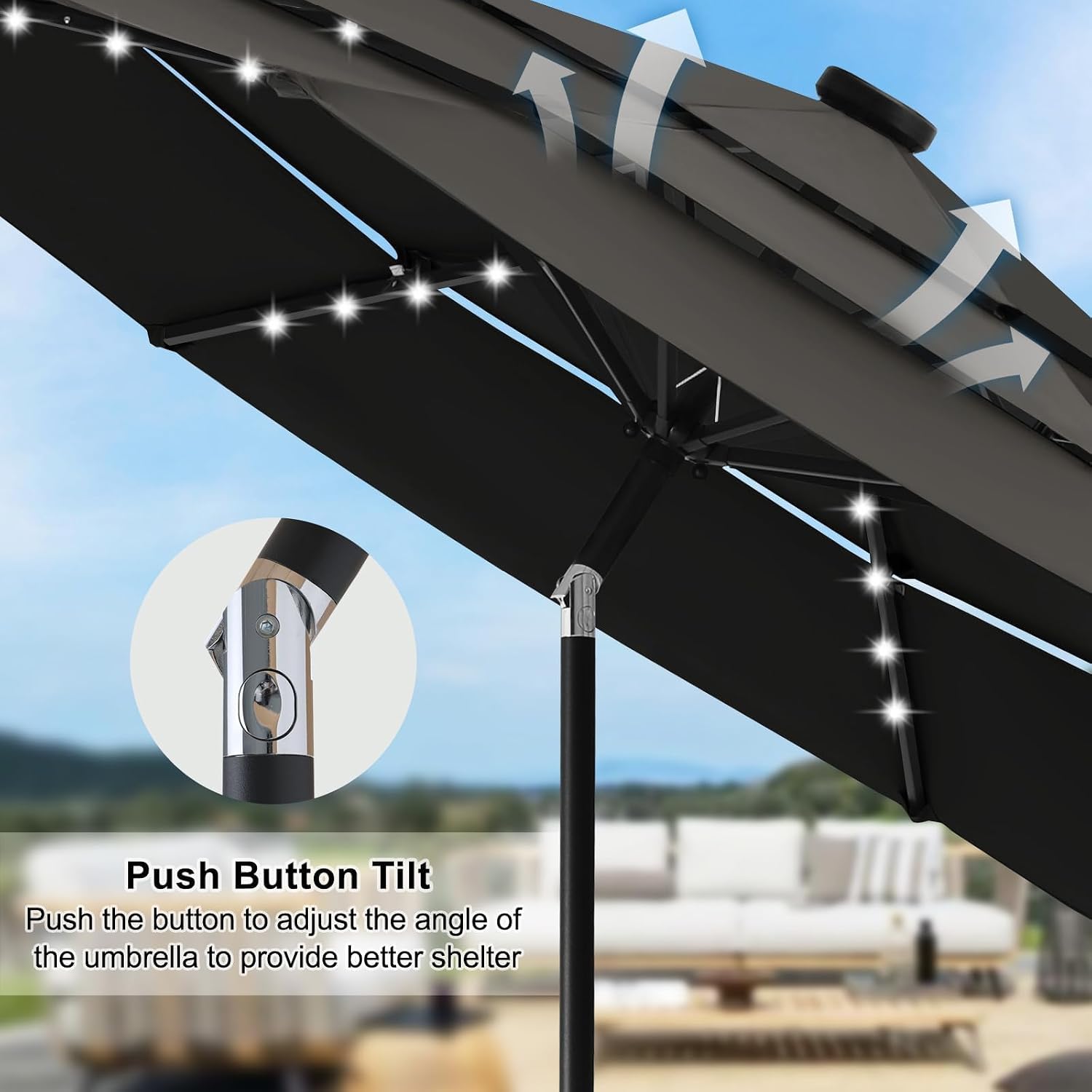

Tilting the Umbrella
The umbrella features a push-button tilt mechanism for adjustable shade:
- Locate the push button on the umbrella pole, near the crank mechanism.
- Press and hold the button while gently tilting the canopy to your desired angle (up to 45 degrees).
- Release the button to lock the umbrella in the tilted position.
Operating the LED Lights
The umbrella is equipped with 32 LED lights powered by a solar panel and a Ni-MH rechargeable battery:
- Charging: The solar panel located on top of the umbrella canopy charges the battery automatically during the day when exposed to sunlight.
- Activation: Locate the small switch on the umbrella pole, typically above the crank. Flip the switch to the "ON" position to illuminate the LED lights. Flip it to "OFF" to turn them off.
Maintenance
- Cleaning: Wipe the canopy fabric with a damp cloth. Avoid machine washing or dry cleaning to preserve the water-resistant and UV-resistant properties.
- Storage: When not in use for extended periods, especially during off-season or severe weather, close the umbrella and store it in a dry, protected area. Consider using an umbrella cover for added protection.
- Inspection: Periodically check the crank mechanism, tilt button, ribs, and pole for any signs of damage, loose screws, or corrosion. Lubricate moving parts if necessary.
- Battery Care: Ensure the solar panel is clean and free of debris for optimal charging. If the LED lights dim or stop working, ensure the battery has had sufficient sunlight exposure.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Umbrella does not open/close smoothly. | Crank mechanism is stiff or obstructed. | Apply a silicone-based lubricant to the moving parts of the crank mechanism. Check for any fabric or debris obstructing the ribs. |
| LED lights are dim or not working. | Insufficient solar charge, switch is off, or battery issue. | Ensure the solar panel is clean and exposed to direct sunlight for at least 6-8 hours. Verify the light switch on the pole is in the "ON" position. If issues persist, the battery may need replacement (contact support). |
| Umbrella is unstable. | Base is too light or not properly secured. | Ensure you are using an umbrella base with adequate weight (recommended up to 44lbs) and that the pole is securely tightened within the base. Avoid use in high winds. |
| Canopy fabric appears faded or damaged. | Prolonged exposure to harsh elements. | While the fabric is UV-resistant, extreme conditions can cause wear. Ensure proper storage when not in use. Contact customer support for replacement canopy options. |
Specifications
- Product Type: 3 Tiers Market Umbrella with LED Lights
- Canopy Size: 11FT (330cm / 129.9 inches diameter)
- Overall Height: 255cm / 100.4 inches
- Pole Diameter: 1.5 inches
- Ribs: 8 Aluminum ribs
- Canopy Material: 100% polyester, water-resistant, UV-resistant (UPF50+), fade-resistant (color fastness for 2 years)
- Frame Material: Anti-rust powder-coated Aluminum
- Lighting: 32 integrated LED lights
- Power Source: Solar panel with Ni-MH Rechargeable Battery
- Tilt Function: Push-button tilt (up to 45 degrees)
- Opening Mechanism: Crank handle
- Care Instructions: Wipe with damp cloth, avoid machine wash/dry clean
Warranty and Support
ABCCANOPY products are manufactured with quality and durability in mind. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Please refer to your purchase documentation for specific warranty terms and duration.
For technical support, replacement parts, or warranty claims, please contact ABCCANOPY customer service through the retailer where you purchased the product or visit the official ABCCANOPY website.
Please retain your proof of purchase for warranty purposes.
