Introduction
This manual provides essential instructions for the proper use and care of your Invicta Men's Analog Quartz Watch, Model 48165. This timepiece features a 47mm stainless steel case, a gold dial, and is powered by an accurate quartz movement. It is water-resistant up to 10 bar (100 meters) and is part of the Invicta Racing collection.

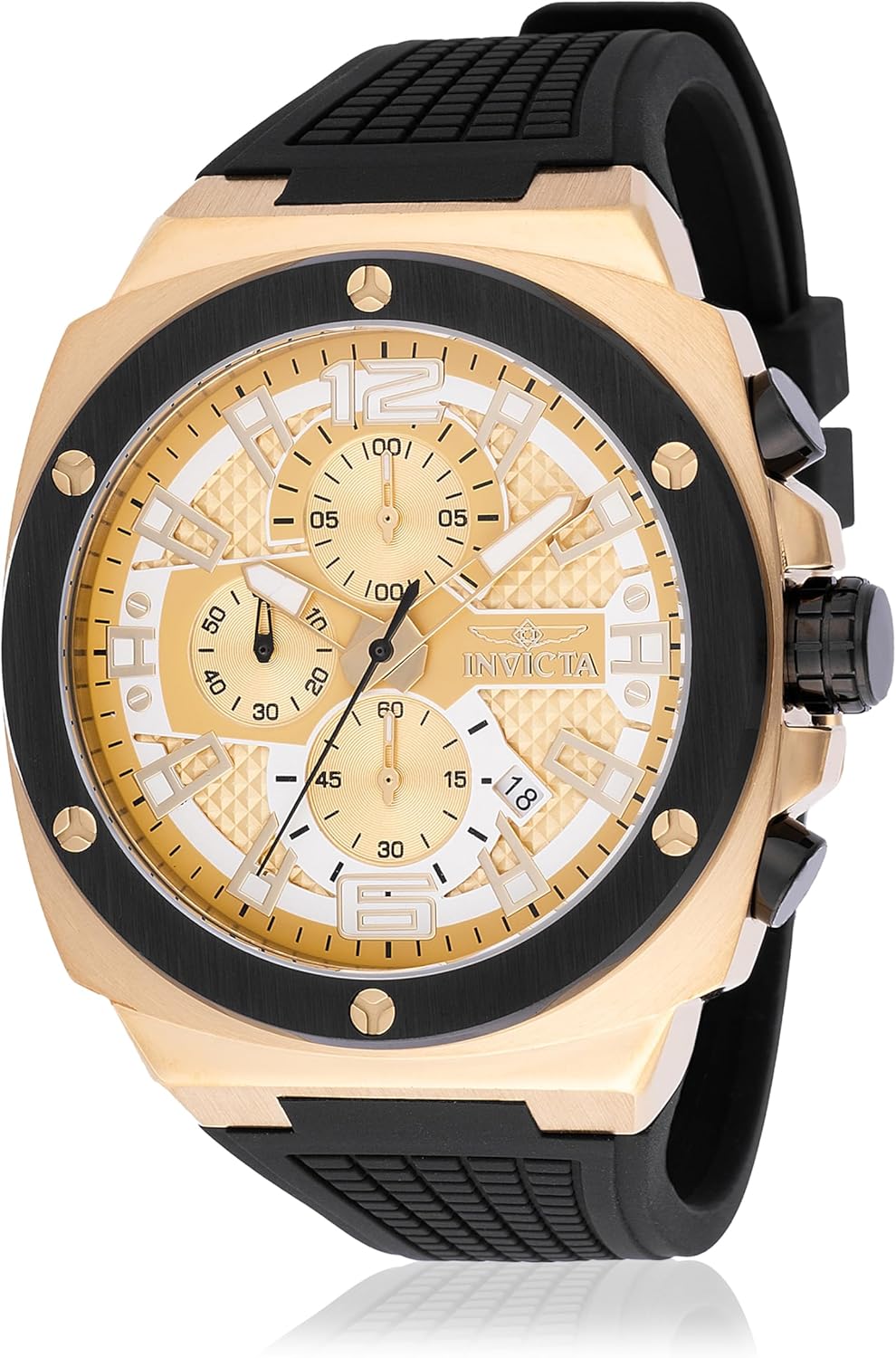

Figure 1: Front view of the Invicta Model 48165 watch, showcasing its gold dial, chronograph sub-dials, and black silicone strap.
Setup
1. Setting the Time
- Pull the crown out to the second click position.
- Turn the crown to set the hour and minute hands to the desired time.
- Push the crown back into the normal position.
2. Setting the Date
- Pull the crown out to the first click position.
- Turn the crown clockwise or counter-clockwise (depending on the movement) to set the date. Avoid setting the date between 9 PM and 3 AM, as this may interfere with the automatic date change mechanism.
- Push the crown back into the normal position.
3. Adjusting the Strap
The silicone strap features a buckle closure. Adjust the strap by selecting the appropriate hole for a comfortable and secure fit on your wrist. Ensure the watch is not too tight to allow for proper circulation, nor too loose to prevent excessive movement.
Figure 2: The Invicta Model 48165 watch worn on a wrist, demonstrating its fit and appearance.
Operating the Chronograph
The Invicta Model 48165 features a chronograph function for measuring elapsed time. The watch dial includes sub-dials for 1/10 second, minutes, and seconds, along with a calendar window.
Figure 3: Close-up of the watch dial, illustrating the chronograph 1/10 second, minutes, and seconds sub-dials, and the crown for time/calendar adjustment.
Chronograph Functions:
- Start/Stop: Press the upper pusher (button) to start the chronograph. Press it again to stop.
- Reset: While the chronograph is stopped, press the lower pusher to reset all chronograph hands to their zero positions.
- Split Time: Some chronographs allow for split-time measurement. Refer to the specific movement's detailed instructions if this feature is available and desired.
Water Resistance:
This watch is water-resistant to 10 bar (100 meters / 330 feet). This rating means the watch is suitable for swimming and snorkeling, but not for diving. Ensure the crown is fully pushed in before any contact with water to maintain water resistance.
Maintenance
- Cleaning: Regularly wipe the watch case and strap with a soft, damp cloth. For silicone straps, mild soap and water can be used. Ensure the watch is completely dry afterward.
- Avoid Chemicals: Do not expose the watch to harsh chemicals, solvents, or detergents, as these can damage the case, strap, or internal components.
- Temperature Extremes: Avoid exposing the watch to extreme temperatures (hot or cold) or sudden temperature changes, which can affect the movement and water resistance.
- Battery Replacement: The watch is powered by a quartz movement. When the battery runs low, the second hand may start to jump in two-second intervals (End-of-Life indicator). Battery replacement should be performed by a qualified watch technician to ensure proper sealing and water resistance.
- Water Resistance Check: It is recommended to have the watch's water resistance checked annually by an authorized service center, especially if it is frequently exposed to water.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Watch not running or running intermittently. | Depleted battery. | Replace the battery at an authorized service center. |
| Date not changing at midnight. | Time is set to AM/PM incorrectly, or date was set during restricted hours. | Adjust the time past 12 PM to correct AM/PM. Reset the date outside of 9 PM - 3 AM. |
| Chronograph hands do not reset to zero. | Requires calibration. | Consult the movement's specific manual for chronograph hand calibration or seek professional service. |
| Condensation inside the watch. | Loss of water resistance or exposure to extreme temperature changes. | Immediately take the watch to an authorized service center for inspection and repair. |
Specifications
- Model Number: 48165
- Movement: Quartz
- Case Material: Stainless Steel
- Dial Diameter: 47 mm
- Dial Color: Gold
- Strap Material: Silicone
- Water Resistance: 10 Bar (100 meters / 330 feet)
- Dial Thickness: 12.1 mm / 0.48 in
- Band Width: 27 mm / 1.06 in
- Strap Length: 225 mm / 8.86 in
- Weight: 152 g
Figure 4: Dimensional diagram of the Invicta Model 48165 watch, detailing dial diameter, band width, and strap length.
Warranty
Your Invicta Model 48165 watch comes with a 2-year Invicta warranty. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims. For full terms and conditions, please refer to the official Invicta warranty documentation included with your purchase or visit the official Invicta website.
Support
For further assistance, service, or inquiries regarding your Invicta watch, please contact Invicta customer support through their official website or the contact information provided in your warranty booklet. When contacting support, please have your watch model number (48165) and proof of purchase readily available.
You can find more information and support resources on the official Invicta website: www.invictawatch.com
