Effireli RC802N YUL1 Replacement Remote Control for TCL TV User Manual

Introduction

This manual provides instructions for the Effireli RC802N YUL1 Replacement Remote Control, designed for use with compatible TCL televisions. This remote is engineered for immediate use without the need for programming or complex setup procedures.

Setup

Battery Installation

To begin using your remote control, install two AAA batteries (not included) into the battery compartment located on the back of the remote. Ensure the batteries are inserted with the correct polarity (+ and -) as indicated inside the compartment.

Initial Use

The Effireli RC802N YUL1 remote control requires no programming. Once batteries are installed, it is ready for immediate operation with compatible TCL TV models. Simply point the remote at your television and press the desired function button.

Operating Instructions

Familiarize yourself with the buttons and their functions:

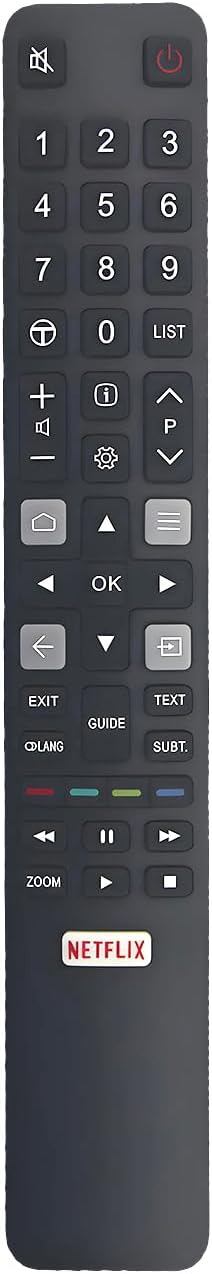

Image: Effireli RC802N YUL1 Replacement Remote Control. This image displays the full layout of the remote control, showing all buttons and their labels.

• Power Button: Located at the top right. Turns the television on or off.
• Mute Button: Located at the top left. Mutes or unmutes the television audio.
• Number Pad (0-9): Used for direct channel selection or inputting numerical data.
• LIST Button: Accesses the channel list.
• Volume Up/Down (+/-): Adjusts the television's volume level.
• Channel Up/Down (P^/P˅): Changes the television channel.
• Info (i) Button: Displays information about the current program or input.
• Settings (Gear icon) Button: Accesses the television's settings menu.
• Home (House icon) Button: Returns to the television's home screen or smart TV interface.
• Menu (Three lines icon) Button: Opens the main menu.
• Navigation Pad (Up, Down, Left, Right, OK): Used to navigate through menus and confirm selections.
• Back (Left arrow icon) Button: Returns to the previous screen or menu.
• Input Source (Arrow into box icon) Button: Selects the input source (HDMI, AV, etc.).
• EXIT Button: Exits the current menu or application.
• GUIDE Button: Displays the electronic program guide.
• TEXT Button: Activates or deactivates teletext (if supported).
• LANG (Audio Language) Button: Changes the audio language track.
• SUBT. (Subtitle) Button: Toggles subtitles on or off.
• Color Buttons (Red, Green, Yellow, Blue): Functionality varies depending on the application or menu.
• Media Control Buttons (Rewind, Play/Pause, Fast Forward, Play, Stop): Controls media playback.
• ZOOM Button: Adjusts the screen zoom level.
• NETFLIX Button: Direct access to the Netflix application.

Maintenance

Cleaning the Remote

To clean the remote control, gently wipe its surface with a soft, dry cloth. For stubborn dirt, slightly dampen the cloth with water. Avoid using harsh chemicals, abrasive cleaners, or excessive moisture, as these can damage the remote.

Battery Replacement

Replace batteries when the remote's response becomes inconsistent or stops working. Always replace both batteries at the same time with new AAA batteries. Do not mix old and new batteries, or different types of batteries.

Troubleshooting

• Remote is unresponsive:
  • Ensure batteries are correctly installed with proper polarity.
  • Replace old batteries with new ones.
  • Check for any obstructions between the remote and the TV's infrared sensor.
  • Ensure you are within the effective range and pointing the remote directly at the TV.
• Certain buttons do not work:
  • This remote is a replacement and may not support all advanced functions of every TCL TV model. Verify compatibility with your specific TV model.
  • Clean the remote surface, especially around the unresponsive buttons, to remove any debris.
• Remote works intermittently:
  • This often indicates low battery power. Replace the batteries.
  • Ensure there is no strong light source (like direct sunlight or bright fluorescent lights) interfering with the IR signal.

Specifications

Warranty and Support

This Effireli remote control comes with a 12-month warranty covering manufacturing defects. Additionally, a 30-day money-back guarantee is provided. Returns and exchanges are accepted within the warranty period for eligible issues.

If your specific TCL TV model number is not explicitly listed as compatible, or if your original remote control appears significantly different, it is recommended to contact Effireli customer support directly to confirm compatibility before purchase or for assistance with any issues.
