Playzone HDD Console User Manual

1. Product Overview

The Playzone HDD Console is a versatile plug-and-play Solid State Drive (SSD) designed to transform your PC or laptop into a powerful gaming station. It comes pre-loaded with three distinct game systems and a vast library of games, offering an extensive retro and modern gaming experience.

Image 1.1: Overview of the Playzone HDD Console, highlighting its capacity of 16191 games, 3 game systems, and compatibility with over 80 emulators.

Key Features:

• Three Integrated Game Systems: Retrobat for classic retro games, Playnite for AAA games, and Launchbox for 3D games.
• Extensive Game Library: Pre-installed with 16,191 games and compatible with over 80 game emulators.
• High-Speed Performance: Utilizes a 1TB SSD with a data output rate of up to 10Gb/s for smooth gameplay and clear visuals.
• Plug and Play: Designed for easy setup and immediate use with compatible PCs and laptops.
• Expandable: Supports adding additional games.

2. Setup Guide

Follow these steps to set up your Playzone HDD Console with your computer.

System Requirements:

• Operating System: 64-bit Windows 8.1, Windows 10, or Windows 11.
• Device Type: Compatible with PC and Laptop.
• Recommended CPU: Intel Core i5 or above.
• Recommended GPU: NVIDIA GeForce GTX 1050 Ti or above.

Image 2.1: Visual representation of compatible operating systems (Windows 8.1, 10, 11) and device types (PC, Laptop), along with recommended hardware specifications for optimal performance.

Connection Steps:

1. Ensure your PC or laptop meets the minimum system requirements.
2. Connect the Playzone SSD to your computer using the provided SATA to USB-A cable. The SATA cable connects to the SSD, and the USB-A end connects to an available USB port on your computer.
3. Once connected, your operating system should automatically detect the SSD.
4. Navigate to 'This PC' or 'My Computer' to locate the newly connected drive.
5. Open the drive to access the pre-installed game systems and begin playing.

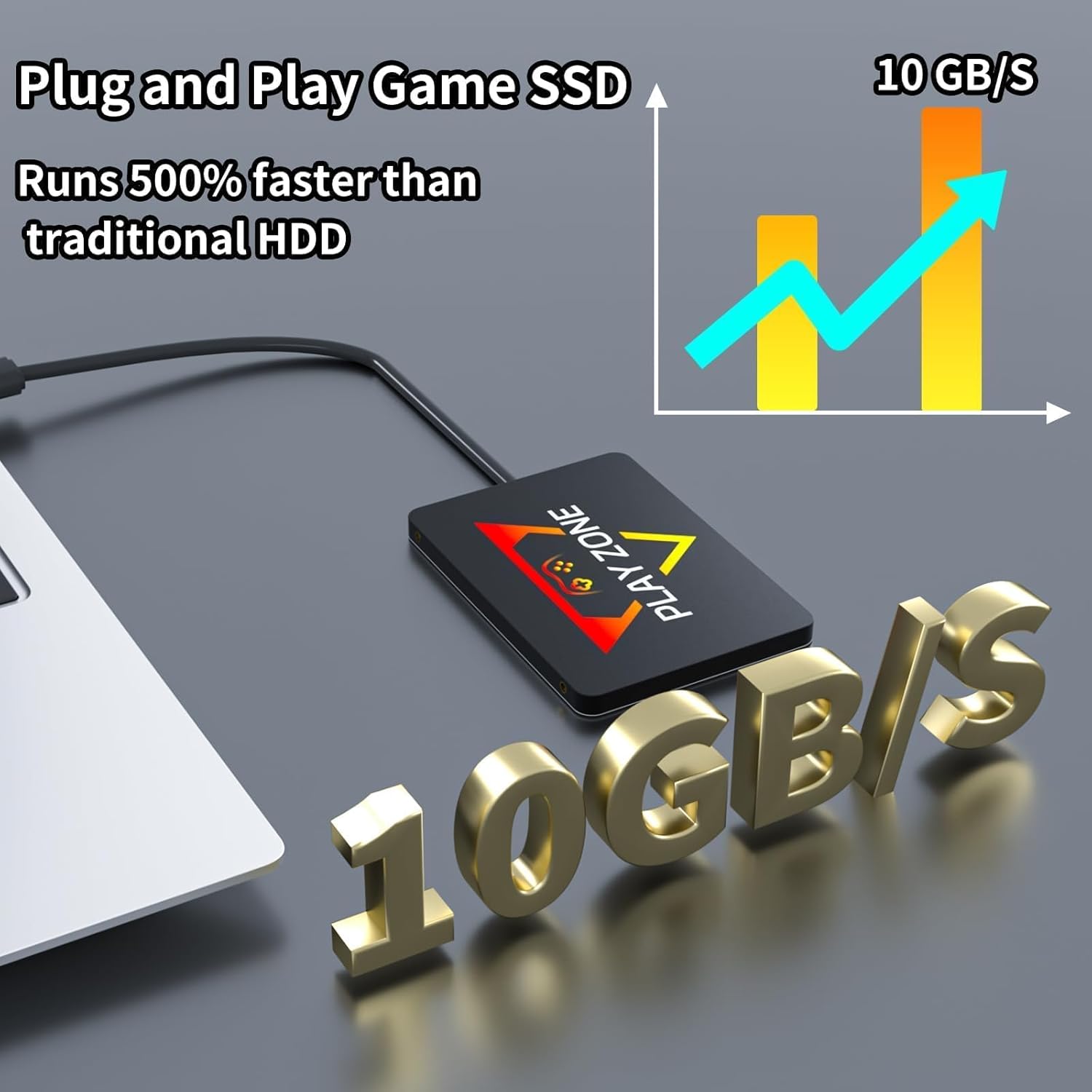

Image 2.2: The Playzone Game SSD connected to a laptop via its cable, emphasizing its high-speed 10 GB/s data transfer rate compared to traditional HDDs.

3. Operating Instructions

The Playzone HDD Console provides access to three distinct gaming environments.

Image 3.1: Visual representation of the three primary game systems included: LaunchBox, Playnite, and Retrobat, each designed for different types of gaming experiences.

Accessing Game Systems:

• Once the SSD is connected and recognized by your computer, open the drive.
• You will find folders or executable files for each of the three game systems: Retrobat, Playnite, and Launchbox.
• Double-click the desired system's executable file to launch it.

Image 3.2: Breakdown of the game library, showing 4321 3D games in Launchbox, 11784 classic retro games in Retrobat, and 86 AAA games in Playnite, with support for adding more games.

Game Categories:

• Retrobat: Primarily for classic retro games.
• Playnite: Focuses on AAA (triple-A) games.
• Launchbox: Dedicated to 3D games.

The console supports adding games by yourself. Refer to the specific documentation or community resources for each emulator (Retrobat, Playnite, Launchbox) for detailed instructions on adding new games.

4. Maintenance

The Playzone HDD Console is a robust SSD designed for durability. Minimal maintenance is required to ensure its longevity and optimal performance.

• Storage: Store the SSD in a cool, dry place away from direct sunlight and extreme temperatures.
• Handling: Avoid dropping or subjecting the SSD to physical shocks, as this can damage internal components.
• Cleaning: Use a soft, dry cloth to gently wipe the exterior of the SSD if it becomes dusty. Do not use liquid cleaners or abrasive materials.
• Software Updates: Periodically check for updates for the installed game systems (Retrobat, Playnite, Launchbox) to ensure compatibility and access to the latest features.

5. Troubleshooting

If you encounter issues with your Playzone HDD Console, consider the following troubleshooting steps:

• SSD Not Detected:
  • Ensure the SATA to USB-A cable is securely connected to both the SSD and your computer's USB port.
  • Try connecting to a different USB port on your computer.
  • Verify that your computer's operating system is 64-bit Windows 8.1, 10, or 11.
  • Restart your computer and try connecting the SSD again.
• Games Not Launching/Crashing:
  • Confirm your computer meets the recommended CPU (i5 or above) and GPU (GTX 1050 Ti or above) specifications.
  • Ensure your graphics drivers are up to date.
  • Check the specific game system's documentation for any additional software dependencies (e.g., DirectX, Visual C++ Redistributables).
  • If only certain games are affected, they might require specific configurations within the emulator.
• Slow Performance:
  • Ensure no other demanding applications are running in the background on your computer.
  • Verify that your USB port is functioning correctly and providing adequate power.
  • Check your computer's resource usage (CPU, RAM) during gameplay to identify bottlenecks.

If issues persist, consult the seller or manufacturer for further assistance.

6. Specifications

Detailed technical specifications for the Playzone HDD Console.

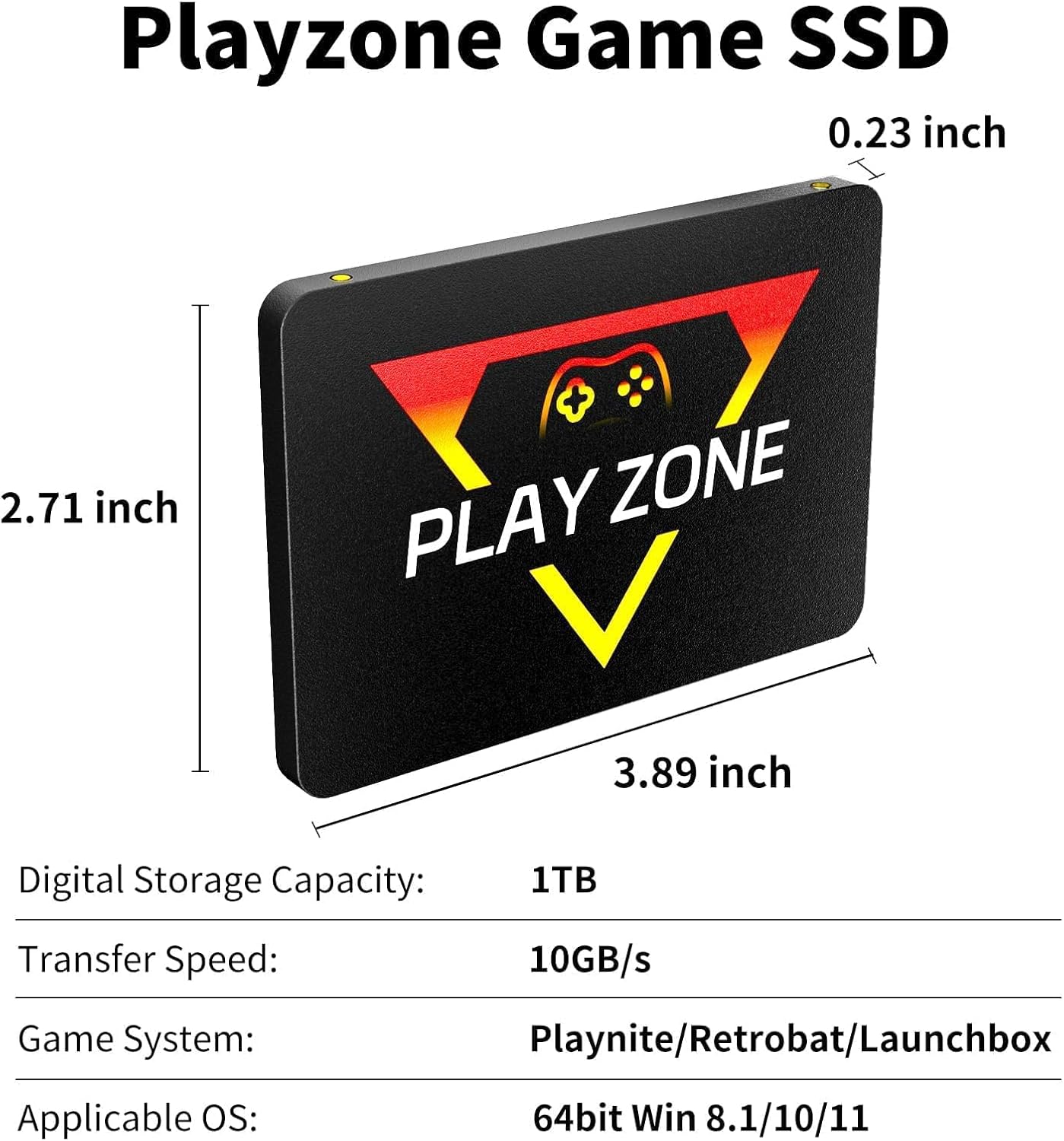

Image 6.1: Detailed view of the Playzone Game SSD, showing its physical dimensions (2.71 x 0.23 x 3.89 inches) and listing key specifications such as digital storage capacity, transfer speed, game systems, and applicable operating systems.

7. What's in the Box

The Playzone HDD Console package includes the following items:

Image 7.1: Contents of the Playzone HDD Console package, including the Playzone SSD, a SATA cable, a SATA to USB-A cable, and information about free FTP access.

• 1 x Playzone SSD (Game Console)
• 1 x SATA Cable
• 1 x SATA to USB-A Cable
• Access to Free FTP (for additional resources/games, details provided by seller)

8. Warranty and Support

For information regarding product warranty, returns, or technical support, please contact the seller directly through your purchase platform. Any available protection plans are typically offered at the point of sale and managed by third-party providers.

It is recommended to retain your proof of purchase for any warranty claims or support inquiries.
