1. Introduction
Thank you for choosing the ROTTOGOON Dimmable Touch Table Lamps. This set of two rustic farmhouse-style lamps is designed to provide versatile lighting with a convenient 3-level touch dimming feature. Each lamp includes an energy-efficient 9W, 2700K bulb for immediate use. This manual provides essential information for safe setup, operation, and maintenance of your new lamps.

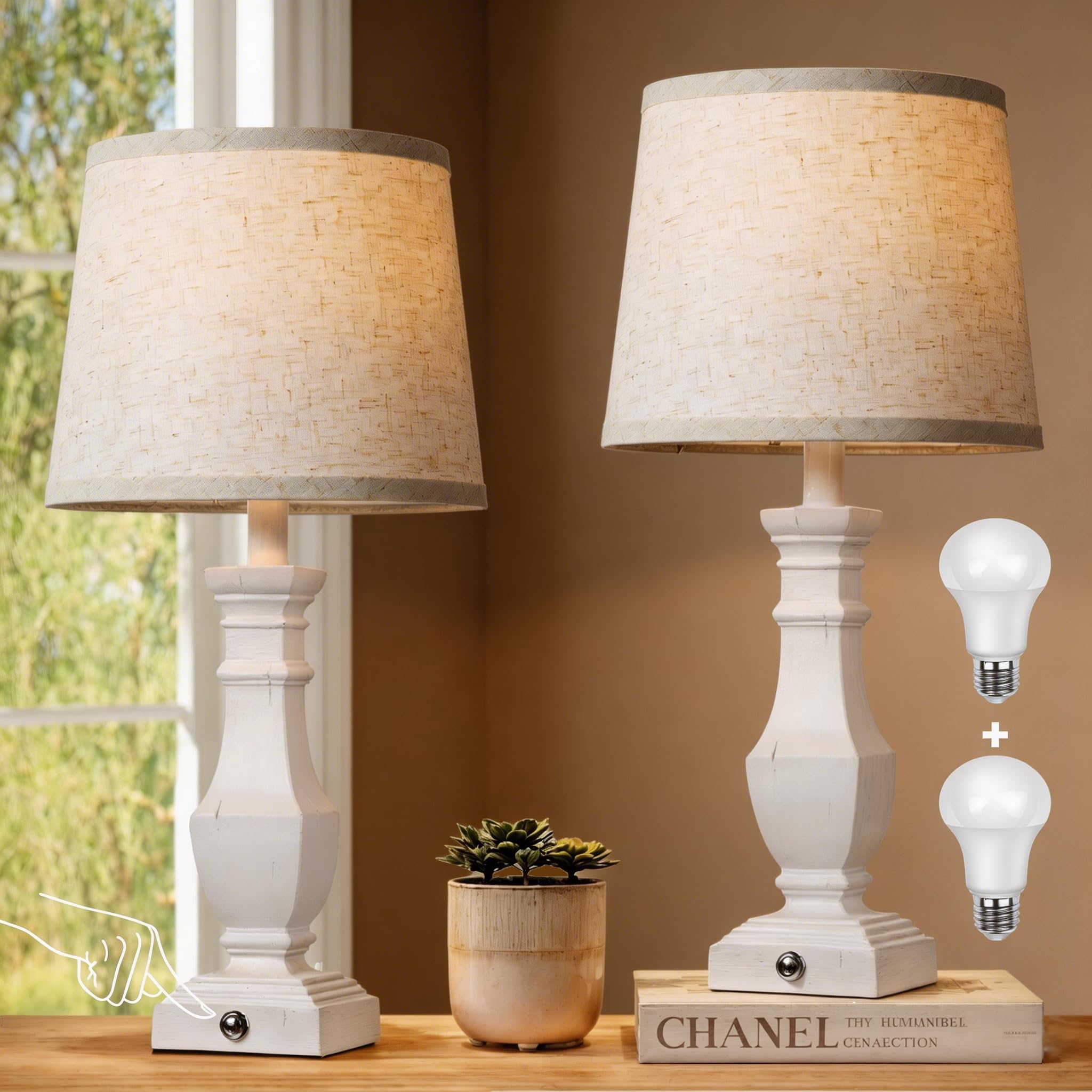

Image 1: ROTTOGOON Dimmable Touch Table Lamps (Set of 2) in White.
2. Package Contents
Please verify that all items listed below are included in your package:
- 2 Lamp Bases
- 2 Lampshades
- 2 Dimmable 9W, 2700K LED Bulbs
- 2 Power Cables
- 1 User Manual
Video 1: Unboxing and initial setup of the ROTTOGOON Dimmable Touch Table Lamps.
3. Setup and Assembly
The ROTTOGOON table lamps feature a harp-free design for quick and easy assembly. Follow these steps:
- Unpack all components from the box.
- Assemble the lampshade: Put the top and bottom rings into each plastic buckle, then secure the lampshade together.
- Tighten the bulb base onto the lamp body.
- Place the assembled lampshade onto the bulb holder and press it until stable.
- Screw the included 9W, 2700K LED bulb into the E26 standard socket.
- Connect the power cable to a suitable electrical outlet.
Image 2: Step-by-step guide for the harp-free assembly of the ROTTOGOON Table Lamp.
4. Operating Instructions
These lamps feature a 3-level touch dimming control for adjustable brightness:
- To Turn On/Adjust Brightness: Lightly tap the metal touch button located on the lamp base. Each tap will cycle through the brightness levels: Low, Medium, High.
- To Turn Off: After the High brightness setting, tap the button again to turn the lamp off.
Image 3: Demonstration of 3-level touch dimming feature on the ROTTOGOON Table Lamp.
Video 2: Overview of the ROTTOGOON Dimmable Table Lamps, highlighting their rustic farmhouse style and dimming capabilities.
5. Features
- 3-Level Touch Dimming: Easily adjust brightness (Low, Medium, High) with a simple tap on the metal button.
- Included Dimmable Bulbs: Comes with two energy-efficient 9W, 2700K LED bulbs for warm, flicker-free illumination.
- Classic Farmhouse Design: Antique-finished resin base with a beige/white tapered drum shade complements various decor styles.
- Durable Construction: Crafted from high-quality resin for long-lasting performance.
- Harp-free Shade Design: Simplifies installation and ensures the shade remains perfectly aligned.
Image 4: ROTTOGOON Table Lamps complementing different room decors.
Video 3: Demonstration of the ROTTOGOON Bedside Desk Lamps, showcasing their touch control and suitability for various settings.
6. Maintenance
To ensure the longevity and optimal performance of your ROTTOGOON table lamps, follow these maintenance guidelines:
- Cleaning: Disconnect the lamp from the power source before cleaning. Use a soft, dry cloth to wipe the lamp base and shade. Avoid using abrasive cleaners or solvents, as they may damage the finish.
- Bulb Replacement: Ensure the lamp is unplugged and the bulb has cooled before attempting to replace it. Use only E26 standard bulbs (Max. 60W).
- Cord Care: Regularly inspect the power cord for any signs of damage. Do not use the lamp if the cord is frayed or damaged.
7. Troubleshooting
If you encounter any issues with your ROTTOGOON table lamps, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not turn on. | Not plugged in, faulty bulb, power outage. | Check power connection, replace bulb, check circuit breaker. |
| Dimming feature not working. | Non-dimmable bulb installed, faulty touch sensor. | Ensure a dimmable E26 bulb is used. Contact customer support if the issue persists. |
| Flickering light. | Loose bulb, incompatible bulb, unstable power. | Tighten bulb, ensure dimmable LED bulb is used, try a different outlet. |
8. Specifications
| Attribute | Detail |
|---|---|
| Model Number | STR-DL-0203 |
| Dimensions (D x W x H) | 11"D x 11"W x 22.5"H |
| Base Material | Resin |
| Shade Material | Fabric |
| Shade Color | White |
| Finish Type | Painted |
| Bulb Base | E26 |
| Light Source Type | LED |
| Wattage (Included Bulbs) | 9W (Max 60W for replacement) |
| Voltage | 120 Volts |
| Switch Type | Touch |
| Additional Features | 3-Way Dimmable |
| Indoor/Outdoor Usage | Indoor |
| Number of Items | 2 |
Image 5: Detailed dimensions and bulb specifications for the ROTTOGOON Table Lamp.
9. Warranty and Support
ROTTOGOON provides a limited manufacturer's warranty for this product. For specific warranty details, claims, or technical support, please refer to the contact information provided with your purchase or visit the official ROTTOGOON website. Always retain your proof of purchase for warranty purposes.
