Introduction
This manual provides essential information for the proper installation, operation, and maintenance of the RATION HA13040000A4 Fuel Filter. This fuel filter is designed to ensure clean fuel delivery to your Branson Compact Tractor engine, protecting critical components and maintaining optimal performance. Please read these instructions carefully before proceeding with installation or maintenance.
Product Overview

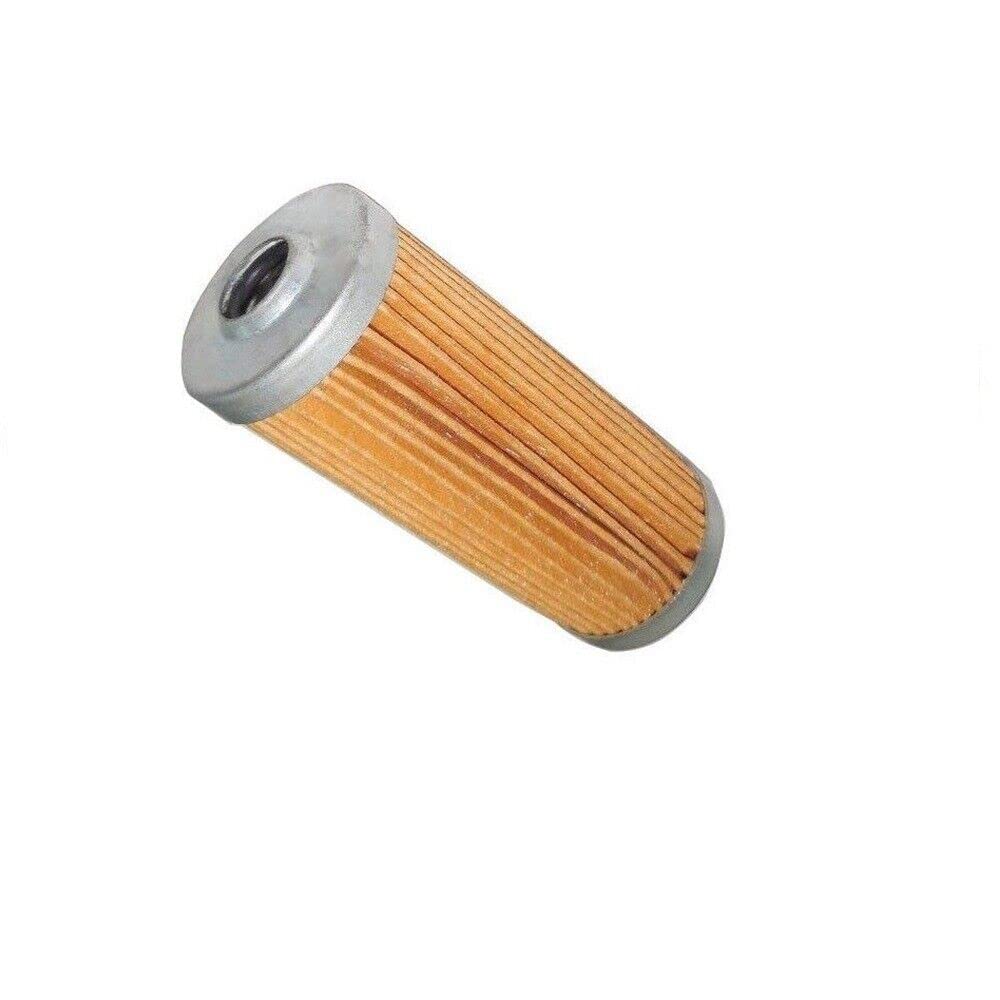

An image showing the RATION HA13040000A4 fuel filter, featuring a cylindrical design with a pleated paper element visible between metal end caps. One end cap has a central opening for fuel line connection.
The RATION HA13040000A4 Fuel Filter is a critical component in your tractor's fuel system. It removes contaminants such as dirt, rust, and debris from the fuel before it reaches the engine's fuel injectors or carburetor. This filtration process is vital for preventing engine damage, ensuring efficient fuel combustion, and extending the lifespan of your tractor's engine.
Compatibility
This fuel filter is specifically designed for the following Branson Compact Tractor models:
- Branson 2810
- Branson 3510
- Branson 3520
- Branson 3820
- Branson 4220
- Branson 4720I
Always verify the part number (HA13040000A4) against your tractor's specifications or existing filter to ensure correct fitment.
Setup and Installation
Safety Precautions:
- Ensure the tractor engine is off and cooled down before beginning any work.
- Disconnect the battery to prevent accidental starting.
- Wear appropriate personal protective equipment, including gloves and eye protection.
- Be prepared for fuel spillage. Have rags and a suitable container ready.
- Work in a well-ventilated area, away from open flames or sparks.
Tools Required (Typical):
- Wrench or socket set (to fit fuel line fittings)
- Pliers (if hose clamps are used)
- Drain pan or container for old fuel
- Clean rags
Installation Steps:
- Locate the Existing Fuel Filter: Refer to your tractor's service manual for the exact location of the fuel filter. It is typically found between the fuel tank and the fuel pump or engine.
- Prepare for Removal: Place a drain pan beneath the fuel filter to catch any spilled fuel.
- Disconnect Fuel Lines: Carefully loosen and remove the fuel lines connected to the old filter. Be mindful of residual fuel pressure.
- Remove Old Filter: Detach the old fuel filter from its mounting bracket.
- Install New Filter: Ensure the new RATION HA13040000A4 Fuel Filter is oriented correctly according to the fuel flow direction (if indicated by arrows on the filter or housing). Attach the new filter to the mounting bracket.
- Reconnect Fuel Lines: Securely reattach the fuel lines to the new filter. Ensure all connections are tight to prevent leaks.
- Check for Leaks: After installation, prime the fuel system (refer to your tractor's manual for specific priming procedures) and start the engine. Carefully inspect all connections for any fuel leaks. Address any leaks immediately.
Operating Considerations
Once installed, the fuel filter operates continuously to clean the fuel supplied to your engine. No specific operational steps are required beyond ensuring proper installation. The filter's effectiveness is crucial for the smooth running and longevity of your tractor's engine.
Maintenance
Inspection:
Regularly inspect the fuel filter and its connections for any signs of leaks, damage, or excessive dirt accumulation on the exterior. While the internal element cannot be visually inspected, external signs can sometimes indicate issues.
Replacement Schedule:
Fuel filters are consumable items and require periodic replacement. The exact replacement interval can vary based on tractor usage, fuel quality, and manufacturer recommendations. As a general guideline, it is recommended to replace the fuel filter every 200-400 operating hours or at least once a year, whichever comes first. Always refer to your Branson Compact Tractor's owner's manual for the precise recommended service interval.
Disposal:
Dispose of used fuel filters and any contaminated fuel or rags according to local environmental regulations. Fuel and used filters contain hazardous materials and should not be discarded with regular waste.
Troubleshooting
A clogged or failing fuel filter can lead to various engine performance issues. If you experience any of the following symptoms, consider inspecting or replacing your fuel filter:
- Engine Stalling: The engine may stall, especially under load.
- Loss of Power: Reduced engine power or sluggish acceleration.
- Difficulty Starting: The engine may crank but fail to start, or take longer to start.
- Engine Misfires: Irregular combustion leading to a rough running engine.
If these symptoms persist after replacing the fuel filter, consult a qualified mechanic or your tractor's service manual for further diagnosis.
Specifications
| Part Number: | HA13040000A4 |
| Brand: | RATION |
| Application: | Branson Compact Tractors (2810, 3510, 3520, 3820, 4220, 4720I) |
| Function: | Fuel Filtration |
Warranty Information
For specific warranty details regarding the RATION HA13040000A4 Fuel Filter, please refer to the documentation provided at the time of purchase or contact the seller directly. Warranty terms typically cover manufacturing defects for a specified period.
Support
If you require further assistance, have questions about installation, or need to report an issue, please contact the retailer or manufacturer from whom you purchased this product. Provide your purchase details and the product part number (HA13040000A4) for efficient support.
