1. Introduction
The Fakir Probiwash 7-in-1 Oral Irrigator is designed to enhance your personal oral hygiene routine. This advanced device offers 7 different nozzle options to address various oral care needs, providing comprehensive cleaning and gum stimulation. It is particularly beneficial for individuals with braces, crowns, bridges, implants, or sensitive gums. This manual provides essential information for the safe and effective use of your oral irrigator.
2. Important Safety Information
- Read all instructions before using this appliance.
- Do not immerse the device in water.
- Do not use if the power cord or plug is damaged.
- Keep out of reach of children.
- Use only as directed by a dentist or physician if you have any medical conditions.
- Do not fill the water tank with water hotter than 40°C (104°F).
- Unplug the device before cleaning.
3. Package Contents
Verify that all items are included in your package:
- Fakir Probiwash Oral Irrigator Unit
- Standard Nozzle
- Orthodontic Nozzle
- Periodontal Nozzle
- Nasal Nozzle
- Tongue Cleaner Nozzle
- Curved Nozzle
- Spare Nozzle
- USB Type-C Charging Cable
- User Manual
4. Product Features
The Fakir Probiwash Oral Irrigator is equipped with several features designed for effective and comfortable oral care:

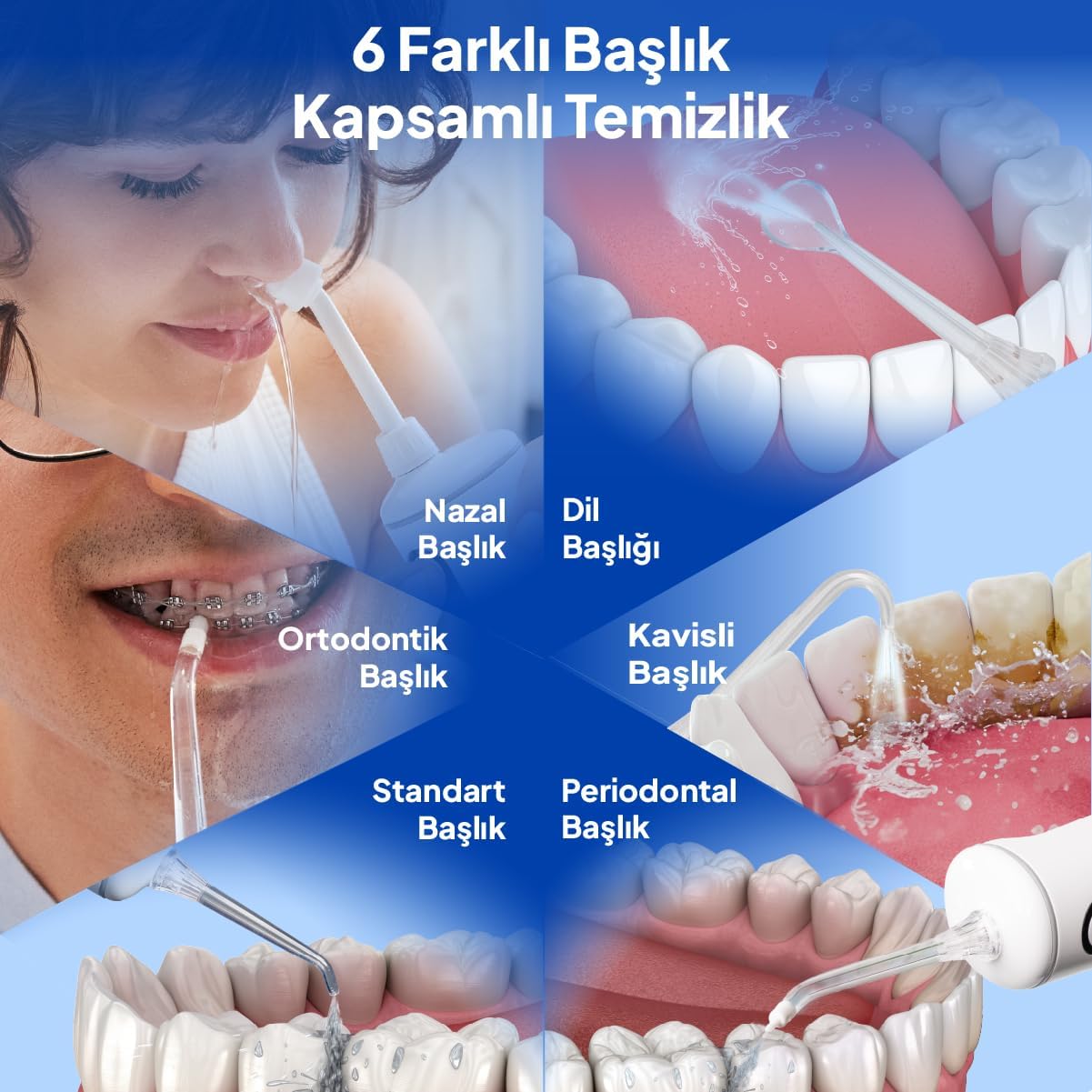

- 7 Nozzle Options: Includes Standard, Orthodontic, Periodontal, Nasal, Tongue Cleaner, Curved, and a Spare nozzle for diverse cleaning needs.
- Adjustable Pressure: Water pressure can be adjusted between 50-110 PSI.

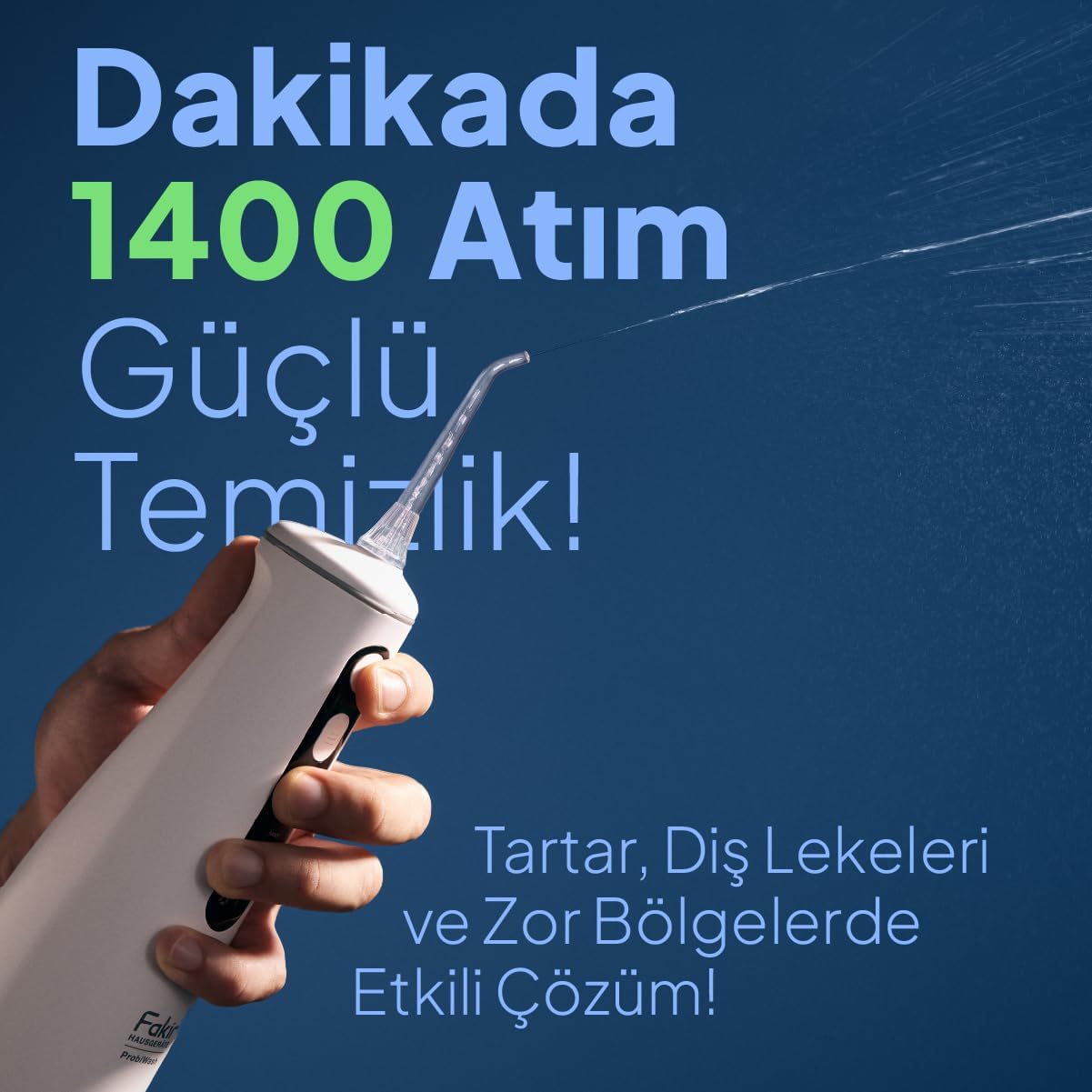

- Powerful Performance: Delivers 1400 pulses per minute for deep cleaning.
- 360° Rotating Head: Allows easy access to all areas of the mouth.
- Integrated Water Tank: 300ml high-capacity tank for extended use.
- LCD Screen: Displays battery level and selected water pressure mode.

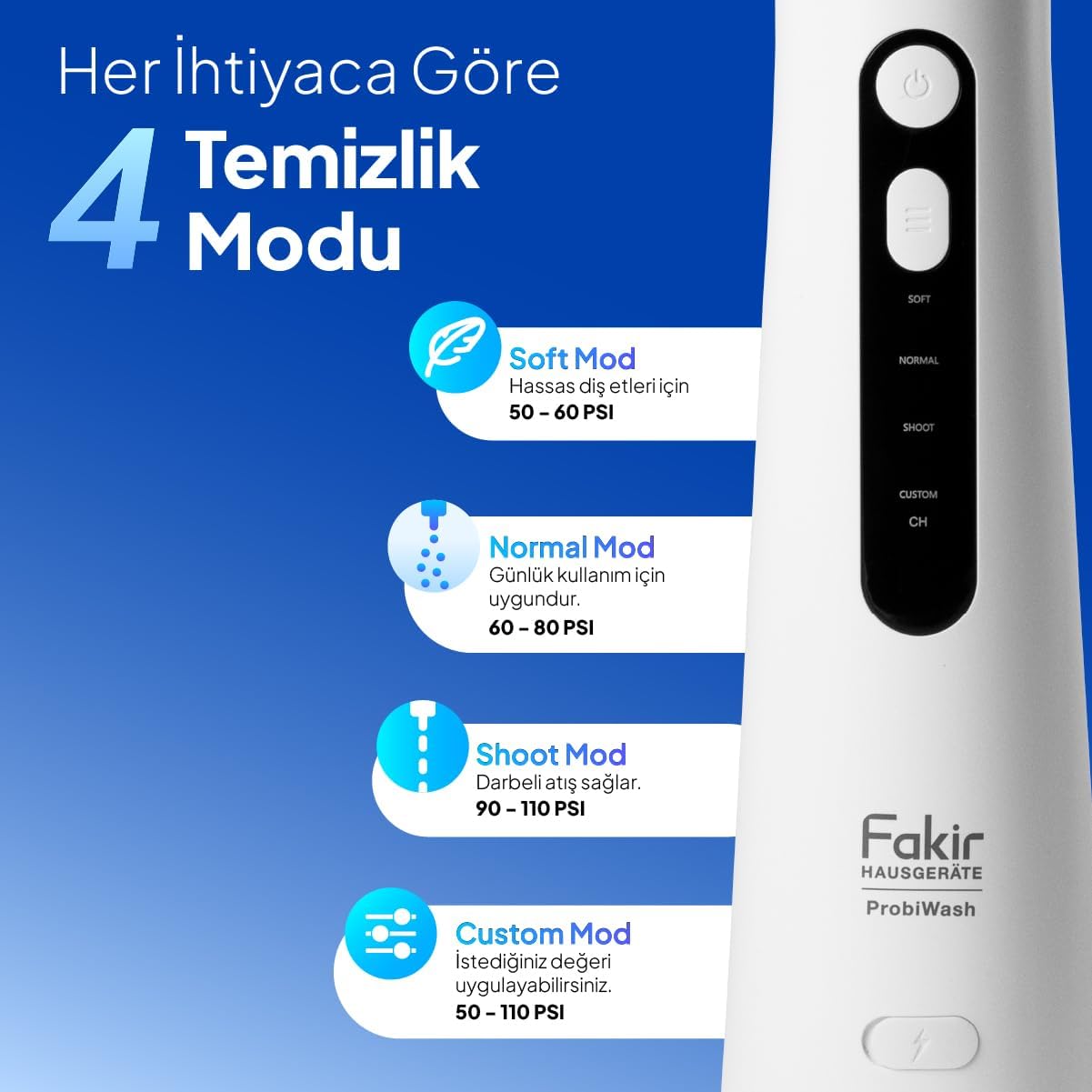

- 4 Operating Modes: Normal, Soft, Pulse, and Custom modes to suit individual preferences.
- Soft Start: Features a 3-second gradual increase in water flow from weak to strong.
- 2-Minute Timer: Automatic shut-off after 2 minutes for optimal cleaning duration.
- Fast Charging: USB Type-C charging, with a 5-hour charge providing up to 30 days of use (once per day).
- Ergonomic Design: Comfortable grip and compact size for easy handling.
5. Getting Started (Setup)
- Charge the Device: Before first use, fully charge the oral irrigator. Connect the USB Type-C charging cable to the device and a suitable power adapter (not included). The LCD screen will indicate charging status. A full charge takes approximately 5 hours.
- Attach Nozzle: Select the desired nozzle and insert it into the opening at the top of the device until it clicks into place.
- Fill Water Tank: Open the water tank cover located at the back of the device. Fill the 300ml tank with lukewarm water. Close the cover securely to prevent leakage.
6. Operating Instructions
Follow these steps for effective oral irrigation:
- Power On: Press the power button to turn on the device. The LCD screen will illuminate, showing the current mode and battery level.
- Select Mode: Press the mode button to cycle through the 4 operating modes: Normal, Soft, Pulse, and Custom. Choose the mode that best suits your comfort and cleaning needs.
- Position the Nozzle: Lean over a sink and place the nozzle tip into your mouth, aiming it at your gumline at a 90-degree angle.
- Begin Irrigation: The device features a 3-second soft start, gradually increasing water pressure. Move the nozzle along your gumline, pausing briefly between teeth. Allow the water to flow into the sink.
- Clean All Areas: Utilize the 360° rotating head to reach all areas of your mouth, including the back teeth and tongue.
- Automatic Shut-off: The device will automatically turn off after 2 minutes of continuous use. You can manually turn it off at any time by pressing the power button.
- Empty Tank: After use, empty any remaining water from the tank.
7. Cleaning and Maintenance
Regular cleaning ensures optimal performance and hygiene:
- Daily Cleaning: After each use, empty the water tank and rinse it with clean water. Run the device briefly with clean water to flush out any residue from the internal components.
- Nozzle Cleaning: Remove the nozzle and rinse it under running water. Replace nozzles every 3-6 months, or sooner if they show signs of wear.
- Device Exterior: Wipe the exterior of the device with a soft, damp cloth. Do not use abrasive cleaners or immerse the main unit in water.
- Drying and Storage: Allow all parts to air dry completely before storing. Store the device in a cool, dry place away from direct sunlight.
8. Troubleshooting
If you encounter issues with your Fakir Probiwash Oral Irrigator, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not turn on. | Low battery or no charge. | Charge the device fully (approx. 5 hours). |
| Weak water pressure. | Water tank is low or empty; Nozzle is clogged; Incorrect mode selected. | Refill water tank; Clean the nozzle; Select a higher pressure mode (e.g., Normal or Pulse). |
| Water leakage. | Water tank cover not securely closed; Nozzle not properly attached. | Ensure water tank cover is firmly closed; Re-attach the nozzle until it clicks. |
| Device stops unexpectedly. | 2-minute timer activated; Low battery. | This is normal operation (2-minute timer); Recharge the device. |
If the problem persists after attempting these solutions, please contact customer support.
9. Technical Specifications
- Model Number: 41005252
- Brand: Fakir
- Product Dimensions: 7.5 x 15 x 24.7 cm
- Product Weight: 1.01 Kilogram
- Water Pressure Range: 50-110 PSI
- Pulse Rate: 1400 pulses per minute
- Water Tank Capacity: 300 ml
- Power Source: Battery Powered (Built-in Li-ion battery)
- Charging Time: Approximately 5 hours (USB Type-C Fast Charge)
- Battery Life: Up to 30 days (based on once-daily use after a 5-hour charge)
- Operating Modes: Normal, Soft, Pulse, Custom
- Origin: Germany
10. Warranty and Customer Support
The Fakir Probiwash 7-in-1 Oral Irrigator comes with a 2+1 year warranty, providing reliable usage. For warranty claims, technical assistance, or any product-related inquiries, please contact the manufacturer:
Fakir Electrical Home Appliances Foreign Trade Inc.For contact information, please refer to the official Fakir website or your purchase documentation.
