1. Safety Information
Please read this manual carefully before assembly and operation to ensure safe use and proper maintenance of your Outfunny 12V Electric Kids Ride-On Car Toy. Keep this manual for future reference.
- Adult Supervision Required: Always supervise children when operating the ride-on car.
- Age and Weight Limits: Recommended for ages 0-8 years. Maximum load capacity is 66 lbs.
- Seat Belts: Ensure the child is securely fastened with the provided seat belt before operation.
- Lockable Doors: Verify that both doors are securely locked before the child begins driving.
- Operating Environment: Use on flat, dry surfaces. Avoid slopes, uneven terrain, water, or public roads.
- Charging: Only use the provided charger. Do not overcharge the battery.
- Remote Control: Parents can use the remote control to override child's steering and speed for safety.
2. Product Overview
The Outfunny 12V Electric Kids Ride-On Car Toy offers an engaging driving experience with safety features and entertainment options.

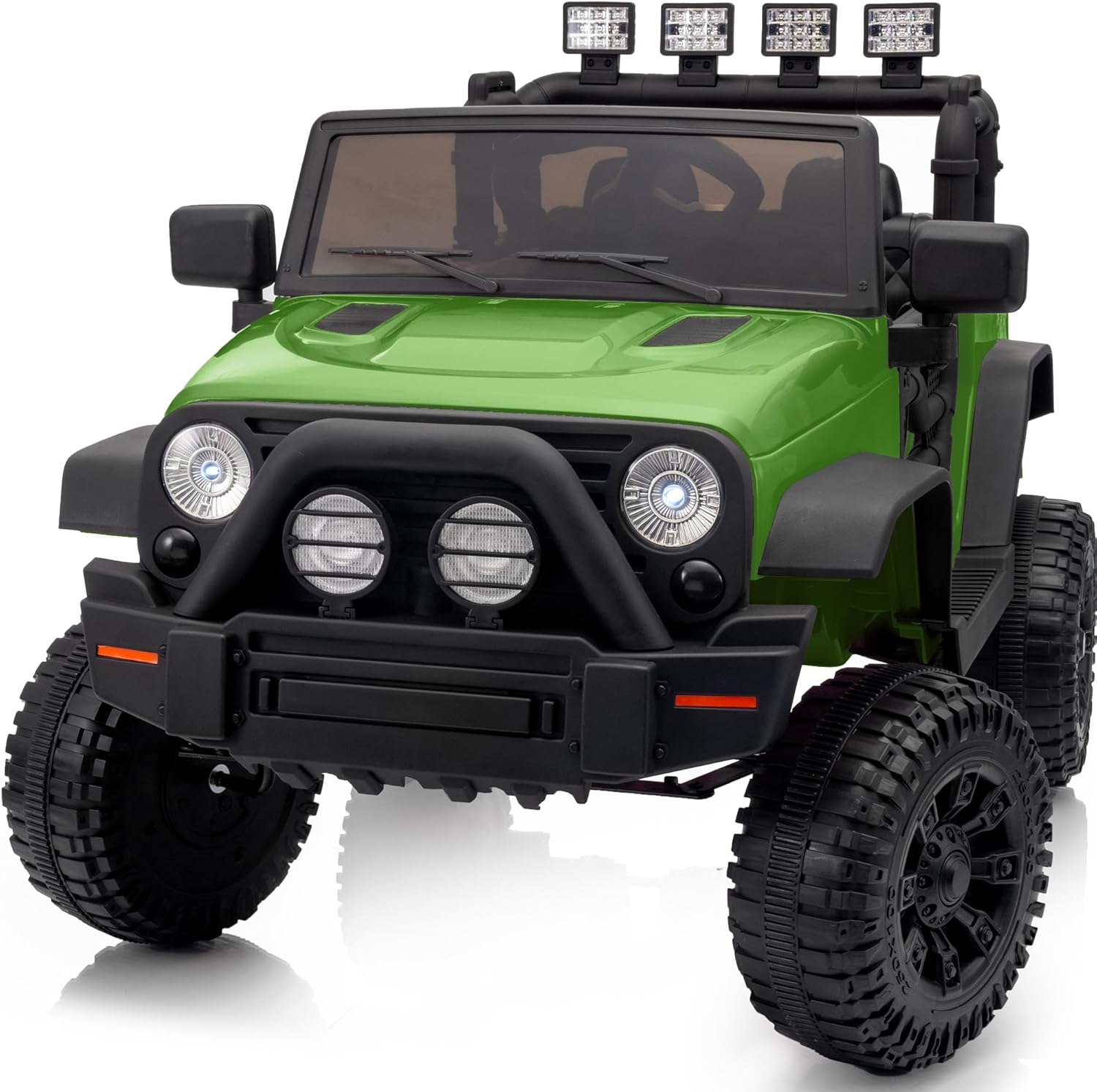

Figure 2.1: Outfunny 12V Electric Kids Ride-On Car Toy (Army Green model shown).
Key Features:
- Powerful Performance: Equipped with a 12V battery and a 2WD (2 x 25W) power system for continuous play.
- Parental Remote Control: Allows parents to control the vehicle for enhanced safety and shared driving experiences.
- Multiple Safety Features: Includes lockable doors, seat belts, and an all-wheel suspension system.
- Immersive Driving Experience: Features front headlights and a built-in music player.
- Bluetooth Connectivity: Connect a phone via Bluetooth to play music.
- Soft Start Technology: Ensures uniform deceleration and a braking time of approximately 0.5 seconds for child safety.
Figure 2.2: Powerful performance details of the ride-on car.

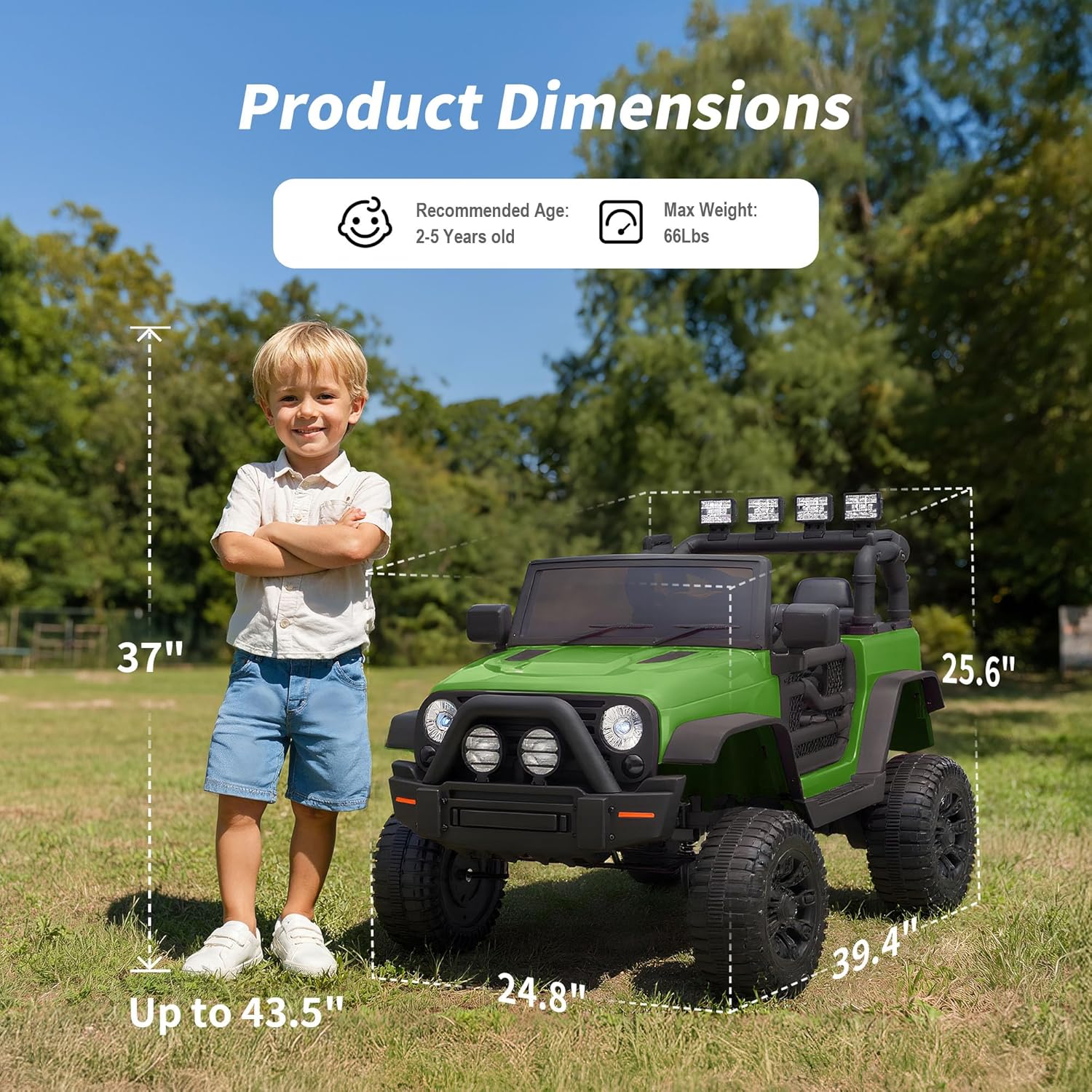

Figure 2.3: Product dimensions and recommended usage.
3. Setup Instructions
Follow these steps to assemble and prepare your ride-on car for first use.
3.1 Unboxing and Initial Assembly
- Carefully remove the ride-on toy from its packaging.
- Identify all components against the parts list in your included paper manual.
- Remove any protective packaging or zip ties securing components for shipping.
3.2 Detailed Assembly Steps
For a visual guide to the assembly process, please refer to the installation video below.
Video 3.1: Outfunny 12V Kids Ride on Car Toy Installation Video. This video provides a step-by-step visual guide for assembling the ride-on car, including attaching wheels, steering wheel, and other components.
- Attach the wheels, steering wheel, and other removable parts as shown in the video and paper manual.
- Charge the battery using the provided charger. Ensure the battery is fully charged before first use.
- Insert the charged battery into the designated compartment in the car.
- Connect the battery terminals as instructed. Ensure all connections are secure.
4. Operating Instructions
This section details how to operate your Outfunny ride-on car using both manual controls and the parental remote control.
4.1 First Use and Calibration
- For the first use, turn on the car using the parent remote control.
- Drive the car around briefly to calibrate the steering and remote control connection.
4.2 Parental Remote Control
The parental remote control allows you to guide the car and ensure your child's safety.

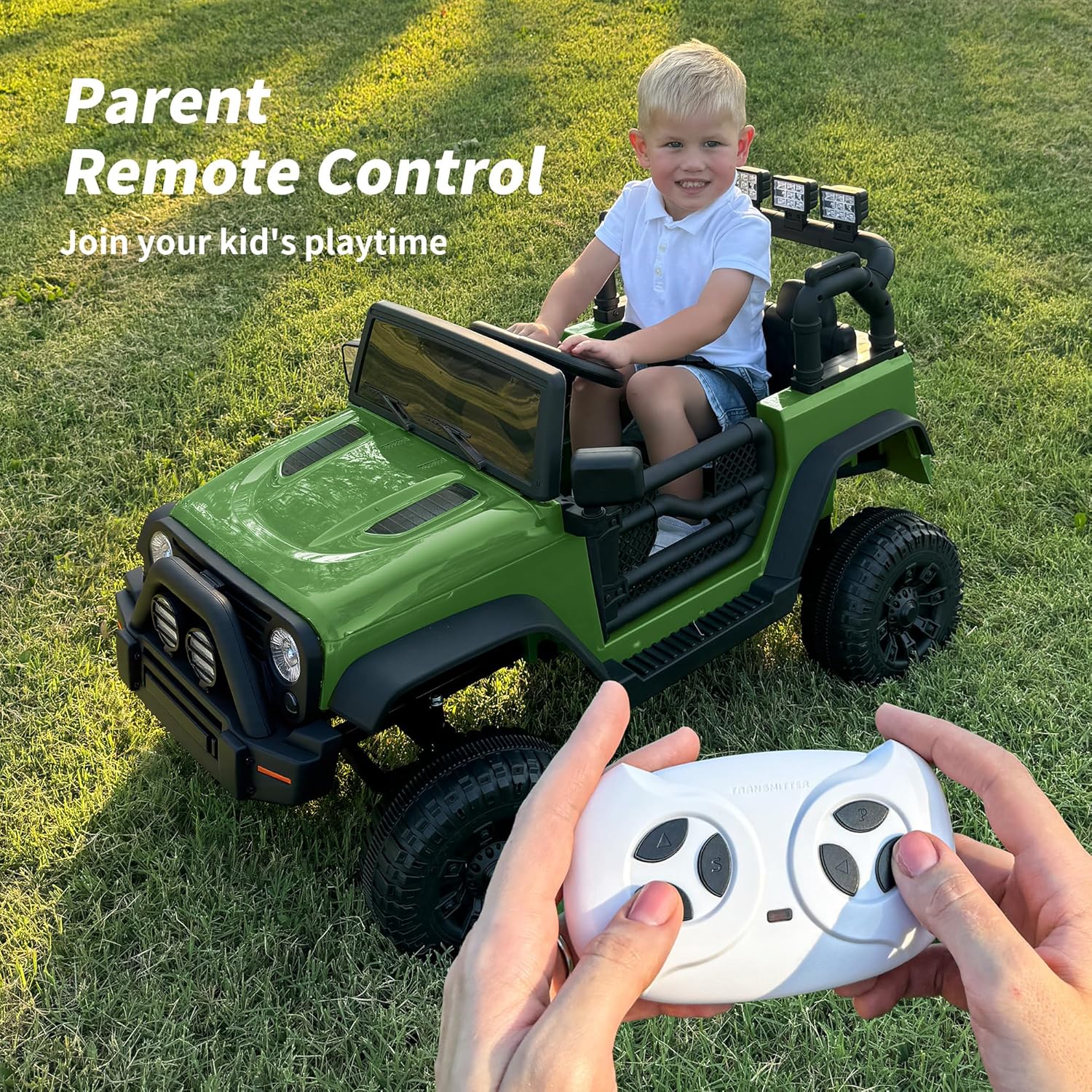

Figure 4.1: Parental remote control in use.
- Use the remote to control forward/backward movement and left/right steering.
- The remote control can override the child's manual controls for immediate intervention.
- Press the stop button on the remote control to halt the vehicle.
4.3 Child's Manual Operation
- Instruct your child on how to use the accelerator pedal, brake, and steering wheel.
- Ensure your child understands how to stop the car using the dashboard controls.
4.4 Entertainment Features
- Music Player: Utilize the built-in music player for pre-loaded tunes.
- Bluetooth Connectivity: Connect a smartphone via Bluetooth to play custom music.
Figure 4.2: Bluetooth connection for music playback.
Video 4.1: Outfunny Kids Ride on Car with Remote Control, LED Light. This video demonstrates the car's features, including remote control operation and LED lights.
5. Maintenance
Regular maintenance ensures the longevity and safe operation of your ride-on car.
- Cleaning: Wipe the car with a damp cloth. Avoid using harsh chemicals or abrasive cleaners.
- Battery Care: Charge the battery after each use. If storing for an extended period, charge the battery every 30 days to maintain its life.
- Storage: Store the car in a dry, cool place away from direct sunlight and moisture.
- Inspections: Periodically check all screws, nuts, and connections to ensure they are tight and secure. Inspect wheels and tires for wear.
6. Troubleshooting
This section addresses common issues you might encounter with your ride-on car.
| Problem | Possible Cause | Solution |
|---|---|---|
| Car does not move | Battery is low or not connected; loose wiring; motor issue. | Charge battery fully; check battery connections; inspect all wiring for looseness. |
| Car moves slowly | Low battery; overloaded; operating on unsuitable terrain. | Charge battery; ensure weight is within limits; move to a flat, hard surface. |
| Remote control not working | Remote batteries are dead; remote not paired; interference. | Replace remote batteries; re-pair remote according to manual; move away from other electronic devices. |
| No sound from music player | Volume too low; connection issue; media file corrupted. | Increase volume; check Bluetooth connection; try different media files. |
7. Specifications
- Product Dimensions: 39.4 x 24.8 x 25.6 inches (L x W x H)
- Item Weight: 32 pounds
- Item Model Number: J303C
- Manufacturer Recommended Age: 0 - 8 years
- Max Load: 66 lbs
- Battery: 12V
- Power System: 2WD (2 x 25W)
- Playtime: Approximately 1-1.5 Hours (depending on usage)
- Manufacturer: Outfunny
8. Warranty and Support
For warranty information, technical support, or replacement parts, please contact Outfunny customer service directly. Refer to the contact details provided with your purchase documentation or visit the official Outfunny website.
