1. Product Overview
The Varpoolfaye 16000 BTU Electric Heat Pump is designed to efficiently heat and cool above-ground pools up to 5000 gallons. Featuring WiFi control and a quiet operation, it provides year-round comfort for your swimming experience.
Image: The Varpoolfaye 16000 BTU Electric Heat Pump, highlighting its 16000 BTU heating capacity and suitability for pools up to 5000 gallons.
2. Setup and Installation
2.1. Unboxing and Components
Before beginning installation, ensure all components are present. The package includes the heat pump unit, connectors, instructions, and stainless hose clamps. You will need your own pool pump for operation.
Image: A detailed view of the Varpoolfaye heat pump and its included accessories, such as connectors, instructions, and hose clamps.
2.2. Connecting Hoses
The heat pump integrates with your existing pool pump system. Water flows from your pool pump, through the heat pump, and back into the pool. Ensure your pool pump is capable of a flow rate between 700-1000 GPH for optimal performance.
Video: Step-by-step guide on connecting the hoses for the 16000 BTU heat pump installation.
Image: Diagram illustrating the correct plumbing setup for the heat pump, filter pump, and above-ground pool.
2.3. Electrical Connection
The Varpoolfaye 16000 BTU heat pump operates on 120V/60Hz. It is recommended that electrical installation be performed by a qualified professional to ensure safety and compliance with local codes. Always cut off power to the unit before maintenance or repair.
2.4. WiFi Control Setup
The heat pump features smart WiFi control for effortless pool management. Download the 'Smart Life' app from your app store. Follow the in-app instructions to connect your device. This allows remote control of heating, cooling, and timer functions.
Image: The heat pump with a smartphone displaying the 'Smart Life' app interface for remote control.
3. Operating Instructions
3.1. Basic Controls
The unit features an intuitive control panel. Use the power button to turn the unit on/off, the mode button to select operating modes (heating/cooling), and the up/down arrows to adjust temperature settings.
Video: Operating instructions and precautions for the pool heat pump, including control panel usage.
3.2. Heating and Cooling Modes
The heat pump offers dual-mode functionality, heating your pool up to 104°F and cooling it down to 46°F, providing comfort across seasons.
3.3. Timer Settings
Utilize the WiFi app to set specific timers for heating and cooling cycles, optimizing energy usage and maintaining your desired pool temperature automatically.
3.4. Important Operating Tip
The heat pump will only operate when your pool's filter pump is actively running. Ensure your filter pump is on before activating the heat pump to prevent damage to the unit.
Video: Demonstrates how to reduce water flow to improve heating efficiency, a crucial aspect for optimal operation.
4. Maintenance
Regular maintenance ensures the longevity and efficiency of your Varpoolfaye heat pump. Keep the unit clean and free from debris to ensure proper airflow. Periodically check all hose connections for leaks and ensure they are securely fastened.
4.1. Winterization
When the heat pump unit will not be used for a long time, especially during winter seasons, it is crucial to cut off the power supply and drain all water out of the heat exchanger and pipeline. This prevents damage from freezing and breaking.
Image: A pool cover being placed on an above-ground pool, illustrating how it helps improve heating efficiency by 46.15%.
5. Troubleshooting
5.1. E03 Water Flow Switch Fault
If you receive an 'E03 water flow switch fault' notification, this typically indicates that the heat pump is not detecting sufficient water flow. This is often due to the pool's filter pump not being turned on. Ensure your filter pump is running when the heat pump is active. This is a safety mechanism to prevent damage to the heater.
5.2. General Malfunctions
For any other malfunctions, first check all power connections and ensure the unit is receiving power. Verify that all hoses are securely connected and there are no obstructions in the water flow path. If issues persist, refer to the detailed troubleshooting section in the full product manual or contact customer support.
6. Specifications
- Model Number: KSPF-005L3R1A1
- Heating Capacity: 16000 BTU
- Recommended Pool Size: Up to 5000 gallons
- Voltage/Frequency: 120V/60Hz
- Coefficient of Performance (COP): 4.3
- Noise Level: 50dB
- Product Dimensions: 20.7 x 20 x 18.5 inches
- Item Weight: 65.9 pounds
- Operating Temperature Range: Heats to 104°F, cools to 46°F

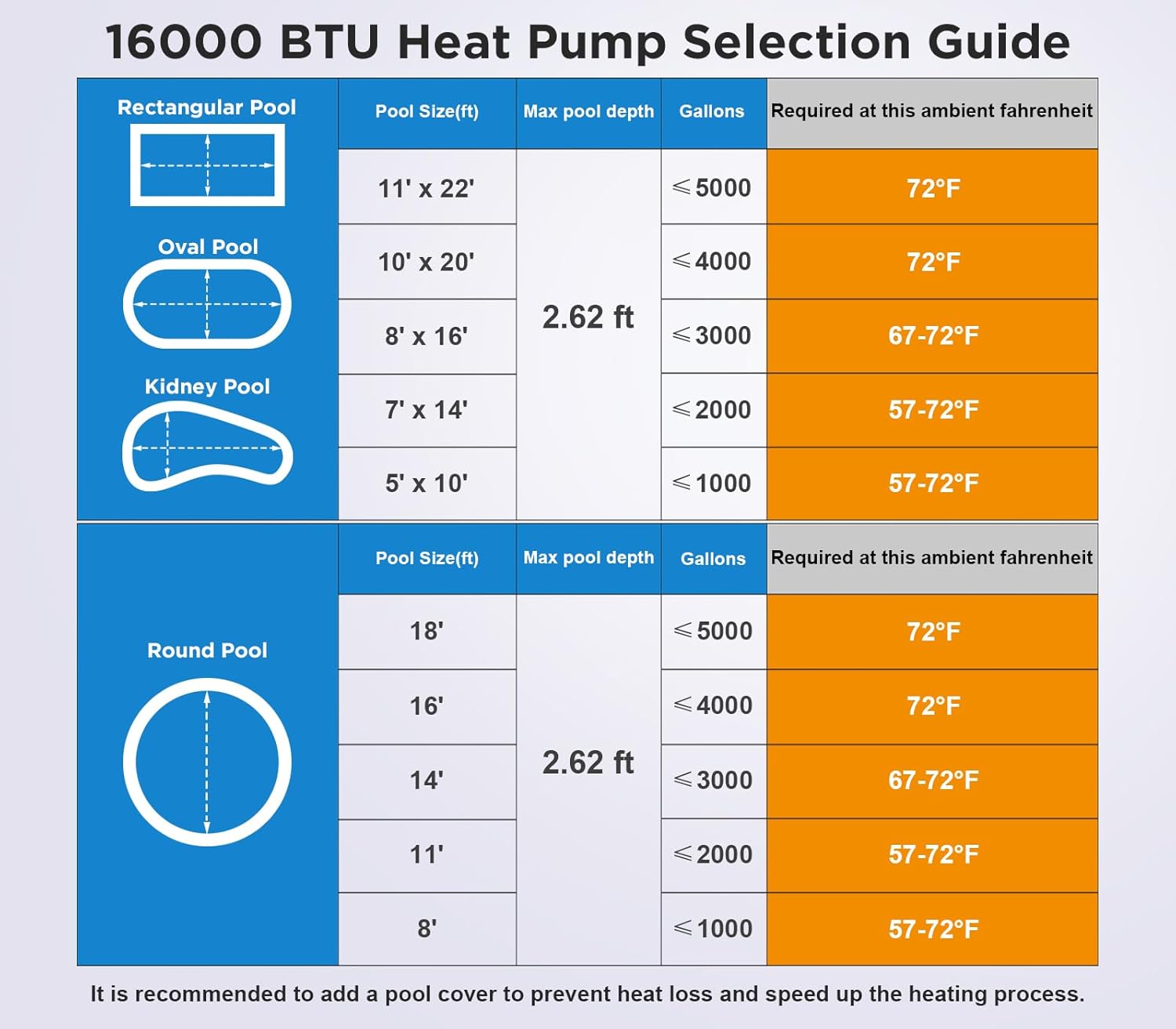

Image: A selection guide for the 16000 BTU heat pump, detailing recommended pool sizes (rectangular, oval, kidney, round) and ambient temperature requirements.
7. Warranty and Support
For specific warranty information, please refer to the documentation included with your product or contact Varpoolfaye customer support. Customer support is available to assist with product selection, installation, and any operational questions.
For further assistance, please visit the Varpoolfaye Store or contact their customer service directly.
