1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your EMKE Thermostatic Shower System, Model F29SSC00GM. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.
Image 1: The EMKE Thermostatic Shower System features a sleek design with a large rain shower head, a multi-function hand shower, and integrated controls, all in an anthracite matt finish.
2. Safety Information
Observe all local plumbing and building codes. If you are unsure about installation, consult a qualified professional. Always turn off the main water supply before beginning any installation or maintenance work. Avoid using abrasive cleaners or harsh chemicals on the product's finish.
- Ensure water supply is turned off before installation.
- Wear appropriate personal protective equipment (e.g., safety glasses, gloves).
- Do not overtighten connections, as this may cause damage.
- Test for leaks thoroughly after installation.
3. Package Contents
Verify that all components are present and undamaged before installation.
- Rain Shower Head
- Hand Shower
- Shower Bar / Riser Rail
- Shower Hose
- Thermostatic Mixer Unit
- Lower Spout
- Mounting Hardware
4. Specifications
| Feature | Detail |
|---|---|
| Brand | EMKE |
| Model Number | F29SSC00GM |
| Dimensions (L x W x H) | 40.2 x 57.3 x 105 cm |
| Weight | 6.27 Kilograms |
| Color | Anthracite Matt |
| Finish | Painted |
| Material | Brass, Stainless Steel, Plastic |
| Installation Method | Wall Mount |
| Maximum Pressure | 5 Bars |
| Number of Handles | 1 |
| Handle Material | Plastic |
| Rain Shower Head Size | 360 x 240 mm |
| Hose Length | 1.5 m (approximate, derived from image) |
5. Setup and Installation
The EMKE Thermostatic Shower System is designed for wall-mounted installation. Its modular design facilitates a straightforward setup process. Clear installation videos are often available from the manufacturer to guide you through each step.
5.1 Pre-Installation Checks
- Ensure your wall structure can support the weight of the shower system.
- Verify that hot and cold water supply lines are correctly positioned and accessible. Hot water should be on the left, cold water on the right.
- Confirm the distance between hot and cold water outlets is within the recommended range (typically 135-165mm axial distance).
5.2 Installation Steps (General Guidance)
While specific steps may vary, the general installation involves:
- Mounting the main thermostatic mixer unit to the wall.
- Connecting the hot and cold water supplies.
- Attaching the shower bar/riser rail.
- Connecting the rain shower head and hand shower with its hose.
- Sealing all connections to prevent leaks.

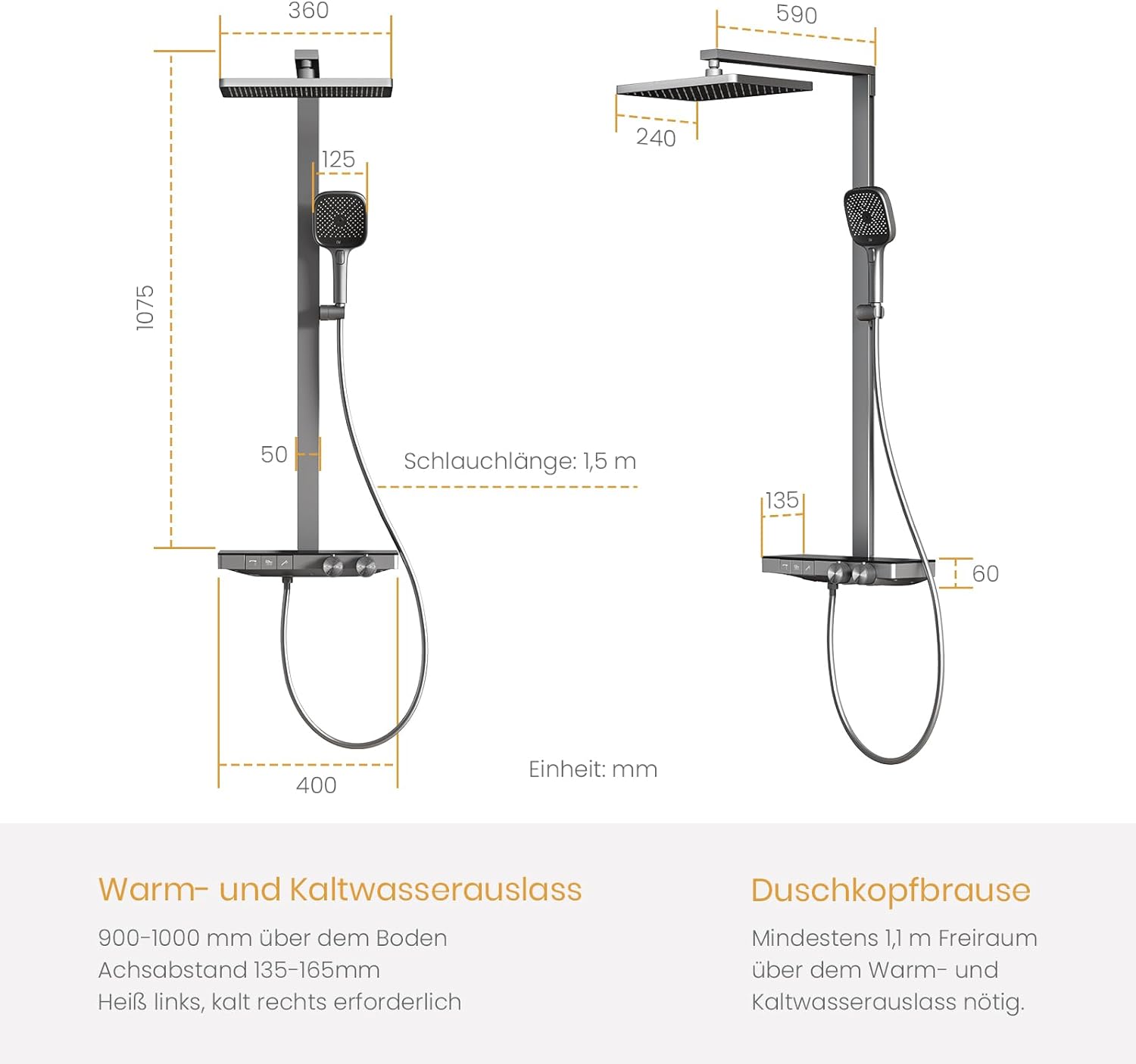

Image 2: Detailed dimensions for installation. The recommended height for hot and cold water outlets is 900-1000mm from the floor, with an axial distance of 135-165mm. A minimum of 1.1m clearance above the hot/cold water outlet is needed for the shower head.
Image 3: Overview of internal mechanisms and features, including additional storage, anti-scald protection, precise water and temperature control, a durable glass surface, child-safe thermostat, and a SEDAL thermostat cartridge.
6. Operating Instructions
The EMKE Thermostatic Shower System offers intuitive controls for a personalized showering experience.
6.1 Water Flow and Temperature Control
The system features two main rotary knobs for precise control:
- Left Knob (Water Volume): Rotate to adjust the water flow intensity.
- Right Knob (Temperature): Rotate to set the desired water temperature. It includes a safety stop at 38°C to prevent accidental scalding. Press and hold the button on the knob to override the safety stop for higher temperatures.
Image 4: The control panel with distinct knobs for water volume (left) and temperature (right), featuring a 38°C safety stop.
6.2 Hand Shower Jet Modes
The hand shower offers four distinct spray patterns, easily selectable via a button or lever on the hand shower itself:
- Jet-Spray Mode: A powerful, concentrated stream ideal for targeted cleaning or rinsing.
- Spray Mode: A wide, gentle spray for a standard showering experience.
- Massage Mode: A pulsating stream designed to relieve muscle tension.
- Pulse Mode: A combination of spray and jet for a refreshing sensation.
Image 5: The hand shower features four selectable spray modes and silicone nozzles for easy cleaning and limescale removal.
6.3 Rain Shower Head
The large 360x240 mm rain shower head provides a luxurious, even flow of water, simulating a natural rainfall experience. The angle of the rain shower head is adjustable to suit individual preferences.
Image 6: The 360x240 mm rain shower head features 294 nozzles for a fine, even water spray, and its angle can be adjusted.
6.4 Integrated Lower Spout / Innovative Water Jet
The system includes a lower spout that can be activated for filling buckets or for a unique, splash-free water jet. This innovative jet is ideal for washing feet or for general cleaning tasks within the shower area.

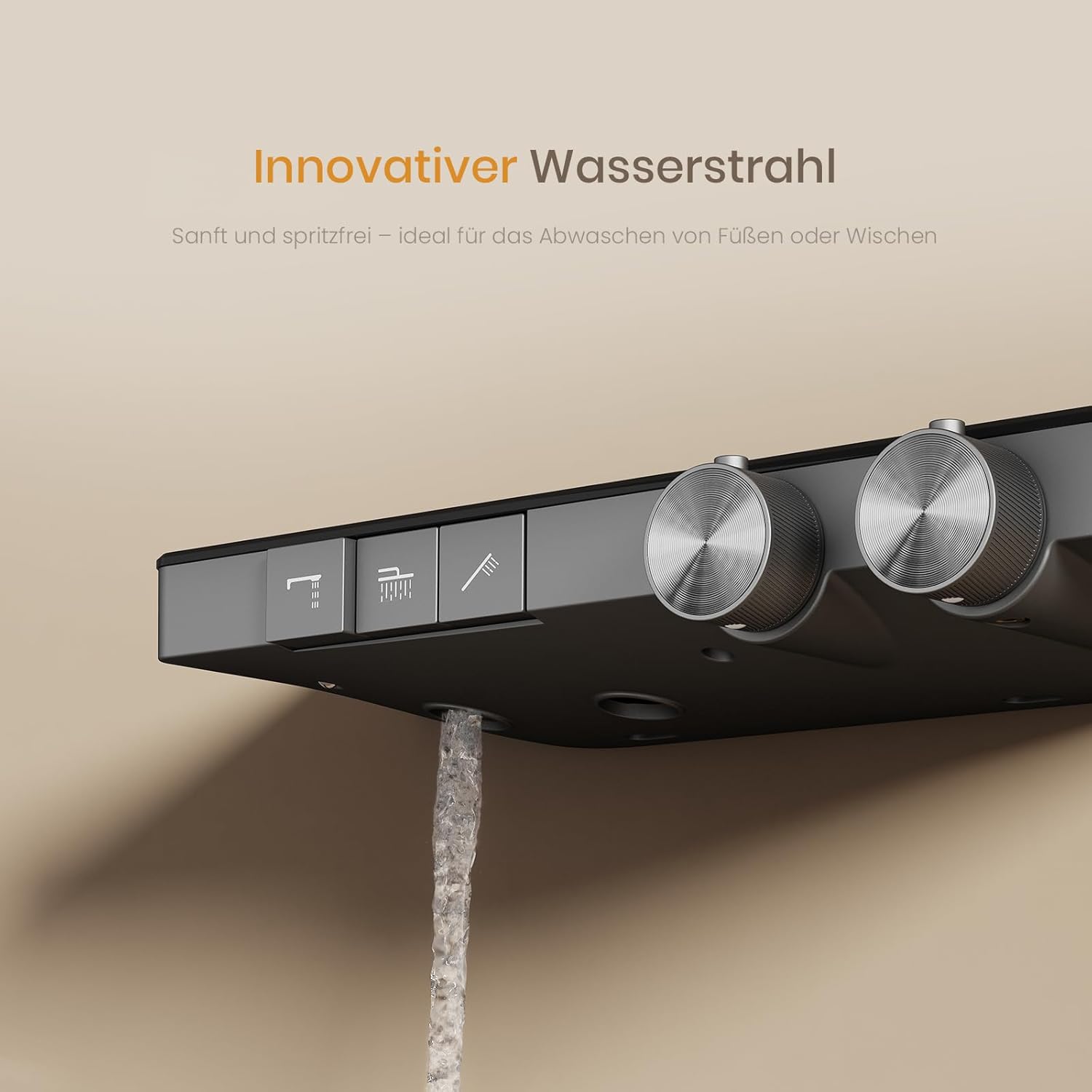

Image 7: The innovative water jet from the bottom of the unit provides a soft, splash-free flow, perfect for washing feet or cleaning.
6.5 Integrated Storage Shelf
A convenient 400x135 mm storage shelf is integrated into the design, providing ample space for shower gels, shampoos, and other toiletries.
Image 8: The 400x135 mm integrated shelf offers additional storage space for shower necessities.
7. Maintenance
Regular cleaning and maintenance will ensure the longevity and optimal performance of your EMKE shower system.
- Cleaning the Surface: Use a soft cloth and mild soap or a non-abrasive bathroom cleaner. Avoid harsh chemicals, abrasive sponges, or scouring pads, as these can damage the anthracite matt finish.
- Cleaning Nozzles: The hand shower and rain shower head feature silicone nozzles. Limescale deposits can be easily removed by gently rubbing the nozzles with your fingers.
- Thermostat Cartridge: While designed for durability (SEDAL cartridge), if you experience persistent temperature fluctuations, it may indicate a need for professional inspection or cartridge cleaning/replacement.
8. Troubleshooting
If you encounter issues with your shower system, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Pressure | Clogged nozzles, partially closed shut-off valves, general household water pressure issues. | Clean shower head and hand shower nozzles. Ensure all water supply valves are fully open. Consult a plumber if household pressure is consistently low. |
| Inconsistent Water Temperature | Thermostat cartridge issues, unbalanced hot/cold water pressure, incorrect installation of hot/cold lines. | Ensure hot and cold water supplies are correctly connected. Check for consistent water pressure from both lines. If issues persist, contact a qualified plumber or EMKE support. |
| Leaks from Connections | Loose connections, damaged seals/washers, improper sealing during installation. | Turn off water supply. Carefully check and tighten all connections. Replace any damaged washers or seals. Re-apply plumber's tape or sealant if necessary. |
If the problem persists after attempting these solutions, please contact EMKE customer support or a qualified plumber.
9. Warranty and Support
EMKE products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your product or visit the official EMKE website. In case of technical issues or questions not covered in this manual, please contact EMKE customer support through their official channels.
For support, please visit: www.emke.com (Example link, replace with actual if available)
