SOLIDEE 30" Barn Door Bathroom Vanity with Black and White Ceramic Vessel Sink Instruction Manual

1. Setup and Assembly

Before beginning assembly, ensure all parts are present and undamaged. It is recommended to assemble the vanity on a soft, clean surface like a carpet to prevent scratches. This product is shipped in two packages, which may arrive separately.

1.1 Package Contents

• Package 1: Main cabinet, all hardware for cabinet assembly, installation manual.
• Package 2: Vessel sink, faucet, pop-up drain, hot/cold lines, and mounting hardware for sink.

This diagram illustrates that the product is shipped in two packages: Package 1 contains the main cabinet and hardware, while Package 2 contains the vessel sink, faucet, drain, and additional hardware.

1.2 Tools Required (Not Included)

• Phillips Head Screwdriver
• Hammer
• Electric Drill
• Pencil
• Utility Knife

1.3 Cabinet Assembly

Follow the detailed steps in the provided installation manual for assembling the MDF wood cabinet. Ensure all cam bolts and screws are tightened securely. Pay close attention to the orientation of each panel.

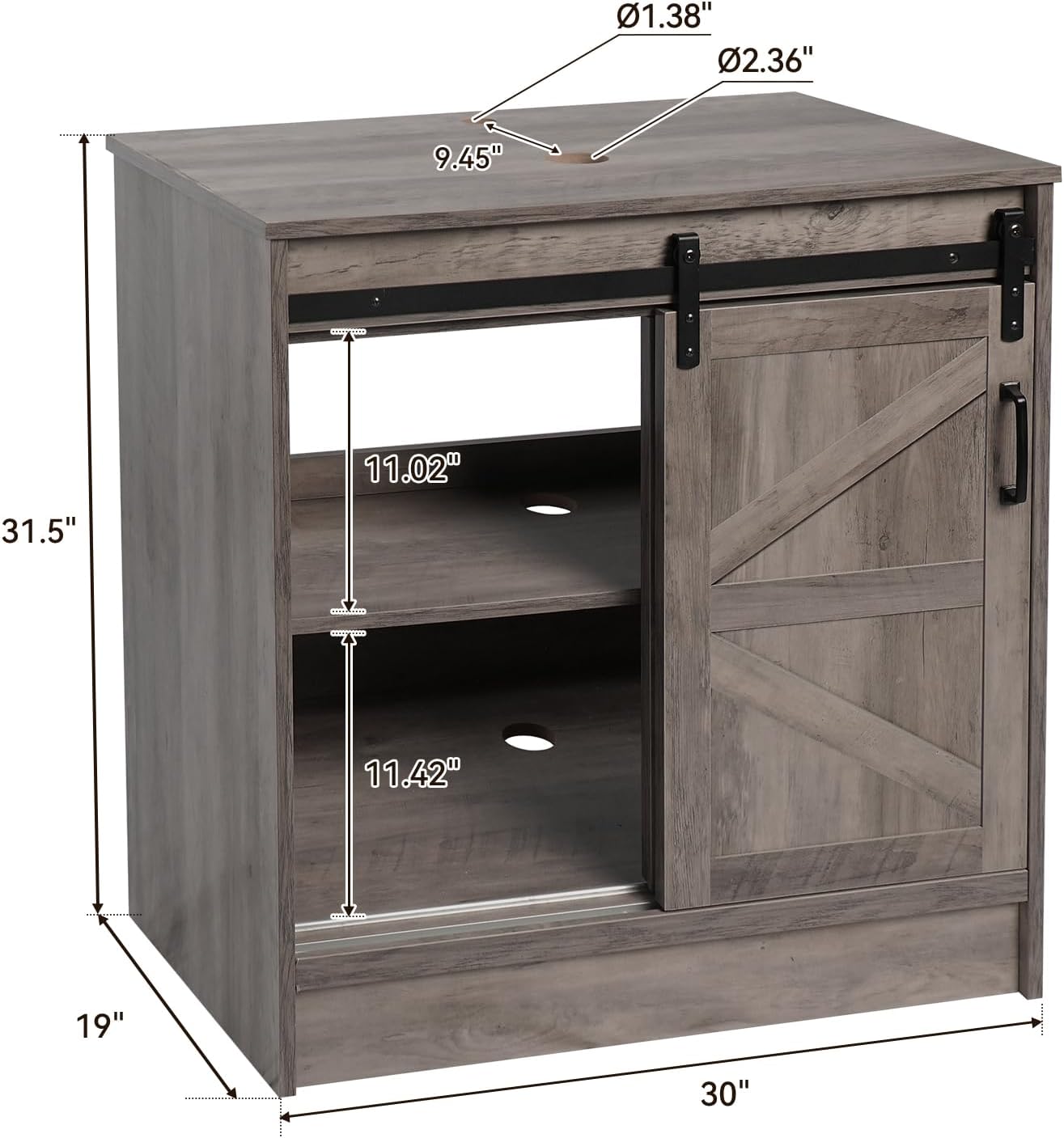

This image displays the overall dimensions of the vanity cabinet, measuring 19 inches deep, 30 inches wide, and 31.5 inches high.

1.4 Wall-Mounting Hardware Installation

To enhance stability and prevent tipping, install the wall-mounting hardware as demonstrated in the video below. Mark the wall, drill pilot holes, insert expansion bolts, and secure the L-shaped brackets flush with the cabinet back.

1.5 Hinge Installation and Adjustment

Install the cabinet door hinges according to the instructions. If the door alignment needs adjustment, refer to the hinge adjustment guide in the video below for vertical, depth, and horizontal fine-tuning.

1.6 Sink and Faucet Installation

Install the faucet and pop-up drain onto the ceramic vessel sink. Carefully place the assembled sink onto the vanity cabinet. Ensure all plumbing connections are secure and watertight.

A detailed view of the black and white ceramic vessel sink, showcasing its rectangular shape and contrasting colors.

This diagram provides specifications for the basin, including its 4-layered glaze spraying ceramic material, top-mounted vessel bowl style, and features like scratch resistance and oil-free surface.

This image shows the complete set of components for the sink installation, including the faucet, pop-up drain, and hot/cold water supply lines.

1.7 Full Assembly Video Guide

For a complete visual guide on the assembly process, please refer to the comprehensive video below:

2. Operation

2.1 Sliding Barn Door

The vanity features an innovative sliding barn door. To access the storage compartment, gently slide the door along its track. Ensure the track is free from obstructions for smooth operation.

This image highlights the upgraded storage design within the vanity, featuring internal shelving for organized storage.

2.2 Storage Drawers

The vanity includes built-in drawers for additional storage. Pull the drawers open and push them closed smoothly. Avoid forcing the drawers if they encounter resistance.

2.3 Sink Usage

The ceramic vessel sink is designed for daily bathroom use. Ensure the faucet is properly installed and water lines are connected before use. The pop-up drain allows for easy water drainage.

3. Maintenance

3.1 Cleaning the Cabinet

• Wipe the MDF wood surfaces with a soft, damp cloth.
• Avoid using harsh chemicals, abrasive cleaners, or excessive moisture, as these can damage the finish.
• Promptly wipe up any spills to prevent water damage.

3.2 Cleaning the Ceramic Sink

• Clean the ceramic vessel sink with mild soap and water.
• Use a soft sponge or cloth to avoid scratching the glazed surface.
• Rinse thoroughly and dry with a clean cloth to prevent water spots.

3.3 Sliding Door and Drawer Maintenance

• Periodically check the sliding door track for any debris and clean as needed to ensure smooth operation.
• Inspect drawer slides for smooth movement. If necessary, a small amount of silicone lubricant can be applied to the slides.

4. Troubleshooting

4.1 Cabinet Wobbles After Assembly

• Ensure all cam bolts and screws are fully tightened.
• Verify that the wall-mounting hardware is correctly installed and secured.
• Check if the floor is even. If not, use furniture levelers (not included) to stabilize the cabinet.

4.2 Doors/Drawers Do Not Align Properly

• For doors, refer to the hinge adjustment guide (Section 1.5) to fine-tune vertical, depth, and horizontal positions.
• For drawers, ensure the drawer slides are correctly installed and aligned on both the drawer box and the cabinet frame.

4.3 Plumbing Issues (Leaks, Low Pressure)

• Check all water supply line connections for tightness. Hand-tighten first, then use a wrench for a quarter turn if needed, being careful not to overtighten.
• Ensure the pop-up drain is correctly seated and sealed.
• Verify that the main water supply valves are fully open.

5. Specifications

6. Safety Information

WARNING: Children have died from furniture tipover. To reduce the risk of furniture tipover:

• ALWAYS install tipover restraint provided.
• NEVER put a TV on this product.
• NEVER allow children to stand, climb or hang on drawers, doors, or shelves.
• NEVER open more than one drawer at a time.
• Place heaviest items in the lowest drawers.
• Do not defeat or remove the drawer interlock system.
• This is a permanent label. Do not remove!

Always follow the assembly instructions carefully. Wear appropriate safety gear when handling heavy or sharp objects. Keep the area around the cabinet clear during and after assembly to prevent tripping hazards. Do not overload the cabinet as it may cause instability.

7. Warranty & Support

7.1 Protection Plans

Extended protection plans are available for purchase separately:

• 2-Year Protection Plan: Available for $52.99 (one-time billing).
• 3-Year Protection Plan: Available for $67.99 (one-time billing).
• Complete Protect: One plan covers all eligible past and future purchases for $16.99/month (monthly billing).

7.2 Customer Support

If you have any questions regarding assembly, missing parts, or product functionality, please contact SOLIDEE customer support for assistance. Refer to your purchase documentation for specific contact details.
