WLIVE 39" Black Lift Top Coffee Table User Manual

1. Introduction

Thank you for choosing the WLIVE 39" Black Lift Top Coffee Table. This versatile furniture piece is designed to enhance your living space with its modern aesthetic, practical lift-top mechanism, and ample storage solutions. This manual provides essential information for safe assembly, proper operation, and effective maintenance to ensure long-lasting enjoyment of your new coffee table.

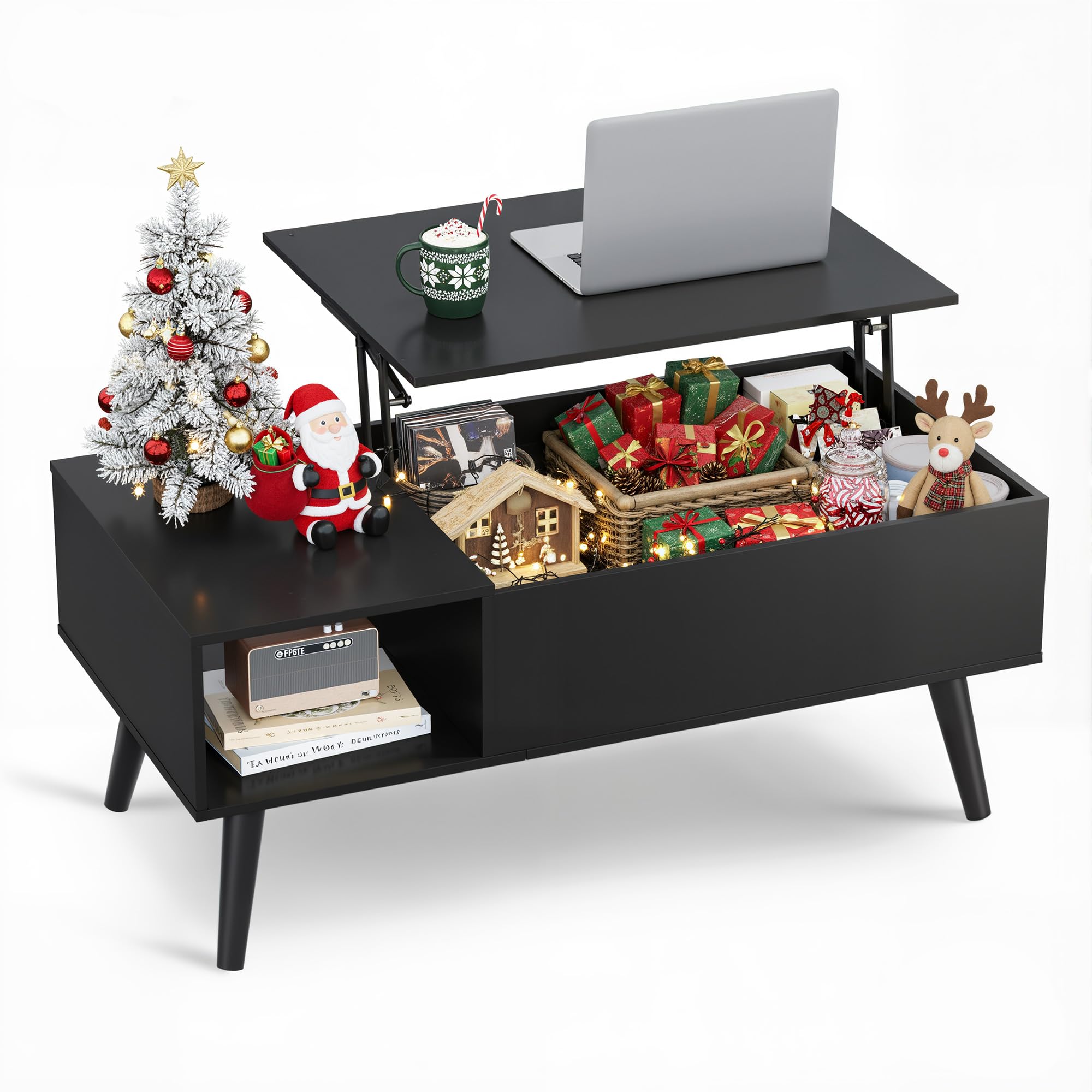

Figure 1: WLIVE 39" Black Lift Top Coffee Table in a living room.

2. Important Safety Information

Please read and understand all instructions before assembling and using this product. Failure to follow these instructions may result in injury or product damage.

• Keep all small parts and packaging materials away from children.
• Assemble the product on a soft, clean surface to prevent scratches.
• Ensure all screws and fasteners are securely tightened before use. Periodically check and re-tighten as needed.
• Do not stand or sit on the lift-top mechanism when it is in motion.
• Distribute weight evenly on the table surface and inside storage compartments.
• Maximum weight capacity for the table surface (when not lifted) is 200 lbs.
• Use caution when lowering the lift-top to prevent pinching fingers.

3. Parts List

Before beginning assembly, ensure all parts listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

Figure 2: Exploded view of all components.

Hardware and Accessories:

• Wooden Dowels (A)
• Cam Locks (B)
• Cam Screws (C)
• Small Screws (D)
• Foot Plates (E)
• Table Legs (F)
• Lift Mechanism (LR)
• Corner Protectors (K)

Wooden Panels:

• Top Panel (1)
• Side Panels (2, 4, 5, 6, 7, 8, 9)
• Bottom Panel (3)

4. Assembly Instructions

Assembly is straightforward and can typically be completed in 30 minutes. An Allen wrench is provided, but a drill can expedite the process. Follow the illustrated instructions carefully.

Step-by-Step Guide:

1. Prepare Panels: Insert wooden dowels (A) and cam screws (C) into the designated holes on panels (2, 3, 4, 5, 6, 7, 8, 9) as shown in the diagram.
2. Assemble Side Sections: Connect panels (4) and (5) using cam locks (B). Repeat for panels (2) and (7).
3. Attach Legs: Install the foot plates (E) to the bottom of the table using screws (D). Then, screw in the table legs (F) into the foot plates. Ensure all four legs are securely attached.
4. Construct Main Body: Connect the assembled side sections (2, 4, 5, 7) to the bottom panel (3) using cam locks (B). Ensure the correct orientation of each panel.
5. Install Lift Mechanism: Attach the lift mechanisms (LR) to the underside of the top panel (1) using screws (D). Pay close attention to the direction of the mechanism.
6. Attach Top Panel: Carefully align the lift mechanism with the pre-drilled holes on the main body of the table. Secure the lift mechanism to the main body using screws (D).
7. Final Touches: Apply the provided corner protectors (K) to the corners of the table for added safety.

5. Operating Instructions

Lift-Top Mechanism:

The coffee table features a high-quality lift-top mechanism that allows the tabletop to be raised from 16.9 inches to 22.7 inches. This transforms the coffee table into a comfortable workspace or dining surface while you are seated on your sofa.

• To Lift: Gently pull the front edge of the tabletop upwards. The hydraulic mechanism will assist in smoothly raising the top.
• To Lower: Apply gentle downward pressure on the tabletop. Guide it slowly and carefully back into its original position to prevent sudden drops or pinching.

Figure 3: Lift-top design for versatile use as a coffee table or office table.

Storage Features:

This coffee table offers multiple storage options to keep your living room organized.

• Hidden Compartment: Beneath the lift-top, there is a spacious hidden compartment perfect for storing magazines, laptops, remote controls, or snacks, keeping them protected from dust and out of sight.
• Open Storage Shelf: An additional open shelf is located on the side, providing easy access storage for books, decorative items, or other essentials.

Figure 4: Large storage capacity for various items.

6. Maintenance

Cleaning:

The wooden textured board surface is designed for easy cleaning and wear resistance.

• Wipe the surface with a soft, damp cloth.
• Avoid using harsh chemicals or abrasive cleaners, as these can damage the finish.
• Promptly clean up spills to prevent stains.

Figure 5: Wooden textured board for easy cleaning.

General Care:

• Keep the table away from direct sunlight and heat sources to prevent warping or fading.
• Use coasters under beverages to protect the surface from moisture rings.
• Periodically check all fasteners and re-tighten if necessary to maintain stability.
• The angled legs are designed to allow robotic vacuums to clean underneath easily.

Figure 6: Angled legs for easy cleaning and stability.

7. Troubleshooting

8. Specifications

Figure 7: Product Dimensions.

9. Warranty and Support

WLIVE is committed to providing high-quality products and excellent customer service. For any questions, concerns, or assistance with your product, please contact our customer support team.

• Customer Service: Refer to your purchase documentation or the WLIVE official website for contact information.
• Warranty: Specific warranty details may vary by region and retailer. Please retain your proof of purchase for any warranty claims.
