Effireli TC9012 Voice Replacement Remote for Skyworth TV RHA-T2 User Manual

Introduction

This manual provides comprehensive instructions for the setup, operation, and maintenance of your Effireli TC9012 Voice Replacement Remote Control, designed for use with Skyworth RHA-T2 series televisions. Please read this manual carefully to ensure proper use and to maximize the functionality of your remote control.

Product Overview

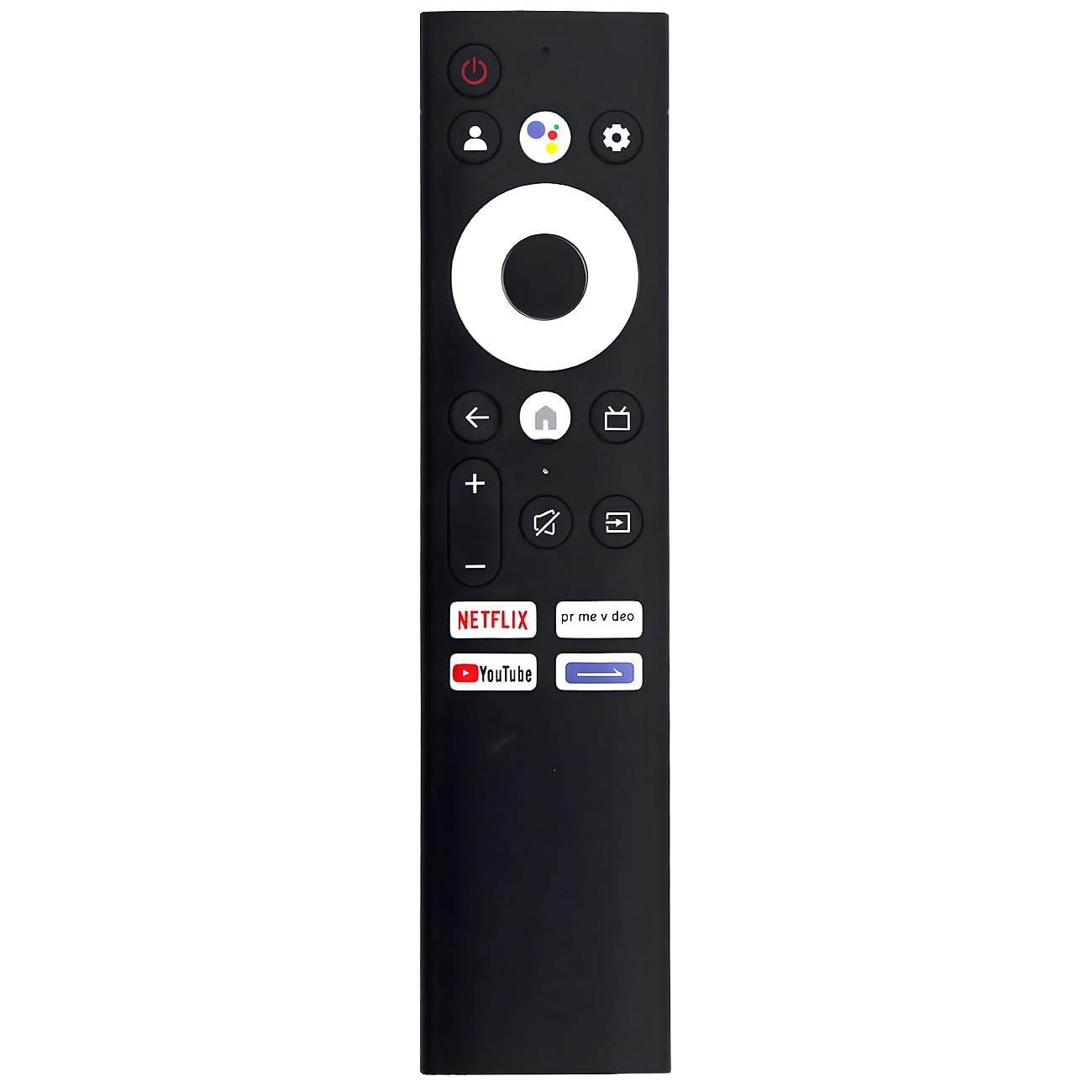

Image: The Effireli TC9012 Voice Replacement Remote Control. This image displays the front view of the remote, highlighting its ergonomic design and button layout, including the dedicated voice search button.

The Effireli TC9012 is a dedicated voice-enabled replacement remote control for Skyworth RHA-T2 televisions. It features Bluetooth connectivity for reliable operation and includes a voice search function for convenient content access.

Setup Instructions

1. Battery Installation

1. Locate the battery compartment on the back of the remote control.
2. Open the battery compartment cover.
3. Insert two AAA batteries (not included), ensuring the correct polarity (+ and -) as indicated inside the compartment.
4. Close the battery compartment cover securely.

2. Pairing the Remote Control

The TC9012 remote utilizes Bluetooth for communication with your Skyworth RHA-T2 TV. Pairing is required for full functionality, especially for the voice search feature.

1. Ensure your Skyworth RHA-T2 TV is powered on.
2. Navigate to the TV's settings menu. The exact path may vary, but typically involves going to Settings > Remotes & Accessories or Bluetooth Settings.
3. Select the option to Add new device or Pair remote control.
4. On the Effireli TC9012 remote, press and hold the OK button and the Volume Down (-) button simultaneously for approximately 3-5 seconds. The remote's indicator light may flash to confirm it is in pairing mode.
5. On your TV screen, select the detected "TC9012" or similar device name to complete the pairing process.
6. Once paired, a confirmation message should appear on your TV screen. Test the remote's functions to ensure successful pairing.

Operating Instructions

The Effireli TC9012 remote provides intuitive control over your Skyworth RHA-T2 television.

• Power Button: Press to turn the TV on or off.
• Navigation Pad (Up/Down/Left/Right): Use to navigate through menus and content.
• OK Button: Confirms selections and enters menus.
• Back Button: Returns to the previous screen or menu.
• Home Button: Accesses the TV's main home screen.
• Volume Up/Down: Adjusts the TV's volume level.
• Channel Up/Down: Changes TV channels (for broadcast TV).
• Mute Button: Mutes or unmutes the TV's audio.
• Voice Search Button: Press and hold this button, then speak your command or search query into the remote's microphone. Release the button when finished speaking.
• Input/Source Button: Cycles through available input sources (HDMI, AV, etc.).

Troubleshooting

• Remote not responding:
  • Check if the batteries are correctly inserted and have sufficient charge. Replace batteries if necessary.
  • Ensure there are no obstructions between the remote and the TV.
  • Re-pair the remote control with the TV following the "Pairing the Remote Control" instructions.
• Voice search not working:
  • Confirm the remote is successfully paired via Bluetooth. Voice functionality requires Bluetooth.
  • Ensure you are pressing and holding the Voice Search button while speaking and releasing it afterward.
  • Check the TV's internet connection, as voice search often requires online services.
  • Verify that the TV's microphone access for the remote is enabled in the TV's settings.
• Buttons are unresponsive or delayed:
  • Replace the batteries with new ones.
  • If the issue persists, try unpairing and then re-pairing the remote.

Specifications

Maintenance

• Clean the remote control regularly with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
• Avoid exposing the remote to extreme temperatures, direct sunlight, or moisture.
• If the remote will not be used for an extended period, remove the batteries to prevent leakage.

Warranty and Support

Your Effireli TC9012 Voice Replacement Remote comes with a comprehensive warranty and support:

• 30-Day Money-Back Guarantee: If you are not satisfied with your purchase, you may return it within 30 days for a full refund.
• 12-Month Warranty: A 12-month warranty covers manufacturing defects from the date of purchase. Returns and exchanges are accepted within this warranty period.
• Compatibility Note: If your TV model number is not listed as RHA-T2 or your original remote appears different, please contact the seller directly to confirm compatibility before purchase or for assistance.
• Customer Support: For any questions, troubleshooting assistance, or warranty claims, please contact the seller through the platform where the product was purchased.
