Product Overview
The HOMSHADE 10ft 360°Rotation Offset Patio Umbrella is designed to provide extensive shade and UV protection for various outdoor environments. Its innovative design allows for 360° rotation and infinite tilt adjustment, ensuring optimal shade throughout the day without needing to reposition the base. Constructed with durable materials, it offers excellent wind resistance and long-lasting performance.
- 360° Rotating Sunshade Angle: Allows continuous shade coverage as the sun moves.
- Adjustable Tilt Angle: Infinite tilt adjustment within 45° for precise shade positioning.
- Premium Canopy: 220gsm solution-dyed fabric with UPF90+ anti-UV coating, offering 5-year fade resistance and 99.9% UV protection.
- Easy Crank System: Smooth operation for opening and closing the umbrella.
- Excellent Windproof Design: Features an automatic locking mechanism and a special Velcro design for enhanced stability.
- High-Quality Frame: Durable 8-rib steel alloy frame (1.9-inch pole, 12x18mm thicker ribs) with double powder-coated surface for rust resistance, capable of withstanding 30 MPH winds.
- Vent & Tiers: Top vents for air circulation and stability, with ties for secure storage.
Setup Instructions
Assembly of the HOMSHADE patio umbrella is designed to be straightforward. Please ensure you have all components before beginning. A suitable base (not included) is required for stability. Search for "HOMSHADE H11 BASE" for compatible options.
- Unpack Components: Carefully remove all parts from the packaging. Lay them out to identify each piece, including the cross-member base, main pole sections, and umbrella canopy.
- Assemble the Base: Connect the cross-member base pieces. Secure them using the provided lag bolts. Ensure all connections are tight and stable.
- Attach Main Pole: Insert the lower section of the main pole into the assembled base. Ensure it clicks securely into place.
- Attach Umbrella Arm: Connect the upper umbrella arm to the main pole. This connection typically involves aligning a spring-activated button with a corresponding hole and sliding the sections together until they lock.
- Secure the Canopy: The umbrella canopy is pre-attached to the arm. Ensure it is correctly oriented and secured to the frame.
- Position the Umbrella: Once assembled, place the umbrella base in your desired outdoor location. It is highly recommended to use a weighted base (e.g., sandbags, water-filled base) to prevent tipping, especially in windy conditions.
Figure 1: Overall dimensions and the requirement for a separate base (not included).
Figure 2: Details of the enhanced structural components for improved stability and durability.
Operating Instructions
The HOMSHADE patio umbrella offers easy operation for optimal shade control.
- Opening and Closing:
Locate the crank handle on the main pole. Turn the handle clockwise to open the umbrella canopy fully. Turn counter-clockwise to close the canopy. The smooth crank system ensures effortless operation.
- Adjusting Tilt Angle:
To adjust the tilt of the umbrella canopy, locate the lever with the locking mechanism on the arm. Release the lock, adjust the canopy to your desired angle (up to 45°), and then re-engage the locking mechanism to secure it in place.

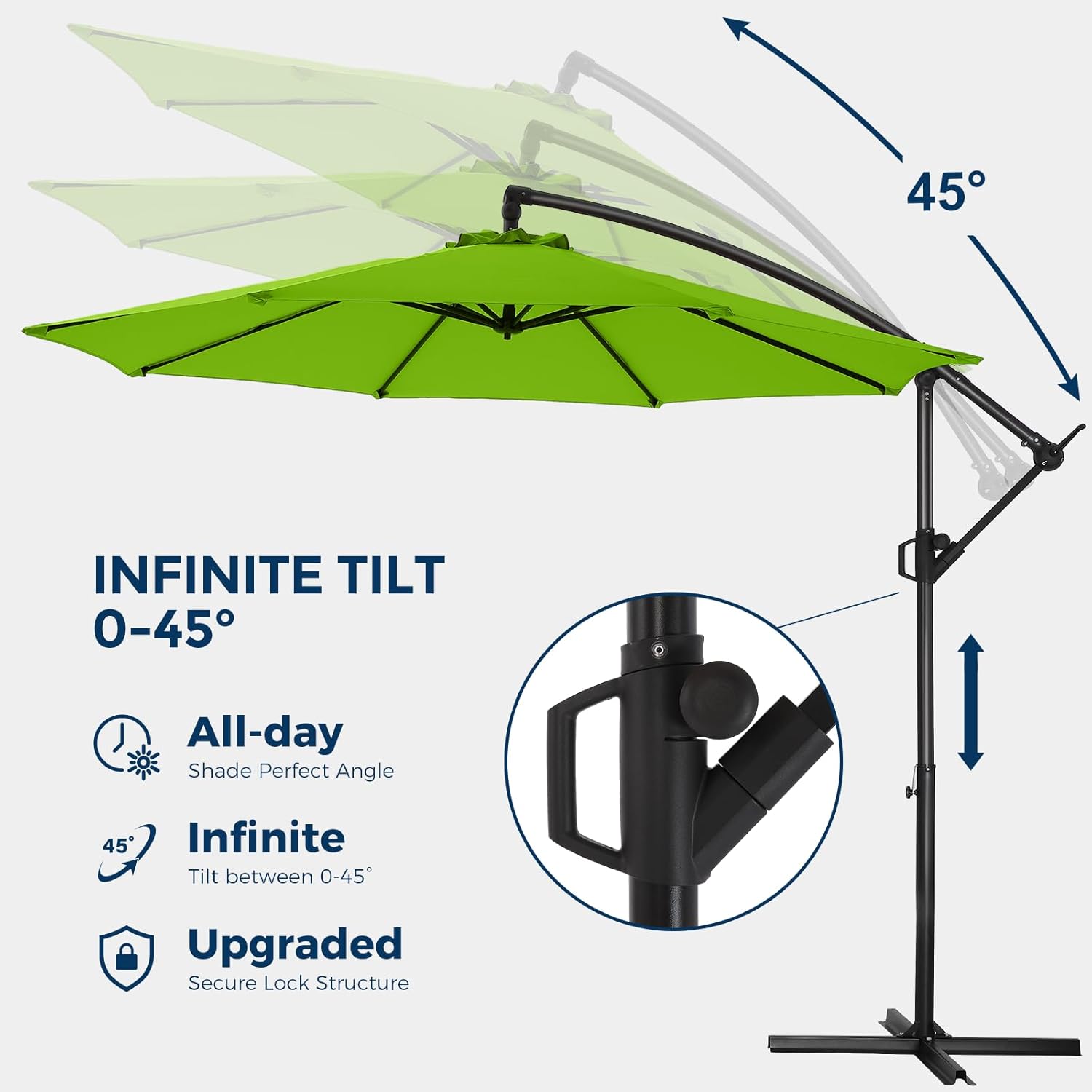

Figure 3: Infinite tilt adjustment mechanism for precise shade control.
- 360° Rotation:
The umbrella features a 360° rotation capability. To rotate the umbrella, gently turn the main pole. This allows you to reposition the shade without moving the entire base or furniture.
Figure 4: The 360-degree rotation feature ensures continuous shade.
Maintenance
Regular maintenance will extend the life and appearance of your HOMSHADE patio umbrella.
- Canopy Cleaning: Clean the fabric canopy periodically with mild soap and water. Rinse thoroughly and allow to air dry completely before closing or storing. Avoid harsh chemicals or abrasive cleaners.
- Frame Care: Wipe down the steel alloy frame with a damp cloth to remove dirt and debris. The double powder-coated surface is rust-resistant, but regular cleaning helps maintain its finish.
- Storage: When not in use for extended periods or during severe weather, close the umbrella and secure it with the integrated ties. For long-term storage, consider using a protective cover or disassembling and storing it indoors in a dry place.
- Lubrication: Periodically apply a silicone-based lubricant to the crank mechanism and any moving joints to ensure smooth operation.
Figure 5: The premium 220GSM solution-dyed fabric is designed for durability and fade resistance.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Umbrella is unstable or tips over. | Insufficient base weight; strong winds. | Ensure a sufficiently weighted base is used (e.g., sandbags, water-filled base). Close the umbrella in strong winds. |
| Crank mechanism is stiff. | Lack of lubrication; debris in mechanism. | Clean the mechanism and apply a silicone-based lubricant. |
| Canopy does not open or close smoothly. | Fabric caught in ribs; bent ribs. | Check for obstructions. Inspect ribs for damage. |
Specifications
- Product Dimensions: 120 x 120 x 104 inches (10 ft diameter x 100 inches height)
- Canopy Size: 10 feet (diameter)
- Canopy Material: 220gsm Solution-Dyed Fabric with UPF90+ anti-UV coating
- Fade Resistance: 3-Year
- UV Protection: 99.9% UV-resistant (UVA and UVB)
- Frame Material: Durable 8-rib steel alloy frame
- Pole Diameter: 1.9 inches
- Rib Thickness: 12x18mm (20% thicker)
- Wind Resistance: Up to 30 MPH
- Rotation: 360°
- Tilt: Infinite adjustment within 45°
Figure 6: Detail of the robust 8-rib steel alloy frame for superior support.
Warranty and Support
The HOMSHADE 10ft Offset Patio Umbrella features a 3-year fade resistance for its premium canopy fabric, ensuring long-lasting color and performance. For any questions regarding product operation, maintenance, or potential issues, please contact HOMSHADE customer support directly. Refer to your purchase documentation for specific warranty terms and contact information.
For additional support or to explore compatible bases, please visit the official HOMSHADE store or search for "HOMSHADE H11 BASE" on Amazon.
