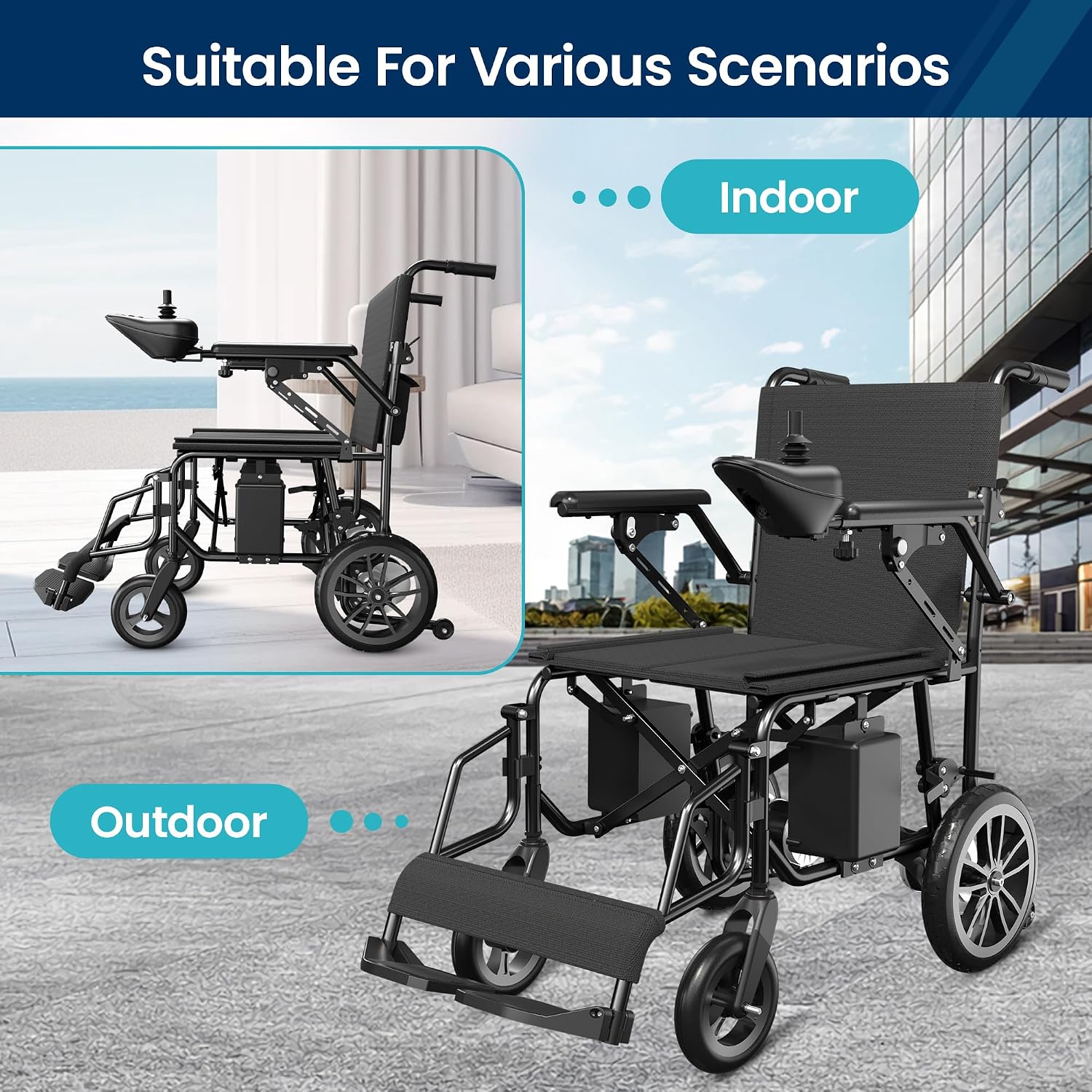

AXEFIT Electric Wheelchair User Manual

Introduction

Welcome to your new AXEFIT Electric Wheelchair. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Model B02-OR electric wheelchair. Please read it thoroughly before initial use to ensure proper handling and to maximize the lifespan of your device.

Safety Information

Your safety is paramount. Adhere to the following guidelines:

• Maximum Weight Capacity: Do not exceed the maximum weight recommendation of 220 pounds (100 kg).
• Climbing Ability: The wheelchair has a maximum climbing ability of 12°. Do not attempt to ascend or descend inclines steeper than this.
• Electronic Brake System: The advanced electronic brake system ensures secure stopping when the joystick is released.
• Safety Belts: Always use the adjustable waist and leg safety belts to prevent accidental falls.
• Anti-Tilt Wheels: Ensure anti-tilt wheels are properly installed to safeguard against tipping, especially during uphill or downhill movements.
• Environmental Conditions: Avoid using the wheelchair in extreme weather conditions or on excessively rough terrain that may compromise stability.

Setup

Follow these steps to prepare your wheelchair for use.

1. Unfolding the Wheelchair

Gently pull the backrest upwards and press the seat cushion down until the frame locks into place. Ensure all locking mechanisms are secure before use.

2. Attaching the Joystick Controller

Secure the joystick controller to the desired armrest (left or right) using the provided clamp and screw. Ensure it is firmly attached and the cable is securely connected.

3. Installing Anti-Tip Wheels

Insert the anti-tip wheels into the designated pins at the rear of the wheelchair frame. These provide additional stability and prevent the wheelchair from tipping backward.

4. Connecting Power Cables

Connect the red power cord to the battery. Ensure all motor wires are correctly plugged in. If the wheelchair operates in the opposite direction (e.g., reversing when moving forward), check and correct the left and right motor wire connections.

Video: Installation and Use

This video provides a comprehensive guide to the installation and initial setup of the electric wheelchair, including unfolding, attaching components, and connecting power.

Operating Instructions

Learn how to effectively operate your electric wheelchair.

Power On/Off

Press the power button on the joystick to turn the wheelchair on or off. The power indicator will illuminate when active.

Joystick Control

The highly sensitive 360° joystick enables precise and smooth maneuvering. Push the joystick in the desired direction to move. Release the joystick to activate the electronic brake system and stop the wheelchair automatically.

Use the '+' and '-' buttons on the joystick to adjust the speed settings. The wheelchair may provide voice prompts, such as "Look out, reversing" when moving backward. Press the SOS button for emergency assistance.

Manual Pushing Mode

To push the wheelchair manually without power, ensure the handbrake is in the down position. Pull out the red clutches on both sides of the wheelchair's rear wheels to disengage the motors. Push the clutches back in to re-engage power mode for electric operation.

Lifting Armrests

To lift the armrests for easier transfer to and from the wheelchair, press the red button located on the armrest hinge and lift the armrest upwards.

Maintenance

Proper maintenance ensures the longevity and optimal performance of your wheelchair.

Battery Care

The 12AH lead-acid battery provides an average travel range of 15+ miles. For optimal battery life, charge the battery fully before first use and regularly thereafter. Avoid completely draining the battery. Always connect the red power cord during installation to ensure proper charging.

Tire Maintenance

The wheelchair features durable 7-inch front and 11-inch rear airless tires, designed to handle various terrains. Regularly inspect the tires for any signs of wear, damage, or embedded debris. No inflation is required for these tires.

Frame Care

The robust iron frame is built for durability. Clean the frame regularly with a damp cloth and a mild, non-abrasive detergent. Avoid using harsh chemicals or abrasive cleaning tools that could damage the finish.

Troubleshooting

If you encounter any issues, refer to the following common problems and solutions.

Wheelchair Not Running Properly When Powered On

• Ensure the handbrake is in the down position (disengaged).
• Press the clutches down on both sides of the rear wheels to engage the motors. If one clutch is not fully pressed, the wheelchair may not move or turn correctly.

Reversing Voice Prompt When Moving Forward

If the wheelchair announces "Look out, reversing" while you are attempting to move forward, this indicates that the left and right motor wires may be plugged in backward. Power off the wheelchair, carefully check the motor wire connections, and correct them as needed.

Video: Real Customer Usage Video (Reversing Voice Prompt)

This video demonstrates the wheelchair in use, including the voice prompt for reversing, which can be a useful reference for troubleshooting motor wire connections.

Specifications

Key technical specifications for the AXEFIT Electric Wheelchair Model B02-OR:

Warranty and Support

AXEFIT is committed to providing top-quality service and ensuring your satisfaction. If you have any concerns or questions about your electric wheelchair, please feel free to reach out to our dedicated after-sales team.

Contact Information:

• Email Support: AXEFIT-service@outlook.com (24h)
• Phone Support: +1 (417) 807-2641 (Mon-Sun 9AM-5PM EST)

Additional Services:

• Hassle-free returns
• Instant refund on item return receipt
• 30-day price difference refund
