1. Safety Information
Please read and understand this entire manual before attempting to assemble, operate, or install the product. Failure to do so could lead to electric shock, fire, or serious injury.
- Ensure all electrical connections comply with local codes, ordinances, and the National Electrical Code (NEC).
- Consult a qualified electrician if you are unfamiliar with electrical wiring.
- Before installation, disconnect power by turning off the circuit breakers at the main fuse box.
- Use only replacement parts specified by the manufacturer.
- Do not bend fan blades during installation or cleaning.
- Keep hands clear of fan blades when the fan is operating.
2. Package Contents
Carefully unpack all components and ensure all parts are present before beginning installation. Refer to the image below for a visual guide of the included items.
Image: All components of the VONLUCE 42-inch Flush Mount Ceiling Fan, including the motor housing, blades, light kit, remote control, and mounting hardware.
The package includes:
- Motor Assembly
- Fan Blades (5 pieces, dual-sided finish)
- LED Light Kit
- Remote Control with Wall Mount Holder
- Mounting Bracket
- Hardware Pack (screws, wire nuts, etc.)
- Instruction Manual
3. Installation
Follow these steps for proper installation. For a visual guide, please refer to the installation video provided.
Video: Detailed steps on how to install the VONLUCE Ceiling Fan, covering mounting, wiring, and blade attachment.
3.1 Mounting the Bracket
- Turn off power at the circuit breaker.
- Secure the mounting bracket to the ceiling junction box using the provided screws. Ensure the bracket is firmly attached and can support the fan's weight.
3.2 Wiring Connections
- Connect the household supply wires to the fan's electrical wires according to the wiring diagram in the manual. Use the provided wire nuts to secure connections.
- Ensure all connections are tight and properly insulated.
Image: Close-up view of the electrical wiring connections for the ceiling fan, showing wires twisted together and secured with wire nuts.
3.3 Attaching Fan Blades and Light Kit
- Attach the fan blades to the motor assembly using the designated screws. The blades feature a dual-sided finish (black and dark wood grain) allowing for customization.
- Connect the LED light kit wires to the corresponding wires from the motor assembly.
- Secure the light kit to the fan housing.
Image: The dual-finished fan blades, showcasing both the black and dark wood grain sides for aesthetic versatility.
3.4 Final Assembly
- Carefully lift the fan assembly and secure it to the ceiling mounting bracket.
- Ensure all screws are tightened and the fan is stable.
Image: The VONLUCE 42-inch Flush Mount Ceiling Fan, showcasing its low-profile design when installed on a ceiling.
4. Operation
Your VONLUCE ceiling fan is controlled by the included remote. Familiarize yourself with its functions for optimal use.
Video: Demonstrates the various features of the VONLUCE 42-inch Ceiling Fan, including light temperature changes, fan speed adjustments, and reversible motor function.
4.1 Remote Control Functions
Image: The remote control for the VONLUCE Ceiling Fan, showing buttons for power, fan speed, light control, timer, and reversible function.
- Power On/Off: Press the power button to turn the fan and light on or off.
- Fan Speed: Select from 6 speed settings (1-6) to adjust airflow.
- Light Control: Cycle through 3 color temperatures (3000K Warm White, 4500K Natural White, 6000K Cool White) and adjust brightness.
- Reversible DC Motor: Press the F/R button to change the fan's direction. Use downward airflow for cooling in summer and upward airflow for circulating warm air in winter.

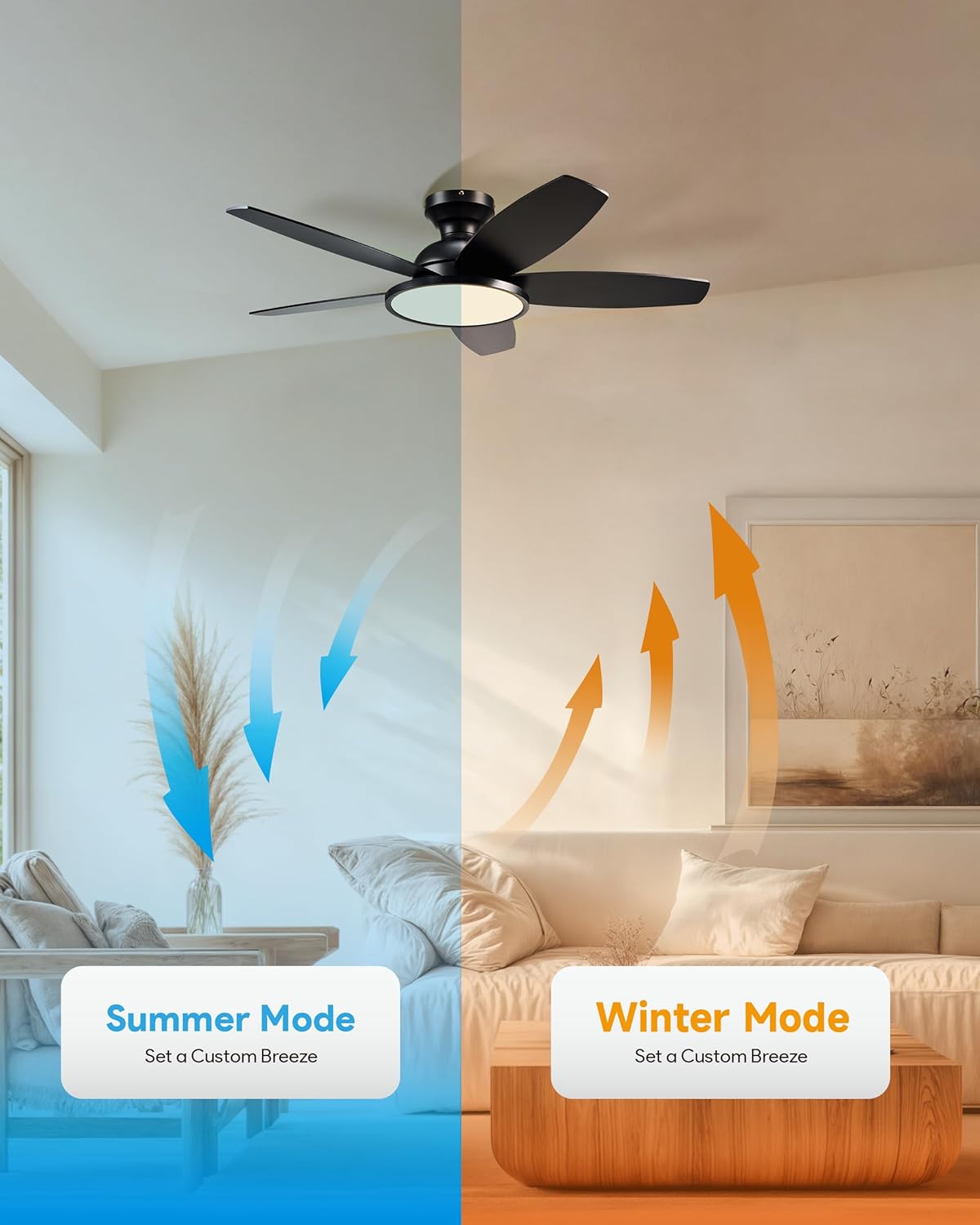

Image: Illustrates the reversible DC motor function, showing downward airflow for cooling (Summer Mode) and upward airflow for heat circulation (Winter Mode).
- Timer Function: Set the fan to turn off automatically after 1, 2, 4, or 8 hours.
- Memory Function: The fan remembers the last light setting and fan speed if it runs for more than 10 seconds before being turned off.
- Quiet Operation: The DC motor operates at less than 35dB, ensuring a quiet environment.
5. Maintenance
Regular maintenance ensures optimal performance and longevity of your ceiling fan.
- Cleaning: Use a soft, damp cloth to clean the fan blades and motor housing. Do not use abrasive cleaners or solvents.
- Blade Tightness: Periodically check all blade screws for tightness. Loose screws can cause wobbling and noise.
- Light Kit: The integrated LED light is designed for long-term use and does not require bulb replacement.
6. Troubleshooting
If you experience issues with your fan, consult the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power to the fan; Loose wire connections; Remote control battery low. | Check circuit breaker; Verify all wire connections are secure; Replace remote control batteries. |
| Fan wobbles | Loose blade screws; Improperly balanced blades; Loose mounting bracket. | Tighten all blade screws; Use a balancing kit (not included) to balance blades; Ensure mounting bracket is securely fastened. |
| Light does not work | Loose wire connection to light kit; Faulty LED driver. | Check light kit wiring; Contact customer support for assistance. |
| Remote control not working | Low battery; Remote not paired with fan. | Replace batteries; Refer to the manual for remote pairing instructions. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand | VONLUCE |
| Model Name | CFN-4SMD-BK |
| Size | 42 inch |
| Color | Black |
| Style | Flush Mount |
| Motor Type | DC Motor |
| Number of Power Levels | 6 Speeds |
| Light Type | Full-spectrum LED Light |
| Color Temperature (CCT) | 3000K/4500K/6000K |
| Control Method | Remote Control |
| Noise Level | Less than 35dB |
| Indoor/Outdoor Usage | Indoor |
| Item Weight | 11.48 pounds (5.22 Kilograms) |
| Product Dimensions | 42"D x 42"W x 10"H |
8. Warranty and Support
VONLUCE products are designed for quality and reliability. For warranty information, technical support, or any questions regarding your product, please contact VONLUCE customer service directly. Keep your purchase receipt for warranty claims.
You can visit the official VONLUCE store for more information and contact details: VONLUCE Store
