SWITCHFLUX 8K DisplayPort 1.4 to HDMI 2.1 Adapter

1. Introduction

The SWITCHFLUX 8K DisplayPort 1.4 to HDMI 2.1 Adapter is designed to seamlessly connect DisplayPort-enabled source devices to HDMI-enabled displays. This adapter supports ultra-high resolutions and refresh rates, providing a high-quality visual and audio experience for various applications, including gaming, professional work, and multimedia consumption.

2. Key Features

• Cutting-Edge 8K Technology: Supports 8K@60Hz, 4K@144Hz/120Hz, and 2K@165Hz resolutions. Features Dynamic HDR and 10-bit color processing for stunning visuals and a wider color gamut. Offers a 32.4Gbps (HBR3) bandwidth, eARC for advanced audio control, and HDCP 2.3 for content protection.
• Plug-and-Play Convenience: No drivers or external power required. Simply connect your DisplayPort source to an HDMI display for immediate use.
• Stable Signal & Durable Design: Equipped with a smart chip and premium 28AWG copper core cable with multi-layer shielding for stable audio and video transmission. Features a robust aluminum alloy housing for corrosion resistance and heat dissipation, and 24K gold-plated connectors for a seamless connection.

Image: The SWITCHFLUX 8K DisplayPort to HDMI Adapter highlighting its 8K Ultra-high resolution support, showing a DisplayPort source connecting to an HDMI target screen.

Image: A visual representation of 4K@144Hz higher refresh rate, emphasizing immersive gaming without flickering, with a note that 144Hz requires compatible laptop, monitor, and HDMI cable.

3. Compatibility

This adapter is designed for uni-directional signal flow: from a DisplayPort source to an HDMI display. It is backward compatible with DisplayPort 1.2/1.1/1.0 and HDMI 2.0b/1.4/1.3 standards.

Compatible Devices:

• Major monitor brands: BenQ, Dell, HP, Acer, Alienware
• GPUs: NVIDIA RTX 4080/4090, AMD RX 7900/6900
• Desktop PCs and Laptops with DisplayPort output

Not Compatible With:

• Gaming Consoles: PS5, Xbox, Nintendo Switch
• Certain TVs: LG C2 LED series TVs
• Accessories: Hubs, docking stations, VGA/DVI/DP cables (does not support conversion from HDMI source to DisplayPort display)

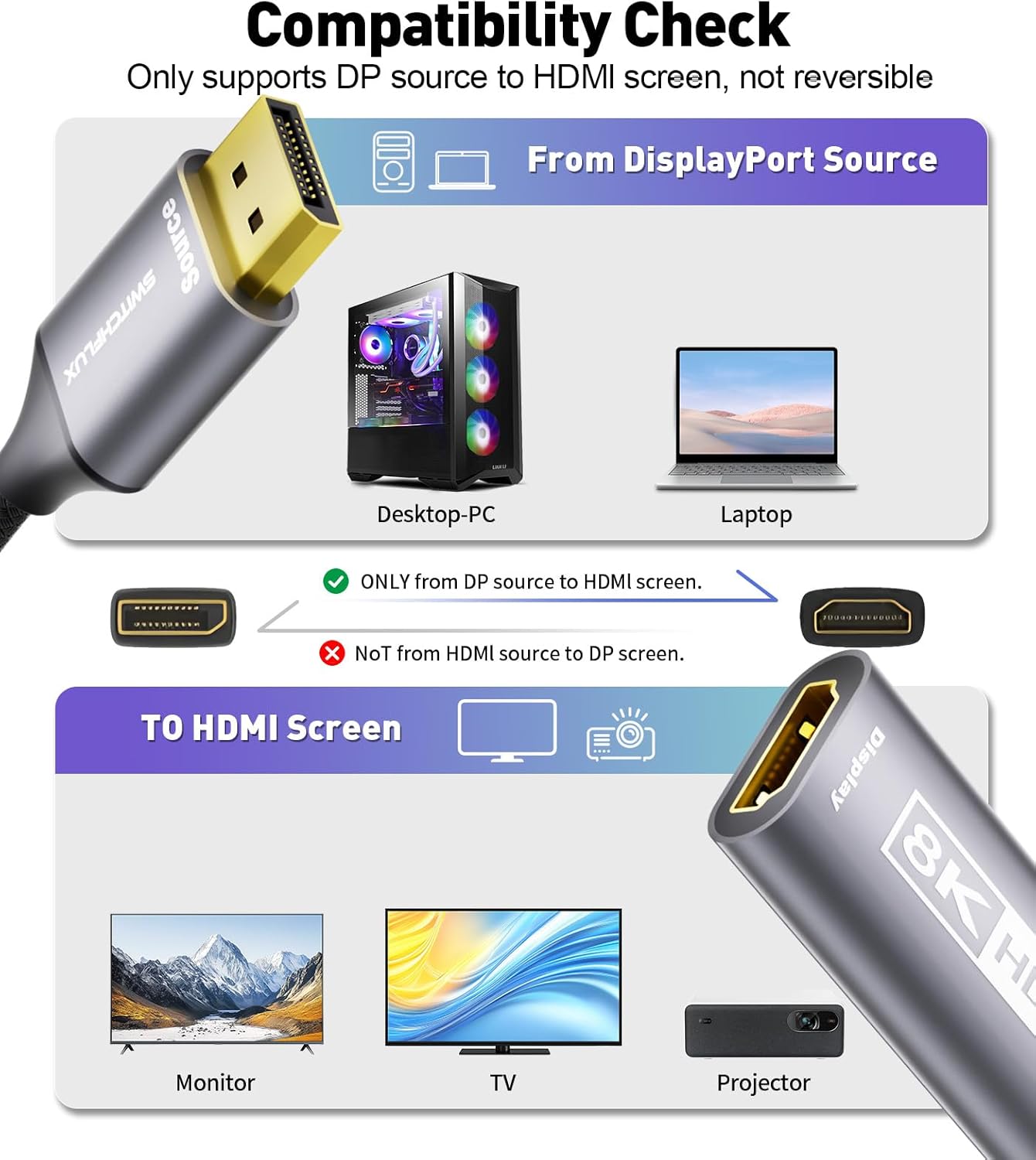

Image: A diagram illustrating the uni-directional compatibility of the adapter, showing DisplayPort sources (desktop PC, laptop) connecting to HDMI screens (monitor, TV, projector), and explicitly stating it does not work from HDMI source to DisplayPort screen.

4. Setup Guide

Follow these simple steps to connect your DisplayPort source to an HDMI display:

1. Connect to Source: Plug the DisplayPort end of the adapter into the DisplayPort output on your computer (desktop PC or laptop).
2. Connect HDMI Cable: Insert a standard HDMI cable (not included) into the HDMI port of the adapter.
3. Connect to Display: Plug the other end of the HDMI cable into an available HDMI input on your monitor, HDTV, or projector.
4. Power On: Ensure both your source device and display are powered on. The display should automatically detect the signal.

Image: A visual guide demonstrating the three-step connection process for the DisplayPort to HDMI adapter.

5. Operating Instructions

Once connected, the adapter facilitates the transmission of video and audio signals from your DisplayPort source to your HDMI display. You can configure your display settings on your computer to utilize various modes:

• Mirror Mode: Duplicates your computer's screen onto the HDMI display, showing the same content on both.
• Extended Mode: Extends your computer's desktop across both screens, allowing for a larger workspace.

Refer to your computer's operating system display settings for detailed configuration options.

Image: A graphic demonstrating the 'Extended Mode' and 'Mirror Mode' functionalities for multi-screen display, showing a DisplayPort source connected to two monitors.

6. Troubleshooting

• No Signal/Flickering:
  • Ensure both DisplayPort and HDMI connections are secure.
  • Verify that your display is set to the correct HDMI input source.
  • Check the quality of your HDMI cable. For 8K or high refresh rates (4K@120Hz/144Hz, 2K@165Hz), a high-quality HDMI 2.1 cable is essential. Lower quality cables may cause signal loss or artifacts at higher resolutions/refresh rates.
  • Confirm your source device's graphics card drivers are up to date.
  • If experiencing artifacts at 4K@120Hz, try reducing the refresh rate to 60Hz to see if the issue resolves, indicating a potential bandwidth limitation with your setup or HDMI cable.
• No Audio:
  • Check your computer's sound settings to ensure the HDMI output is selected as the default audio device.
  • Verify that your HDMI cable supports audio transmission.
  • Note: This adapter supports eARC for advanced audio control, but specific audio formats like Dolby Atmos may depend on your entire system's compatibility and configuration. Some users have reported issues with specific audio formats or content protection (HDCP) when using certain applications like Netflix.
• Compatibility Issues:
  • Remember, this adapter is uni-directional (DisplayPort source to HDMI display only). It will not work for HDMI sources to DisplayPort displays.
  • The adapter is not compatible with gaming consoles (PS5, Xbox, Nintendo Switch) or certain TVs (LG C2 LED series TVs).
  • It does not support hubs, docking stations, or VGA/DVI/DP cables. Ensure your setup adheres to the specified compatibility.
  • If using with a docking station, ensure the docking station itself supports the desired display modes and resolutions, as some may have limitations.

7. Specifications

8. Maintenance

To ensure the longevity and optimal performance of your SWITCHFLUX adapter, please follow these maintenance guidelines:

• Keep the adapter clean and free from dust. Use a soft, dry cloth for cleaning.
• Avoid exposing the adapter to extreme temperatures or humidity.
• Do not bend or twist the cable excessively, as this can damage internal wiring.
• Store the adapter in a safe place when not in use to prevent physical damage.

9. Warranty & Support

SWITCHFLUX is dedicated to providing superb-quality products. For any inquiries or support needs, please consult our customer service for fast and responsible support within 18 hours.

For further information or to register your product, please visit the official SWITCHFLUX website or refer to the product packaging.
