GOTCOZY Heated Blanket Electric Throw Instruction Manual

Model: 50x60

1. Introduction

Thank you for choosing the GOTCOZY Heated Blanket Electric Throw. This manual provides essential information for the safe and efficient use of your new heated blanket. Please read all instructions carefully before use and retain this manual for future reference.

Important Safety Instructions

  • Do not use this blanket with an infant, child, incapacitated person, or anyone insensitive to heat.
  • Do not use this blanket on an adjustable bed unless specifically designed for it.
  • Never use the blanket if it is wet.
  • Avoid pinching or bunching the blanket; ensure it lies flat during use to prevent overheating.
  • Do not insert pins or other metallic objects into the blanket.
  • Always unplug the blanket when not in use.
  • Regularly inspect the blanket and power cord for any signs of damage. If damaged, discontinue use immediately and contact customer support.
  • This product is certified by ETL for safety.

2. Product Overview

The GOTCOZY Heated Blanket Electric Throw is designed to provide warmth and comfort. It features a soft fabric, a built-in controller for ease of use, and multiple heat and timer settings.

Key Features:

  • Built-in Controller: One-touch operation for adjusting settings.
  • 10 Heating Levels: Customizable warmth up to approximately 45°C.
  • 9 Time Settings: Adjustable auto shut-off timer from 1 to 9 hours.
  • Safety Protection: Overheat protection system and automatic safety shut-off.
  • Machine Washable: Detachable cord for easy cleaning.

Components:

  • Heated Blanket
  • Built-in Control Unit
  • Power Cord
GOTCOZY Heated Blanket Electric Throw, folded, with built-in controller and power cord visible.
Figure 2.1: The GOTCOZY Heated Blanket Electric Throw, folded, showing the integrated controller and power cord. The blanket features a plaid pattern in navy, beige, and white, with a soft, sherpa-like lining visible.

3. Setup

  1. Unpack: Carefully remove the heated blanket from its packaging.
  2. Inspect: Check the blanket and power cord for any signs of damage. Do not use if damaged.
  3. Position: Lay the blanket flat on a bed, sofa, or other desired surface. Ensure there are no folds, creases, or bunched areas.
  4. Connect Power: Plug the power cord into a standard electrical outlet.
GOTCOZY Heated Blanket Electric Throw laid flat on a bed.
Figure 3.1: The heated blanket laid flat on a bed, ready for use. The plaid pattern is visible, and the blanket appears smooth and evenly spread.

4. Operating Instructions

The GOTCOZY Heated Blanket features a user-friendly built-in controller for easy adjustments.

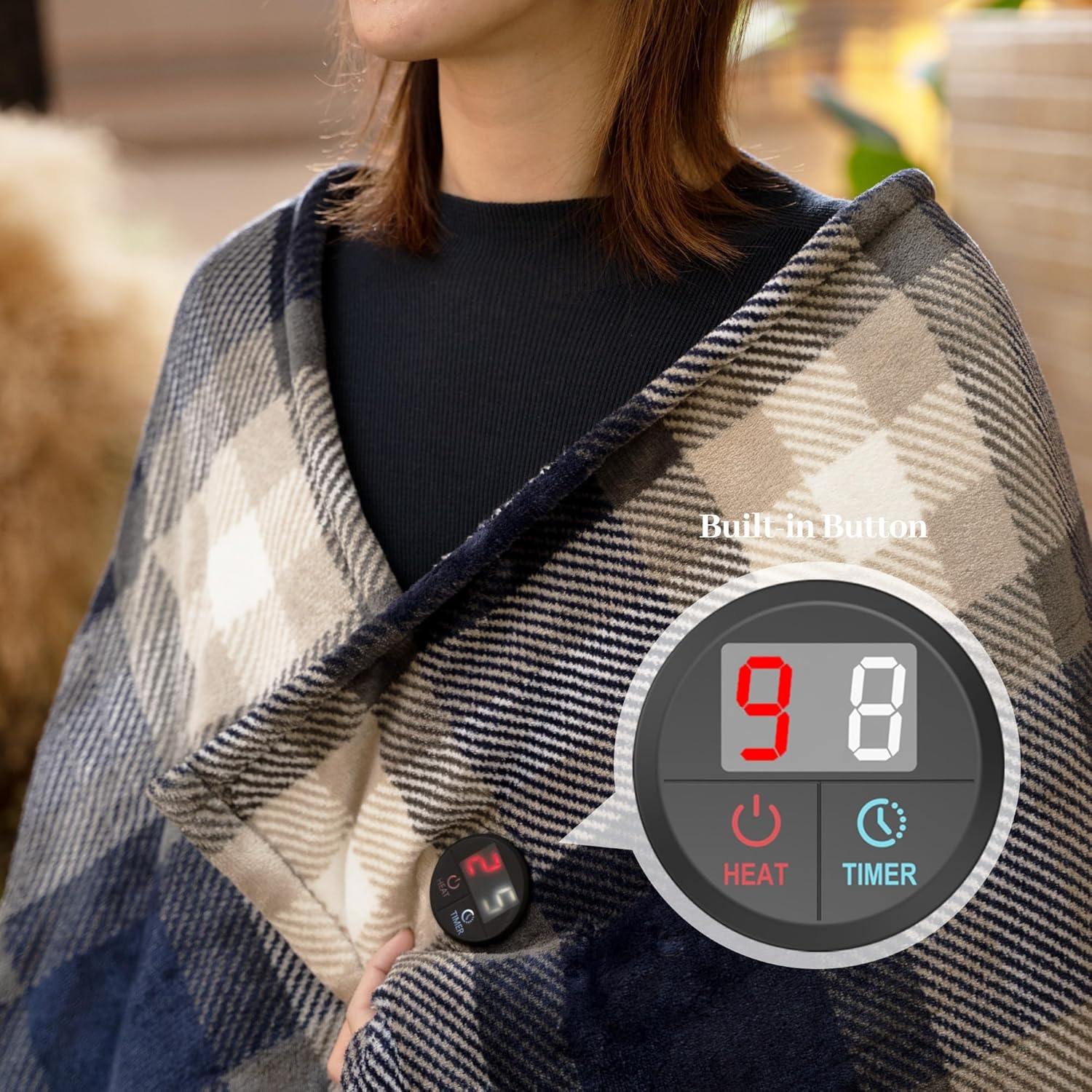

Close-up of the built-in controller on the GOTCOZY Heated Blanket.
Figure 4.1: A close-up view of the built-in controller on the blanket. The digital display shows '9' for heat level and '8' for timer, with 'HEAT' and 'TIMER' buttons below.
  1. Power On/Off:
    • To turn on, press the 'HEAT' button. The display will illuminate, showing the current heat level.
    • To turn off, press and hold the 'HEAT' button for a few seconds until the display turns off.
  2. Adjusting Heat Level:
    • With the blanket powered on, press the 'HEAT' button repeatedly to cycle through the 10 heating levels (1-10).
    • Select your desired warmth level. The current setting will be displayed.
  3. Setting the Timer:
    • Press the 'TIMER' button to activate the auto shut-off function.
    • Press the 'TIMER' button repeatedly to cycle through the 9 time settings (1-9 hours).
    • The blanket will automatically turn off after the selected time duration.

5. Maintenance

Proper care ensures the longevity and performance of your heated blanket.

Cleaning Instructions:

  1. Disconnect Power: Always unplug the blanket from the electrical outlet before cleaning.
  2. Detach Cord: The built-in controller has a detachable cord. Carefully remove the cord from the blanket.
  3. Machine Wash: Machine wash the blanket in cold water on a gentle cycle.
  4. Drying: Tumble dry on low heat or line dry. Ensure the blanket is completely dry before reconnecting the cord and using.
  5. Do Not Iron: Do not iron the heated blanket.
  6. Do Not Bleach: Do not use bleach or cleaning fluids.
Icons illustrating machine washable, wash with cold water, and do not iron.
Figure 5.1: Visual guide for blanket care, showing icons for machine washing, washing with cold water, and a 'do not iron' symbol.

Storage:

When not in use, store the blanket in a cool, dry place. Avoid folding it tightly or placing heavy objects on it, which could damage the internal heating elements.

6. Troubleshooting

ProblemPossible CauseSolution
Blanket not heating.Not plugged in correctly. Power outage. Controller malfunction.Ensure power cord is securely plugged into outlet. Check household circuit breaker. Unplug and re-plug the controller. If issue persists, contact support.
Blanket heats unevenly.Blanket is bunched or folded.Lay the blanket flat and smooth out any folds or creases.
Blanket automatically turns off.Timer setting reached. Overheat protection activated.This is normal if the timer has expired. If not, check for bunched areas. Unplug, let cool, then restart.

7. Specifications

FeatureDetail
BrandGOTCOZY
Model50x60 Electric Throw
Dimensions152L x 127W Centimetres (50 x 60 inches)
MaterialPolyester
Heating Levels10
Timer Settings1-9 Hours (Auto Shut-off)
Special FeaturesBuilt-in Controller, Overheat Protection, Automatic Safety Shut-off, Machine Washable
Item Weight1.4 kg
CertificationsETL Certified

8. Warranty and Support

The GOTCOZY Heated Blanket Electric Throw is manufactured to high-quality standards and is ETL certified for safety. For any questions, concerns, or technical support regarding your product, please refer to the contact information provided with your purchase or visit the official GOTCOZY website. Please retain your proof of purchase for warranty claims.
