1. Introduction
This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your Awoco AWC-RH-BQ-CR30 30-inch Flush Ceiling Mount Insert Island Range Hood. This appliance is designed to effectively remove smoke, grease, and odors from your cooking area, ensuring a cleaner kitchen environment. Please read this manual thoroughly before installation and use, and retain it for future reference.
2. Safety Information
WARNING: To reduce the risk of fire, electric shock, or injury, observe the following:
- Install this range hood in accordance with all specified instructions.
- Ensure proper ventilation is provided for combustion gases from fuel-burning equipment to prevent back-drafting.
- Always disconnect power to the range hood at the circuit breaker before servicing or cleaning.
- This unit is intended for general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
- To reduce the risk of fire, use only metal ductwork.
- Clean grease filters frequently. Grease should not be allowed to accumulate on the fan or filters.
- Never leave surface units unattended at high settings. Boil-overs cause smoking and greasy spill-overs that may ignite.
- Always use appropriate size cookware on each surface burner.
3. Package Contents
Verify that all components are present and undamaged:
- Awoco Range Hood Unit
- Instruction Manual
- Mounting Screws
- Remote Control
4. Setup and Installation
The Awoco AWC-RH-BQ-CR30 is designed for flush ceiling mount insert island installation. A sturdy wood frame is required in the ceiling for secure mounting. The blower unit can be installed in the attic to achieve quieter operation in the kitchen.
4.1 Key Components Overview
Image Description: This image displays an exploded view of the Awoco range hood, highlighting its main components. These include the 6-inch round top vent, the remote control for 4 speeds, the LED light bars, the touch sensor panel, and the mechanism for 5 interchangeable vent directions.
4.2 Venting Options
This model offers 5 interchangeable vent directions: one for top venting and four for side venting. This adaptability simplifies installation to meet various ducting requirements. Ducts are not included and must be purchased separately.

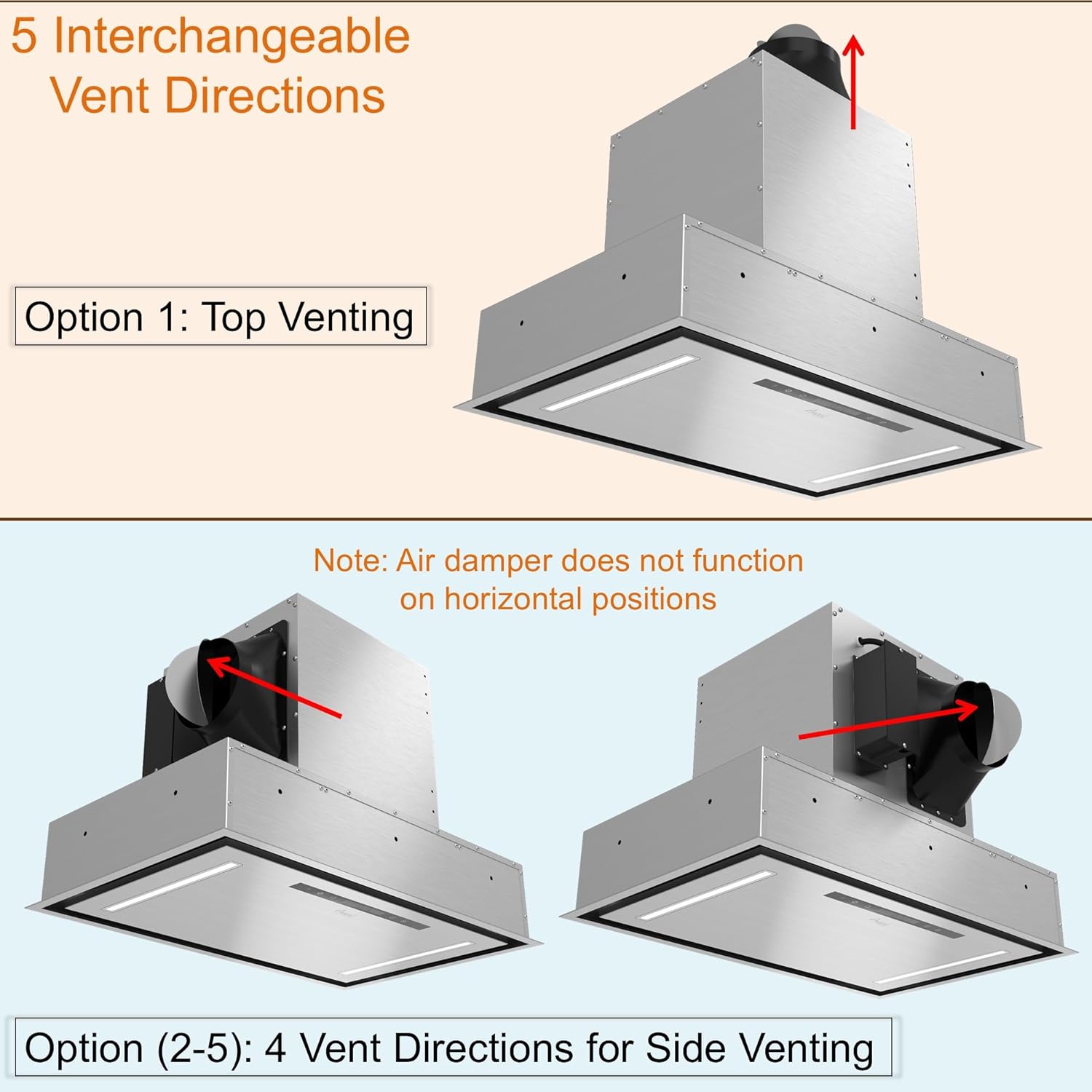

Image Description: A diagram illustrating the five possible vent directions for the range hood. Option 1 shows top venting, while Options 2-5 depict four different configurations for side venting. A note indicates that the air damper does not function in horizontal positions.
4.3 Electrical Connection
The unit operates on 120V/60Hz with a maximum power consumption of 140W. A 44-inch long power cord with a plug is included. Ensure the electrical supply meets these specifications.
Image Description: This image shows the rear and top view of the range hood, highlighting the 6-inch round vent, the mechanism for 5 interchangeable vent directions, the power cord, and the 4-speed 5-wire cable connection.
4.4 Dimensions
Before installation, carefully measure your installation space to ensure proper fit. The overall dimensions of the unit are 29-3/8"W x 18-3/8"D x 5-3/4"H.
Image Description: A technical drawing providing detailed dimensions of the range hood, including the overall width (29-3/8"), depth (18-3/8"), and height (5-3/4"), along with specific measurements for the vent housing and mounting points. A caution advises to measure the installation space before purchasing.
4.5 Installation Video Guide
Video Description: This official product video demonstrates the installation process of the Awoco RH-BQ-CR Ceiling Mount Range Hood. It shows how the separate blower unit and hood unit can be joined, the importance of a wood frame for secure mounting, and the quiet performance achieved by installing the blower in the attic. It also highlights the remote and touch control features.
5. Operating Instructions
Your Awoco range hood features both touch sensor controls and a remote control for convenient operation.
5.1 Speed Control
The range hood offers 4 speeds (Q, I, II, III) with a powerful operation up to 700 CFM. Use the '+' and '-' buttons on the remote or the corresponding icons on the touch panel to adjust the fan speed.
5.2 LED Lighting
The unit is equipped with 5W LED light bars to illuminate your cooking space. Press the light button on the remote or the touch panel to turn the lights on or off.
5.3 Delay Auto Shut-off
Utilize the delay auto shut-off feature, which can be set for up to 15 minutes, to vent any leftover smoke after cooking is complete.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your range hood.
6.1 Cleaning Mesh Filters
The range hood includes 4-layer dishwasher-safe commercial-style stainless steel/aluminum mesh air filters. Clean these filters frequently to prevent grease accumulation. The oil is contained within the mesh filters, eliminating the need for separate oil holders.
- Remove the mesh filters from the hood.
- Wash them in a dishwasher or by hand using hot water and a non-abrasive detergent.
- Ensure filters are completely dry before reinstalling.
6.2 Cleaning Surfaces
Clean the stainless steel surfaces with a non-abrasive stainless steel cleaner and a soft cloth. Avoid using abrasive pads or cleaners that could scratch the surface.
7. Troubleshooting
If you encounter issues with your range hood, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Range hood does not turn on | No power supply; Circuit breaker tripped; Loose wiring | Check power connection; Reset circuit breaker; Consult a qualified electrician |
| Poor suction performance | Clogged grease filters; Obstruction in ductwork; Incorrect fan speed setting | Clean or replace filters; Check ductwork for blockages; Increase fan speed |
| Excessive noise during operation | Loose parts; Improper installation; Obstruction in blower | Check for loose screws or components; Ensure secure mounting; Inspect blower for foreign objects |
| LED lights not working | Loose connection; Faulty LED module | Check light connections; Contact customer support for replacement parts |
8. Specifications
| Feature | Specification |
|---|---|
| Model Number | AWC-RH-BQ-CR30 |
| Dimensions (W x D x H) | 29-3/8" x 18-3/8" x 5-3/4" |
| Material | Stainless Steel |
| Air Flow Capacity | 700 CFM |
| Number of Speeds | 4 |
| Noise Level (Low/High) | 38 dB (2.0 sones) / 60 dB (9.0 sones) |
| Controls Type | Touch, Remote |
| Voltage | 120V/60Hz |
| Wattage | 140W Max |
| Light Source Type | LED (5W light bars) |
| Filter Type | Dishwasher Safe Mesh (Stainless Steel/Aluminum) |
| Ventilation Type | Ducted (6" Round Vent) |
| Certification | ETL Certified |
| Item Weight | 40 Pounds |
9. Warranty and Support
Awoco provides a 2 Years Limited Parts Protection for this range hood. For warranty claims or technical support, please contact Awoco customer service.
Additionally, the product typically comes with a 30-day return/replacement policy from the date of purchase. Please refer to your purchase documentation for specific return terms and conditions.
For further assistance, visit the official Awoco website or contact their customer support team.
