Mehrpow 48V 105Ah Lithium Golf Cart Battery User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Mehrpow 48V 105Ah Lithium Golf Cart Battery. Please read this manual thoroughly before installation and use to ensure optimal performance and longevity of your battery.

The Mehrpow 48V 105Ah Lithium Golf Cart Battery is designed with EVE A+ cells and a smart 200A BMS, offering high power output and extended cycle life for various golf cart models including Clubcar, EZGO, YAMAHA, ICON, and Marshell.

2. Safety Information

WARNING: Failure to follow these safety instructions may result in fire, electric shock, injury, or damage to the battery and property.

• Always wear appropriate personal protective equipment (PPE) including safety glasses and insulated gloves during installation and maintenance.
• Ensure the golf cart's power is completely off before connecting or disconnecting the battery.
• Do not short-circuit the battery terminals.
• Do not disassemble, puncture, or modify the battery.
• Keep the battery away from heat sources, open flames, and flammable materials.
• Use only the specified 58.4V 22A Li-FePO4 charger provided with the battery.
• Store the battery in a cool, dry place when not in use.
• In case of fire, use a Class D fire extinguisher. Water can exacerbate lithium battery fires.

3. Product Overview

The Mehrpow 48V 105Ah Lithium Golf Cart Battery is a high-performance power solution featuring advanced LiFePO4 technology. It includes a built-in Smart 200A BMS for comprehensive protection and a touch display for real-time monitoring.

Key Features:

• EVE A+ Cells: Consists of 16 EVE A+ class 2C power cells (LF105) for fast charging and discharging, ensuring stable performance.
• High Power Output: Provides 5.37kWh of energy and 10.24kW of powerful output, with continuous discharge current up to 200A (Peak 400A for 35s, 600A for 3s).
• Integrated 200A BMS: Offers protection against over-charge/discharge, over-current, high/low temperatures, and short-circuiting.
• LCD Touchscreen Display: A 2.8-inch touch screen for real-time viewing and control of battery level and other data.
• Mobile APP Monitoring: Connect via mobile APP to monitor battery data (State of Charge - SOC) and control the charge/discharge switch remotely.
• Fast Charging: Comes with a 58.4V 22A Li-FePO4 charger, allowing 0% to 100% charge in approximately 4.7 hours.
• Durable Construction: High-strength cold-rolled sheet metal casing, fireproof, with good thermal and chemical stability.
• Long Cycle Life: Over 6,000 cycles, significantly longer than lead-acid batteries.
• Lightweight Design: Weighs approximately 114 lbs, offering a higher capacity density compared to lead-acid alternatives.

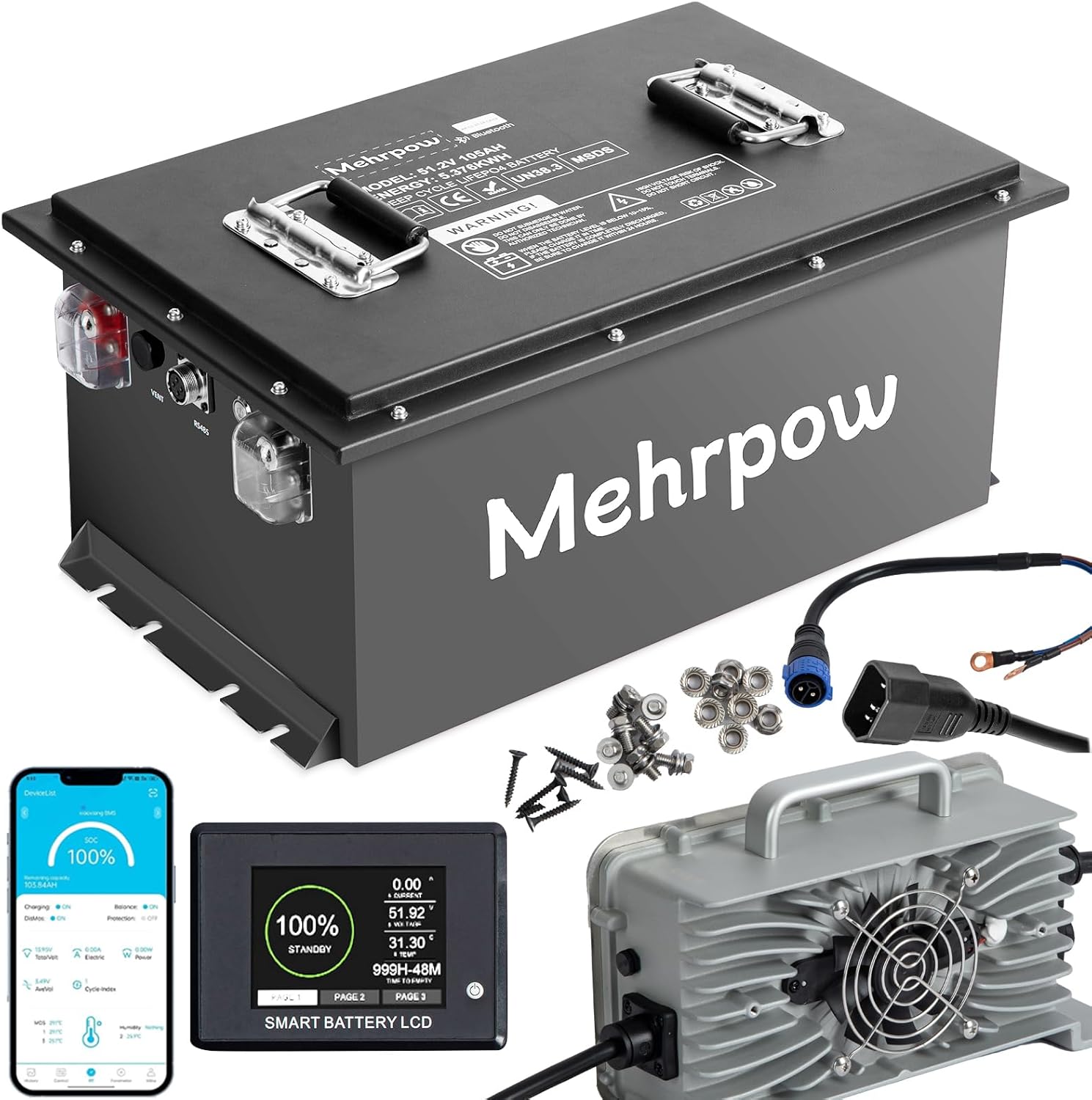

Figure 3.1: The Mehrpow 48V 105Ah Lithium Golf Cart Battery, including the battery unit, 58.4V 22A charger, LCD touch display, and connection cables.

Figure 3.2: Diagram illustrating the internal EVE A+ cell structure and key performance metrics: 105Ah capacity, 200A max continuous discharge, 10.24kW max load power, and 5.376kWh usable energy.

4. Setup and Installation

Before beginning installation, ensure you have all components: the 48V-105Ah EVE LiFePO4 battery, charger, LCD monitor, screen connection cable, and screw set. It is recommended to have the battery fully charged before initial installation.

4.1 Preparing for Installation:

1. Turn off the golf cart's main power switch and disconnect the existing battery system.
2. Remove the old batteries. Note their configuration and wiring for reference, if applicable.
3. Clean the battery compartment to ensure it is free of debris and corrosion.

4.2 Battery Placement:

The Mehrpow battery is designed to be a direct replacement for many lead-acid battery setups. Its dimensions are approximately 13.14"D x 20.03"W x 9.25"H. Ensure the battery fits securely in the compartment.

Figure 4.1: Physical dimensions of the Mehrpow 48V 105Ah battery, showing its compact size for easy integration into golf carts.

4.3 Wiring Connections:

1. Connect the main positive (+) and negative (-) cables from the golf cart to the corresponding terminals on the Mehrpow battery. Ensure connections are tight and secure using the provided M8 terminals and screws.
2. Connect the display screen cable from the battery to the LCD touch display.
3. If applicable, connect the charger plug to the designated charging port on the battery.

Figure 4.2: Simplified wiring diagram showing connections for the battery, display screen, and charger plug within a golf cart system.

Note: No series connection is required for this battery, simplifying installation compared to traditional lead-acid setups.

5. Operating Instructions

5.1 Initial Power-Up:

After installation, turn on the golf cart's main power. The LCD touch display should illuminate, showing real-time battery information.

5.2 Using the LCD Touch Display:

The 2.8-inch LCD display provides critical battery data. Tap the screen to navigate through different pages displaying battery voltage, current, temperature, and cell voltages.

Figure 5.1: The Smart Battery LCD display providing real-time data such as battery voltage, current, temperature, and individual cell voltages.

5.3 Mobile APP Monitoring:

Download the Mehrpow mobile application (refer to the QR code or link provided in the packaging for download). Connect your smartphone to the battery via Bluetooth to monitor battery data (State of Charge - SOC) and control the charge/discharge switch remotely.

Figure 5.2: Screenshot of the Mehrpow mobile application displaying battery status, charge level, and control options.

5.4 Charging the Battery:

Use the provided 58.4V 22A Li-FePO4 charger. Connect the charger to the battery's charging port and then plug the charger into a standard AC outlet. The battery can be fully charged from 0% to 100% in approximately 4.7 hours.

Figure 5.3: The Mehrpow battery connected to its dedicated 58.4V 22A charger, illustrating the fast charging capability.

5.5 Driving Range:

A single full charge can provide up to 50 miles of continuous golfing, depending on terrain, golf cart model, and driving habits.

Figure 5.4: A golf cart utilizing the Mehrpow 105Ah battery, capable of up to 50 miles on a single charge, with no series connection or daily maintenance required.

6. Maintenance

The Mehrpow Lithium Golf Cart Battery is designed to be maintenance-free, eliminating the need for daily checks or watering common with lead-acid batteries. However, following these guidelines will help ensure its longevity:

• Regular Cleaning: Keep the battery casing and terminals clean and free of dust or debris. Use a dry cloth for cleaning.
• Terminal Inspection: Periodically check that all terminal connections are secure and free from corrosion.
• Storage: If storing the battery for an extended period, ensure it is charged to approximately 50-70% State of Charge (SOC) and stored in a cool, dry environment. Avoid extreme temperatures.
• Software Updates: Check the Mehrpow APP periodically for any available firmware updates for the battery's BMS.

7. Troubleshooting

This section addresses common issues you might encounter with your Mehrpow battery. For problems not listed here, please contact customer support.

Note: The BMS provides multiple protections. If the battery suddenly stops, it might be due to over-current, over-discharge, or temperature protection. Over-current protection will auto-release in approximately 32 seconds.

Figure 7.1: The battery's capability to handle inclines, highlighting the BMS protection and continuous/peak current ratings.

8. Specifications

9. Warranty and Support

9.1 Warranty Information:

The Mehrpow 48V 105Ah Lithium Golf Cart Battery comes with a 5-year extra long warranty covering the entire battery. This warranty covers defects in materials and workmanship under normal use.

Please retain your proof of purchase for warranty claims.

9.2 Customer Support:

For any inquiries, technical assistance, or warranty claims, please contact Mehrpow customer support. Installation video tutorials are also available for beginners.

Refer to the product packaging or the official Mehrpow website for the most current contact information.
