Vitilan I7 Pro 3.0 Electric Bike Instruction Manual

1. Safety Information

Always wear a helmet when riding your electric bike. Ensure all components are securely fastened before each ride. Familiarize yourself with local regulations regarding electric bike usage. Avoid riding in adverse weather conditions or on unsafe terrain. Regular maintenance is crucial for safe operation.

2. Product Overview

The Vitilan I7 Pro 3.0 Electric Bike is a versatile folding e-bike designed for various terrains. It features a powerful 1200W peak motor, a long-range 48V 20Ah Samsung battery, full suspension, and hydraulic brakes for a comfortable and safe riding experience.

Figure 1: Vitilan I7 Pro 3.0 Electric Bike in an outdoor setting, showcasing its design and all-terrain capability.

3. Setup and Assembly

The Vitilan I7 Pro 3.0 Electric Bike arrives 90% pre-assembled. Follow these steps for final assembly:

1. Unboxing: Carefully remove the bike and all components from the packaging. Remove all protective wrapping.
2. Handlebar Installation: Insert the handlebar stem into the fork tube and secure it with the provided tools. Ensure the handlebars are aligned with the front wheel.
3. Front Wheel Installation: Attach the front wheel to the fork. Ensure the disc brake rotor is correctly seated within the caliper. Secure the quick-release skewer.
4. Fender and Headlight Installation: Attach the front fender and headlight to the fork using the provided screws and brackets.
5. Rear Rack Installation: Secure the rear rack to the designated mounting points on the bike frame.
6. Pedal Installation: Identify the left (L) and right (R) pedals. Thread the pedals into the crank arms. The left pedal tightens counter-clockwise, and the right pedal tightens clockwise.
7. Seat Adjustment: Adjust the seat post height to a comfortable riding position, ensuring your feet can touch the ground when stopped. Secure the quick-release lever.

4. Operating Instructions

4.1 Power On/Off and Display

To power on the bike, press and hold the 'M' button on the display. The LCD screen will activate, showing battery level, current speed, pedal assist level, and odometer. To power off, press and hold the 'M' button again.

Figure 2: The smart display of the Vitilan I7 Pro 3.0 Electric Bike, showing speed, battery, and pedal assist levels, along with a mobile app interface for location tracking.

4.2 Pedal Assist and Throttle

The bike offers multiple pedal assist levels (up to 5). Use the '+' and '-' buttons on the display to adjust the assist level. A higher level provides more motor assistance. The thumb throttle on the right handlebar allows for electric-only propulsion without pedaling.

4.3 Braking System

The Vitilan I7 Pro 3.0 is equipped with 180mm hydraulic disc brakes for reliable stopping power. Squeeze the brake levers on the handlebars to engage the brakes. The front suspension fork and DNM hydraulic rear shock provide a smooth ride.

Figure 3: Close-up of the full suspension system and hydraulic disc brakes on the Vitilan I7 Pro 3.0 Electric Bike, highlighting comfort and safety features.

4.4 Gear Shifting

The bike features an 8-speed Shimano gear system. Use the shifter on the right handlebar to change gears, adapting to different terrains and riding conditions.

4.5 Lights and Horn

The bike is equipped with a headlight and taillight for visibility. The taillight also functions as a brake light and turn signals. A horn is integrated for alerting others.

4.6 Battery Usage and Charging

The removable 48V 20Ah Samsung battery provides a long range. To charge, connect the charger to the bike's charging port or remove the battery for off-bike charging. The charger indicator light will show charging status (red for charging, green for full).

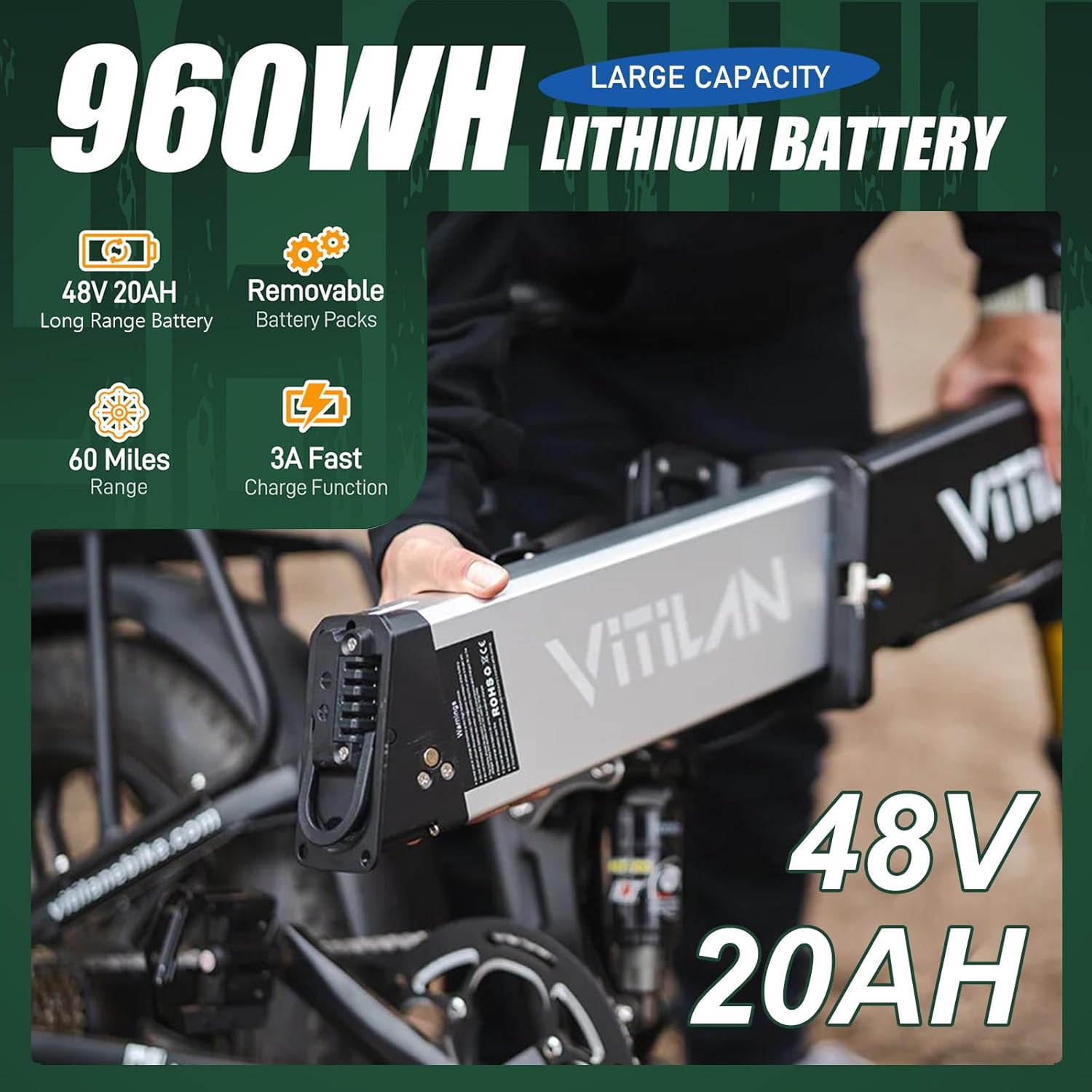

Figure 4: The removable 48V 20Ah Samsung battery of the Vitilan I7 Pro 3.0 Electric Bike, designed for easy charging and extended range.

4.7 All-Terrain Capability

Equipped with 20" x 4.0" CST anti-skid fat tires, the bike offers superior grip and puncture resistance, making it suitable for sand, snow, mud, and rocky trails.

Figure 5: The robust 20" x 4.0" fat tires of the Vitilan I7 Pro 3.0 Electric Bike, highlighting their anti-skid and puncture-resistant features for diverse terrains.

5. Maintenance

• Regular Cleaning: Keep your bike clean, especially after riding in wet or muddy conditions.
• Tire Pressure: Check tire pressure regularly and inflate to the recommended PSI for optimal performance and safety.
• Brake Inspection: Periodically inspect brake pads and rotors for wear. Adjust or replace as needed.
• Chain Lubrication: Keep the chain clean and lubricated for smooth gear changes and to prevent rust.
• Battery Care: Store the battery in a cool, dry place. Avoid fully discharging the battery and charge it regularly, even when not in use, to prolong its lifespan.
• Fastener Checks: Ensure all bolts and fasteners are tight before each ride.

6. Troubleshooting

• Bike Not Powering On: Check if the battery is properly seated and charged. Ensure the key is in the 'on' position.
• Motor Not Assisting: Verify the pedal assist level on the display. Check all electrical connections for looseness.
• Brakes Squealing: This can be normal for new brakes. If persistent, clean the rotors and pads, or have them inspected by a professional.
• Difficulty Shifting Gears: Check the derailleur alignment and cable tension.

For issues not covered here, please contact customer support.

7. Specifications

8. Warranty and Support

8.1 Warranty Information

The Vitilan I7 Pro 3.0 Electric Bike comes with an 18-month warranty. Please refer to the warranty card included with your purchase for detailed terms and conditions.

8.2 Customer Support

For any questions, technical assistance, or warranty claims, please contact Vitilan customer support. You can find contact information on the official Vitilan website or through your purchase platform.

Manufacturer: Guangzhou Gedesheng Electeic vehicle Co.,Ltd

Manufacturer Contact Information: VITILAN
