1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your EMKE Thermostatic Shower Column, model F26SSC00WH-IT. Please read this manual thoroughly before installation and use to ensure proper function and safety.
The EMKE Thermostatic Shower Column is designed for modern bathrooms, featuring a minimalist design, a thermostatic mixer, and a 3-function hand shower. It is engineered for ease of use and durability.
2. Setup and Installation
The EMKE shower kit is designed for straightforward installation and typically does not require professional assistance. It connects easily to standard plumbing connections.
2.1 Important Installation Notes
- Ensure hot water supply is on the left and cold water supply is on the right.
- The recommended installation height for the water outlet is 900-1000 mm above the floor.
- The distance between the hot and cold water supply axes should be 135-165 mm.
Figure 2.1: Hot and cold water connection requirements and dimensions (Unit: mm). Hot water must be on the left, cold water on the right. The hose length is 1.5 meters.
2.2 Mounting Methods
The shower column offers flexible mounting options to suit various bathroom layouts, even in limited spaces.
- Vertical Installation: Standard upright mounting.
- Angled Installation: Mounted at an angle.
- Parallel Installation: Mounted parallel to a wall feature.
- Near the Edge: Positioned close to the shower area edge.
Figure 2.2: Various mounting methods for the shower column, providing individual freedom even in limited spaces.
3. Operating Instructions
3.1 Hand Shower Functions
The hand shower, with a diameter of 125 mm, provides three distinct jet modes for a customized showering experience. Easily switch between modes using the selector on the hand shower.
- Classic Shower Jet: A standard, steady flow for general showering.
- Water Particle Jet: A more focused, invigorating spray.
- Mixed Jet: A combination of jet types for a balanced experience.
Figure 3.1: Variety of hand shower jets: partial jets, full jets, and fine rain drops, suitable for various hygiene needs.
3.2 Thermostatic Control and Safety
The shower column features a thermostatic mixer to maintain a consistent water temperature. It includes anti-scald mechanisms and a child safety lock for enhanced user protection.
Figure 3.2: Key features including anti-scald mechanisms and a thermostat with a child safety lock.
3.3 Adjustable Height and Integrated Shelf
The hand shower holder is flexibly adjustable in height and tilt, allowing users of all ages, including children, to easily set their preferred shower height.
Figure 3.3: Intuitive design with flexible adjustable height and tilt for the hand shower.

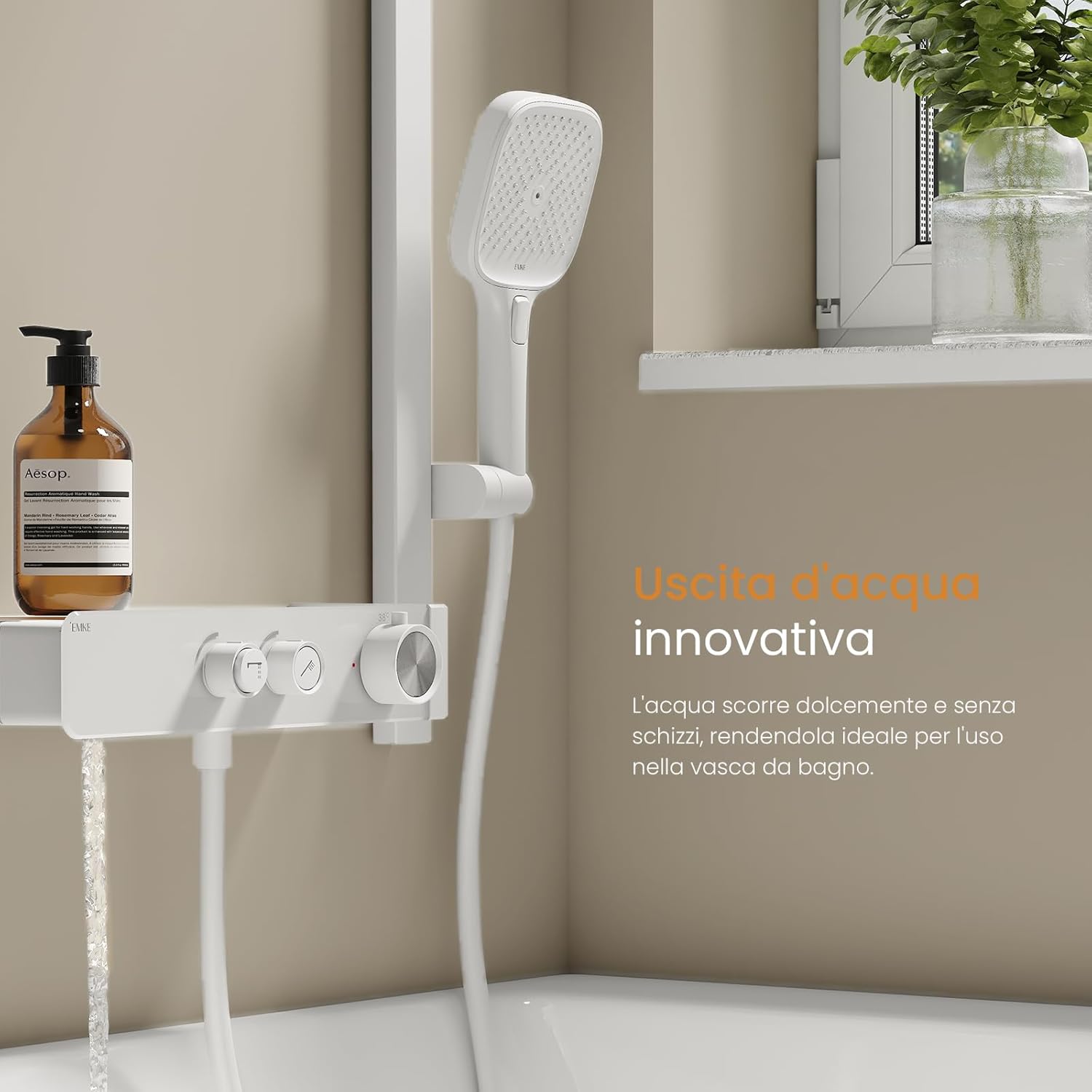

The shower column also integrates a shelf with an innovative water outlet. This outlet provides a gentle, splash-free water flow, making it suitable for filling a bathtub or other uses.
Figure 3.4: Innovative water outlet from the integrated shelf, providing gentle, splash-free water flow.

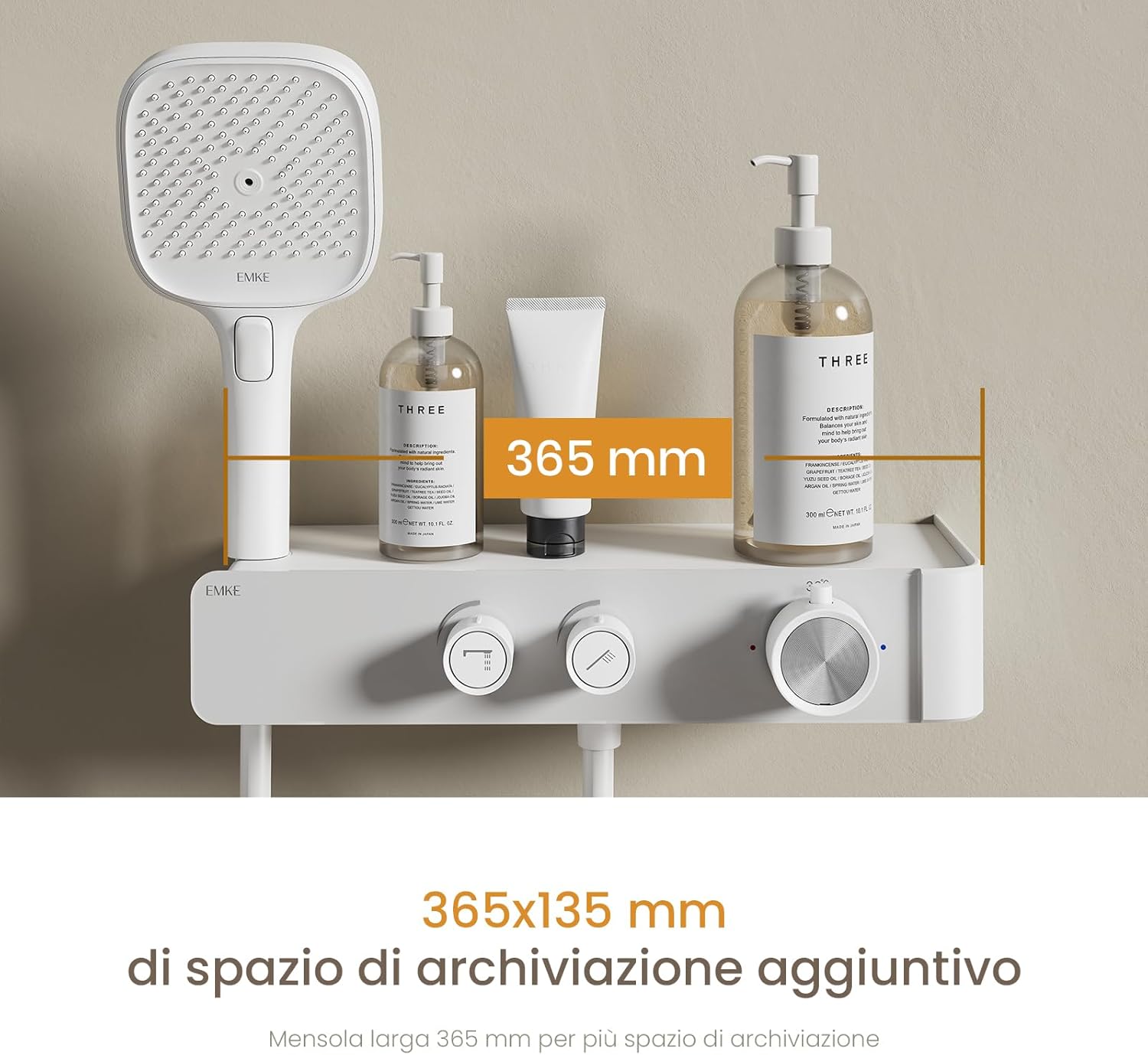

The integrated shelf provides additional storage space, measuring 365x135 mm, for shower essentials.
Figure 3.5: Additional storage space measuring 365x135 mm.
4. Maintenance
The EMKE shower column is constructed from high-quality, durable materials designed for long-term use and to maintain its appearance over time.
- Cleaning: Clean the shower column and hand shower regularly with a soft cloth and mild, non-abrasive cleaner. Avoid harsh chemicals that can damage the finish.
- Nozzle Maintenance: The hand shower features silicone nozzles designed to prevent mineral deposits, making them easy to clean. Simply rub the nozzles to dislodge any buildup.

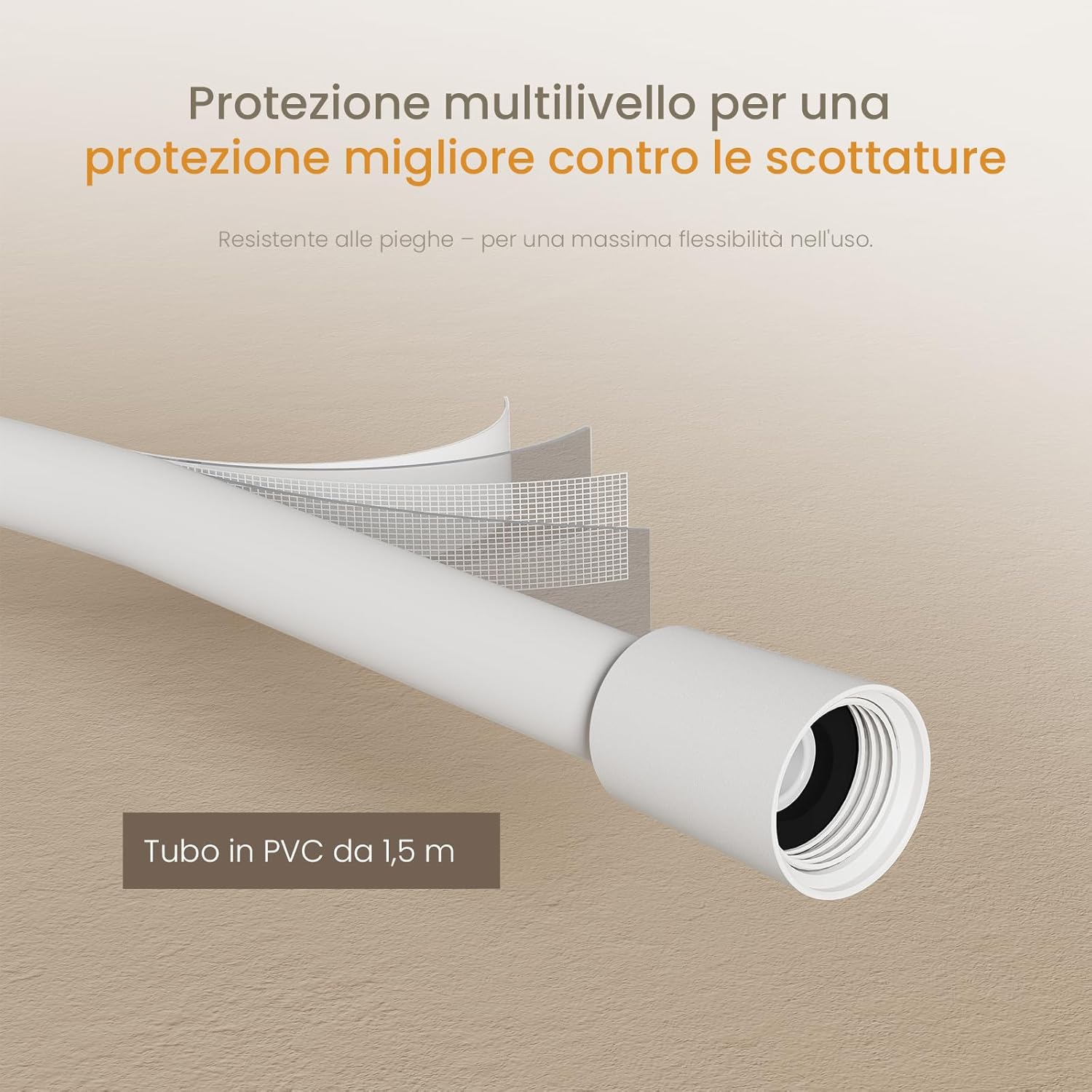

- Hose Care: The 1.5-meter PVC hose is resistant to kinks, ensuring maximum flexibility and durability. Inspect the hose periodically for any signs of wear or damage.
Figure 4.1: Multi-level protection of the 1.5m PVC hose, resistant to kinks for maximum flexibility.
5. Troubleshooting
If you encounter any issues with your EMKE Thermostatic Shower Column, please refer to the following common troubleshooting steps:
- Low Water Pressure: Check if the main water supply is fully open. Inspect the hand shower nozzles for blockages and clean them if necessary.
- Inconsistent Water Temperature: Ensure both hot and cold water supplies are correctly connected and fully open. If the issue persists, the thermostatic cartridge may require inspection by a qualified plumber.
- Leaks: Check all connections for tightness. Ensure all seals and O-rings are correctly seated and undamaged. Do not overtighten connections.
- Hand Shower Not Switching Modes: Ensure the selector on the hand shower is clean and free from debris. If stuck, gently try to rotate it.
For problems not resolved by these steps, please contact EMKE customer support.
6. Specifications
| Feature | Specification |
|---|---|
| Brand | EMKE |
| Model Number | F26SSC00WH-IT |
| Color | White Muted |
| Mounting Type | Wall Mount |
| Number of Handles | 1 |
| Item Weight | 3.5 Kilograms |
| Included Components | Shower Column with Thermostat |
| Hand Shower Diameter | 125 mm |
| Hand Shower Functions | 3 (Classic, Particle, Mixed) |
| Hose Length | 1.5 meters (PVC) |
| Integrated Shelf Dimensions | 365 x 135 mm |
| Hot/Cold Water Axis Distance | 135-165 mm |
| Recommended Installation Height | 900-1000 mm above floor |
7. Warranty and Support
For warranty information, product support, or to purchase replacement parts, please contact EMKE customer service directly. Keep your purchase receipt as proof of purchase.
You can typically find contact information on the EMKE official website or through your retailer.
