Introduction
The FIMEI LED Saturn Pendant Light (Model JMY9020) is a modern lighting fixture designed to enhance various indoor spaces. This innovative pendant light features a central circular light source surrounded by a rotatable Saturn-like ring, offering multi-angle illumination. It is equipped with stepless dimming and three color temperature modes (3000K, 4500K, 6000K) for versatile ambiance control. The light can be operated via an included remote control or a standard wall switch, providing convenient dual-control functionality. Its adjustable design allows for customization of both light direction and hanging height.
Image: Two FIMEI LED Saturn Pendant Lights installed in a contemporary dining and kitchen space, showcasing their design and illumination.
Video: An overview of the FIMEI LED Saturn Pendant Light, demonstrating its unique design, adjustable features, and various lighting modes.
Setup & Installation
Installation of the FIMEI LED Saturn Pendant Light is designed to be straightforward. However, if you are unfamiliar with electrical wiring, it is recommended to consult a qualified electrician to ensure safe and proper installation.
Safety Precautions:
- Always turn off power at the circuit breaker before beginning installation.
- Ensure all wiring connections are secure and comply with local electrical codes.
- Do not exceed the specified voltage and wattage for the fixture.
Installation Steps:
- Remove the mounting plate: Detach the mounting plate from the fixture and secure it to the ceiling junction box using appropriate screws.
- Adjust the cable length: Loosen the cable grip on the canopy and adjust the suspension cable to your desired hanging height. Tighten the grip to secure the cable.
- Connect the wires: Connect the neutral (white), live (black), and ground (green/bare copper) wires from the fixture to the corresponding wires in the ceiling junction box using wire connectors.
- Align and attach the canopy: Carefully align the grooves on the fixture's canopy with the screws on the mounting bracket.
- Tighten the screws: Secure the canopy to the mounting plate by tightening the screws.
Image: A visual guide illustrating the five key steps for assembling and installing the FIMEI LED Saturn Pendant Light, from mounting the plate to securing the canopy.
Adjustable Height:
The pendant light features an adjustable suspension cable, allowing you to customize the hanging height to suit your space and preference. The maximum adjustable length is approximately 3.28 feet (100 cm).
Image: A diagram detailing the adjustable height mechanism of the pendant light, showing how the cable length can be modified to achieve different hanging positions.
Operating Instructions
Remote Control Operation:
The included remote control provides comprehensive control over the pendant light's functions. It requires 2 AAA batteries (not included).
- Power On/Off: Use the power button to turn the light on or off.
- Brightness Adjustment: Use the brightness buttons (sun icons) to increase or decrease the light intensity.
- Color Temperature Selection: Cycle through warm yellow (3000K), natural warm light (4500K), and cool white (6000K) using the color temperature buttons (snowflake/sun icons).
- Independent Light Control: Adjust the brightness and color of the outer ring and central light independently.
- Memory Function (M1/M2): Save your preferred lighting combinations using the M1 or M2 buttons for quick recall.
- Night Light Mode: Activate a low-brightness, warm light setting for nighttime use.
Image: A detailed diagram showcasing the various buttons and functions of the remote control, including options for brightness, color temperature, and independent control of the inner and outer light rings.
Wall Switch Operation:
The light also supports basic control via a standard wall switch. Quick on/off presses can cycle through different light color temperatures.
Image: A visual representation of how a wall switch can be used to change the light color of the pendant light with quick on/off toggles.
Adjustable Ring Rotation:
The outer ring of the pendant light can be rotated 330 degrees, allowing you to direct the light precisely where needed and customize the fixture's appearance.
Image: The unique Saturn ring design of the pendant light, highlighting its 330-degree rotation capability for multi-directional lighting.
Color Modes & Dimming:
The light offers three distinct color temperatures and stepless dimming to create the perfect atmosphere:
- Warm Yellow (3000K): Ideal for cozy and relaxing evenings.
- Natural Warm Light (4500K): Provides balanced illumination for daily activities.
- Cool White (6000K): Delivers a crisp, modern feel, suitable for task lighting.
Image: A comparison of the pendant light's output at 3000K (warm yellow), 4500K (natural warm), and 6000K (cool white), illustrating the adjustable color temperature feature.
Maintenance
To ensure the longevity and optimal performance of your FIMEI LED Saturn Pendant Light, follow these simple maintenance guidelines:
- Cleaning: Dust the fixture regularly with a soft, dry cloth. For more thorough cleaning, dampen the cloth with a mild, non-abrasive cleaner and wipe gently. Avoid harsh chemicals or abrasive materials that could damage the finish or LED components.
- Inspection: Periodically check all connections and mounting hardware to ensure they remain secure.
- LED Longevity: LED lights are designed for long life and do not require bulb replacement. If the light source fails, contact customer support.
Troubleshooting
If you encounter any issues with your FIMEI LED Saturn Pendant Light, refer to the following troubleshooting steps:
- Light does not turn on:
- Check if the power switch is in the ON position.
- Verify that the circuit breaker is not tripped.
- Ensure all electrical connections are secure.
- Check if the remote control batteries are correctly installed and not depleted.
- Remote control not responding:
- Replace the remote control batteries (2 AAA batteries).
- Ensure there are no obstructions between the remote and the light fixture.
- Light flickers or dims unexpectedly:
- Check for loose wiring connections.
- Ensure the power supply is stable.
If these steps do not resolve the issue, please contact FIMEI customer support for further assistance.
Specifications
| Brand | FIMEI |
| Model Name | JMY9020 |
| Color | Black |
| Material | Iron, Polycarbonate, Alloy Steel |
| Product Dimensions | 12.2"L x 12.2"W x 39"H |
| Item Weight | 6.74 pounds |
| Light Source Type | LED |
| Brightness | 1500 lumen (Maximum) |
| Color Temperature | 3000K (Warm Yellow), 4500K (Natural Warm), 6000K (Cool White) |
| Control Method | Remote Control, Wall Switch |
| Installation Type | Semi Flush Mount / Ceiling Mount |
| Indoor/Outdoor Usage | Indoor |
| Water Resistance Level | Not Water Resistant |
| Assembly Required | Yes |
| Batteries Required (Remote) | 2 AAA (Not Included) |
Package Contents
Upon opening the package, you should find the following items:
- FIMEI LED Saturn Pendant Light Fixture(s)
- Remote Control(s)
- Mounting Hardware (screws, wire connectors, etc.)
- User Manual

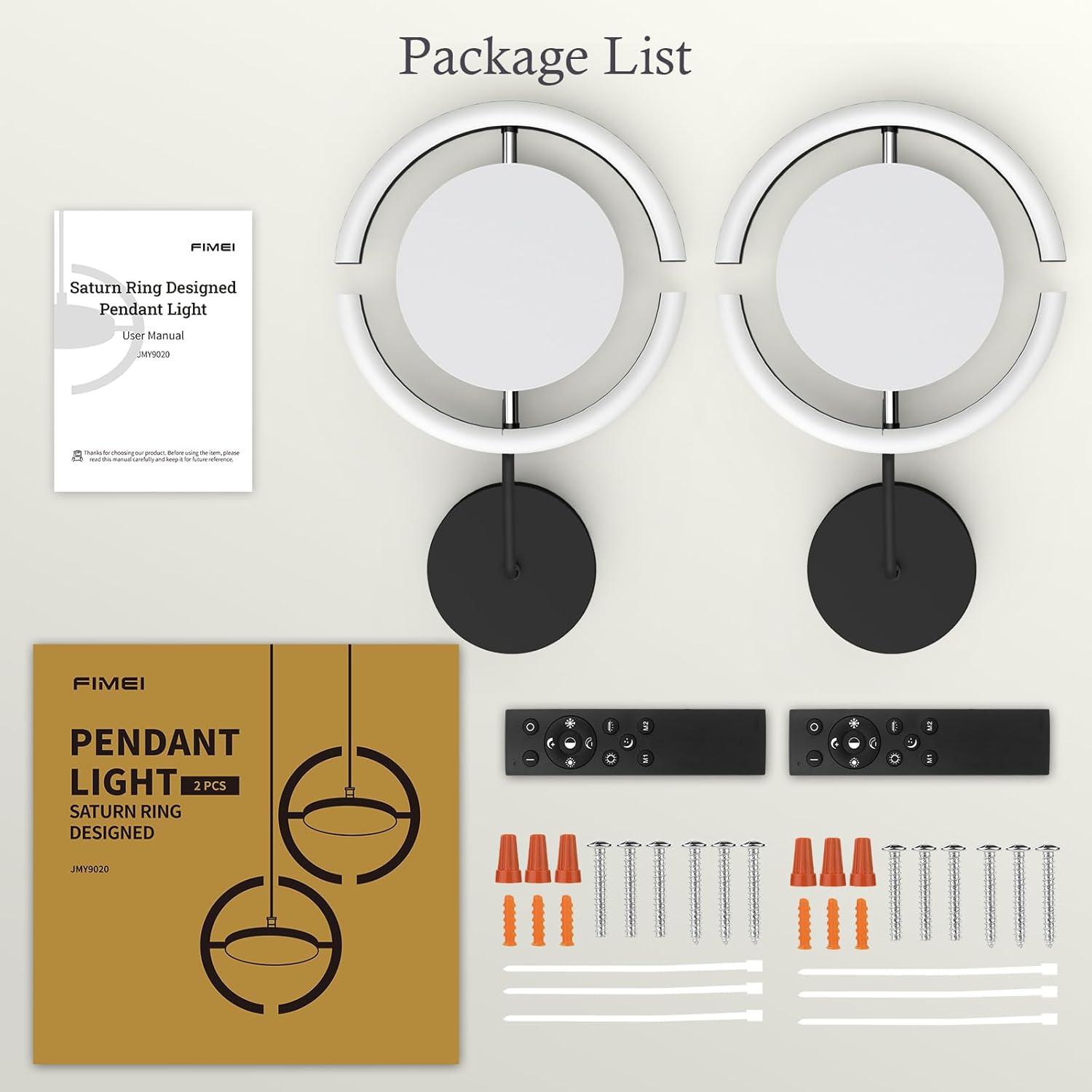

Image: A visual representation of the items included in the FIMEI LED Saturn Pendant Light package, such as the light units, remote controls, and various installation components.
Warranty & Support
FIMEI stands behind its LED Saturn Pendant Light fixtures with a 2-year support period. This warranty covers defects in materials and workmanship under normal use. Should you have any questions, concerns, or require assistance with your product, please contact FIMEI customer service. Please retain your proof of purchase for warranty claims.
