Heimerdinger Brushless Mini Angle Grinder User Manual

1. Introduction

Thank you for choosing the Heimerdinger Brushless Mini Angle Grinder. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new tool. Please read this manual thoroughly before first use and keep it for future reference.

This compact and powerful tool is designed for various grinding, cutting, sanding, and polishing tasks on materials such as metal, tile, concrete, pipes, and wood. Its brushless motor ensures high efficiency and a longer lifespan.

2. Safety Instructions

Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury when operating power tools.

• Work Area Safety: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Electrical Safety: Avoid body contact with earthed or grounded surfaces. Do not expose power tools to rain or wet conditions.
• Personal Safety: Always wear eye protection (safety glasses or goggles) and hearing protection. Use a dust mask if operations create dust. Dress properly; avoid loose clothing or jewelry.
• Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
• Battery Safety: Use only the specified charger for the battery pack. Do not short-circuit the battery pack. Do not expose battery packs to heat or fire.

3. Package Contents

Verify that all items are present and in good condition upon opening the package. If any items are missing or damaged, please contact customer support.

• Heimerdinger Brushless Mini Angle Grinder
• 6.0Ah Lithium-ion Battery
• Battery Charger
• Assorted Grinding/Cutting Discs (e.g., flap disc, metal cutting disc, wood cutting disc, diamond cutting disc)
• User Manual

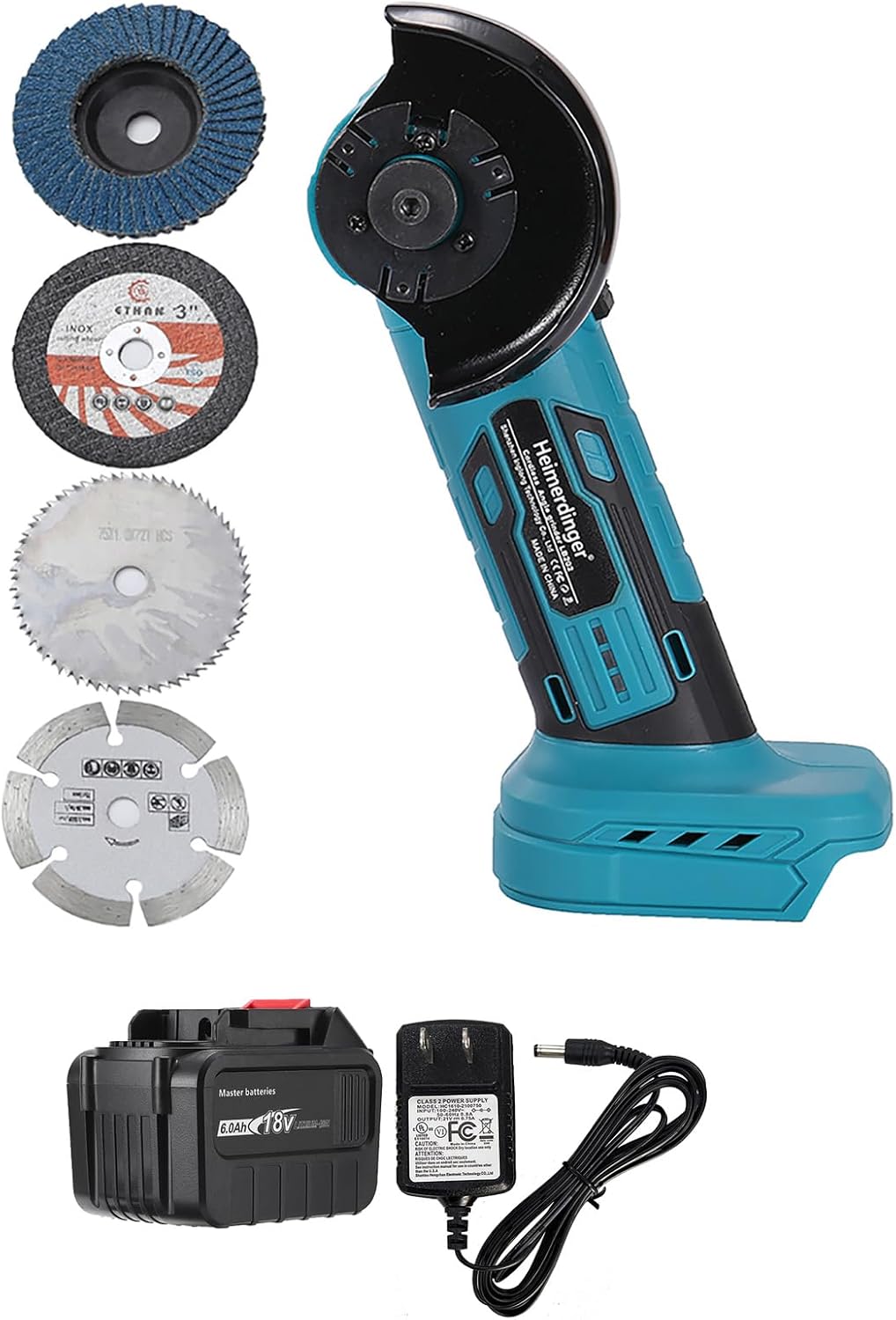

Image: Complete package contents including the mini angle grinder, 6.0Ah battery, charger, and a selection of discs for different applications.

4. Product Overview

Familiarize yourself with the components of your mini angle grinder before operation.

Image: Labeled diagram highlighting key components: Heat dissipation hole, Spindle button, On-off key, and Rubber jacket for grip.

• Heat Dissipation Hole: Ensures proper cooling of the motor during operation, preventing overheating.
• Spindle Button: Used to lock the spindle for easy and quick changing of grinding or cutting discs.
• On-Off Key (Side Button): Activates and deactivates the grinder.
• Rubber Jacket: Provides a comfortable and secure grip during use.
• Brushless Motor: Delivers high speed and efficiency with minimal vibration and extended lifespan.

Image: Detailed view of the side button (On-Off key) and the spindle button, which facilitates quick saw blade changes.

5. Setup

5.1 Charging the Battery

Before first use, fully charge the 6.0Ah Lithium-ion battery.

1. Connect the charger to a standard power outlet.
2. Insert the battery pack into the charger. Ensure it clicks into place securely.
3. Allow the battery to charge until the indicator light on the charger signals a full charge.
4. Once charged, disconnect the battery from the charger and unplug the charger from the outlet.

Image: The 6.0Ah 18V Lithium-ion battery, ready for charging or installation.

Image: The dedicated battery charger for the 6.0Ah Lithium-ion battery.

5.2 Attaching/Changing Discs

Always ensure the battery is removed from the grinder before attaching or changing discs.

1. Press and hold the spindle button to lock the spindle.
2. Using the appropriate wrench (if provided), loosen the flange nut counter-clockwise.
3. Remove the old disc (if applicable).
4. Place the new disc onto the spindle, ensuring it is properly seated. The disc dimension is 76/10mm.
5. Tighten the flange nut clockwise until the disc is securely fastened. Do not overtighten.
6. Release the spindle button.

Image: The angle grinder fitted with a flap disc, illustrating the 76/10mm blade dimension compatibility.

Image: A selection of saw blades, including a flap disc, wood cutting disc, and diamond cutting disc, demonstrating the versatility for cutting metal, wood, plastic, or stone.

6. Operating Instructions

6.1 General Operation

1. Ensure the correct disc is installed for the material you are working on.
2. Insert the charged battery pack into the grinder until it clicks securely into place.
3. Hold the grinder firmly with both hands, maintaining a stable stance.
4. Press the On-Off key (side button) to start the grinder. The brushless motor will reach its operating speed of 19500 RPM quickly.
5. Apply gentle, consistent pressure to the workpiece. Allow the tool to do the work; do not force it.
6. To stop the grinder, release the On-Off key.

Image: The angle grinder in active use, demonstrating its high-speed 19500 RPM brushless motor during a grinding task.

6.2 Applications

The Heimerdinger Mini Angle Grinder is versatile for various tasks:

• Metal Grinding/Polishing: Use appropriate grinding or flap discs for smoothing welds, removing rust, or polishing metal surfaces.
• Metal Cutting: Employ thin cutting discs for precise cuts on metal pipes, rebar, or sheet metal.
• Tile and Concrete Cutting: Diamond cutting discs are suitable for cutting ceramic tiles, concrete, and masonry.
• Wood Cutting and Grinding: Specialized wood cutting discs can be used for various wood applications.

Image: Visual examples of the grinder's versatility, including metal polishing, ceramic tile cutting seams, and wood cutting and grinding.

7. Maintenance

Regular maintenance ensures the longevity and optimal performance of your tool. Always disconnect the battery before performing any maintenance.

• Cleaning: Keep the tool's ventilation openings clean and free of debris. Use a soft brush or compressed air to clear dust from the heat dissipation holes. Do not use water or chemical cleaners.
• Disc Inspection: Regularly inspect discs for wear, cracks, or damage. Replace worn or damaged discs immediately.
• Battery Care: Store batteries in a cool, dry place away from direct sunlight and extreme temperatures. Do not store fully discharged batteries for extended periods.
• Storage: When not in use, store the grinder and its accessories in a dry, secure place out of reach of children.

Image: Important warning labels on the Lithium-ion battery, indicating proper disposal, avoiding short circuits, and protection from heat/damage.

8. Troubleshooting

This section addresses common issues you might encounter. For problems not listed here, contact customer support.

9. Specifications

10. Warranty and Support

For warranty information or technical support, please contact Heimerdinger customer service. Keep your purchase receipt as proof of purchase.

You can visit the official Heimerdinger store for more information and support: Heimerdinger Store on Amazon.
