GAMEON Frostbite VI 42L Mini Fridge Instruction Manual

1. Introduction

Thank you for choosing the GAMEON Frostbite VI 42L Mini Fridge. This thermoelectric mini fridge is designed to keep your beverages and snacks cool, making it ideal for gaming rooms, offices, bedrooms, and other personal spaces. Please read this manual carefully before use to ensure proper operation and maintenance.

The GAMEON Frostbite VI Mini Fridge is suitable for various environments, including home, car, bar, and gaming setups.

2. Safety Information

To reduce the risk of fire, electric shock, or injury, please follow these basic safety precautions:

• Read all instructions before using the appliance.
• Ensure the power supply matches the voltage specified on the appliance's rating label.
• Do not immerse the appliance, cord, or plug in water or other liquids.
• Keep the appliance away from direct sunlight, heat sources, and flammable materials.
• Ensure adequate ventilation around the unit. Do not block ventilation openings.
• Unplug the appliance from the outlet when not in use or before cleaning.
• Do not operate the appliance with a damaged cord or plug.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

3. Package Contents

Please check the box for the following items:

• GAMEON Frostbite VI 42L Mini Fridge Unit
• Removable Shelf (1 or more, depending on configuration)
• Power Cable
• User Manual

The product packaging displays key features and model information.

4. Product Overview

The GAMEON Frostbite VI is a 42-liter thermoelectric mini fridge designed for convenience and efficiency. It features a sleek black design with a transparent glass door and integrated LED lighting.

Key Features:

• 42-Liter Capacity: Ample space for cans, bottles, and snacks.
• Thermoelectric Cooling: Efficient cooling with quiet, vibration-free operation.
• Adjustable Temperature: Mechanical knob for temperature control.
• Glass Door & LED Light: Provides clear visibility of contents and adds a modern touch.
• Removable Shelf: Allows for flexible storage configuration.
• Durable Construction: Made with metal, plastic, and double-layer glass for longevity.

Components:

1. Main Unit
2. Glass Door
3. Hollow Handle
4. Temperature Control Knob
5. Removable Shelf
6. Internal LED Light
7. Power Inlet

Front view of the mini fridge.

Side view of the mini fridge.

Back view of the mini fridge.

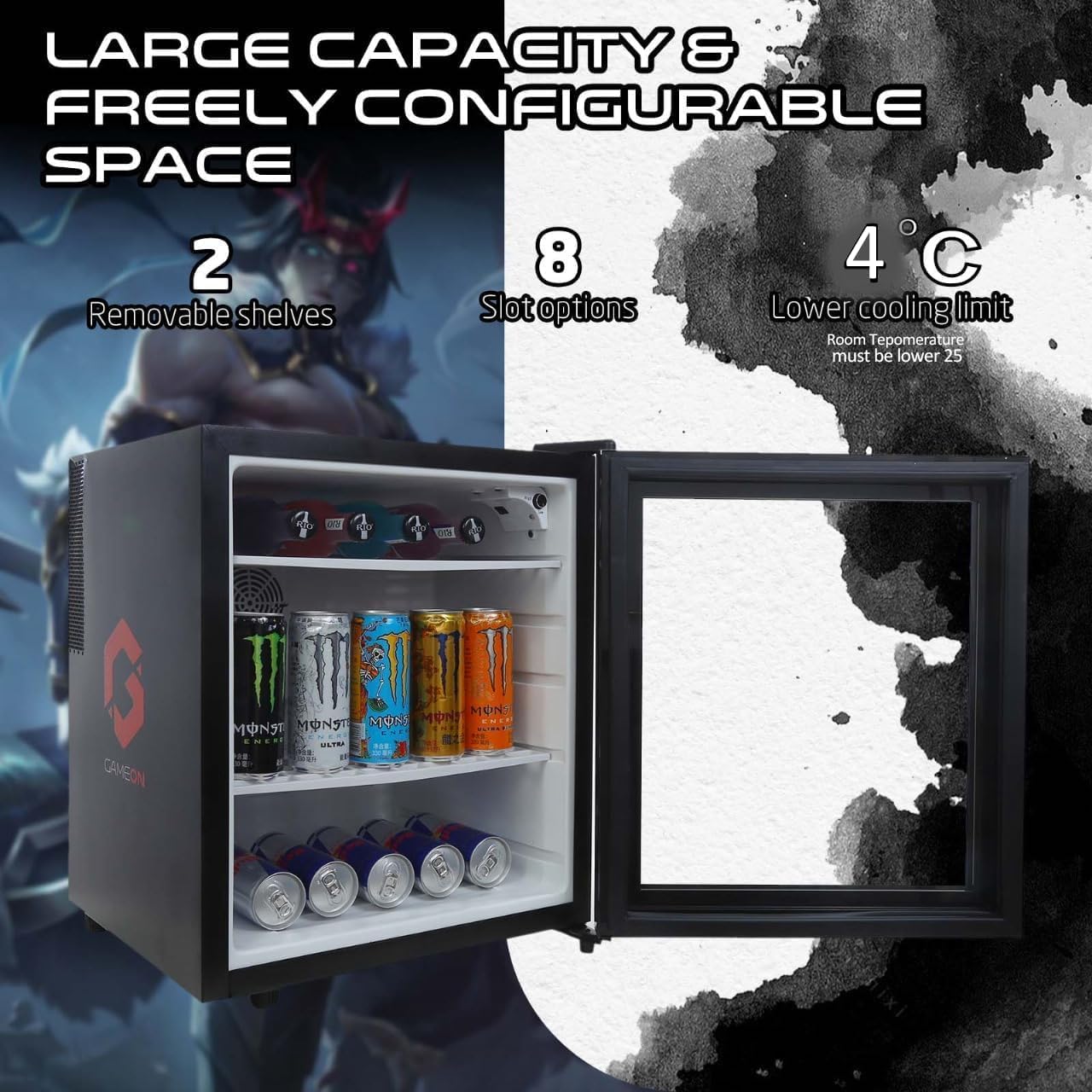

Interior view with removable shelf.

5. Setup

Follow these steps to set up your mini fridge:

1. Unpacking: Carefully remove the mini fridge from its packaging. Retain packaging materials for future transport if needed.
2. Placement: Place the unit on a firm, level surface. Ensure there is at least 10-15 cm (4-6 inches) of space around the back and sides for proper ventilation. Avoid placing it near heat sources (e.g., ovens, radiators) or in direct sunlight.
3. Initial Cleaning: Before first use, wipe the interior and exterior of the fridge with a damp cloth and mild detergent. Dry thoroughly.
4. Power Connection: Plug the power cable into a suitable electrical outlet (220V, 50/60Hz).

6. Operating Instructions

Using your GAMEON Frostbite VI Mini Fridge is straightforward:

1. Power On: Once plugged in, the unit will begin to cool. The internal LED light will illuminate when the door is opened.
2. Adjusting Temperature: Locate the mechanical temperature control knob inside the fridge. Turn the knob towards 'Low' for less cooling or 'High' for maximum cooling. The cooling range is typically 12°C to 18°C below the ambient temperature (e.g., if ambient is 25°C, the fridge can reach 7°C to 13°C).
3. Loading Contents: Place your beverages and snacks inside. Arrange items to allow for air circulation. The removable shelf can be adjusted or removed to accommodate taller items.
4. Quiet Operation: This thermoelectric cooler operates quietly (below 38dB) and without vibration, making it suitable for quiet environments.

Temperature control knob for adjusting cooling levels.

The fridge offers flexible storage and quiet operation.

7. Maintenance

Regular cleaning and care will ensure the longevity and optimal performance of your mini fridge:

• Cleaning the Interior: Unplug the unit. Remove all contents and the removable shelf. Wipe the interior with a soft cloth dampened with a mild detergent solution. Rinse with a clean, damp cloth and dry thoroughly.
• Cleaning the Exterior: Wipe the exterior surfaces with a soft, damp cloth. Avoid abrasive cleaners or solvents.
• Door Seal: Regularly check and clean the door seal to ensure it remains free of debris and maintains a tight seal.
• Ventilation: Ensure the ventilation grilles on the back and sides are free from dust and obstructions. Use a soft brush or vacuum cleaner to clear any build-up.
• When Not in Use: If the fridge will not be used for an extended period, unplug it, clean it thoroughly, and leave the door slightly ajar to prevent odors and mold growth.

8. Troubleshooting

If you encounter issues with your mini fridge, refer to the following table for common problems and solutions:

If the problem persists after trying these solutions, please contact customer support.

9. Specifications

10. Warranty and Support

For warranty information, please refer to the documentation provided with your purchase or contact your retailer. For product support or inquiries, you may contact GAMEON customer service:

• Email: HEY@GAMEON.STORE
• Website: www.gameon.store

You can also scan the QR code below for more information:

Scan this QR code to visit the GAMEON store website.
