Introduction
Thank you for choosing the JOYMOR Baby Bassinet Bedside Sleeper. This manual provides essential information for the safe assembly, operation, and maintenance of your bassinet. Please read all instructions carefully before use and retain this manual for future reference.
Important Safety Information
WARNING: Failure to follow these warnings and instructions could result in serious injury or death.
- Always ensure the bassinet is placed on a firm, horizontal surface.
- Do not use the bassinet if any parts are missing, damaged, or broken. Contact customer service for replacement parts.
- Never leave a child unattended in the bassinet.
- Discontinue use of the bassinet when the infant begins to push up on hands and knees, or has reached the weight limit of 20 lbs (9 kg), or is 5 months old, whichever comes first.
- Only use the mattress pad provided by the manufacturer. Do not add a second mattress, pillow, comforter, or other padding.
- Keep all small parts and plastic bags away from children.
- Ensure all locking mechanisms are engaged before placing a child in the bassinet.
- When used as a bedside sleeper, ensure the bassinet is securely attached to the adult bed with the provided straps and there is no gap between the bassinet and the adult mattress.
Package Contents
Verify that all components are present before assembly:
- Bassinet Frame (Left and Right Supports)
- Bassinet Bed Unit
- Mattress Pad
- Mattress Covers (2)
- Mosquito Net
- Storage Basket
- Bed Attachment Straps
- Assembly Tool (Screwdriver)
Setup and Assembly
Follow these steps to assemble your JOYMOR Bassinet:
- Unpack Components: Carefully remove all parts from the packaging.
- Assemble Frame: Connect the left and right support frames. Ensure they click securely into place.
- Attach Bassinet Bed Unit: Align the bassinet bed unit with the frame and press down until it locks.
- Insert Mattress: Place the mattress pad into the bassinet bed unit. Use one of the provided mattress covers.
- Attach Storage Basket: Secure the storage basket to the designated hooks or clips on the lower frame.
- Install Mosquito Net: If desired, attach the mosquito net to the top frame of the bassinet.
Image: Fully assembled JOYMOR Baby Bassinet Bedside Sleeper with mosquito net.
Operating Instructions
1. 4-in-1 Functionality
The bassinet offers four modes of use:
- Standalone Bassinet: Use as a traditional bassinet in any room.
- Bedside Co-Sleeping Bassinet: Attach to an adult bed for close proximity.
- Rocking Bassinet: Engage the rocking function for gentle motion.
- Baby Bed with Mosquito Net: Utilize the mosquito net for outdoor or insect-prone environments.

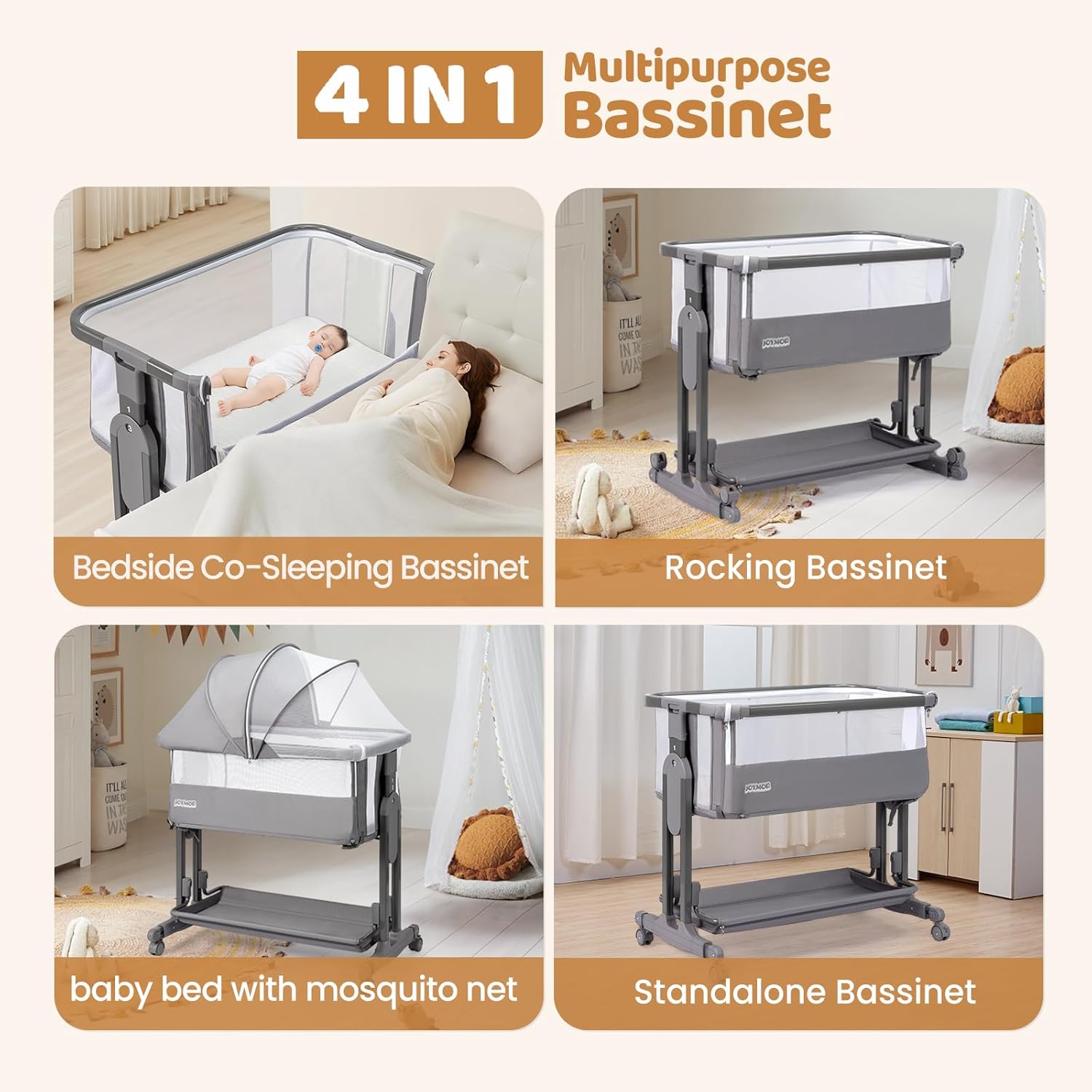

Image: Visual representation of the bassinet in bedside co-sleeping, rocking, standalone, and mosquito net modes.
2. Height Adjustment
The bassinet features 7 height adjustable settings to align with various adult bed heights. To adjust the height:
- Locate the height adjustment buttons on both sides of the bassinet frame.
- Press and hold the buttons simultaneously.
- Raise or lower the bassinet to the desired height setting (32" to 38").
- Release the buttons and ensure both sides are locked into the same height setting.
Image: Diagram illustrating the 7 height adjustment levels of the bassinet, ranging from 32 to 38 inches, and its alignment with an adult bed.
3. Bedside Sleeper Attachment
To use as a bedside sleeper:
- Adjust the bassinet height to match your adult bed mattress.
- Lower the side panel of the bassinet closest to your bed by unzipping or releasing the latches.
- Position the bassinet flush against your adult bed.
- Use the provided attachment straps to secure the bassinet frame to your adult bed frame. Ensure there is no gap between the bassinet and the adult mattress.

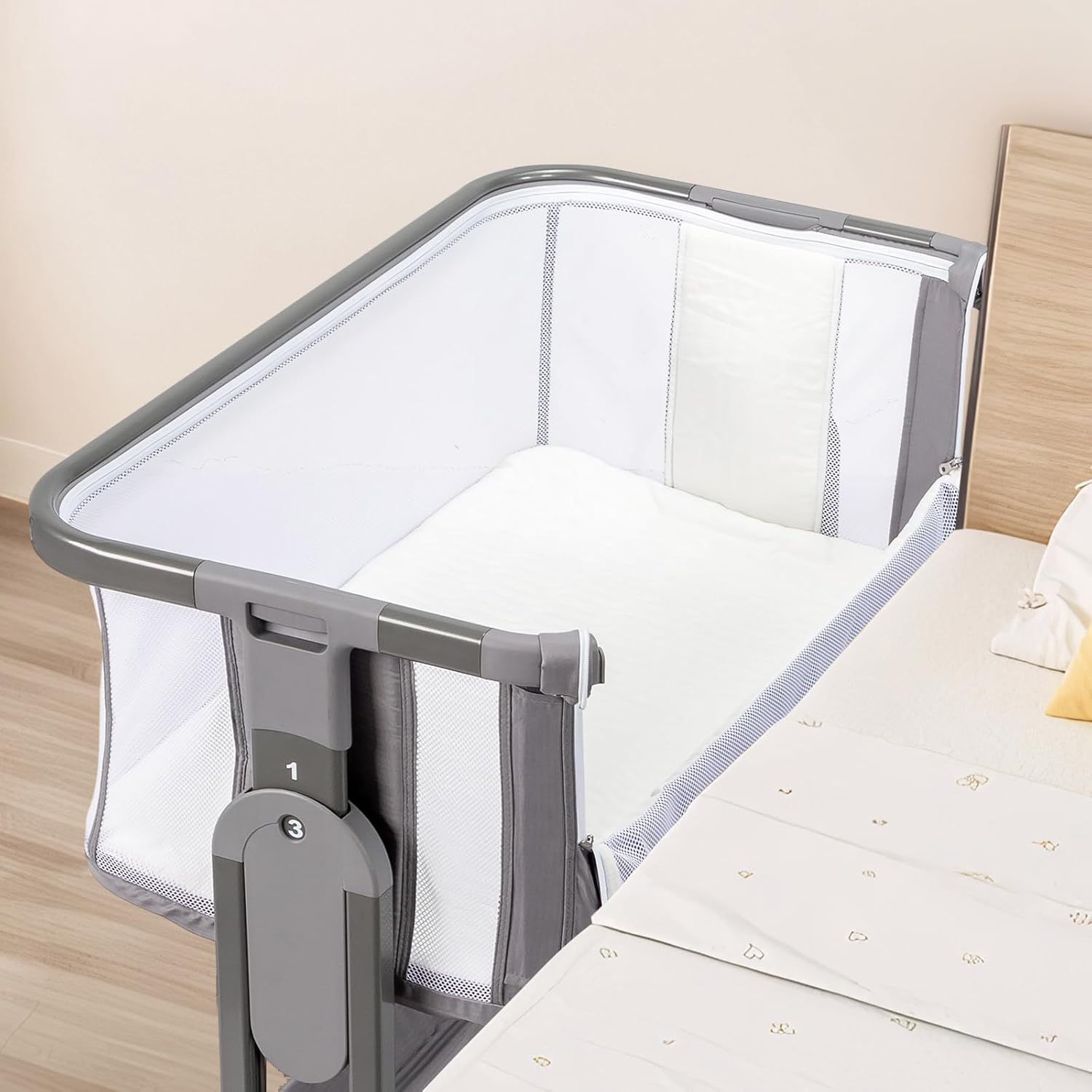

Image: Close-up view of the bassinet in bedside mode, with the side panel lowered and positioned next to an adult bed.
4. Rocking Function
To engage the rocking function, rotate the wheels inward or adjust the base as per the mechanism on your specific model. Ensure the rocking motion is gentle and stable.
Image: Detail of the bassinet wheel mechanism, showing how it can be adjusted for rocking mode.
5. Mobility
The bassinet is equipped with 4 swivel wheels for easy movement. Each wheel has a brake. To move the bassinet, release the brakes. To secure it in place, engage the brakes on all four wheels.
Image: A person easily moving the bassinet from one room to another, highlighting the 360-degree swivel casters with brakes.
6. Incline Mode
The bassinet can be set to a slight incline (3-8 degrees) to help prevent reflux. To activate this mode, adjust one side of the bassinet to a higher setting than the other. Ensure the incline is gentle and safe for the infant.
Image: A bassinet set in a slight incline mode, with an inset showing a baby being fed in an elevated position, illustrating its use for preventing reflux.
Maintenance and Care
Cleaning Instructions
- Fabric Components: The bedding fabric and mattress covers are removable and machine washable. Use a gentle cycle with cold water and mild detergent. Air dry or tumble dry on low heat.
- Frame: Wipe the aluminum frame with a damp cloth and mild soap. Dry thoroughly.
- Mattress Pad: Spot clean the mattress pad with a damp cloth and mild soap. Do not machine wash or submerge in water.
- Regularly check all screws, bolts, and fasteners to ensure they are tight and secure.
Image: A close-up of the bassinet mattress and fabric, indicating that they are made from breathable, washable materials.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bassinet feels unstable | Loose connections or uneven surface | Ensure all frame connections are securely locked. Place on a flat, level surface. |
| Height adjustment not working | Buttons not fully pressed or mechanism jammed | Press both adjustment buttons firmly and simultaneously. Check for obstructions. |
| Wheels not moving freely | Brakes engaged or debris in wheels | Release all wheel brakes. Clean any debris from the wheel casters. |
| Bassinet not attaching securely to bed | Straps not correctly installed or adjusted | Re-read bedside attachment instructions. Ensure straps are tight and bassinet is flush against the bed. |
Specifications
- Model: BST1
- Color: Grey (as reviewed)
- Brand: JOYMOR
- Product Dimensions (L x W x H): 36.61" x 22.24" x 38"
- Adjustable Height Range: 32" to 38" (7 settings)
- Frame Material: Aluminum
- Item Weight: 28.66 Pounds
- Care Instructions: Machine Wash (fabric components)
- UPC: 810158426962
Image: Diagram showing the key dimensions of the bassinet, including length, width, height, and mattress size.
Warranty and Support
For warranty information, replacement parts, or customer support, please contact JOYMOR customer service through your retailer or the official JOYMOR website. Please have your model number (BST1) and purchase date available when contacting support.
