RATION Carburetor Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your RATION replacement carburetor. Designed for specific Cub Cadet snow blower models, this carburetor ensures optimal engine performance and fuel efficiency. Please read this manual thoroughly before attempting any installation or maintenance procedures.

2. Product Overview

The RATION carburetor is a high-quality replacement component engineered to restore your snow blower's engine to peak performance. It is constructed from premium aluminum alloy for durability and includes all necessary components for a complete tune-up.

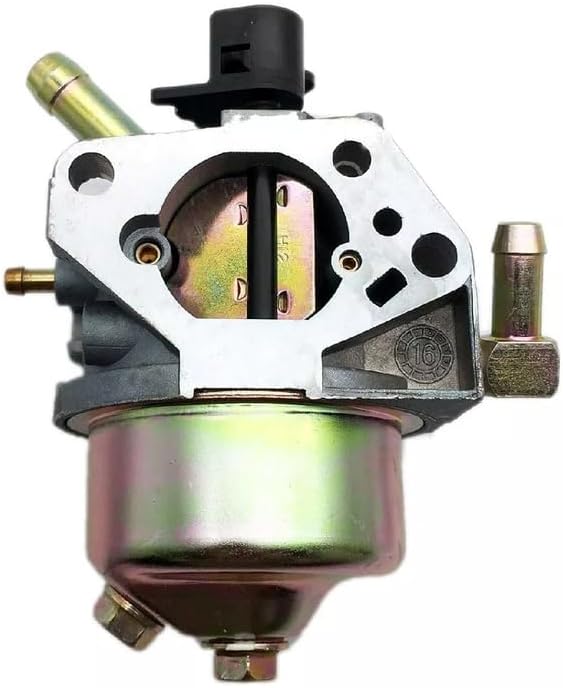

Figure 2.1: The RATION carburetor main unit, featuring a robust aluminum alloy construction for long-lasting performance.

Figure 2.2: Complete carburetor tune-up kit components, including the carburetor, spark plug, fuel line, fuel filter, primer bulb, and mounting gaskets.

3. Compatible Models

This RATION carburetor is specifically designed as a direct replacement for the following Cub Cadet Snow Blower models:

• Cub Cadet Snow Blower Model 31AH5DVA710
• Cub Cadet Snow Blower Model 31AH5DSX710
• Also compatible with OEM Part Numbers: 3X 26" 31AH5DVA710 (2016), 3X 2631AH5DSA756 3X 28" 31AH5DVB710 (2016), 31AH5DSB709 3X 28" 31AH5DVB709 (2017)

Always verify compatibility by checking your snow blower's model number and comparing it with the specifications provided in this manual.

4. Installation

Safety First: Before beginning any installation, ensure the snow blower is turned off, the engine is cool, and the spark plug wire is disconnected to prevent accidental starting. Wear appropriate personal protective equipment, including gloves and eye protection.

1. Drain Fuel: Drain all fuel from the fuel tank and carburetor bowl into an approved container.
2. Remove Air Filter Assembly: Carefully remove the air filter housing and any associated components to gain access to the carburetor.
3. Disconnect Linkages and Hoses: Disconnect the fuel line, throttle linkage, and choke linkage from the old carburetor. Note their positions for reinstallation.
4. Remove Old Carburetor: Unbolt the old carburetor from the engine. Be mindful of any gaskets between the carburetor and the engine/intake manifold.
5. Install New Gaskets: Ensure all mating surfaces are clean. Install new gaskets (provided in the kit) in the correct orientation.
6. Mount New Carburetor: Attach the new RATION carburetor to the engine, ensuring it is properly seated with the new gaskets. Tighten mounting bolts securely but do not overtighten.
7. Reconnect Linkages and Hoses: Reconnect the fuel line, throttle linkage, and choke linkage to the new carburetor. Ensure all connections are secure and hoses are free from kinks.
8. Install Spark Plug: Replace the old spark plug with the new one provided in the kit.
9. Reassemble Air Filter: Reinstall the air filter assembly and any other components removed earlier.
10. Refill Fuel: Refill the fuel tank with fresh, appropriate fuel.
11. Prime Carburetor: Press the primer bulb several times until fuel is visible in the bulb or fuel lines.

After installation, perform a test start to ensure proper operation. If you encounter any difficulties, consult a qualified service technician.

5. Operation

The carburetor is a critical component for mixing air and fuel in the correct ratio for combustion. After installation, proper operation involves ensuring the engine starts smoothly and runs consistently. If the engine experiences rough idling, stalling, or lack of power, it may indicate an issue with fuel delivery or carburetor adjustment.

Refer to your snow blower's original owner's manual for specific starting procedures and engine operation guidelines. The RATION carburetor is designed to function optimally without requiring complex adjustments after installation, provided it is correctly fitted.

6. Maintenance

Regular maintenance of your carburetor and fuel system is crucial for extending the life of your snow blower and ensuring reliable performance.

• Fuel Quality: Always use fresh, clean fuel. Stale or contaminated fuel is a common cause of carburetor issues. Consider using a fuel stabilizer, especially during off-season storage.
• Fuel Filter: Inspect and replace the fuel filter periodically (e.g., annually or every 50 hours of operation) to prevent debris from entering the carburetor. A new fuel filter is included in your RATION kit.
• Spark Plug: Replace the spark plug as part of routine maintenance. A worn or fouled spark plug can affect engine starting and performance. A new spark plug is included in your RATION kit.
• Air Filter: Ensure the air filter is clean and free of obstructions. A dirty air filter can restrict airflow and affect the fuel-air mixture.
• Storage: Before long-term storage, run the engine until it runs out of fuel, or drain the fuel system completely to prevent fuel degradation and gumming in the carburetor.

7. Troubleshooting

If your snow blower experiences issues after carburetor replacement, consider the following common troubleshooting steps:

• Engine Not Starting:
  • Check fuel level and ensure fresh fuel is used.
  • Verify spark plug connection and condition.
  • Ensure primer bulb is functioning and fuel is reaching the carburetor.
  • Check for proper choke and throttle linkage operation.
• Rough Idling or Stalling:
  • Inspect for air leaks around carburetor gaskets.
  • Ensure fuel lines are not kinked or obstructed.
  • Check air filter for cleanliness.
• Lack of Power:
  • Verify fuel flow to the carburetor.
  • Ensure the air filter is clean.
  • Check spark plug condition.

For persistent issues, it is recommended to consult a professional small engine mechanic.

8. Specifications

9. Warranty and Support

For warranty information or technical support regarding your RATION carburetor, please refer to the product packaging or contact the seller directly. Keep your purchase receipt as proof of purchase for any warranty claims.
