1. Introduction
Thank you for choosing the HYSEYY Rolling Heavy Duty Clothes Rack. This manual provides essential information for the safe assembly, operation, and maintenance of your new garment rack. Please read these instructions carefully before use and retain them for future reference.
This heavy-duty clothes rack is designed for efficient clothing storage and organization, featuring robust metal construction and mobile functionality with lockable wheels.
2. Safety Information
- Ensure all parts are present and undamaged before assembly. Do not use if any parts are missing or broken.
- Assemble the rack on a flat, stable surface to prevent tipping.
- Do not exceed the maximum weight capacity of the rack (refer to specifications). Overloading can cause instability and damage.
- Keep children and pets away from the assembly area. Small parts can be a choking hazard.
- Always lock the wheels when the rack is stationary to prevent accidental movement.
- Distribute weight evenly on the hanging rods and shelves to maintain balance.
- For models with furniture straps, secure the rack to a wall if there is a risk of tipping, especially in households with children.
3. Package Contents
Please verify that all components are included in your package:
- Main support poles (vertical)
- Horizontal hanging rods
- Shelf grids
- Connectors/sleeves
- Lockable wheels (4 units)
- Assembly tools (if required, e.g., wrench)
- Furniture anti-tip straps (for specific models)
Image 3.1: Fully assembled HYSEYY Rolling Heavy Duty Clothes Rack (Model YS-K 1304 type shown). This image displays the complete rack with clothes, shoes, and bags, highlighting its storage capacity and design.
4. Setup and Assembly
Follow these steps to assemble your HYSEYY Clothes Rack. Assembly typically does not require additional tools.
4.1. Attach Wheels
Insert the four wheels into the bottom of the main support poles. Ensure two of the wheels with locking mechanisms are positioned at the front for easy access.
Image 4.1: Assembled black HYSEYY Rolling Heavy Duty Clothes Rack (Model YS-K 1312 type shown). This image illustrates the rack's overall structure and the placement of items on the hanging rod and bottom shelf.
4.2. Assemble Base Frame
Connect the bottom horizontal bars to the vertical support poles. Ensure the trapezoidal structure of the bottom frame is correctly oriented for stability.
Image 4.2: Structural details of the HYSEYY Clothes Rack. This image highlights the shaped structure base for enhanced support and the thickened steel tubes (0.8mm thickness, 25.4mm diameter) contributing to its 420 LBS load capacity.
4.3. Install Hanging Rods and Shelves
Attach the hanging rods and shelf grids to the vertical poles using the provided connectors. For models with adjustable shelves, you can customize the height to suit your storage needs.
Image 4.3: Thickened and extended design of the HYSEYY Clothes Rack. This image compares the pipe thickness (30mm for HYSEYY vs. 20mm for others) and shows an extended rod length of 121 cm (47.6 inches) for increased capacity.
Image 4.4: Versatile features of the HYSEYY Garment Rack. This image illustrates the sturdy metal construction, adjustable shelves for customized configuration, and the inclusion of 2 anti-tip furniture straps for safety.
Image 4.5: Metal bar thickness detail. This image shows a measurement of the metal bar, indicating a thickness of 0.75 inches (19.10mm), which is thicker than average for enhanced durability.
4.4. Secure Anti-Tip Straps (Optional)
If your model includes anti-tip furniture straps, attach them to the rack and secure them to a wall according to the separate instructions provided with the straps. This is highly recommended for added safety.
5. Operation
5.1. Using the Hanging Rods
Hang clothes on hangers from the horizontal rods. Distribute the weight evenly to prevent the rack from leaning or becoming unstable.
5.2. Utilizing Shelves
Use the bottom shelves for folded clothing, shoes, storage boxes, or other accessories. Ensure items are placed securely and do not obstruct the wheels.

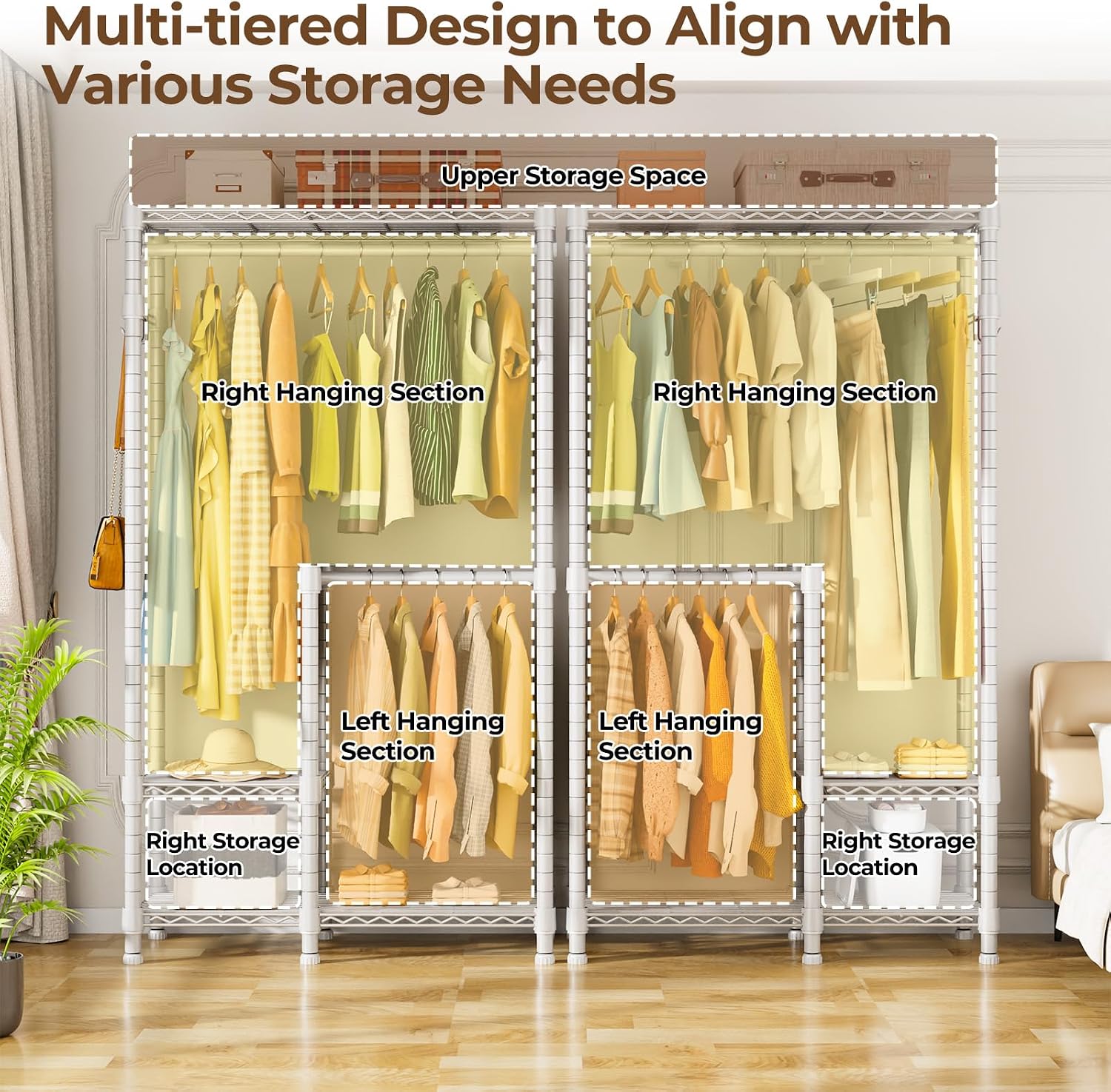

Image 5.1: Multi-tiered design for various storage needs. This image illustrates the rack's segmented storage areas, including upper storage space, distinct right and left hanging sections, and corresponding right and left storage locations on the lower shelves.
5.3. Moving the Rack
To move the rack, unlock the two lockable wheels by pressing down on their levers. Carefully push or pull the rack to its desired location. Once in place, press the levers down again to lock the wheels and secure the rack.
The wheels are made of premium materials, ensuring durability and quiet movement. Two of the wheels are conveniently lockable, allowing you to effortlessly secure or release them with your feet.
6. Maintenance
- Cleaning: Wipe the metal frame and shelves with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Inspection: Periodically check all connections and screws to ensure they are tight. Retighten if necessary.
- Weight Distribution: Always ensure weight is distributed evenly to prevent stress on the frame and maintain stability.
7. Troubleshooting
- Rack is unstable:
- Ensure all connections are securely tightened.
- Verify that the rack is on a flat, level surface.
- Check if weight is distributed evenly.
- If applicable, ensure anti-tip straps are properly installed.
- Wheels not rolling smoothly:
- Check if the wheel locks are disengaged.
- Clean any debris (lint, hair) from around the wheel axles.
- Difficulty assembling:
- Refer back to the assembly diagrams and steps.
- Ensure you are using the correct parts for each step.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | HYSEYY |
| Material | Metal |
| Model YS-K 1304 Dimensions | 51"D x 18"W x 61"H |
| Model YS-K 1312 Dimensions | 16.5"D x 37.4"W x 72.4"H |
| Overall Product Dimensions (General) | 51"D x 18"W x 72.4"H |
| Special Feature | Heavy Duty, Rolling, Lockable Wheels, Adjustable Shelves |
| Number of Shelves | 3 (for YS-K 1304/similar multi-tiered models) |
| Assembly Required | No (minimal assembly, tool-free) |
| Load Capacity (Approx.) | 420 LBS (for YS-K 1312 type), 450 LBS (for YS-K 1304 type) |
Image 8.1: Dimensions and weight capacity of the HYSEYY Clothes Rack. This image shows the overall dimensions (16.5"D x 37.4"W x 72.4"H) and indicates a weight capacity of 450 LBS for this specific multi-tiered model.
9. Customer Support
Our dedicated after-sales team is available 24/7 to assist you with any inquiries or technical support you may need. If you have any issues before or after your purchase, please find us via the Amazon Message Center. Your satisfaction is our goal.
For further assistance, please visit the HYSEYY Store on Amazon.
