Chuancheng Replacement Filter Instruction Manual

Introduction

This manual provides essential information for the proper installation, maintenance, and care of your Chuancheng replacement filters, designed for Rowenta X-FORCE FLEX 9.60 and X-NANO ESSENTIAL cordless vacuum cleaners. Adhering to these instructions will help ensure optimal performance and longevity of your vacuum cleaner's filtration system.

Image: Chuancheng replacement filter shown with a compatible Rowenta X-FORCE FLEX vacuum cleaner in a home environment.

Compatibility

These replacement filters (Part No. ZR009010) are compatible with the following Rowenta vacuum cleaner models:

• Rowenta X-FORCE FLEX 9.60 Aqua: RH20C2WO, RH20COCOWO
• Rowenta X-FORCE FLEX 9.60 Allergy: RH2038WO, RH2037WO, RH2039WO
• Rowenta X-FORCE FLEX 9.60 Animal: RH2078WO
• Rowenta X-NANO ESSENTIAL: RH1127WO, RH1128WO, RH1129WO, RH2037WO, RH2038WO, RH2039WO

Please verify your vacuum cleaner's model number before purchasing to ensure correct compatibility.

Image: Visual guide illustrating the compatible Rowenta X-FORCE FLEX and X-NANO ESSENTIAL vacuum models with the ZR009010 filter.

Features

• High-Efficiency Filtration: These filters are designed to effectively capture dust, dirt, and fine particles, contributing to a cleaner home environment and improved air quality. They trap pollutants down to 0.3 microns.
• Washable & Reusable: The filter material allows for washing and reuse, extending the filter's lifespan and maintaining filtration performance.
• Durable Construction: Made with sturdy ABS material and upgraded rubber components for long-lasting performance and reliability.

Image: Illustration demonstrating the filter's capability to capture various airborne pollutants such as dust, cotton fibers, hair, pet dander, mites, and pollen.

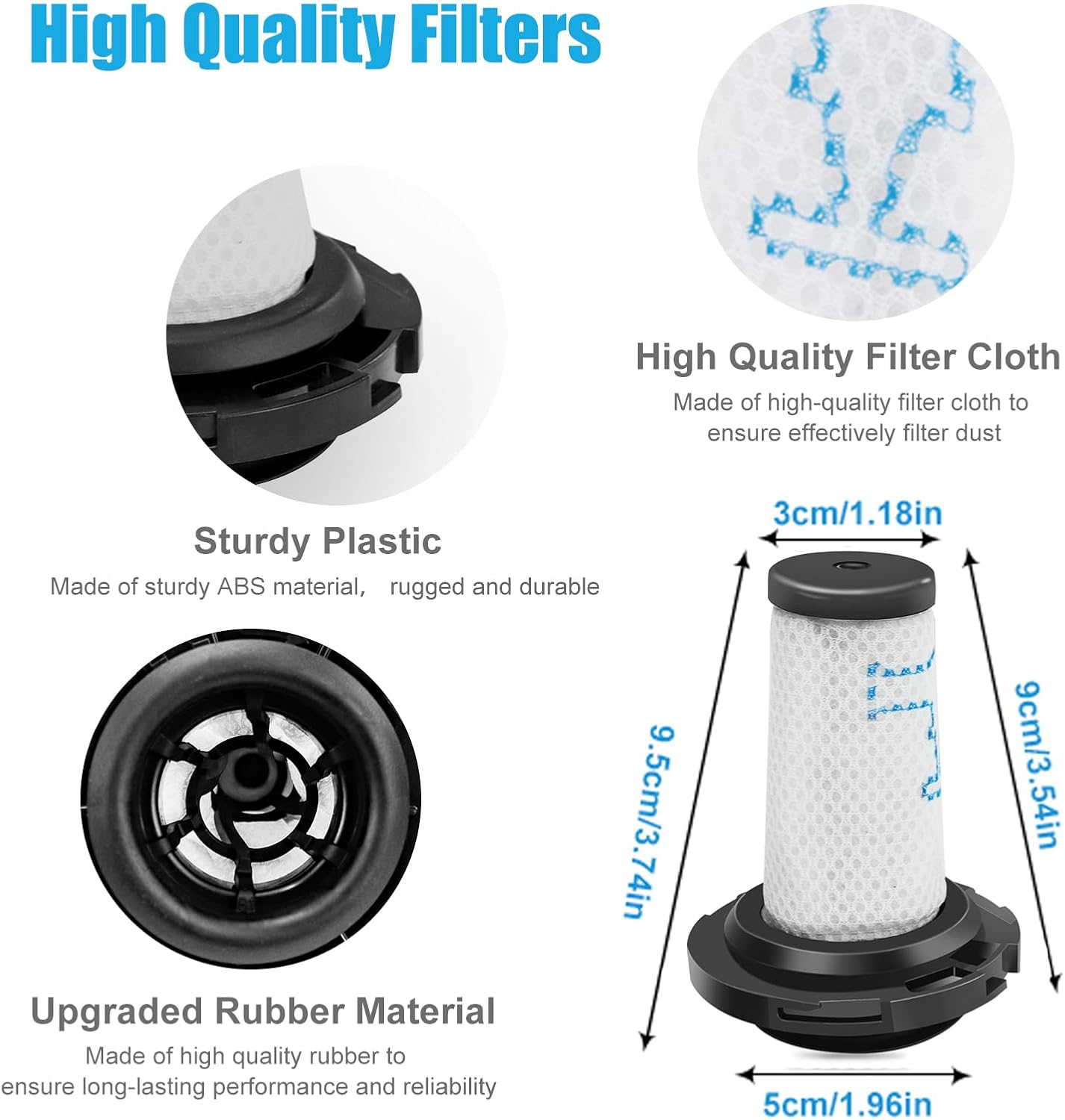

Image: Detailed views of the filter's construction, highlighting the high-quality filter cloth, sturdy plastic frame, and upgraded rubber seal, with key dimensions.

Installation (Setup)

Replacing the filter in your Rowenta vacuum cleaner is a straightforward process:

1. Power Off: Ensure your vacuum cleaner is turned off and unplugged from the power source for safety.
2. Locate Filter Compartment: Refer to your Rowenta vacuum cleaner's original manual to locate the filter compartment. This is typically found within the dustbin assembly.
3. Remove Old Filter: Carefully open the filter compartment and remove the used filter. Dispose of the old filter responsibly.
4. Insert New Filter: Place the new Chuancheng replacement filter (Part No. ZR009010) into the compartment, ensuring it is seated correctly and securely.
5. Close Compartment: Close the filter compartment firmly until it clicks into place.

Your vacuum cleaner is now ready for use with the new filter.

Operating

Once the new filter is installed, your Rowenta vacuum cleaner can be operated as usual. The high-efficiency filter will work to capture dust and debris during cleaning. For optimal performance, ensure the dustbin is emptied regularly.

Maintenance

Regular cleaning and timely replacement of your filter are crucial for maintaining your vacuum cleaner's suction power and filtration efficiency.

• Washing: It is recommended to wash the filter every month.
  1. Remove the filter from the vacuum cleaner.
  2. Rinse the filter under cool, running water until the water runs clear.
  3. Gently squeeze out excess water.
  4. Allow the filter to air dry completely for at least 24 hours before reinserting it into the vacuum. Do not use a dryer or heat source.
• Replacement: For optimal performance, replace the filter every 2-3 months, or more frequently if used heavily or if you notice a decrease in suction power.

Image: Depiction of two replacement filters being washed, emphasizing their washable and reusable nature.

Troubleshooting

Specifications

• Part Number: ZR009010
• Material: High-quality filter cloth, sturdy ABS plastic, upgraded rubber
• Filtration Efficiency: Captures pollutants down to 0.3 microns
• Dimensions (Approximate):
  • Height: 95mm (3.74in)
  • Diameter (Top): 30mm (1.18in)
  • Diameter (Bottom): 50mm (1.96in)
  • Filter Body Length: 90mm (3.54in)
• Package Contents: 2 x Chuancheng Replacement Filters (ZR009010)

Image: Technical drawing illustrating the precise dimensions of the replacement filter.

Warranty and Support

For information regarding warranty coverage or customer support for your Chuancheng replacement filters, please refer to the seller's information on the product listing or contact Chuancheng customer service directly. Specific warranty details are not provided in this manual.
