TOPZEE 8 QT Dual Basket Air Fryer Instruction Manual

Important Safeguards

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before using the appliance.
• Do not touch hot surfaces. Always use handles or knobs.
• To protect against electrical shock, do not immerse the cord, plugs, or the main unit in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from the outlet when not in use and before cleaning. Allow to cool completely before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact customer service for assistance.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors. This appliance is for indoor household use only.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach the plug to the appliance first, then plug the cord into the wall outlet. To disconnect, turn any control to "off", then remove the plug from the wall outlet.
• Do not use the appliance for other than its intended use.

Product Overview

The TOPZEE 8 QT Dual Basket Air Fryer is engineered for efficient and versatile cooking, enabling you to prepare two distinct dishes simultaneously. It features two independent 4-quart nonstick baskets, which are also dishwasher-safe for easy cleaning. The integrated easy-view windows allow for convenient monitoring of your food's progress without interrupting the cooking cycle.

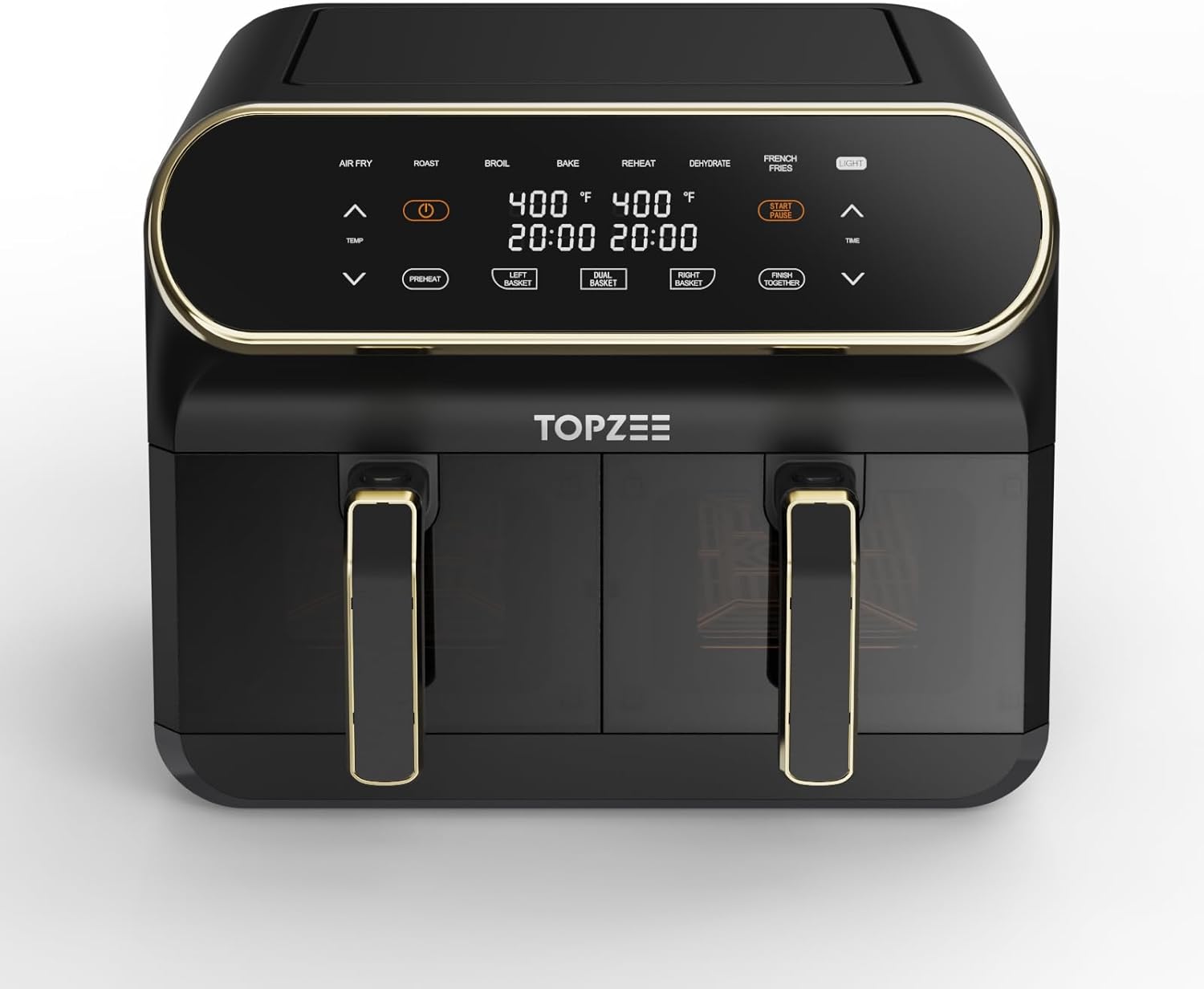

Figure 1: Front view of the TOPZEE 8 QT Dual Basket Air Fryer, showcasing its sleek design, digital display, and dual basket configuration.

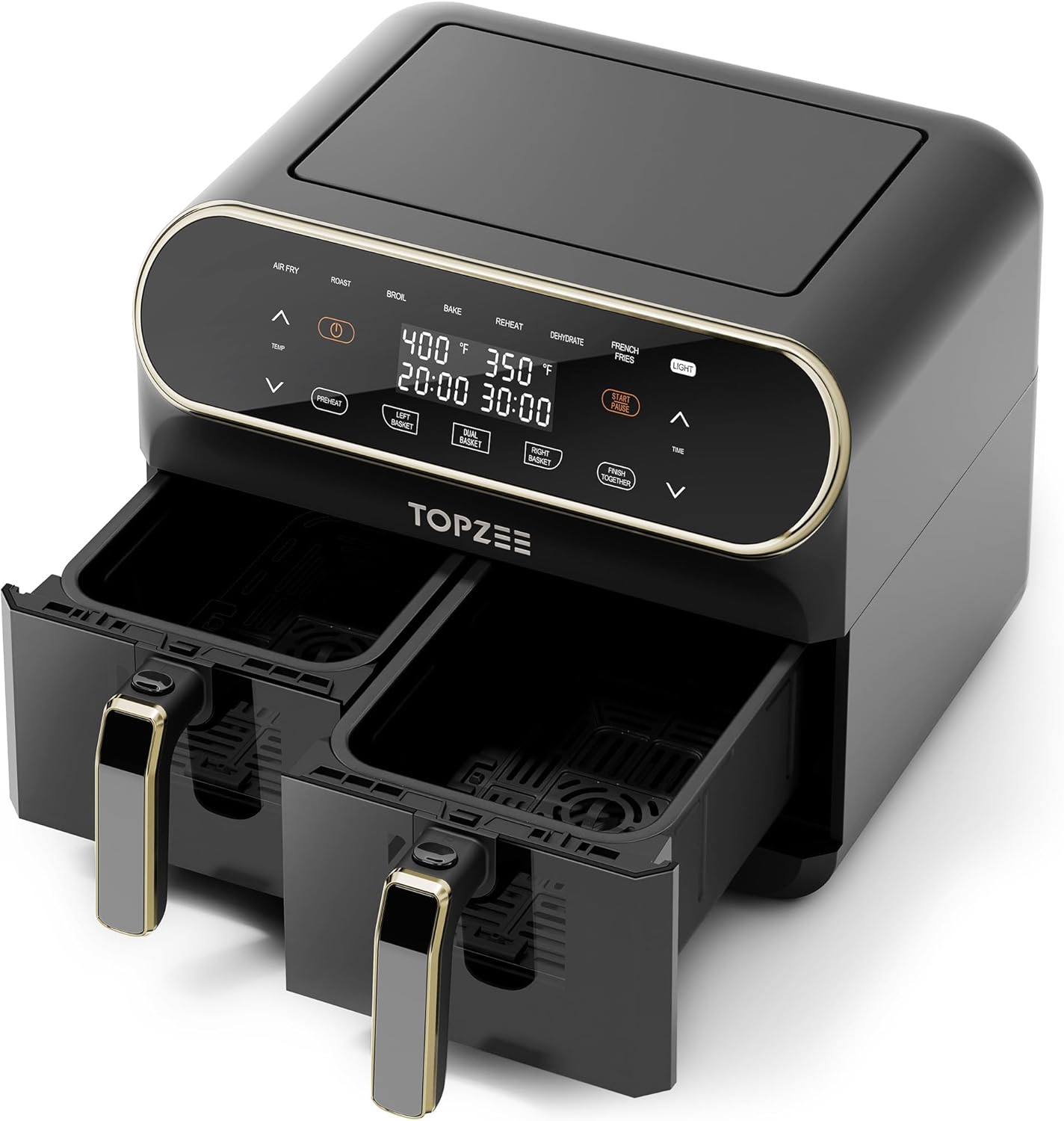

Figure 2: The air fryer with both 4-quart baskets pulled out, demonstrating their independent access and non-stick interior for easy food placement and removal.

Setup

1. Unpacking: Carefully remove the air fryer and all its components from the packaging. It is recommended to retain the original packaging for future storage or transport.
2. Initial Cleaning: Before the first use, thoroughly wash the removable baskets and crisper plates with warm, soapy water. Rinse them completely and dry them thoroughly. Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit in water or any other liquid.
3. Placement: Place the air fryer on a stable, heat-resistant, and level surface. Ensure there is adequate space (at least 6 inches) around the unit to allow for proper air circulation during operation. Do not place it directly against a wall or under overhead cabinets.
4. Power Connection: Verify that the voltage of your power outlet matches the voltage specified on the appliance's rating label. Plug the power cord into a grounded wall outlet.

Operating Instructions

Control Panel Overview

The intuitive digital touch screen provides easy control over cooking modes, temperature, and time. It features independent controls for each basket, offering maximum flexibility.

• Power Button: Used to turn the air fryer unit on or off.
• Temperature Controls (TEMP): Adjust the cooking temperature using the dedicated up/down arrows.
• Time Controls (TIME): Adjust the cooking time using the dedicated up/down arrows.
• Left Basket / Right Basket Buttons: Select the specific basket you wish to program or monitor.
• Start/Pause Button: Initiates or temporarily halts the cooking cycle.
• Light Button: Activates the internal light, allowing you to view food through the easy-view window without opening the basket.
• Preheat Button: Initiates a preheating cycle for optimal cooking results.
• Sync Finish Button: Synchronizes the finish time for both baskets, ensuring different foods are ready simultaneously.
• Cooking Modes: Pre-programmed settings for Air Fry, Roast, Broil, Bake, Reheat, Dehydrate, and French Fries.

Basic Operation

1. Food Preparation: Place your food into the desired basket(s). Ensure not to overfill the baskets to allow for proper air circulation and even cooking.
2. Power On: Press the Power button to activate the air fryer.
3. Select Basket: Press either the "Left Basket" or "Right Basket" button to choose the basket you intend to program.
4. Choose Cooking Mode: Select one of the available 8 cooking modes (Air Fry, Roast, Broil, Bake, Reheat, Dehydrate, French Fries, Preheat) that best suits your food.
5. Adjust Temperature and Time: Use the TEMP and TIME arrows to set your preferred cooking temperature and duration for the selected basket.
6. Start Cooking: Press the Start/Pause button to begin the cooking cycle.
7. Monitoring Food: Utilize the easy-view window and the Light button to check on your food's progress without needing to open the basket, which helps maintain consistent temperature.
8. Shaking/Flipping Food: For optimal and even cooking, it is recommended to shake or flip the food halfway through the cooking cycle. The unit may emit a beep to remind you.
9. End of Cycle: The air fryer will emit a series of beeps when the cooking cycle is complete. Carefully remove the baskets using the integrated handles.

Dual Basket Cooking

The innovative dual basket feature allows for the simultaneous cooking of different foods with independent settings or synchronized finish times, providing ultimate convenience for meal preparation.

• Independent Cooking: To cook different items with unique settings, program each basket separately. Select the respective basket button, then set its desired mode, temperature, and time. Press Start/Pause to begin.
• Sync Finish: If you wish for both baskets to complete their cooking cycles at the same time, program the basket requiring the longer cooking duration first. Subsequently, program the second basket. Once both are set, press the "Sync Finish" button. The air fryer will automatically adjust the start time of the second basket to ensure both items are ready simultaneously.
• Dual Basket Mode: For cooking the same type of food in both baskets with identical settings, utilize the Dual Basket Mode. This function allows you to cook a full 8 quarts of food at the same temperature, time, and function with a single button press, simplifying batch cooking.

Maintenance

Cleaning

Regular and proper cleaning is essential to ensure optimal performance and extend the lifespan of your air fryer.

1. Unplug and Cool: Always unplug the air fryer from the power outlet and allow it to cool down completely before attempting any cleaning.
2. Baskets and Crisper Plates: The 4-quart nonstick baskets and crisper plates are designed to be dishwasher safe for convenience. For manual cleaning, wash them with warm, soapy water and a non-abrasive sponge. Rinse thoroughly and dry completely before reassembly or storage.
3. Main Unit Exterior: Wipe the exterior surface of the air fryer with a damp cloth. Do not use abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish. Never immerse the main unit in water or any other liquid.
4. Interior: Clean the interior of the air fryer with a damp cloth. If necessary, a small amount of mild dish soap can be used. Ensure the interior is completely dry before the next use to prevent moisture buildup.

Storage

When the air fryer is not in use for an extended period, store it in a cool, dry place. Ensure all parts are clean and completely dry before storing to prevent mold or damage.

Troubleshooting

Refer to the table below for common issues and their potential solutions. If the problem persists, please contact customer support.

Specifications

• Brand: topzee
• Model Name: AFT08003F-UL-001
• Capacity: 8 Quarts (consisting of 2 x 4-QT independent baskets)
• Product Dimensions (D x W x H): 15.75" x 15.35" x 11.81"
• Item Weight: 17.6 Pounds
• Material: Metal, Plastic
• Wattage: 1700 Watts
• Special Feature: Programmable, Easy-View Windows
• Dishwasher Safe Components: Yes (Baskets and Crisper Plates)
• UPC: 860013285197

Warranty and Support

Your TOPZEE Air Fryer is designed for durability and performance. To further protect your investment, various protection plan options are available.

• Available Protection Plans:
  • 3-Year Protection Plan
  • 4-Year Protection Plan
  • Complete Protect: A comprehensive plan covering eligible past and future purchases.
• For detailed information regarding specific warranty terms, conditions, and to purchase a protection plan, please refer to the product's original purchase page or contact TOPZEE customer support directly.
• Manufacturer: Topzee
• Customer Service: For any questions, concerns, technical support, or service inquiries, please visit the official TOPZEE store on Amazon or reach out to their dedicated customer service team.
