Swagtron Swagger 8.5-Inch Electric Scooter Rear Wheel Replacement Manual

1. Product Overview

This manual provides instructions for the installation, maintenance, and care of your Swagtron Swagger 8.5-inch Electric Scooter Rear Wheel Replacement. This wheel assembly is designed for specific electric scooter models, featuring a solid rubber tire, an 8.5-inch rim, and a 120mm brake rotor.

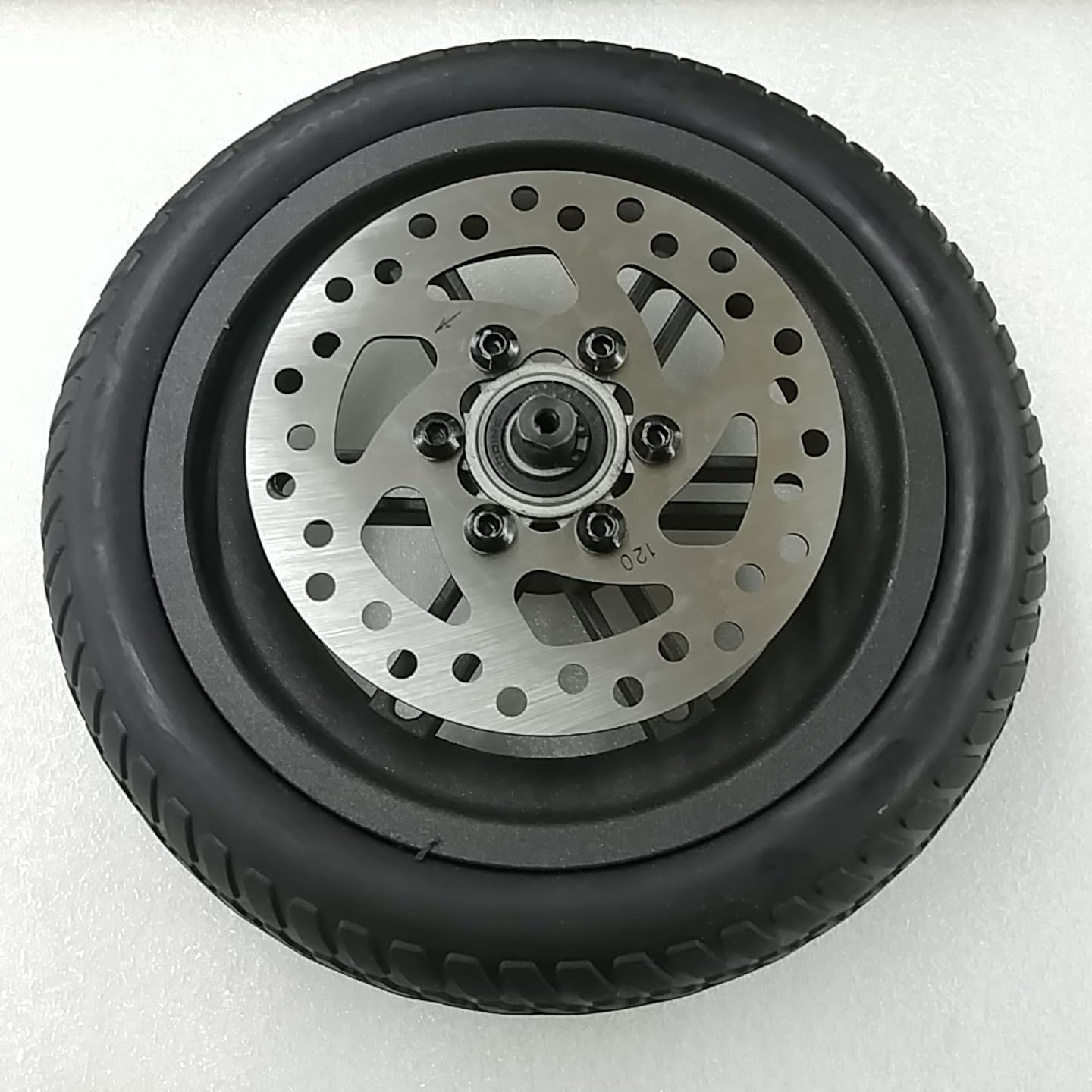

Figure 1: The Swagtron Swagger 8.5-inch rear wheel assembly, featuring a solid rubber tire, rim, and a 120mm disc brake rotor. This view highlights the rotor's design and the wheel's overall construction.

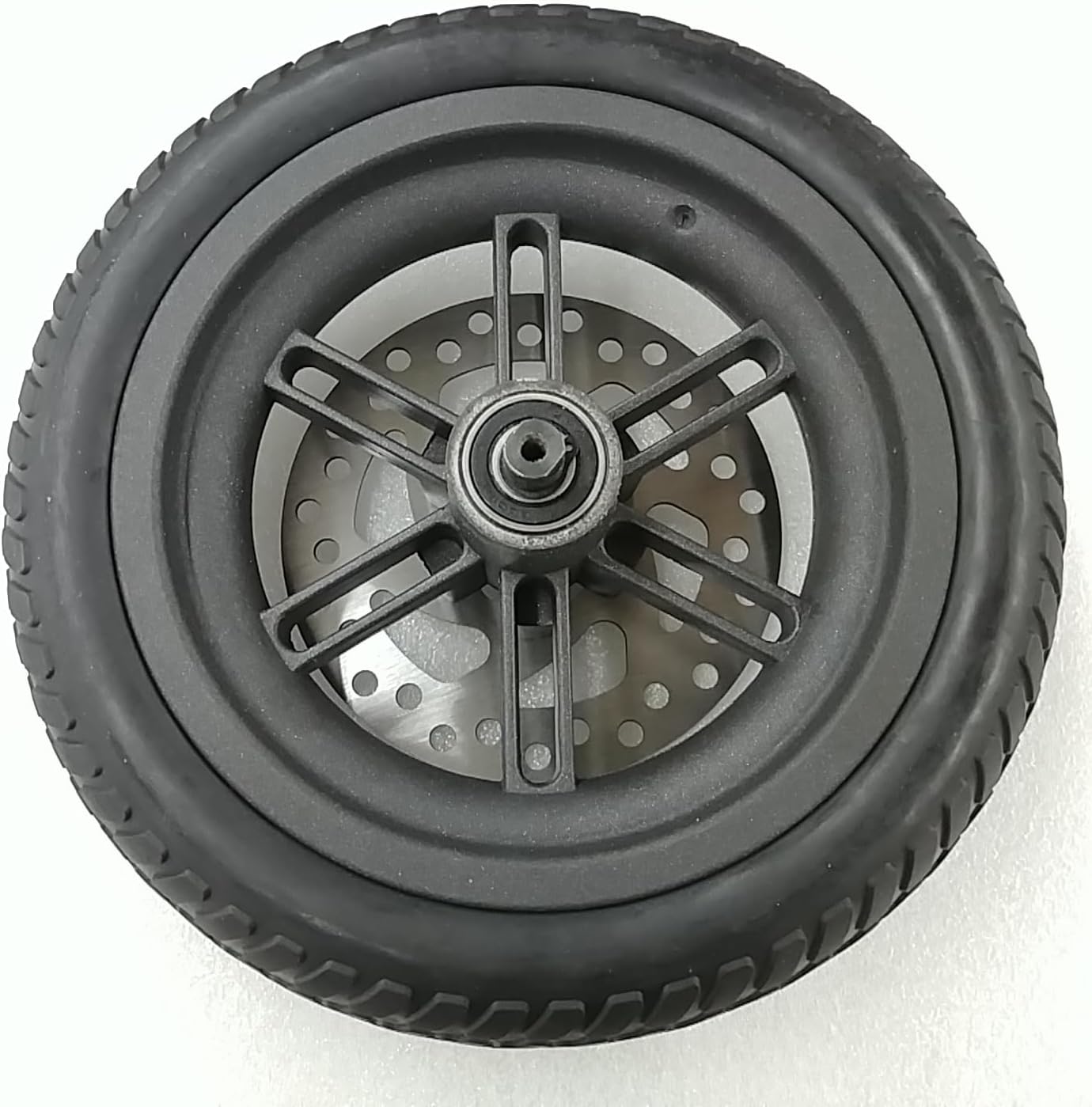

Figure 2: The reverse side of the Swagtron Swagger 8.5-inch rear wheel, illustrating the robust rim structure and the internal support spokes. This perspective shows the wheel without the brake rotor prominently displayed.

1.1. What's in the Box

• One (1) 8.5-inch Rear Wheel Assembly (includes solid rubber tire, rim, and 120mm rotor)

1.2. Compatibility

This rear wheel is compatible with the following electric scooter models:

• Xiaomi M365
• Swagtron Swagger 5 Boost
• Gotrax GXL V2 / XR
• Hiboy S2

2. Installation Instructions

Important: Before beginning installation, ensure the scooter is powered off and disconnected from any charging source. For safety, wear appropriate protective gear, such as gloves. If you are unsure about any step, consult a qualified technician.

2.1. Tools Required (Not Included)

• Hex keys / Allen wrenches (various sizes)
• Wrenches (for axle nuts)
• Pliers
• Threadlocker (optional, for axle nuts)

2.2. Rear Wheel Replacement Procedure

1. Prepare the Scooter: Place the scooter on a stable surface, preferably elevated, to allow easy access to the rear wheel. Ensure the scooter is stable and cannot tip over.
2. Disconnect Brake Caliper: Locate the brake caliper assembly on the rear wheel. Using appropriate tools, carefully unbolt the brake caliper from its mounting points on the scooter frame. Allow it to hang freely or secure it out of the way.
3. Remove Axle Nuts: Identify the nuts securing the wheel axle to the scooter frame. Use a wrench to loosen and remove these nuts. Note the order and position of any washers or spacers.
4. Remove Old Wheel: Carefully slide the old wheel assembly out of the scooter frame. Be mindful of any cables or components that might be attached.
5. Inspect Components: Before installing the new wheel, inspect the scooter's frame, brake caliper, and any remaining hardware for damage or wear. Clean any dirt or debris.
6. Install New Wheel: Align the new Swagtron Swagger 8.5-inch Rear Wheel into the scooter frame. Ensure the brake rotor aligns correctly with the brake caliper mounting position.
7. Secure Axle: Reinstall any washers or spacers in their original positions, then thread the axle nuts onto the axle. Tighten the nuts securely, but do not overtighten. Some manufacturers recommend using threadlocker on axle nuts.
8. Reattach Brake Caliper: Realign the brake caliper with the new rotor and bolt it back into its mounting points. Ensure the brake pads are centered over the rotor.
9. Test Brakes: After installation, manually spin the wheel to check for any rubbing or obstruction. Squeeze the brake lever to ensure proper brake engagement and release. Adjust the brake caliper if necessary to prevent rubbing.
10. Final Check: Before riding, perform a thorough check of all fasteners to ensure they are tight. Test the scooter at a low speed in a safe area to confirm proper function of the new wheel and brakes.

3. Operation Considerations

This rear wheel is a component of an electric scooter. Proper operation of the scooter involves:

• Adhering to the scooter manufacturer's guidelines for speed, weight limits, and terrain.
• Regularly checking tire condition and brake function before each ride.
• Avoiding sudden impacts or riding over sharp objects that could damage the wheel or tire.

4. Maintenance and Care

Regular maintenance ensures the longevity and safe operation of your scooter's rear wheel.

• Regular Inspection: Periodically inspect the wheel for any signs of damage, cracks, or excessive wear on the solid rubber tire. Check the rim for bends or deformities.
• Brake Rotor Check: Ensure the 120mm brake rotor is clean and free from oil or grease. Inspect for excessive wear or warping.
• Fastener Tightness: Check all bolts and nuts, especially the axle nuts and brake caliper mounting bolts, for proper tightness. Loose fasteners can lead to unsafe operation.
• Cleaning: Clean the wheel and tire with a damp cloth. Avoid using harsh chemicals that could degrade the rubber or metal components.
• Bearing Check: While this wheel comes with sealed bearings, listen for any unusual noises or feel for excessive play when spinning the wheel, which could indicate bearing wear.

5. Troubleshooting Common Issues

This section addresses common issues related to the rear wheel assembly.

• Wheel Rubbing: If the wheel rubs against the frame or brake caliper, check if the wheel is properly centered and the axle nuts are tightened evenly. Adjust the brake caliper position if necessary.
• Brake Ineffectiveness: Ensure the brake caliper is securely mounted and the brake pads are making full contact with the rotor. Inspect the rotor for damage or contamination.
• Unusual Noises from Wheel: Investigate any grinding, squeaking, or clicking sounds. This could indicate loose components, worn bearings, or brake issues. Disassemble and inspect if necessary.
• Wheel Wobble: A wobbling wheel could indicate improper installation, a bent axle, or damage to the wheel rim. Re-check installation steps or inspect for damage.

6. Product Specifications

7. Warranty and Support Information

Warranty and specific support details for this product were not provided in the available information. Please refer to the official Swagtron website or contact their customer service for comprehensive warranty terms and support options.

For general inquiries or technical assistance, you may visit the Swagtron Store on Amazon.
