1. Introduction
Thank you for choosing the FOTING 400W Submersible Water Pump. This pump is designed for efficient and reliable drainage and transfer of clean water from various sources such as gardens, tanks, ponds, and flooded areas. Featuring a powerful 400W motor, a maximum flow rate of 8,250 liters per hour, and an integrated float switch for automatic operation, this pump offers convenience and performance. Please read this manual carefully before installation and operation to ensure safe and optimal use of your pump.
2. Safety Instructions
Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury. Failure to follow these instructions may result in serious injury or property damage.
- Ensure the power supply voltage matches the rating on the pump's label.
- Do not operate the pump with a damaged power cord or plug. If damaged, it must be replaced by the manufacturer or a qualified service agent.
- Never immerse the plug or power cord in water.
- Do not use the pump to transfer flammable or explosive liquids.
- Always disconnect the pump from the power supply before performing any maintenance, cleaning, or when not in use.
- Keep children and unauthorized persons away from the operating pump.
- Ensure the pump is placed on a stable, level surface to prevent tipping.
- This pump is designed for clean water with solid particles up to 5mm. Do not use it for highly abrasive or corrosive liquids.
- The pump is equipped with thermal protection. If it overheats, it will shut off automatically. Allow it to cool down before restarting.
3. Product Overview
The FOTING 400W Submersible Water Pump is constructed with a durable stainless steel body and features an integrated float switch for automatic operation. It is designed for efficient water transfer with a high flow rate and moderate delivery height.
Image 1: Overview of the FOTING 400W Submersible Water Pump, highlighting its powerful 400W motor, 8250 L/H flow rate, ultra-quiet operation, safety protection, and IPX8 rating. The pump features a stainless steel body and a blue float switch.

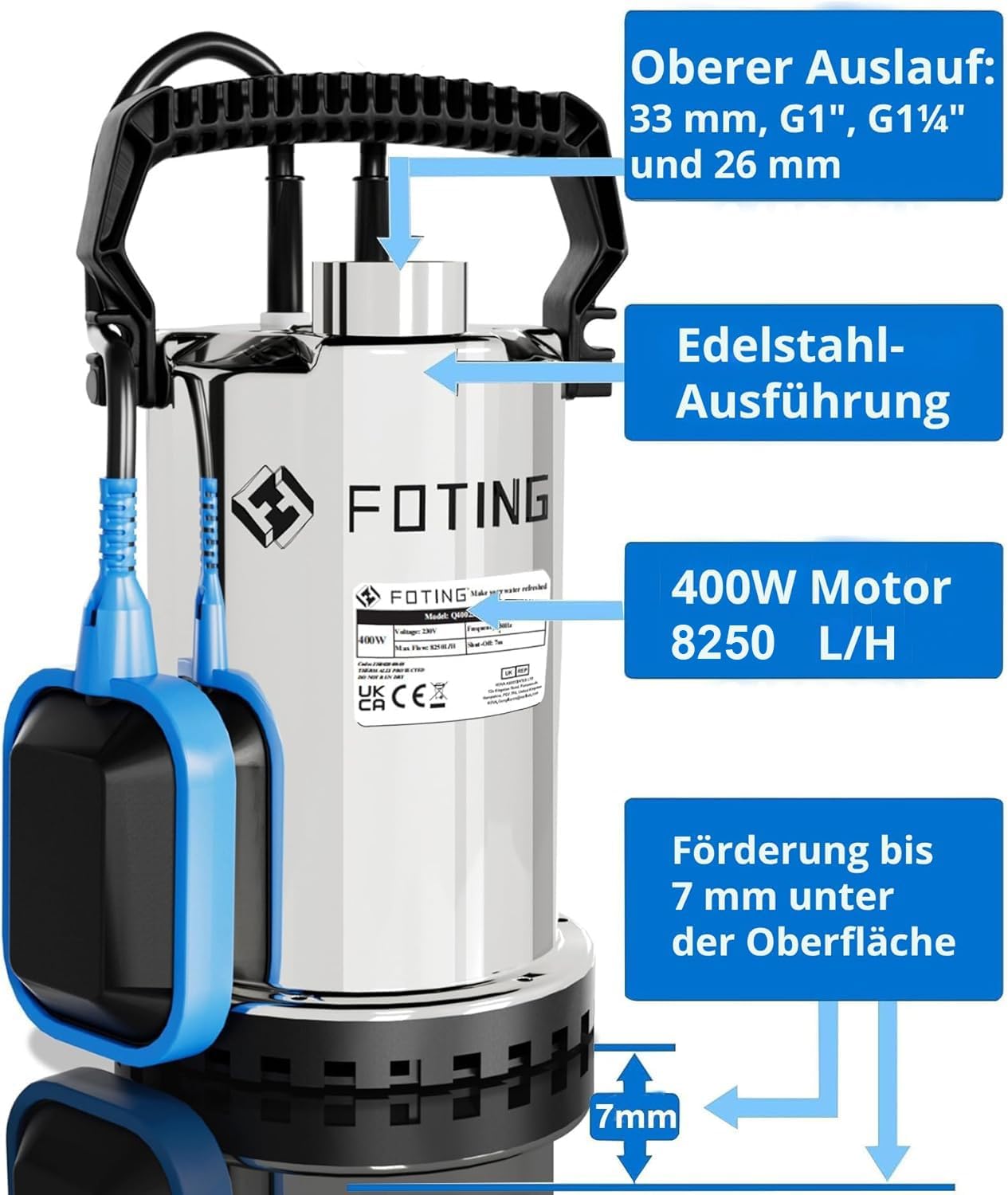

Image 2: Detailed view of the pump, showing the upper outlet with multi-size compatibility (33mm, G1", G1-1/4", 26mm), stainless steel construction, 400W motor, 8250 L/H capacity, and the ability to pump down to a minimum water level of 7mm below the surface. The blue float switch is also visible.
4. Setup
4.1 Unpacking
Carefully remove the pump and all accessories from the packaging. Inspect for any damage that may have occurred during transit. Retain packaging for future storage or transport.
4.2 Connecting the Discharge Hose
The pump comes with a multi-size adapter for versatile hose connections. Choose the appropriate adapter size for your discharge hose (33mm, G1", G1-1/4", or 26mm). Securely attach the hose to the pump's outlet. Ensure all connections are tight to prevent leaks.
Image 3: Illustration of the multi-size hose connector, demonstrating compatibility with 33mm, G1", G1-1/4", and 26mm hoses. This allows for flexible installation with various hose types.
4.3 Positioning the Pump
Place the pump on a stable, flat surface in the water. Ensure the pump is fully submerged and not resting on any debris that could block the intake. The maximum immersion depth is 7 meters.
4.4 Float Switch Adjustment
The float switch controls the automatic on/off function of the pump. Adjust the cable length of the float switch to set the desired minimum and maximum water levels for operation. A shorter cable length will result in a smaller operating range (e.g., 3 cm to 17.5 cm water level difference for activation/deactivation).
5. Operation
5.1 Automatic Mode (Float Switch)
In automatic mode, the pump will start and stop based on the water level, as determined by the float switch position. When the water level rises and lifts the float switch, the pump will activate. When the water level drops and the float switch lowers, the pump will deactivate. This ensures autonomous operation without constant supervision.
Image 4: Visual representation of the pump's automatic and manual operation modes. It shows the pump working ('Arbeitend' - Working) when the float switch is raised by water and stopping ('Stopp' - Stop) when the float switch is lowered. It also indicates that if the float switch is blocked, the pump will continue to operate without automatic shut-off. The operating range for automatic start/stop is shown as 3 cm to 17.5 cm water level difference.
5.2 Manual Mode
To operate the pump continuously, you can secure the float switch in an upright position. In this mode, the pump will run constantly, allowing for drainage down to a minimum water level of approximately 7mm. Be sure to monitor the pump in manual mode to prevent dry running, which can damage the motor.
5.3 Powering On/Off
Once the pump is correctly positioned and the hose is connected, plug the power cord into a suitable electrical outlet. The pump will begin operation according to the float switch setting (automatic mode) or immediately if the float switch is secured (manual mode). To turn off, simply unplug the pump from the power source.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your FOTING submersible pump.
- Cleaning: Periodically clean the pump's intake screen to remove any debris, leaves, or small particles that may accumulate and restrict water flow. Disconnect power before cleaning.
- Inspection: Regularly inspect the power cord and plug for any signs of damage. Check hose connections for wear or leaks.
- Winter Storage: If storing the pump for an extended period or during freezing temperatures, drain all water from the pump and hose. Clean the pump thoroughly and store it in a dry, frost-free location.
- Float Switch: Ensure the float switch moves freely and is not obstructed by debris.
7. Troubleshooting
Before contacting customer support, please refer to the following troubleshooting guide for common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not start | No power supply Float switch not activated Thermal overload activated | Check power connection and outlet Adjust float switch position or secure for manual mode Allow pump to cool down; check for blockages |
| Low flow rate or no water discharge | Clogged intake screen or hose Air lock in pump Hose kinked or too long/small diameter | Clean intake screen and check hose for blockages Tilt pump to release trapped air Ensure hose is clear, unkinked, and appropriate size |
| Pump runs continuously in automatic mode | Float switch stuck in 'on' position Water level not dropping sufficiently | Check float switch for obstructions and ensure free movement Verify water source is not continuously replenishing |
| Pump makes unusual noise | Debris in impeller Dry running | Disconnect power and inspect impeller for foreign objects Ensure pump is fully submerged; avoid dry running |
8. Specifications
Below are the technical specifications for the FOTING 400W Submersible Water Pump:
| Feature | Specification |
|---|---|
| Brand | FOTING |
| Model | B0DM8K21R2 |
| Power | 400 W |
| Max Flow Rate | 8,250 Liters per hour |
| Max Delivery Height | 7 Meters |
| Max Lift Height | 11 Meters |
| Max Immersion Depth | 7 Meters |
| Min Water Level (Manual Mode) | 7 mm |
| Max Particle Size | 5 mm |
| Material | Stainless Steel |
| Protection Class | IPX8 |
| Power Source | Electric Cable |
| Cable Length | 10 Meters |
| Compatible Hose Sizes | 33 mm, G1", G1-1/4", 26 mm |
9. Warranty and Support
FOTING is committed to providing high-quality products. This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. Please refer to your purchase documentation for specific warranty terms and duration. For technical assistance, troubleshooting not covered in this manual, or warranty claims, please contact your retailer or FOTING customer support through the contact information provided at the point of purchase.
Online Resources: For additional information and support, please visit the official FOTING website or the product page where you made your purchase.
10. Applications
The FOTING 400W Submersible Water Pump is suitable for a variety of applications:
- Draining garden ponds and small pools
- Emptying water tanks and reservoirs
- Irrigation for gardens and lawns
- Removing water from flooded basements or areas
- Maintaining fish tanks (ensure water quality is suitable for pump)
Image 5: Examples of typical applications for the submersible pump, such as draining garden ponds, swimming pools, basement flooding, park irrigation, and fish tanks. The central image shows the FOTING pump.
