MTZUL RB170003 Dryer Drum Front Glide Kit Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation and maintenance of the MTZUL RB170003 Dryer Drum Front Glide Kit. This kit is designed to replace worn-out front glides in compatible Speed Queen dryers, restoring proper drum operation and reducing noise.

1.1 Compatibility

The RB170003 dryer drum front glide kit is compatible with Speed Queen dryers manufactured in 1992 and newer. It replaces various part numbers, including ALLSRB170003, HUEBRB170003, PRMRB170003, IPSRB170003, UNMCRB170003, SPQRB170003, PD00055354, and AP5186012.

This kit is suitable for a wide range of Speed Queen models, including but not limited to:

• ADE30RGS171TW01, ADE32FSS431AN01, ADE32FSS431NN22, ADE32FSS541RN01
• ADEE9BSS433XN34, ADEE9BSS455LW01, ADEE9BSS543DN01, ADEE9RGS173CW01
• AES17AWF, AES20AWF, AES28AWF, AES28AWF1500, AES68AWF
• BD3DXAGS403UW01, BD3LLFGS401UW01, BT3JGASP403UN01, BT3JGASP403UN06
• HDEBCRGS176TW01, HDEBERGS153CW01

For a comprehensive list of compatible models, please refer to the product packaging or contact MTZUL support.

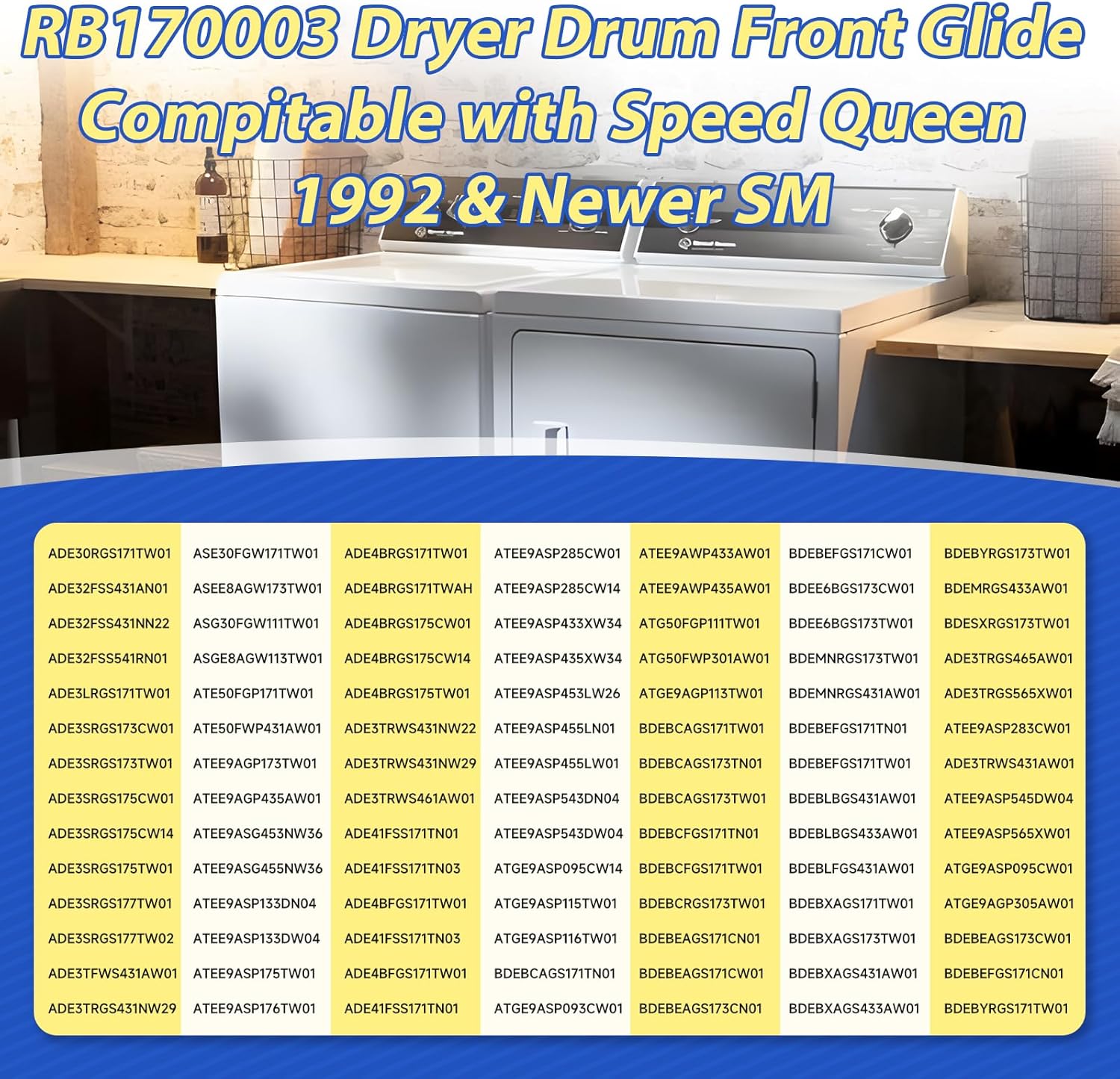

Figure 1.1: Partial list of compatible Speed Queen dryer models.

2. Product Components and Dimensions

The MTZUL RB170003 Dryer Drum Front Glide Kit includes the necessary components to replace the front glides of your dryer drum.

Figure 2.1: Components of the RB170003 Dryer Drum Front Glide Kit.

The kit typically contains:

• 2 x Glide Pads (white, rectangular with notched ends)
• 1 x Sponge Cushion (black, rectangular)

2.1 Product Dimensions

Understanding the dimensions of the components can assist in proper installation and verification.

Figure 2.2: Detailed dimensions of the RB170003 kit components.

The glide pads feature a smooth surface and a strong structure for stable performance, designed to meet or exceed OEM standards.

Figure 2.3: Product details highlighting material quality and design.

3. Installation (Setup)

Safety First: Before beginning any installation, ensure the dryer's power supply is completely disconnected to prevent electrical shock or injury. This typically involves unplugging the dryer or turning off the corresponding circuit breaker.

Most dryers utilize two RB170003 slide kits. The installation process involves removing the front panel, replacing the old glides, and reassembling the dryer.

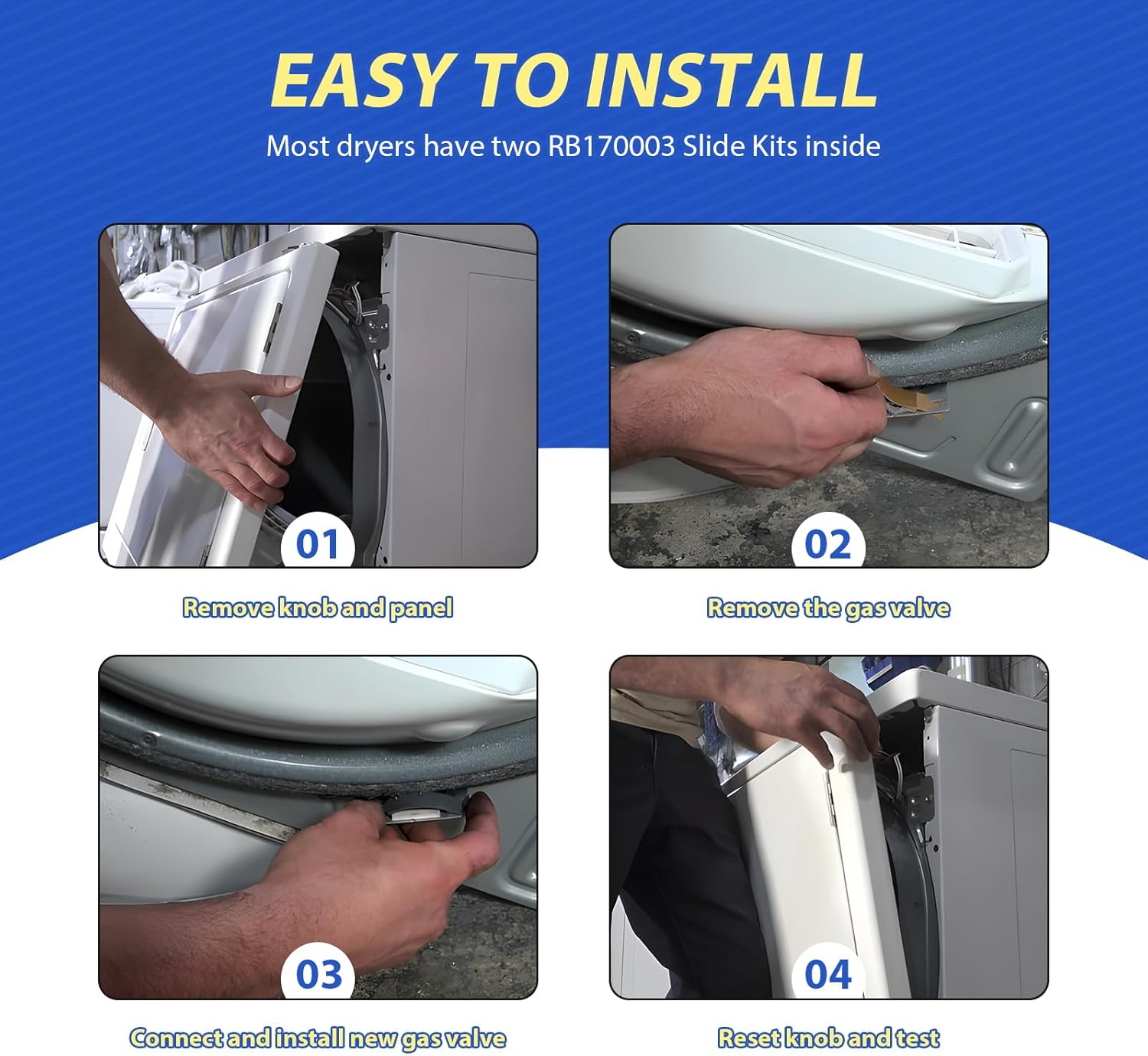

Figure 3.1: Visual guide to the installation process.

Step-by-Step Installation Guide:

1. Disconnect Power: Unplug the dryer from the electrical outlet or turn off the circuit breaker supplying power to the dryer.
2. Access Front Panel: Carefully remove any control knobs and then detach the dryer's front panel. This may involve unscrewing fasteners or releasing clips, depending on your specific dryer model. Refer to your dryer's service manual if unsure.
3. Remove Old Glides: Locate the old dryer drum front glides. These are typically found at the front of the dryer drum opening. Carefully remove the worn-out glides and any associated sponge cushions.
4. Clean Area: Clean any lint or debris from the area where the new glides will be installed.
5. Install New Glides: Apply the new sponge cushion to the designated area, then position and secure the new glide pads. Ensure they are seated correctly and firmly in place.
6. Reassemble Dryer: Reattach the dryer's front panel and any control knobs. Ensure all fasteners are tightened and clips are secured.
7. Restore Power and Test: Plug the dryer back into the electrical outlet or turn on the circuit breaker. Run a short cycle to ensure the drum rotates smoothly and quietly.

4. Troubleshooting

A worn dryer drum front glide kit can lead to several operational issues. Replacing the glides can resolve these common problems, restoring your dryer's performance.

Figure 4.1: Common symptoms of worn dryer drum glides.

Common Symptoms of Worn Glides:

• Noise Anomaly: A metal-on-metal scraping or squealing sound during dryer operation often indicates that the drum is rubbing against the front panel due to worn glides.
• Drum Will Not Tumble: Severely worn glides can cause the drum to bind or prevent it from rotating freely.
• Dryer Will Not Start: In some cases, if the drum is completely seized due to worn glides, safety mechanisms might prevent the dryer from starting.
• Marks Left on Clothes: Friction from a misaligned or rubbing drum can leave marks or damage on clothing.
• Takes Too Long to Dry: Inefficient drum movement can hinder proper airflow and heat distribution, leading to longer drying times.
• The Door Won't Close Properly: Misalignment caused by worn glides can sometimes affect the dryer door's ability to close and latch securely.

If you experience any of these issues, inspecting and potentially replacing your dryer drum front glides with the RB170003 kit is recommended.

5. Specifications

6. Warranty and Support

The MTZUL RB170003 Dryer Drum Front Glide Kit comes with a product service period lasting 3 years from the date of purchase. This service covers manufacturing defects and ensures product quality.

For any questions regarding the RB170003 kit, compatibility, installation, or to claim warranty service, please contact MTZUL customer support through the retailer where the product was purchased or visit the official MTZUL brand store online.
