LLIVEKIT 15L Air Fryer Oven with Rotisserie Instruction Manual

1. Introduction

Thank you for purchasing the LLIVEKIT 15L Air Fryer Oven. This appliance is designed to provide a versatile cooking experience, combining the functions of an air fryer, mini oven, and dehydrator. With its 15-liter capacity and 10-in-1 LED touch screen, you can prepare a wide variety of meals with less oil. Please read this manual thoroughly before first use to ensure safe and optimal operation.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury.

• Read all instructions before operating the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or the main unit in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Ensure the appliance is placed on a stable, heat-resistant surface, away from walls or other appliances to allow adequate air circulation.
• Do not cover the air inlet or air outlet vents while the appliance is operating.
• Always ensure the door is fully closed before operating.

3. Product Overview

3.1 Components

The LLIVEKIT 15L Air Fryer Oven features a robust design with a stainless steel housing and a user-friendly LED touch screen control panel.

Image 3.1: The LLIVEKIT 15L Air Fryer Oven showcasing its large capacity with multiple trays of food and the included accessories.

• Main Unit: The primary appliance housing the heating elements, fan, and control panel.
• LED Touch Screen: Digital display for selecting functions, adjusting time and temperature.
• Viewing Window: Allows monitoring of cooking progress without opening the door.
• Interior Light: Illuminates the cooking chamber for better visibility.
• Detachable Door: For easy cleaning and access to the interior.
• Air Inlet/Outlet Vents: For proper air circulation during operation.

3.2 Included Accessories

Your LLIVEKIT Air Fryer Oven comes with 7 food-grade stainless steel accessories to enhance your cooking versatility.

Image 3.2: An illustration detailing the dimensions of the air fryer oven and a visual list of the 7 included accessories.

• Rotisserie Spit (x1): For roasting whole chickens or larger cuts of meat.
• Rotisserie Handle (x1): For safely inserting and removing the hot rotisserie spit.
• Skewers Set (x1): For preparing kebabs or other skewered items.
• Grid Baking Trays (x2): Multi-purpose trays for air frying, baking, or dehydrating.
• Crumb Tray (x1): Collects drips and crumbs for easier cleaning.
• Frying Basket (x1): Ideal for smaller items like fries or vegetables, ensuring even cooking with rotation.

All accessories are designed for durability and ease of cleaning.

4. Initial Setup and First Use

4.1 Unpacking

1. Carefully remove all packaging materials from the air fryer oven and its accessories.
2. Check that all listed accessories are present and undamaged.
3. Remove any stickers or labels from the appliance.

4.2 Placement

• Place the air fryer oven on a stable, level, and heat-resistant surface.
• Ensure there is at least 10-15 cm (4-6 inches) of clear space around the back and sides of the appliance for adequate air circulation. Do not place it directly against a wall.
• Keep the appliance away from water sources and flammable materials.

4.3 Initial Cleaning

1. Wipe the exterior of the appliance with a damp cloth.
2. Wash all accessories (rotisserie spit, handle, skewers, trays, basket, crumb tray) with warm, soapy water. Rinse thoroughly and dry completely.
3. Insert the crumb tray at the bottom of the oven.

4.4 First Use (Burn-in)

Before cooking food, it is recommended to run the appliance for a short period to eliminate any manufacturing odors.

1. Plug the power cord into a grounded electrical outlet.
2. Set the temperature to 200°C (390°F) and the timer for 15 minutes.
3. A slight odor or smoke may be present during this initial operation; this is normal and will dissipate. Ensure the area is well-ventilated.
4. After the cycle completes, unplug the appliance and allow it to cool down completely.

5. Operation

5.1 Control Panel Overview

The LLIVEKIT Air Fryer Oven features an intuitive LED touch screen for easy control of all cooking functions.

Image 5.1: The LED touch screen control panel with various cooking presets and manual adjustment options.

• Power Button: Turns the appliance on/off.
• Temperature Control (+/-): Adjusts cooking temperature.
• Time Control (+/-): Adjusts cooking time.
• Preset Icons: Select from 10 pre-programmed cooking functions (e.g., Fries, Steak, Pizza, Roast Chicken, Cake).
• Rotisserie Button: Activates the rotisserie rotation function.
• Light Button: Turns the interior light on/off.

5.2 Basic Operation

1. Plug In: Connect the power cord to a suitable electrical outlet. The display will illuminate briefly.
2. Power On: Press the Power button to turn on the appliance.
3. Select Function:
   • Preset: Touch one of the preset icons (e.g., Fries, Roast Chicken). The appliance will automatically set a default time and temperature.
   • Manual: Use the Temperature (+/-) and Time (+/-) buttons to set your desired cooking parameters.
4. Start Cooking: Press the Power button again to start the cooking cycle. The fan and heating element will activate.
5. Monitor Progress: Use the viewing window and interior light to check on your food.
6. Finish: The appliance will beep when the cooking cycle is complete and automatically shut off the heating element. The fan may continue to run for a short period to cool down.

5.3 Using the Rotisserie Function

The rotisserie function is ideal for roasting whole chickens or other large items, ensuring even cooking and a crispy exterior.

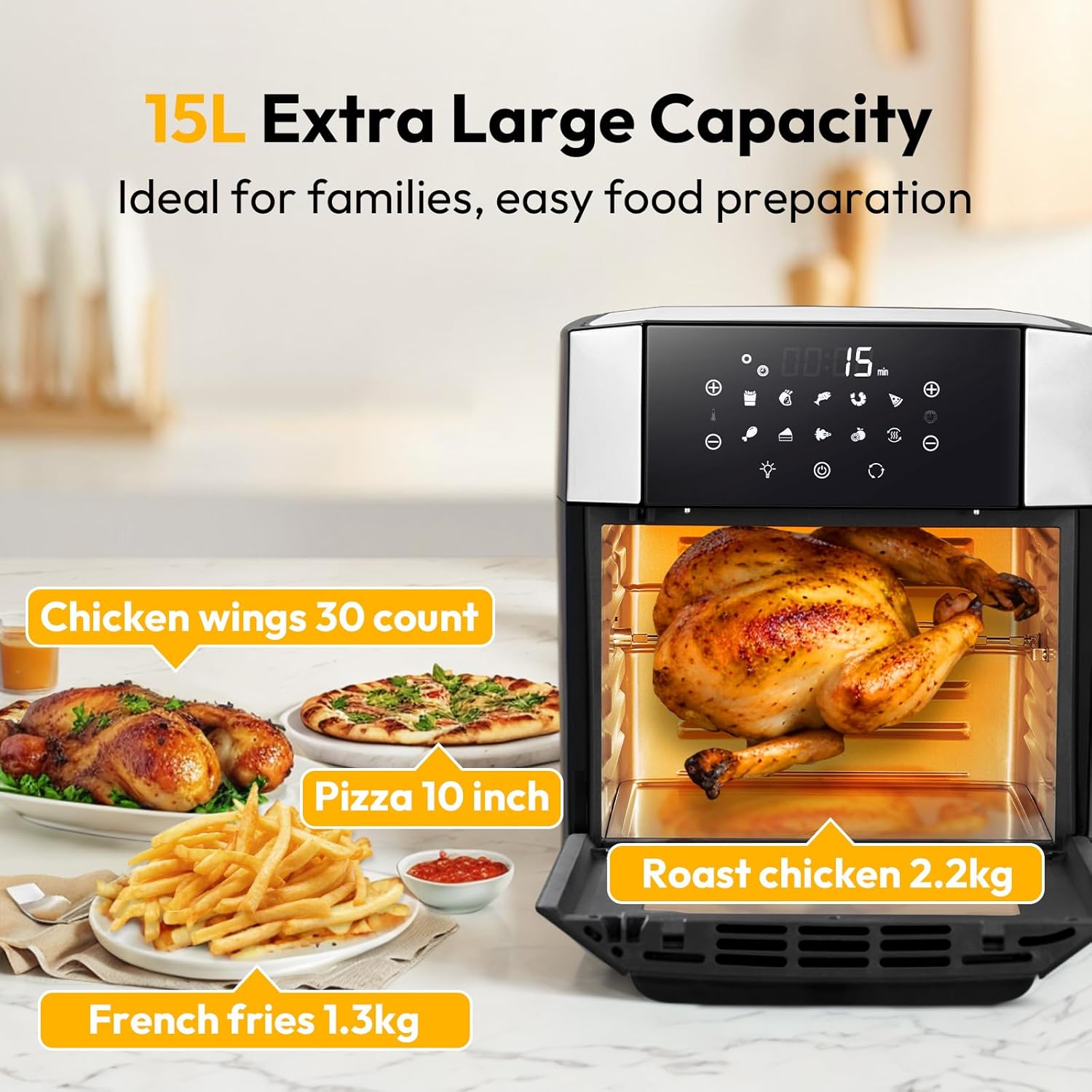

Image 5.3: The 15L capacity demonstrated with a whole roast chicken, french fries, and chicken wings.

1. Prepare Food: Securely attach the food (e.g., whole chicken) to the rotisserie spit using the forks. Ensure it is balanced.
2. Insert Spit: Carefully insert the rotisserie spit into the designated slots inside the oven. Ensure it is properly seated.
3. Set Cooking Parameters: Select a preset (e.g., Roast Chicken) or manually set the desired temperature and time.
4. Activate Rotisserie: Press the Rotisserie button on the control panel to start the rotation.
5. Remove Food: Once cooking is complete, use the rotisserie handle to safely remove the hot spit and food from the oven.

The 360° hot air circulation, combined with the rotisserie, ensures thorough and even cooking.

Image 5.4: Visual representation of the 360° hot air circulation technology, highlighting the 5-coil heating element and 11-blade fan for efficient cooking.

6. Cooking Guide

The LLIVEKIT Air Fryer Oven uses rapid hot air circulation to cook food, resulting in crispy textures with significantly less oil compared to traditional frying methods. Cooking times and temperatures may vary based on food type, quantity, and desired crispness.

6.1 General Tips

• Preheating: For best results, preheat the oven for 3-5 minutes before adding food.
• Oil Usage: While designed for less oil, a light spray or toss with oil can enhance crispiness and flavor for some foods.
• Even Cooking: For smaller items like fries or vegetables, use the rotating frying basket. For items on trays, shake or flip halfway through cooking.
• Do Not Overfill: Avoid overcrowding the oven to ensure proper air circulation and even cooking. Cook in batches if necessary.
• Food Safety: Always ensure food is cooked to safe internal temperatures.

6.2 Common Food Guidelines (Approximate)

Refer to the included recipe book for more detailed cooking instructions and ideas.

7. Cleaning and Maintenance

Regular cleaning ensures optimal performance and extends the lifespan of your LLIVEKIT Air Fryer Oven.

7.1 Cleaning Instructions

1. Unplug and Cool: Always unplug the appliance from the power outlet and allow it to cool completely before cleaning.
2. Exterior: Wipe the exterior with a damp cloth and mild detergent. Do not use abrasive cleaners or scourers.
3. Interior: Wipe the interior walls with a damp cloth. For stubborn food residue, use a non-abrasive sponge with warm, soapy water. Ensure the interior is dry before next use.
4. Detachable Door: The door can be removed for thorough cleaning. Refer to the diagram below for guidance. Wash with warm, soapy water and dry completely before reattaching.

Image 7.1: The removable door feature of the air fryer oven, designed for easy cleaning and access.
5. Accessories: All included accessories are dishwasher-safe. Alternatively, wash them with warm, soapy water, rinse, and dry thoroughly.
6. Crumb Tray: Empty and clean the crumb tray after each use to prevent grease buildup and smoke.

7.2 Storage

Ensure the appliance is clean and completely dry before storing. Store it in a cool, dry place, away from direct sunlight and out of reach of children.

8. Troubleshooting

If you encounter any issues with your LLIVEKIT Air Fryer Oven, please refer to the following common problems and solutions.

If the issue persists after attempting these solutions, please contact LLIVEKIT customer support.

9. Product Specifications

• Model: 15L Air Fryer Oven
• Brand: LLIVEKIT
• Capacity: 15 Litres
• Power: 1800W
• Voltage: 230V (AC)
• Product Dimensions: 35D x 35W x 37H cm
• Material: Stainless Steel
• Special Features: Viewing Window & Oven Light, 360° Hot Air Circulation, Detachable Door, Touchscreen & Digital Display
• Color: Black Silver

10. Warranty and Customer Support

LLIVEKIT products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official LLIVEKIT website.

If you require assistance, have questions about your product, or need to report a defect, please contact LLIVEKIT customer support. Contact details can typically be found on the LLIVEKIT website or on your purchase documentation.
