DELI Mini Heat Gun DC095 User Manual

1. Introduction

Thank you for choosing the DELI Mini Heat Gun DC095. This compact and versatile tool is designed for a variety of crafting, DIY, and light industrial applications. With its dual temperature settings and included nozzles, it provides precise heat for tasks such as shrink wrapping, embossing, resin work, and more. Please read this manual thoroughly before use to ensure safe and optimal operation.

Image 1.1: DELI Mini Heat Gun DC095 and included accessories.

2. Important Safety Instructions

WARNING: Failure to follow these instructions may result in electric shock, fire, or serious personal injury.

• Always wear appropriate personal protective equipment, such as heat-resistant gloves and eye protection.
• Do not touch the metal nozzle or surrounding areas during or immediately after use, as they become extremely hot.
• Ensure adequate ventilation when operating the heat gun to prevent the buildup of fumes.
• Keep the heat gun away from flammable materials, liquids, and gases.
• Never point the heat gun directly at people or animals.
• Do not block the air intake or exhaust vents. Keep them clear of dust and debris.
• Unplug the heat gun from the power outlet when not in use, before cleaning, or before changing accessories.
• Do not use the heat gun in damp or wet conditions.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• The heat gun features built-in overheating protection. If the unit overheats, it will automatically shut off. Allow it to cool down before resuming use.

3. Package Contents

Please check the package to ensure all items are present and undamaged:

• DELI Mini Heat Gun DC095
• Reflector Nozzle
• Flat Nozzle

4. Product Features

• Powerful Performance: 350W motor provides efficient heating.
• Dual Temperature Settings: Offers two heat levels for versatile applications: Low (500℉ / 260℃) and High (842℉ / 450℃).
• Fast Heating: Reaches operating temperature quickly, typically within 1.5 seconds.
• Compact & Lightweight Design: Ergonomic build for comfortable and precise handling, reducing fatigue during extended use.
• Built-in Metal Stand: Allows for hands-free operation and safe cooling.
• Overheating Protection: Integrated safety mechanism to prevent damage from excessive heat.
• Long Power Cable: Equipped with a 6.07 ft (approximately 1.85m) cable for extended reach.
• Versatile Nozzles: Includes a reflector nozzle and a flat nozzle for various tasks.

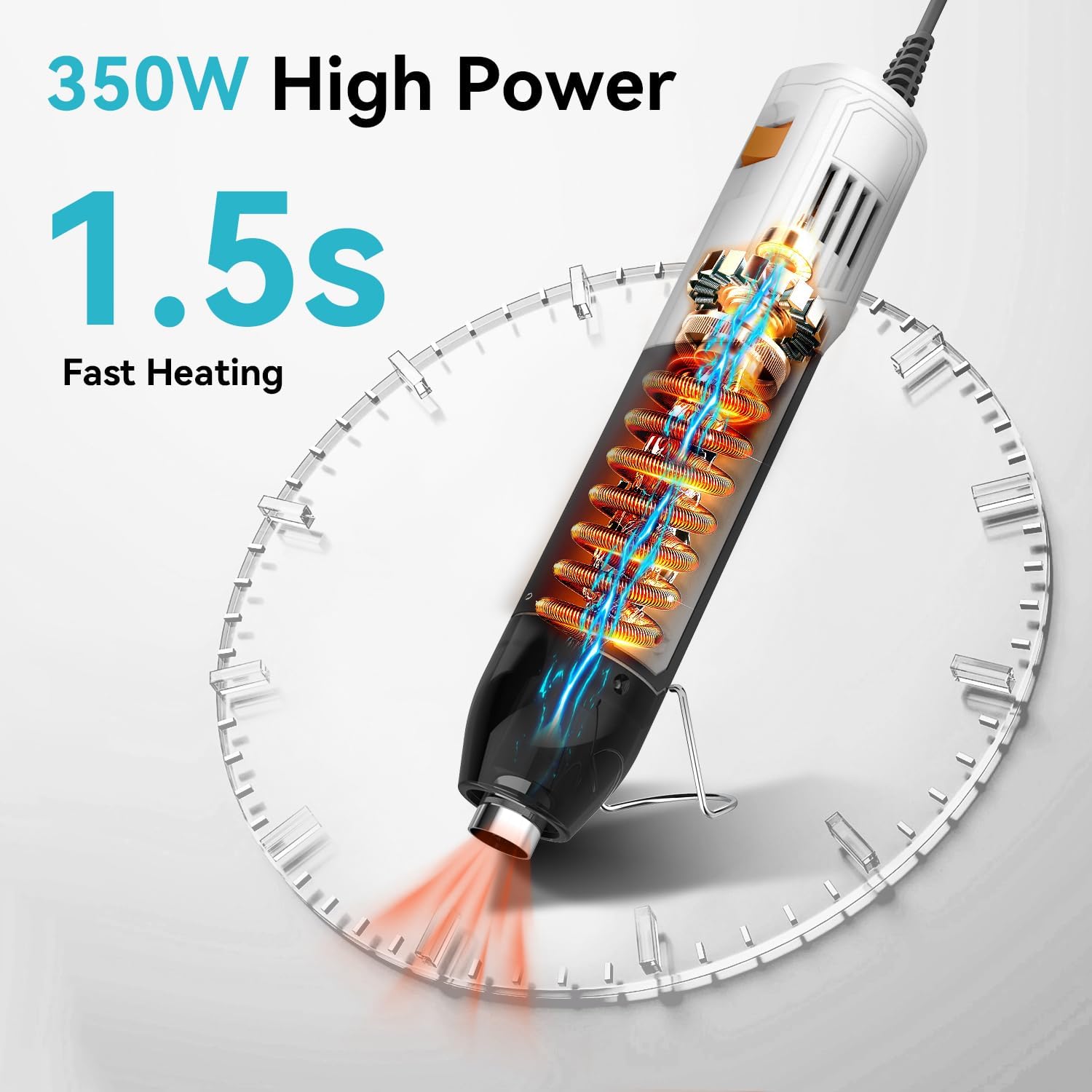

Image 4.1: The 350W heating element provides rapid heat-up.

Image 4.2: Ergonomic design with a comfortable grip and integrated stand for convenience.

5. Setup

1. Unpack the Heat Gun: Carefully remove the heat gun and all accessories from the packaging.
2. Inspect for Damage: Check the heat gun and power cord for any signs of damage. Do not use if damaged.
3. Attach Nozzle (Optional): Select the appropriate nozzle for your task. Align the nozzle with the heat gun's outlet and push it firmly into place. Ensure it is securely attached before use.
4. Position the Heat Gun: Place the heat gun on a stable, heat-resistant surface, or hold it securely. If using the built-in stand, unfold it to support the unit.
5. Connect to Power: Plug the power cord into a standard 110V AC electrical outlet.

6. Operating Instructions

6.1 Powering On and Temperature Selection

1. Ensure the heat gun is plugged into a suitable power source.
2. Locate the power switch on the handle. This switch typically has three positions: OFF, LOW, and HIGH.
3. To turn on the heat gun at the lower temperature setting (500℉ / 260℃), slide the switch to the 'LOW' position.
4. To turn on the heat gun at the higher temperature setting (842℉ / 450℃), slide the switch to the 'HIGH' position.
5. Allow a few seconds for the heat gun to reach the desired temperature.
6. To turn off the heat gun, slide the switch to the 'OFF' position. Always allow the unit to cool down completely before storing.

Image 6.1: The heat gun offers two distinct temperature settings for various tasks.

6.2 Using the Nozzles

The DELI Mini Heat Gun comes with specialized nozzles to direct heat effectively:

• Reflector Nozzle: Ideal for shrink wrapping applications, such as heat shrink tubing or packaging. It helps distribute heat evenly around the object.
• Flat Nozzle: Useful for general heating tasks, such as drying paint, removing stickers, or working with resin. It provides a broader, more focused heat stream.

Image 6.2: Different nozzles for specific heating requirements.

6.3 Common Applications

The DELI Mini Heat Gun is suitable for a wide range of tasks:

• Shrink Wrapping: Use the reflector nozzle to evenly shrink films around objects like soaps, mugs, or electrical connections.
• Craft Embossing: Apply heat to embossing powder on cards or other craft projects to create raised designs.
• Resin Projects: Remove air bubbles from epoxy resin by gently heating the surface.
• Candle Making: Smooth the tops of candles or melt wax for various designs.
• Removing Stickers/Labels: Soften adhesive for easier removal from surfaces.
• Fabric Patches: Activate heat-sensitive adhesives on fabric patches.
• Drying Paint/Ink: Accelerate the drying process for certain paints or inks in art projects.
• Thawing Pipes: Gently apply heat to thaw frozen water pipes (exercise extreme caution and ensure pipes are not under pressure).
• Repairing Electronics: For specific tasks like heat shrinking wire insulation or desoldering components (requires advanced knowledge and caution).

Image 6.3: Examples of versatile applications for the heat gun.

Image 6.4: Removing stickers with gentle heat.

Image 6.5: Applying heat to shrink tubing for electrical insulation.

7. Maintenance

Proper maintenance ensures the longevity and safe operation of your DELI Mini Heat Gun.

• Cleaning: After each use, ensure the heat gun is unplugged and completely cool. Use a soft, dry cloth to wipe down the exterior. Do not use abrasive cleaners or solvents.
• Clear Air Vents: Periodically check the air intake and exhaust vents for dust, lint, or debris. Use a soft brush or compressed air to gently clear any blockages. Blocked vents can lead to overheating.
• Cord Inspection: Regularly inspect the power cord for cuts, fraying, or damage. If the cord is damaged, do not use the heat gun and seek professional repair.
• Storage: Store the heat gun in a dry, cool place, away from direct sunlight and out of reach of children. Ensure the power cord is neatly coiled and not kinked.

8. Troubleshooting

If you encounter issues with your DELI Mini Heat Gun, refer to the following common problems and solutions:

9. Specifications

10. Warranty and Support

10.1 Warranty Information

For detailed warranty information, including coverage period and terms, please refer to the product packaging or the official DELI website. Keep your purchase receipt as proof of purchase for any warranty claims.

10.2 Customer Support

If you have any questions, require technical assistance, or need to report a problem with your DELI Mini Heat Gun, please contact DELI customer service through their official channels. Contact information can typically be found on the product packaging or their website.
