1. Introduction
Thank you for choosing the COSTWAY 24000 BTU Mini Split AC/Heating System. This advanced ductless inverter air conditioner is designed to provide efficient and customizable climate control for your living space. Featuring 22 SEER2 energy efficiency, Wi-Fi connectivity, and a range of operating modes, this system offers superior comfort and convenience. This manual provides essential information for safe installation, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your unit.
2. Safety Information
Please read all safety warnings and instructions carefully before installing or operating the unit. Failure to follow these instructions may result in electric shock, fire, property damage, or personal injury.
- Professional Installation Required: Installation, maintenance, and repair of this appliance must be performed by a qualified and certified HVAC professional. Improper installation can lead to water leakage, electric shock, or fire.
- Ensure the power supply matches the specifications of the unit. Do not use extension cords.
- Do not insert fingers or objects into the air inlet or outlet.
- Keep the area around the outdoor unit clear of obstructions to ensure proper airflow.
- Turn off the power supply before cleaning or performing any maintenance.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
3. Package Contents
Carefully unpack the box and ensure all items are present and undamaged. If any items are missing or damaged, contact your retailer immediately.
- 1 x Outdoor Unit
- 1 x Indoor Unit
- 1 x Communication Wire
- 1 x Copper Connection Pipe
- 1 x Drain Hose
- 1 x Remote Control
- 1 x Wall Sleeve
- 1 x Wall Cover
- 1 x Screw Kit
- 2 x Putty
- 2 x Tape
- 1 x Rubber Pad
- 1 x User Guide
Figure 3.1: Overview of included components.
4. Setup and Installation
The installation of this mini split AC/heating system is complex and requires specialized tools and knowledge. It is mandatory that installation be performed by a professional HVAC installer. Attempting to install the unit yourself may void the warranty and lead to serious damage or injury.
4.1 Site Selection
- Indoor Unit: Choose a location that allows for even air distribution throughout the room, away from direct sunlight or heat sources. Ensure sufficient space around the unit for maintenance.
- Outdoor Unit: Select a well-ventilated area, away from obstacles that could impede airflow. The outdoor unit is designed to operate effectively in extreme temperatures, cooling even at 131°F and heating at -4°F, thanks to its built-in heater.
Figure 4.1: High-performance outdoor unit with built-in heater.
4.2 Installation Steps (Overview for Professional)
- Mounting the indoor unit and wall plate.
- Drilling the wall hole for piping.
- Connecting refrigerant pipes and communication wires.
- Installing the outdoor unit.
- Vacuuming and charging the refrigerant system.
- Performing a leak test and trial run.
5. Operating Instructions
Your COSTWAY mini split system offers multiple ways to control your comfort, including a remote control, a smartphone app, and voice commands.
5.1 Remote Control Operation
The included remote control provides convenient access to all functions. Ensure the remote is pointed towards the indoor unit when operating.
Figure 5.1: Remote control for easy operation.
5.2 Smart APP & Voice Control
The system is Wi-Fi enabled, allowing you to control it remotely via a smartphone app. It also integrates with voice assistants like Alexa and Google Assistant for hands-free operation.
- Download the compatible app (refer to the user guide for specific app name).
- Follow the in-app instructions to connect your unit to your home Wi-Fi network.
- Enable the skill/action for Alexa or Google Assistant and link your account.
- You can now adjust settings, change modes, and monitor the unit from anywhere.
Figure 5.2: Smart APP and Voice Control capabilities.
5.3 Operating Modes and Fan Speeds
The system offers 7 operating modes and 8 fan speeds to customize your comfort.
Figure 5.3: Multifunctional design with various modes and speeds.
- Modes: Auto, Cool, Heat, Dry, Fan, Sleep, ECO.
- Fan Speeds: Auto, Mute, Low, Low-Mid, Mid, Mid-High, High, Turbo.
5.4 Special Features
- Sleep Mode: Optimizes temperature and fan speed for quiet, comfortable sleep, with noise levels below 30 dB.
- 24-Hour Timer: Schedule the unit to turn on or off at specific times.
- I FEEL Function: The remote control has a temperature sensor that allows the unit to adjust the temperature based on the remote's location, providing more precise comfort.
- 4D Auto Swing: Ensures even air distribution throughout the room by automatically adjusting horizontal and vertical louvers.
- Child Lock: Prevents accidental changes to settings.
- Auto Defrost: Prevents ice buildup on the outdoor unit during heating operation in cold climates.
- Memory Function: Remembers your last settings after a power outage.
Figure 5.4: Features for quiet and convenient operation.
6. Maintenance
Regular maintenance ensures the efficiency and longevity of your air conditioning system. Always turn off the power supply to the unit before performing any maintenance.
6.1 High-Temperature Self-Cleaning
The indoor unit features a 133°F high-temperature self-cleaning function to help maintain air quality and prevent mold and bacteria buildup.
- Refer to your remote control or app for instructions on activating the self-clean mode.
- During this cycle, the unit will heat the evaporator coil to a high temperature to sterilize it, then cool it down to remove condensed water and debris.

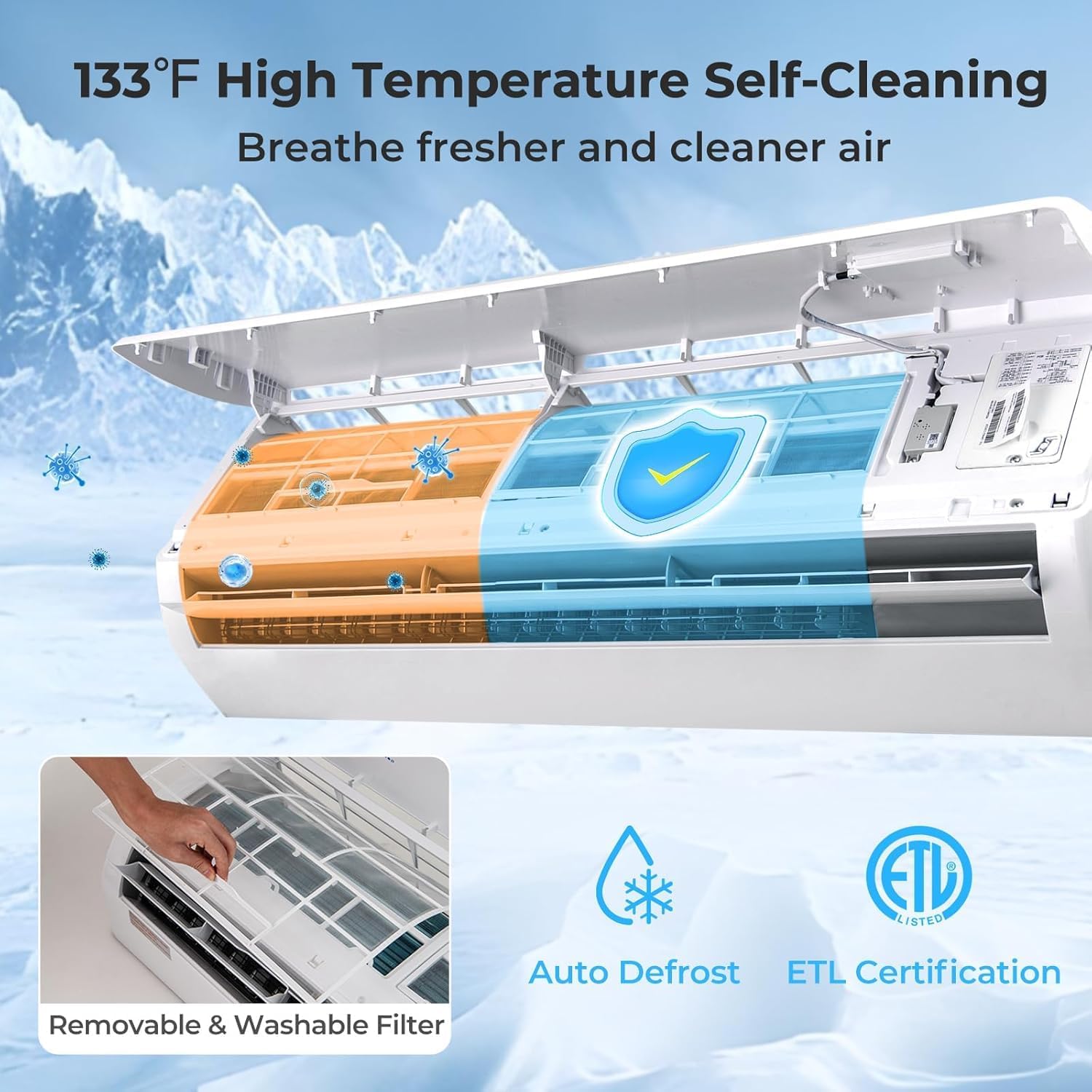

Figure 6.1: Self-cleaning and filter maintenance features.
6.2 Removable & Washable Filter
The air filter should be cleaned regularly (e.g., every 2-4 weeks, depending on usage) to maintain optimal airflow and air quality.
- Open the front panel of the indoor unit.
- Carefully remove the air filters.
- Wash the filters with lukewarm water and a mild detergent. Rinse thoroughly.
- Allow the filters to dry completely in a shaded area before reinserting them. Do not expose to direct sunlight.
- Reinstall the filters and close the front panel.
6.3 General Cleaning
- Wipe the indoor and outdoor units with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Ensure the drain hose is clear of blockages to prevent water leakage.
7. Troubleshooting
If you encounter issues with your unit, refer to the table below for common problems and solutions. If the problem persists, contact a qualified HVAC professional.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on | No power supply; Remote control batteries dead; Timer function active. | Check power breaker; Replace remote batteries; Deactivate timer. |
| Insufficient cooling/heating | Dirty air filter; Obstruction at air inlet/outlet; Room too large; Low refrigerant. | Clean air filter; Remove obstructions; Ensure unit capacity matches room size; Contact professional for refrigerant check. |
| Unusual noise | Loose parts; Fan obstruction; Unit not level. | Check for loose components; Clear fan area; Ensure unit is installed on a level surface. |
| Water leakage from indoor unit | Clogged drain hose; Improper installation angle. | Clear drain hose; Contact professional to check installation. |
| Remote control not working | Batteries dead or incorrectly inserted; Obstruction between remote and unit. | Replace batteries; Ensure clear line of sight to indoor unit. |
8. Specifications
| Feature | Specification |
|---|---|
| Brand | COSTWAY |
| Model Number | 10795US-WH-2-CYFP |
| Cooling Capacity | 24000 BTU |
| SEER2 Rating | 22 |
| Voltage | 208-230V~60Hz/1PH |
| Coverage Area | 1250 sq. ft / 1500 sq. ft / 1750 sq. ft (depending on insulation and climate) |
| Temperature Setting Range | 60℉~90℉ |
| Refrigerant | R410A |
| Indoor Noise Level | <30 dB (Sleep Mode) |
| Outdoor Unit Net Weight | 97 lbs |
| Indoor Unit Net Weight | 36.4 lbs |
| Indoor Unit Size (L x W x H) | 46.9" x 10.2" x 14.2" |
| Outdoor Unit Size (L x W x H) | 33.3" x 15" x 27.5" |
| Special Features | Inverter Compressor, Heating & Cooling Function, 4 Way Swing, Fast Cooling, Auto Clean, Wi-Fi Enabled, Voice Control (Alexa/Google Assistant), I FEEL, Child Lock, Auto Defrost |
9. Warranty and Support
For warranty information, please refer to the warranty card included with your product or contact COSTWAY customer service. Keep your purchase receipt as proof of purchase for any warranty claims.
For technical support, troubleshooting assistance beyond this manual, or to inquire about professional service, please contact COSTWAY customer support through their official website or the contact information provided in your product packaging.
